Technical specifications for CM2201 7400206-100
Manufacturer:
Invensys
Part Number:
CM2201 7400206-100
Product Family:
Triconex
Product Type:
Triconex Communication Module Baseplate Assembly
Stock:
1
Product Dimensions:
25.2 x 23 x 4.2 cm
Weight:
1.35 kg
Tariff Code:
Please confirm the destination before shipping.
Country of origin:
USA
Place of shipment:
Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.
Inspect the connector layout and the installed module positions against the supplied photographs.
Record the complete CM2201 7400206-100 requested identity when matching an existing assembly.
Photographed fitted modules do not by themselves prove the contents of every sale unit.
Confirm whether the offered item includes the pictured modules, baseplate and any mating accessories.
Do not apply a communication module’s port and protocol specifications to the baseplate.
Use exact installation documents for controller compatibility, power and safety requirements.
Exact-assembly replacement planning for an installed Triconex communication hardware position.
Receiving inspection where a photographed baseplate and fitted-module configuration must be matched to the order.
Description

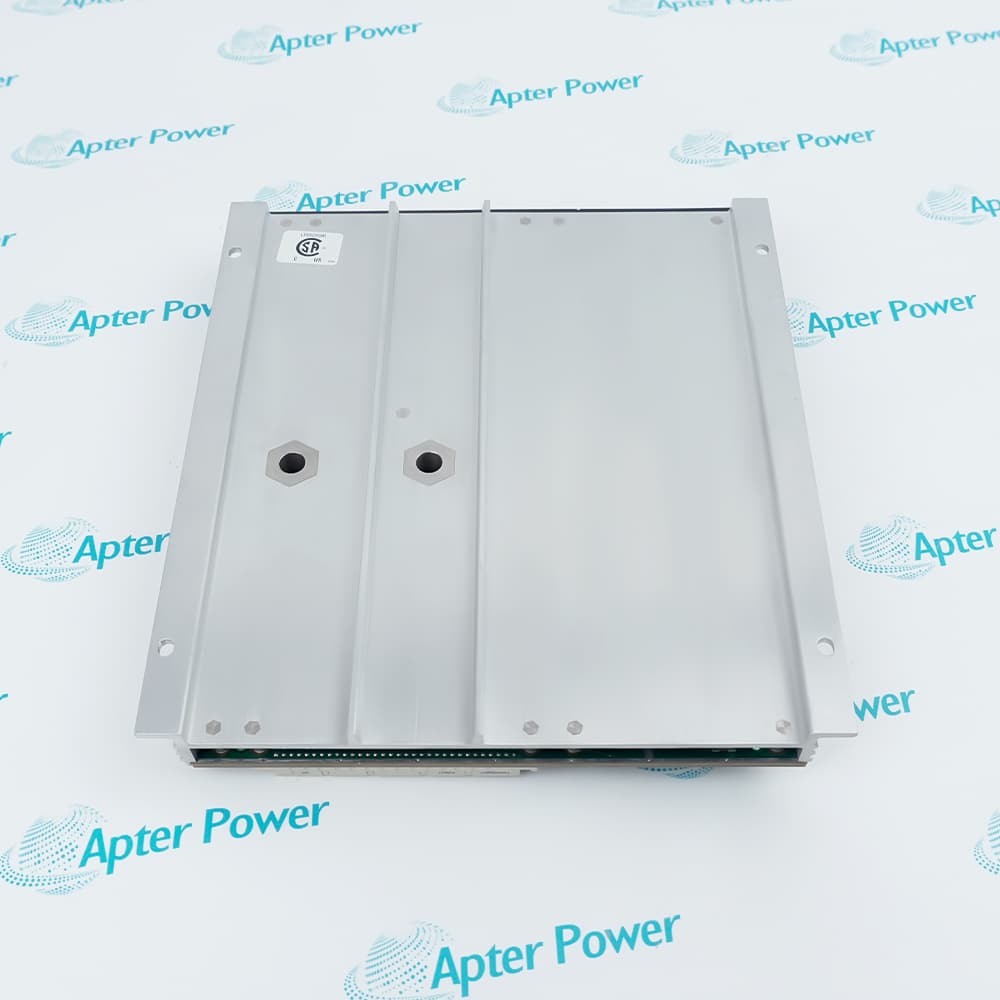

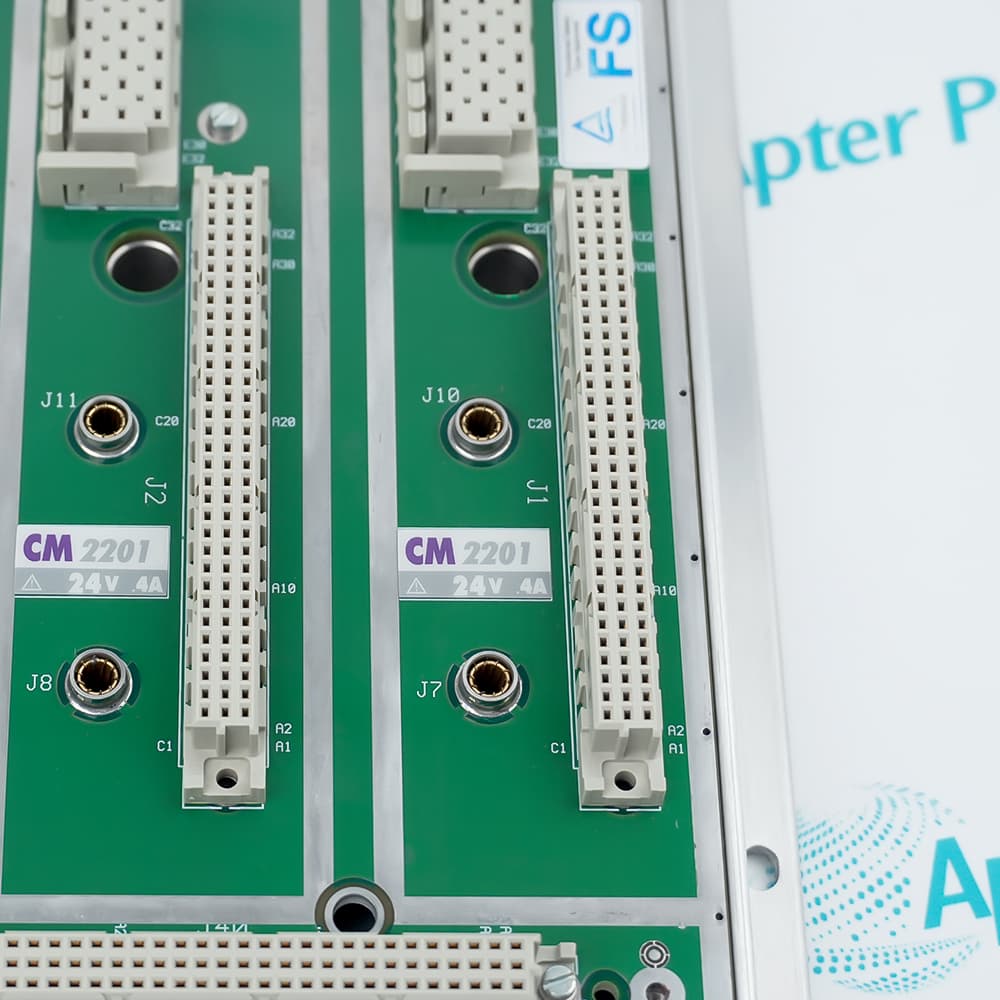

CM2201 7400206-100 is listed as a Triconex communication-module baseplate assembly. The supplied photographs show a populated baseplate and CM2201 markings on the fitted module positions.
The baseplate and fitted communication modules have different hardware roles. This page identifies the requested assembly without assigning a module’s port count, network protocol or electrical ratings to the baseplate itself.
For replacement work, compare the complete CM2201 7400206-100 order identity, the installed connector pattern and the actual included parts. Confirm system compatibility and power requirements from the installed Triconex documentation before installation.
Alternative Names
Triconex CM2201 7400206-100
Technical notes
The user-supplied photo shows a populated baseplate, but it does not establish that every module pictured is included in every order. Do not transfer communication-module port or power specifications to the baseplate assembly.
We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
Trust Guaranteed
Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
Expertise
Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.
FAQS
The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Do the two CM2201 positions in the photograph mean every CM2201 7400206-100 order includes two modules?
No. The photograph shows a populated assembly, not a universal packing list. Confirm the exact included baseplate and module configuration on the quotation before ordering.
Can communication-module specifications be applied directly to the CM2201 7400206-100 baseplate?
No. Confirm module-specific ports and electrical ratings from the corresponding module documentation; this page does not attribute those values to the baseplate.
