GT2-H32

/ 4.9
1001 reviews | Need a Specific Revision?

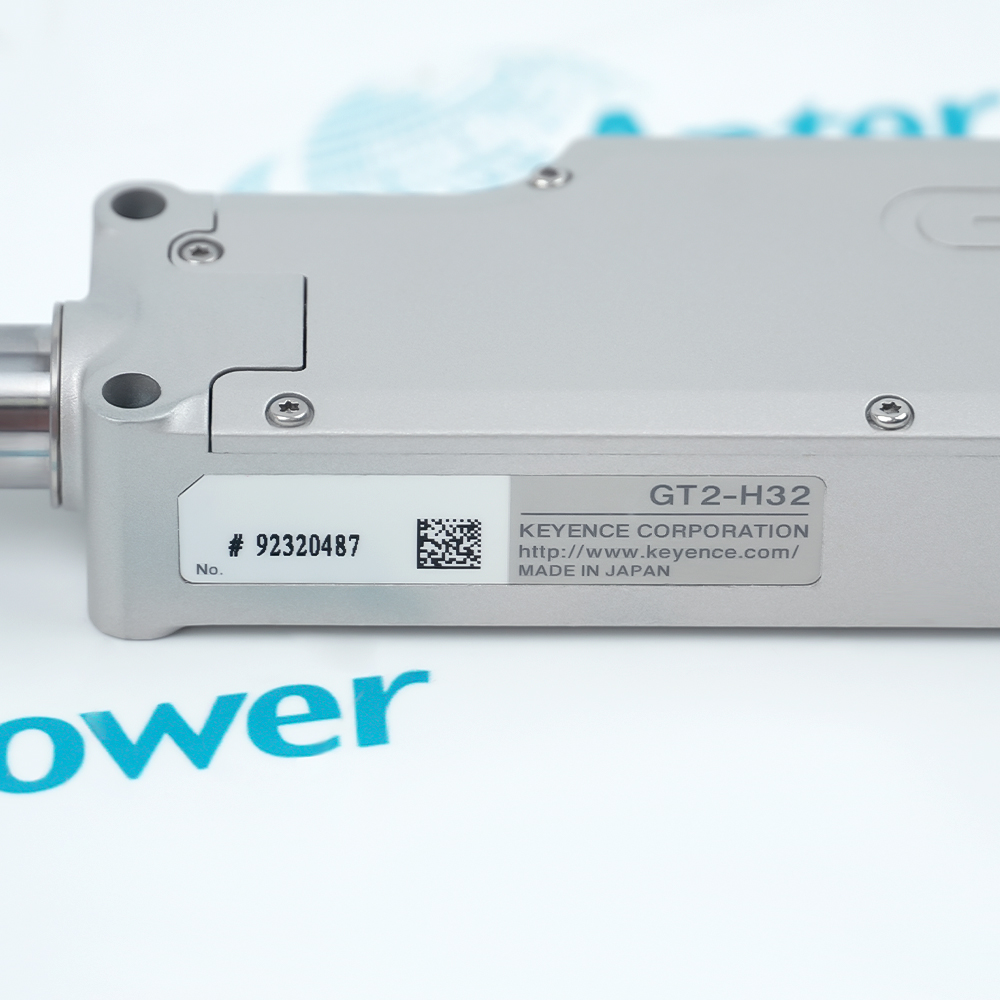

KEYENCE GT2-H32 is a 32 mm high-accuracy digital contact sensor head for dimensional position measurement.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for GT2-H32
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for GT2-H32

  • Manufacturer:
    KEYENCE
  • Part Number:
    GT2-H32
  • Product Family:
    KEYENCE
  • Product Type:
    GT2 Series High-Accuracy Digital Contact Sensor Head
  • Stock:
    1
  • Measuring Range:
    32 mm
  • Detection System:
    Quartz-glass scale with CMOS image-sensor projection; absolute type
  • Resolution:
    0.5 µm
  • Indicated Accuracy:
    3 µm p-p at 20 °C
  • Sampling Cycle:
    1 ms
  • Mechanical Response:
    6 Hz at 20 °C
  • Measuring Force:
    2.1 N downward; 1.8 N side; 1.5 N upward at stroke center
  • Operation Indicator:
    Two-color LED, red and green
  • Enclosure Rating:
    IP67
  • Ambient Temperature:
    -10 to +55 °C, no freezing
  • Relative Humidity:
    35–85% RH, no condensation
  • Head Connection:
    Optional cable through M8 connector
  • Weight:
    0.595 lbs (0.27 kg)
  • Estimated shipping dimensions:
    19.7x3.7x1.9cm
  • Tariff Code:
    9031809090
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Measurement Setup Probe Mechanics Signal Timing Environment

Features:

  • 32 mm absolute contact-measurement stroke
  • Quartz-glass scale with 0.5 µm resolution
  • IP67 sensor head with M8 cable connection
KEYENCE GT2-H32 converts probe travel into absolute digital position data for a connected GT2 amplifier.

A CMOS projection system reads the internal quartz-glass scale, so GT2-H32 does not depend on incremental count tracking.

Mounting direction determines the probe force on GT2-H32, while its red/green LED shows the operating condition at the head.

The KEYENCE GT2-H32 High-Accuracy Digital Contact Sensor Head may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
KEYENCE GT2-H32 High-Accuracy Digital Contact Sensor Head Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Measurement Setup

  • Stroke: GT2-H32 covers 32 mm of contact travel.
  • Resolution: Position changes are reported in 0.5 µm increments.
  • Accuracy Condition: The 3 µm p-p indicated accuracy is specified at 20 °C.

Probe Mechanics

  • Downward Mounting: GT2-H32 applies 2.1 N at the center of its stroke.
  • Side Mounting: The center-stroke force changes to 1.8 N.
  • Upward Mounting: The documented center-stroke force is 1.5 N.

Signal Timing

  • Sampling: GT2-H32 updates the measured value every 1 ms.
  • Mechanical Response: The probe mechanism is rated for 6 Hz at 20 °C.
  • Status LED: A red/green indicator reports the head operating state.

Environment

  • Protection: The GT2-H32 head carries an IP67 enclosure rating.
  • Temperature: Operation is specified from -10 to +55 °C without freezing.
  • Humidity: The allowable range is 35–85% RH without condensation.
Description
KEYENCE GT2-H32 is a GT2-series high-accuracy digital contact sensor head that converts probe displacement into absolute position data for a connected amplifier.

Inside GT2-H32, a quartz-glass scale and CMOS projection system track the contact movement without incremental tracking error, while the 32 mm stroke is resolved in 0.5 micrometre steps.

Mechanical contact force on GT2-H32 changes with mounting direction, and its red/green indicator reports operating state at the sensor head. The M8 connection accepts the separately selected head cable, while the IP67 enclosure protects the sensing assembly.
Alternative Names
KEYENCE GT2-H32 Sensor Head GT2-H32 Digital Contact Sensor GT2 H32 Contact Measurement Head KEYENCE GT2 32 mm Sensor GT2-H32 Absolute Contact Probe GT2 Series GT2-H32 Head GT2-H32 High-Accuracy Sensor KEYENCE GT2-H32 Position Sensor
Technical notes
KEYENCE GT2-H32 uses an absolute quartz-glass scale and CMOS projection system across a 32 mm measuring range. Select the head cable separately for its M8 connector.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
When KEYENCE GT2-H32 is mounted downward, sideways, or upward, which measuring force should be used?
For KEYENCE GT2-H32, use 2.1 N downward, 1.8 N sideways, or 1.5 N upward at the stroke center; dust-boot installation also affects force.
Why can KEYENCE GT2-H32 report position without incremental tracking error?
Inside KEYENCE GT2-H32, a CMOS projection system reads the absolute pattern on a quartz-glass scale, so position is not accumulated from incremental pulses.
Before connecting KEYENCE GT2-H32, what cable decision must be confirmed?
The KEYENCE GT2-H32 sensor head terminates at an M8 connector and requires the separately selected head cable; cable length and routing belong to that connection choice.
How should the 1 ms sampling cycle and 6 Hz mechanical response of KEYENCE GT2-H32 be interpreted?
KEYENCE GT2-H32 samples position every 1 ms, while its mechanical probe response is rated at 6 Hz at 20 °C; these limits describe different parts of the measurement chain.
Which boundaries matter before relying on the IP67 rating of KEYENCE GT2-H32?
KEYENCE GT2-H32 carries IP67 at the sensor head and is specified for -10 to +55 °C without freezing and 35–85% RH without condensation.
