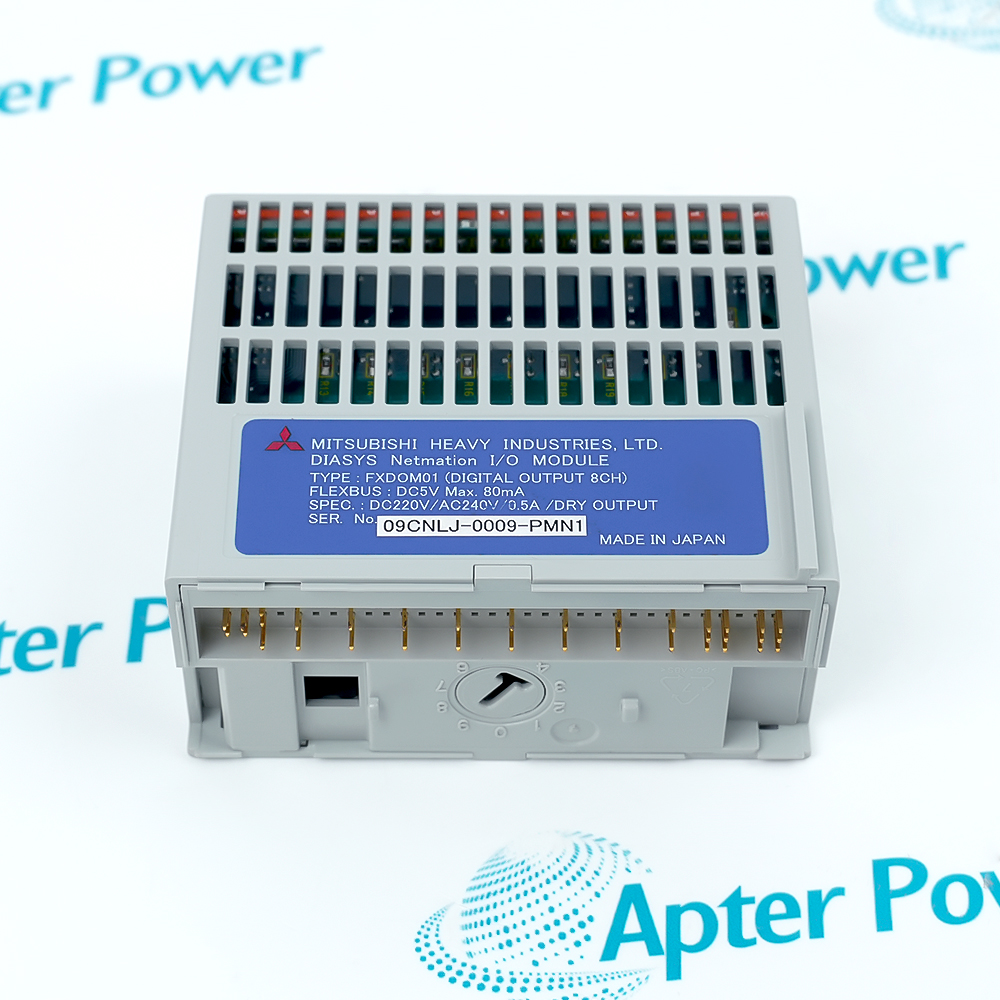

Mitsubishi FXDOM01 is an eight-channel isolated digital output module for FLEX I/O and ControlNet-based drive-control systems. Each PhotoMOS output switches AC or DC loads while remaining individually optically isolated.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for FXDOM01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for FXDOM01

  • Manufacturer:
    Mitsubishi
  • Part Number:
    FXDOM01
  • Product Family:
    Mitsubishi Electric Power Products FLEX I/O Module
  • Product Type:
    Digital Output Module
  • Stock:
    1
  • Output channels:
    8
  • Output technology:
    PhotoMOS MOSFET, normally open
  • Isolation:
    Individual optical isolation
  • Channel load current:
    0.5 A maximum
  • TB3 operating class:
    120 V DC/AC
  • TBN operating class:
    220 V DC / 230 V AC
  • Off-state leakage:
    10 µA maximum
  • On resistance:
    3.2 Ω maximum
  • Module supply:
    24 V DC ±10%
  • Module supply current:
    Less than 40 mA
  • FLEX bus supply:
    5 V DC, less than 80 mA
  • Output state indication:
    8 yellow LEDs
  • Module status indication:
    Normal/abnormal LED
  • Dielectric strength:
    1500 V AC for 1 minute
  • Operating temperature:
    0 to 55 °C
  • Storage temperature:
    -10 to 70 °C
  • Operating humidity:
    35 to 95% RH, non-condensing
  • Shock resistance:
    15 g
  • Vibration resistance:
    2 g from 10 to 500 Hz
  • Compatible bases:
    1794-TB3, 1794-TB3S, 1794-TBN, 1794-TBNF
  • Estimated shipping dimensions:
    75 x 46 x 94 mm
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Interoperability Protection Operating Environment

Features:

  • Switches eight individually isolated field circuits through solid-state PhotoMOS contacts.
  • Supports different AC/DC voltage classes according to the selected FLEX terminal base.
  • Turns outputs off under watchdog, low-supply or bus-timeout supervision conditions.
This execution is an eight-point isolated output module rather than a conventional commoned relay card.

It delivers on/off commands to field devices while insulating each channel from neighbouring circuits.

Terminal-base type, field voltage and load category must be confirmed together before inserting the replacement module.

Apter Power can review sourcing, documentation and system matching for FXDOM01.
Verified resources for Mitsubishi FXDOM01: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Drive auxiliaries can be commanded where independent isolation is required between eight output circuits.
  • Test stands use the solid-state channels for frequent switching without mechanical contact wear.
  • ControlNet-linked FLEX stations can operate valves, contactors or indication loads within the documented voltage and current limits.
  • The module mounts on the designated FLEX I/O bases used by the Mitsubishi drive-control platform.
  • A TB3 or TB3S base is used for the 120 V class, while TBN variants support the higher field-voltage class.
  • Existing rack, keying and controller configuration must identify the card as an eight-point digital output module.
  • Watchdog supervision removes field commands after a bus timeout or inadequate module supply.
  • Each output is isolated so a channel fault does not directly share its field potential with another channel.
  • External branch protection remains necessary because the module is not a substitute for load-circuit overcurrent devices.
  • The rated operating range is 0 to 55 °C at 35 to 95 percent non-condensing humidity.
  • The assembly is qualified for 15 g shock and 2 g vibration in its installed configuration.
  • Cabinet design must keep the module dry and within the stated storage and operating limits.
Description

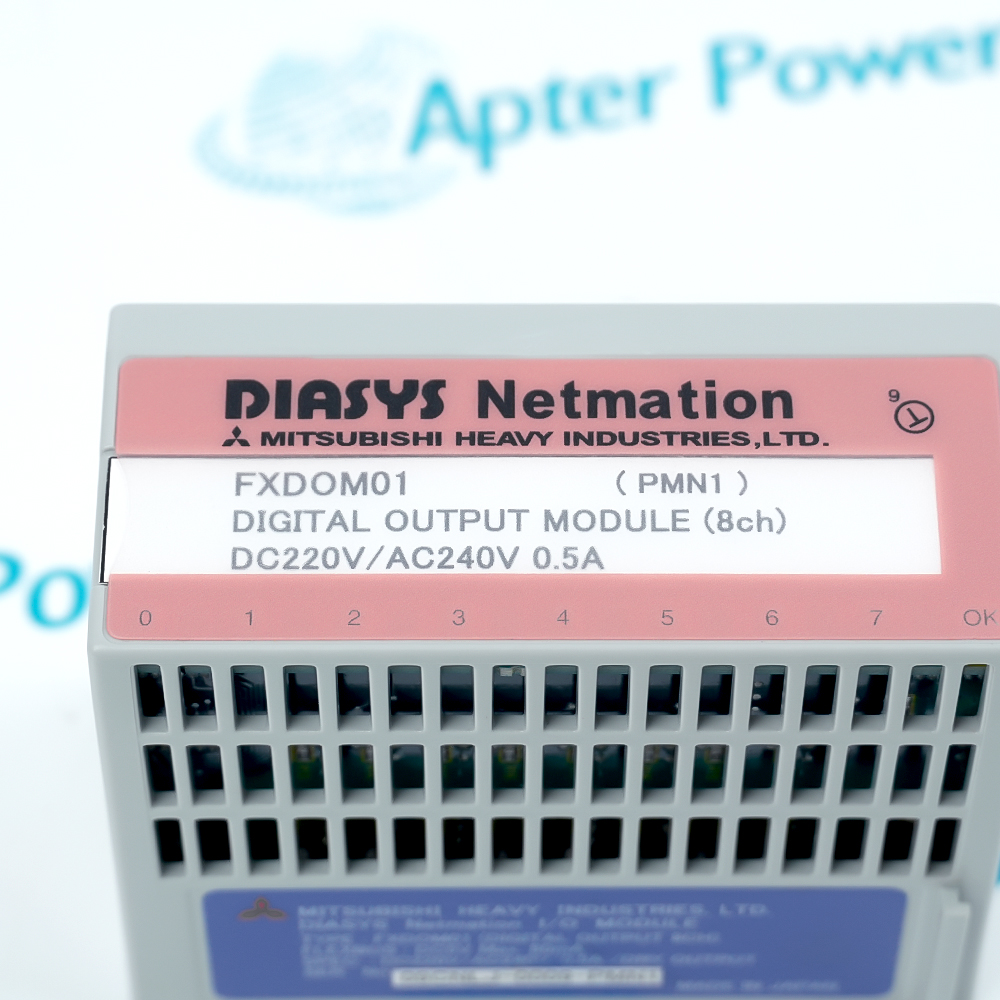

FXDOM01 provides eight normally open solid-state outputs with individual isolation and a dedicated yellow state LED for every channel. The module supports 120 V class operation with a TB3 base or 230 V class operation when paired with the specified TBN base.

PhotoMOS switching gives the module a low leakage path and avoids mechanical relay wear in repeated command service. A watchdog forces outputs off when supply or bus supervision detects a condition that prevents reliable control.

The selected terminal base determines the permissible field-voltage class, so the existing TB3, TB3S, TBN or TBNF base must be verified before exchange. Field circuits also require protection sized for the connected load and the 0.5 A channel rating.
Alternative Names
FXDOM01 Mitsubishi FXDOM01 FXDOM 01 FX-DOM01 MELCO FXDOM01 FXDOM01 Digital Output Module FXDOM01 FLEX I/O Module Mitsubishi FXDOM01 PhotoMOS Module
Technical notes
FXDOM01 must be matched to the installed terminal base; using a 230 V field circuit with a TB3 execution is unsafe.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which terminal base controls the voltage class for Mitsubishi FXDOM01?
Use 1794-TB3 or TB3S for the 120 V class and the documented TBN variants for the 220/230 V class.
What switching element is used inside Mitsubishi FXDOM01?
Each normally open channel uses a PhotoMOS solid-state output with individual optical isolation.
Why is Mitsubishi FXDOM01 suitable for repeated machine commands?
Its MOSFET outputs avoid mechanical contact wear while maintaining low off-state leakage.
What happens to Mitsubishi FXDOM01 outputs during a bus timeout?
Watchdog supervision forces the outputs off rather than retaining an uncontrolled command.
Which checks are essential before installing Mitsubishi FXDOM01?
Verify the terminal base, field-voltage class, load current, keying and control-system configuration.
What information helps confirm a Mitsubishi FXDOM01 quotation?
Provide the base catalog number, field voltage, load type, controller system and destination in addition to FXDOM01.
