        QUINT-PS-100-240AC/24DC/10 2938604 product view 1

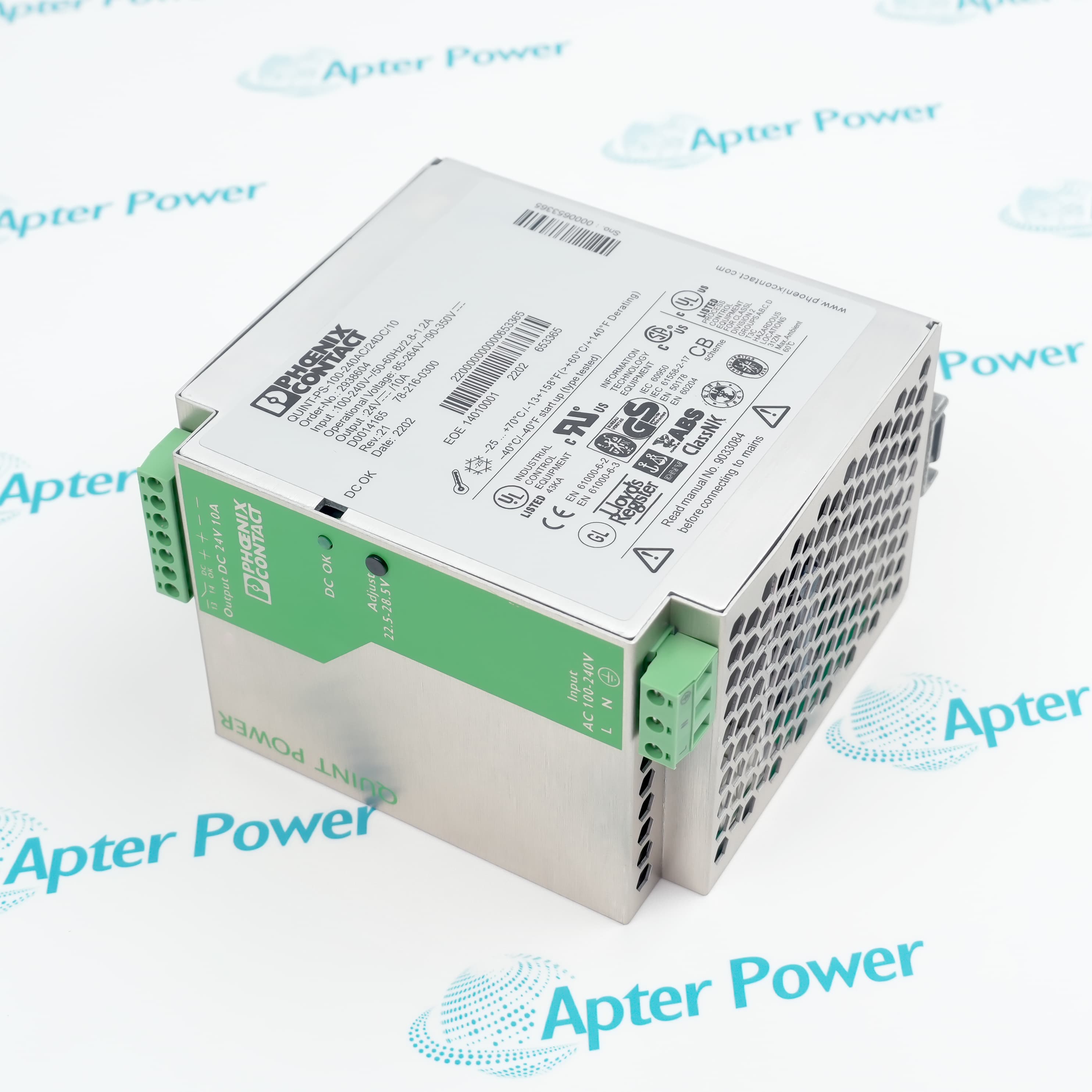

        QUINT-PS-100-240AC/24DC/10 2938604 product view 2
        QUINT-PS-100-240AC/24DC/10 2938604 product view 3

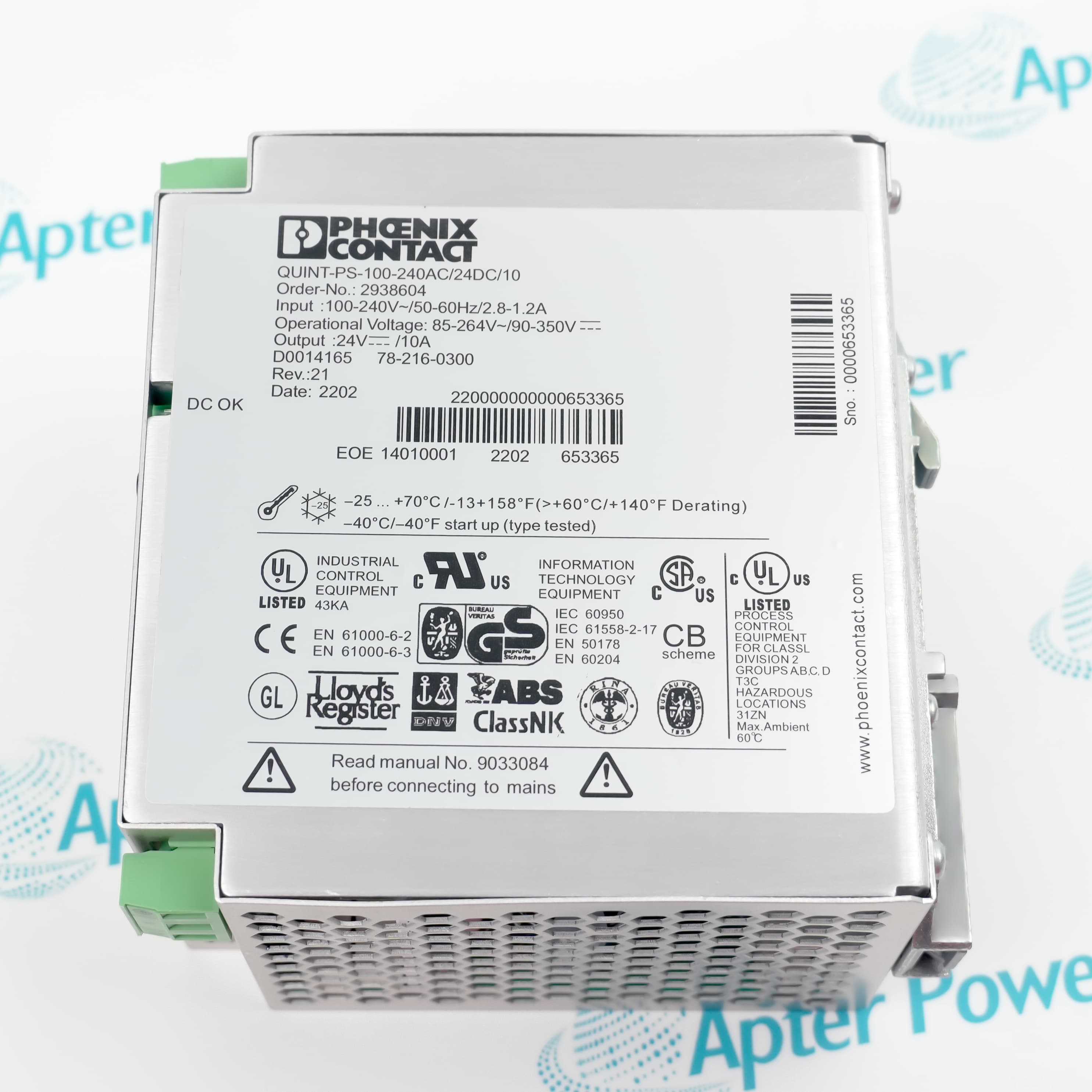

        QUINT-PS-100-240AC/24DC/10 2938604 product label
        QUINT-PS-100-240AC/24DC/10 2938604 product view 1
        QUINT-PS-100-240AC/24DC/10 2938604 product view 2
        QUINT-PS-100-240AC/24DC/10 2938604 product view 3
        QUINT-PS-100-240AC/24DC/10 2938604 product label
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Active / Available from OEM

          Apter Power coordinates model verification, condition review, quotation, and shipment planning before supply.

        QUINT-PS-100-240AC/24DC/10 2938604

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        Phoenix Contact QUINT-PS-100-240AC/24DC/10 2938604 is a single-phase DIN-rail power supply delivering 24 V DC at 10 A with POWER BOOST for high-inrush loads.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for QUINT-PS-100-240AC/24DC/10 2938604
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for QUINT-PS-100-240AC/24DC/10 2938604

        • Manufacturer:
          Phoenix Contact
        • Part Number:
          QUINT-PS-100-240AC/24DC/10 2938604
        • Product Family:
          Phoenix Contact
        • Product Type:
          Power Supply Unit
        • Stock:
          1
        • Nominal Output Voltage:
          24 V DC ±1%
        • Nominal Output Current:
          10 A up to 60 °C
        • Output Power:
          240 W
        • POWER BOOST:
          15 A
        • Output Adjustment Range:
          22.5–28.5 V DC
        • Input Operating Range:
          85–264 V AC / 90–350 V DC
        • AC Frequency Range:
          45–65 Hz
        • Mains Buffering Time:
          >50 ms at 120 V AC or 230 V AC
        • Efficiency:
          >91%
        • Residual Ripple:
          <60 mVPP at nominal values
        • Parallel Connection:
          Yes, for redundancy and increased capacity
        • Series Connection:
          Yes
        • Connection Method:
          Pluggable screw connection
        • Conductor Range:
          0.2–2.5 mm² / AWG 24–12
        • Mounting:
          Horizontal DIN rail NS 35, EN 60715
        • Horizontal / Vertical Spacing:
          0 mm / 50 mm
        • Degree of Protection:
          IP20
        • Operating Temperature:
          -25 to +70 °C; derating above 60 °C
        • Protection Class:
          I, with PE connection
        • MTBF:
          >500,000 h per IEC 61709 / SN 29500
        • GTIN:
          4017918890537
        • Weight:
          1.3 kg
        • Estimated shipping dimensions:
          8.5 × 13 × 12.5 cm
        • Tariff Code:
          85044030
        • Country of origin:
          Thailand
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Power Reserve DC OK Signals Panel Integration Product Applications

        Features:

        • Multiple output terminals: Two positive and two negative terminals support direct 24 V DC distribution.
        • Metal DIN-rail housing: The AluNox enclosure is 85 mm wide in the standard mounting arrangement.
        • Documented MTBF: The published value exceeds 500,000 hours under IEC 61709 / SN 29500.
        The QUINT-PS-100-240AC/24DC/10 2938604 is a primary-switched, single-phase QUINT POWER unit for 24 V DC control circuits in plant and special engineering.

        Maximum no-load dissipation is below 2 W, and the published output rise time is under 2 ms from 10% to 90% of output voltage.

        Input-to-output insulation is rated at 4 kV AC for the type test and 2 kV AC for the routine test, while output-to-PE routine insulation is 500 V DC.

        Apter Power can review the official documentation for QUINT-PS-100-240AC/24DC/10 2938604, coordinate quotations, and support procurement planning.
        Phoenix Contact QUINT-PS-100-240AC/24DC/10 2938604 Power Supply Unit Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • QUINT-PS-100-240AC/24DC/10 2938604 provides a 15 A POWER BOOST for loads with elevated starting current.
        • Its adjustable 22.5–28.5 V DC output supports voltage-drop compensation within the published range.
        • The 240 W nominal output operates at more than 91% efficiency under the stated conditions.
        • Active current limitation is approximately 15 A during a short circuit, adding a defined boundary for fault-current behavior.
        • QUINT-PS-100-240AC/24DC/10 2938604 uses a green DC OK LED for local output-voltage status.
        • The LED flashes when output voltage falls below 0.9 times the nominal value.
        • The active DC OK output presents a high signal when output exceeds 0.9 times nominal voltage.
        • A floating relay contact closes above the same threshold and is rated for up to 30 V AC/DC and 1 A continuous current.
        • QUINT-PS-100-240AC/24DC/10 2938604 uses pluggable screw connections on both input and output circuits.
        • Rigid or flexible conductors from 0.2 to 2.5 mm² are supported, equivalent to AWG 24–12.
        • The published terminal tightening range is 0.5–0.6 Nm with a 7 mm stripping length.
        • Horizontal NS 35 DIN-rail mounting permits zero side spacing and requires 50 mm vertical clearance.
        • QUINT-PS-100-240AC/24DC/10 2938604 provides regulated 24 V DC control power in plant and special-engineering systems.
        • POWER BOOST supports industrial loads that present high inrush current during startup.
        • Active and relay-based DC OK outputs serve control cabinets that require local and remote power-status supervision.
        • Approved parallel operation supports architectures designed for redundant supply or increased output capacity.
        Description
        QUINT-PS-100-240AC/24DC/10 2938604 belongs to Phoenix Contact's QUINT POWER range for plant and special engineering. Its wide AC/DC input architecture lets one control-power design accommodate varied supply environments without changing the basic unit.

        More than 50 ms of mains buffering at either 120 V AC or 230 V AC gives QUINT-PS-100-240AC/24DC/10 2938604 additional ride-through time during brief input disturbances. This interval adds built-in continuity margin for downstream control electronics during short input events.

        Approved parallel and series arrangements give QUINT-PS-100-240AC/24DC/10 2938604 two distinct expansion paths. Panel designers can build for redundant supply or increased capacity through parallel operation, while series connection remains available when the required DC architecture calls for it.
        Alternative Names
        QUINT-PS-100-240AC/24DC/10 Phoenix Contact 2938604
        Technical notes
        QUINT-PS-100-240AC/24DC/10 2938604 supplies its nominal 10 A only up to 60 °C; from 60 °C to 70 °C, Phoenix Contact specifies 2.5%/K derating. This thermal boundary reduces usable cabinet current at elevated ambient temperatures, so enclosure sizing must use the derated output rather than the 10 A nameplate value.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Is QUINT-PS-100-240AC/24DC/10 2938604 suitable for a cabinet where condensation can occur?
        No. The published humidity limit is 95% at 25 °C under non-condensing conditions, the enclosure is IP20, and the unit has no protective coating. A location where condensation can form is outside those stated environmental conditions.
        What heat loss should a panel designer allow for around QUINT-PS-100-240AC/24DC/10 2938604?
        Use less than 24 W as the published maximum power loss at nominal load; no-load dissipation is below 2 W. Those values belong in the enclosure thermal balance before surrounding equipment and site ambient conditions are evaluated.
        What upstream protection should be planned for QUINT-PS-100-240AC/24DC/10 2938604?
        For AC input, Phoenix Contact recommends a 10–16 A circuit breaker with B, C, D, or K characteristic; the unit also contains a 6.3 A slow-blow internal fuse. A DC backup feed requires a suitable upstream fuse rather than relying only on the internal protection.
        Can QUINT-PS-100-240AC/24DC/10 2938604 hold a stable output when a control load changes sharply?
        The published control deviation is below 1% for a static 10–90% load change and below 2% for a dynamic 10–90% change. These limits provide the design reference for deciding whether a sensitive downstream load needs additional local conditioning.
        What vibration profile supports using QUINT-PS-100-240AC/24DC/10 2938604 in a machine cabinet?
        Phoenix Contact specifies ±2.5 mm amplitude below 15 Hz and 2.3g from 15–150 Hz for 90 minutes. The installed cabinet still needs its own system-level assessment because the product test profile does not qualify every mounting structure or machine vibration spectrum.
        Which extra-low-voltage requirements apply when QUINT-PS-100-240AC/24DC/10 2938604 feeds a machine-control circuit?
        The published safety data identifies EN 62368-1 for SELV, EN 60204 for PELV, and DIN VDE 0100-410 for safe isolation. The applicable circuit category must be established at system level before those product-level statements are used in a compliance decision.
