QUINT-PS/1AC/24DC/10 2866763

/ 4.9
1001 reviews | Need a Specific Revision?

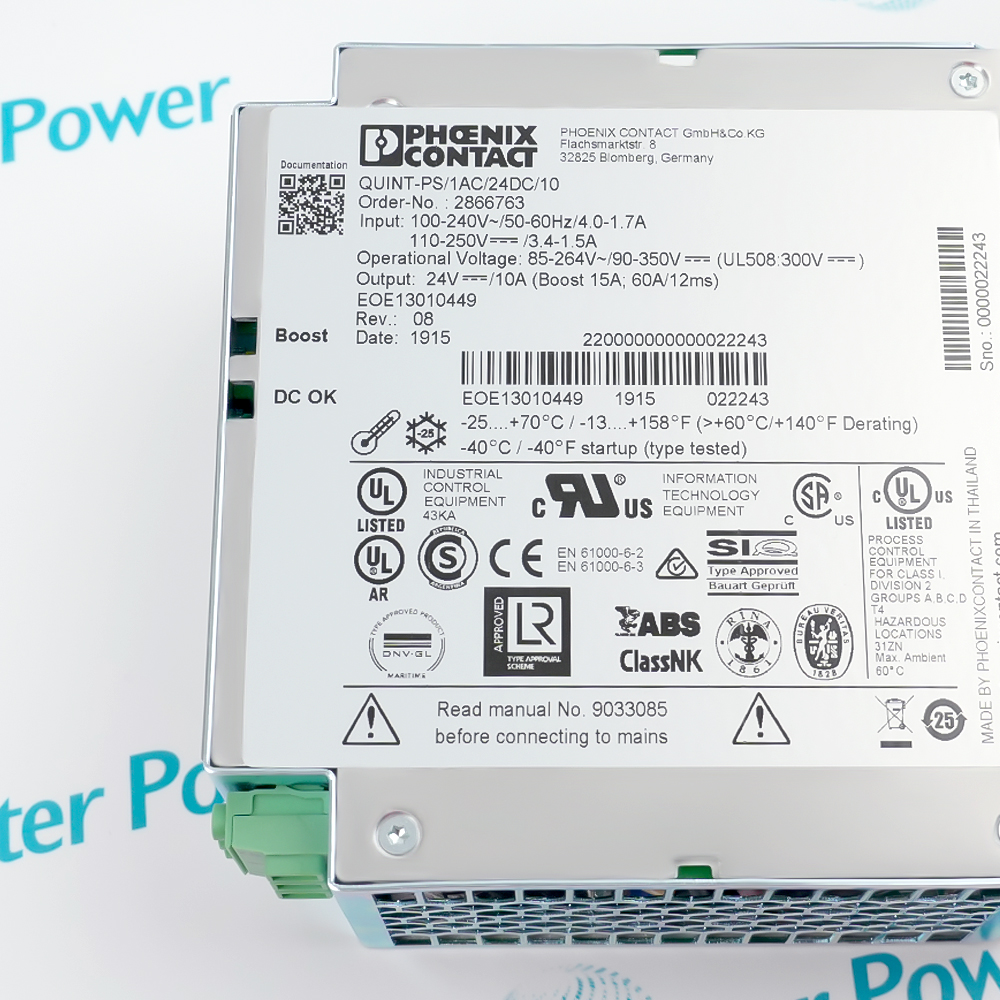

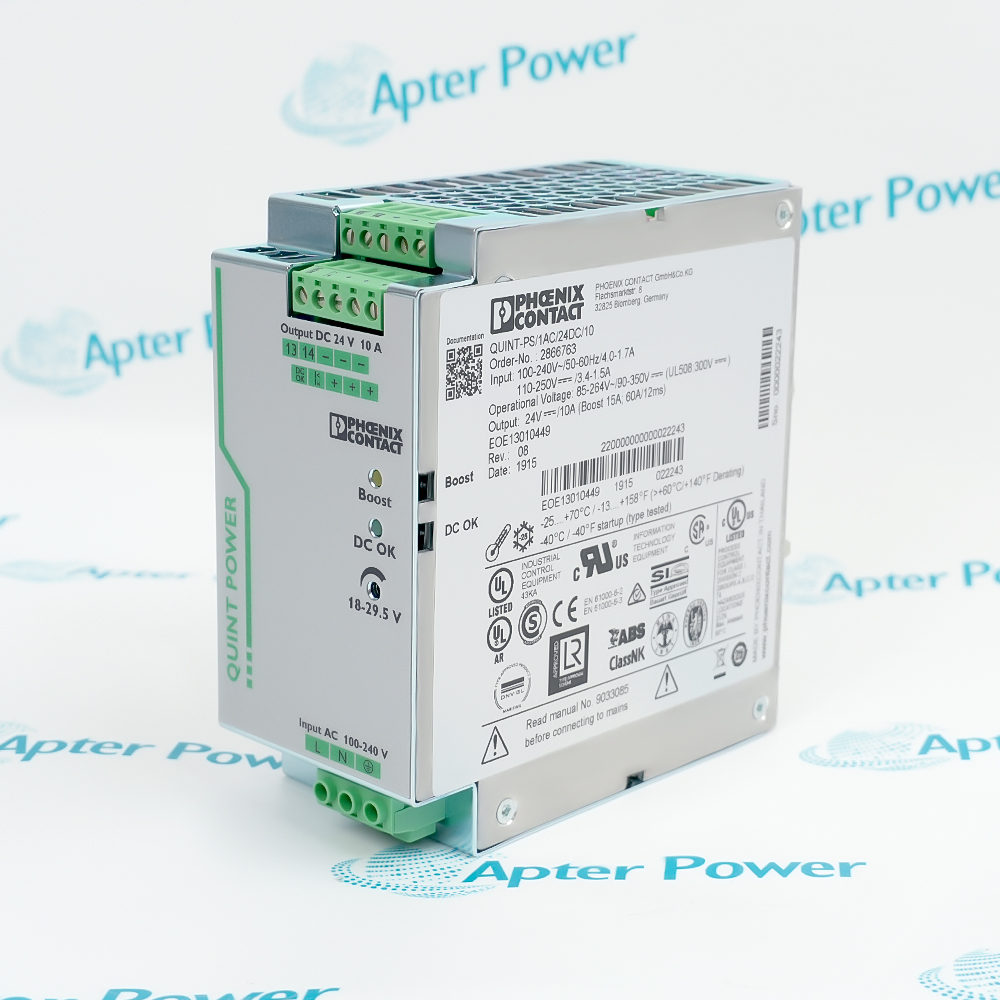

Phoenix Contact QUINT-PS/1AC/24DC/10 2866763 is a single-phase DIN-rail QUINT POWER supply delivering regulated 24 V DC for industrial control circuits.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for QUINT-PS/1AC/24DC/10 2866763
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for QUINT-PS/1AC/24DC/10 2866763

  • Manufacturer:
    Phoenix Contact
  • Part Number:
    QUINT-PS/1AC/24DC/10 2866763
  • Product Family:
    Phoenix Contact
  • Product Type:
    Power Supply
  • Stock:
    1
  • Input Voltage (AC):
    85 – 264 V AC (nominal 100-240V AC, -15%/+10%)
  • Input Voltage (DC):
    110 – 350 V DC (typ. 90 V DC)
  • Nominal Output Voltage:
    24 V DC ±1%
  • Output Current (Nominal):
    10 A (up to 60°C)
  • Output Power:
    240 W
  • POWER BOOST (Static):
    15 A permanent (-25°C to 40°C)
  • SFB Technology (Dynamic):
    60 A for 12 ms
  • Output Voltage Adjustment:
    18 – 29.5 V DC
  • Weight:
    1.145 kg
  • Estimated shipping dimensions:
    6 x 13 x 12.5 cm
  • Tariff Code:
    85044095
  • Country of origin:
    Thailand
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Installation Status Signals Power Setup Product Applications

Features:

  • Selective fault clearing: SFB reserve supplies a brief current pulse for coordinated downstream protection.
  • POWER BOOST headroom: Added output capacity supports suitable starting loads within its stated conditions.
  • Supply indication: DC OK and BOOST signals provide separate information about output and load state.
The primary-switched QUINT POWER unit accepts a single-phase AC feed or a permitted DC feed for a regulated control supply.

Its short-duration fault current can operate compatible downstream breakers when the branch protection has been selected for that purpose.

DIN-rail mounting, screw connections and status terminals make cabinet layout and control-system feedback part of the selection decision.

Apter Power can provide quotations, technical documentation and sourcing support for the Phoenix Contact QUINT-PS/1AC/24DC/10 2866763 Power Supply.
Phoenix Contact QUINT-PS/1AC/24DC/10 2866763 Power Supply Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • DIN-rail fit: The NS 35 mounting arrangement lets the unit be planned within a standard 35 mm control-cabinet rail layout.
  • Ventilation space: Phoenix Contact specifies load-dependent spacing, so the panel layout should preserve the clearances applicable to its actual loading.
  • Screw terminals: Documented conductor sizes and tightening torque guide selection of the installed input, output and signal wiring.
  • Enclosure boundary: The metal housing has IP20 protection; cabinet protection must address any exposure beyond that rating.
  • Active DC OK: A high signal above the specified output-voltage threshold can be matched to a suitable PLC input.
  • Floating DC OK: The relay contact closes when output voltage exceeds the documented threshold, offering an isolated status path.
  • Front-panel indication: A flashing DC OK LED distinguishes low output voltage from the normal green indication during local inspection.
  • BOOST indication: The separate active output and yellow BOOST LED help identify operation above the nominal load-current boundary.
  • Input-source choice: The unit supports documented AC and DC input operation, so source type and upstream protection can be selected for the actual panel feed.
  • Output setting: Adjustment above the nominal output voltage restricts constant-capacity operation and should be reflected in the load calculation.
  • Parallel operation: Phoenix Contact permits parallel connection for redundancy or increased capacity when the complete output arrangement is designed accordingly.
  • Series operation: Series connection is permitted, allowing a higher-voltage arrangement when the connected equipment and protection scheme support it.
  • Automation control: The regulated DC output supplies suitable control loads in an enclosed industrial automation panel.
  • DeviceNet supply: DeviceNet power-supply conformance testing makes the documented unit relevant to network-power selection.
  • Rail equipment: The listed EN 50121 railway standards support evaluation for rail-related control installations.
  • Marine panels: Listed shipbuilding approvals allow the supply to be considered against vessel-specific certification requirements.
Description
Selective fault clearing gives QUINT-PS/1AC/24DC/10 2866763 a distinct role in a 24 V control circuit. Its SFB reserve is intended to operate downstream protective devices during a short circuit, helping separate a faulted branch from unaffected loads when the protection scheme is designed accordingly.

Where starting loads impose demand beyond the nominal output, QUINT-PS/1AC/24DC/10 2866763 offers POWER BOOST capacity. That additional current margin supports suitable inrush loads within the stated ambient-temperature limits, while branch wiring and protective-device sizing still govern the installation.

For panel integration, QUINT-PS/1AC/24DC/10 2866763 combines DIN-rail mounting with DC OK signalling and an adjustable output. The supply condition can be brought into the control system, and the output can be set for the installed load within Phoenix Contact’s wiring and clearance guidance.
Alternative Names
QUINTPS1AC24DC102866763 QUINT-PS 1AC/24DC/10 2866763 QUINT PS/1AC/24DC/10 2866763 QUINT-PS/IAC/24DC/1O 2866763 QUINT-PS 1AC 24DC 10 2866763 QUINT-PS/1AC/24DC/10 QUINT-PS/1AC/24DC/10-2866763
Technical notes
Above 60°C cabinet temperature, the output current of QUINT-PS/1AC/24DC/10 2866763 is subject to Phoenix Contact’s 2.5%/K derating. That changes the available load margin even when the nominal rating looks adequate at room temperature. Apter Power can help compare the installed temperature and load profile with the manufacturer’s derating curve before quoting a replacement or new panel supply.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
For a new control panel, is QUINT-PS/1AC/24DC/10 2866763 the current project choice?
Phoenix Contact names order item 2904601 for new projects. That recommendation does not confirm direct interchange with this unit; compare mounting, wiring, approvals and status signals before changing a design.
Can QUINT-PS/1AC/24DC/10 2866763 form part of a redundant 24 V supply arrangement?
Yes. Phoenix Contact permits parallel operation for redundancy or increased capacity. The complete wiring, distribution and protection arrangement still determines whether the cabinet is truly redundant.
How can QUINT-PS/1AC/24DC/10 2866763 report supply status to our PLC?
Use the floating DC OK relay or the active DC OK output according to the PLC input and wiring diagram. Both report normal output above 0.9 times rated voltage; check terminal loading before connection.
Can QUINT-PS/1AC/24DC/10 2866763 be considered for a Class I, Division 2 cabinet?
The official approvals list Class I, Division 2, Groups A–D, T4. Product approval does not certify the finished cabinet; enclosure, wiring and local installation requirements need separate review.
Our panel has a DC feed; can QUINT-PS/1AC/24DC/10 2866763 still provide 24 V control power?
Yes. The specified DC input operating range is 110–350 V DC. Confirm the upstream source remains within that range and that input protection matches Phoenix Contact’s installation data.
At a high-altitude installation, can QUINT-PS/1AC/24DC/10 2866763 carry the same load?
No. The datasheet specifies altitude-related derating above 2,000 m. Compare the load with the current available at the actual site altitude; do not assume the sea-level rating remains available.
