PLX31-EIP-MBS

/ 4.9
1001 reviews | Need a Specific Revision?

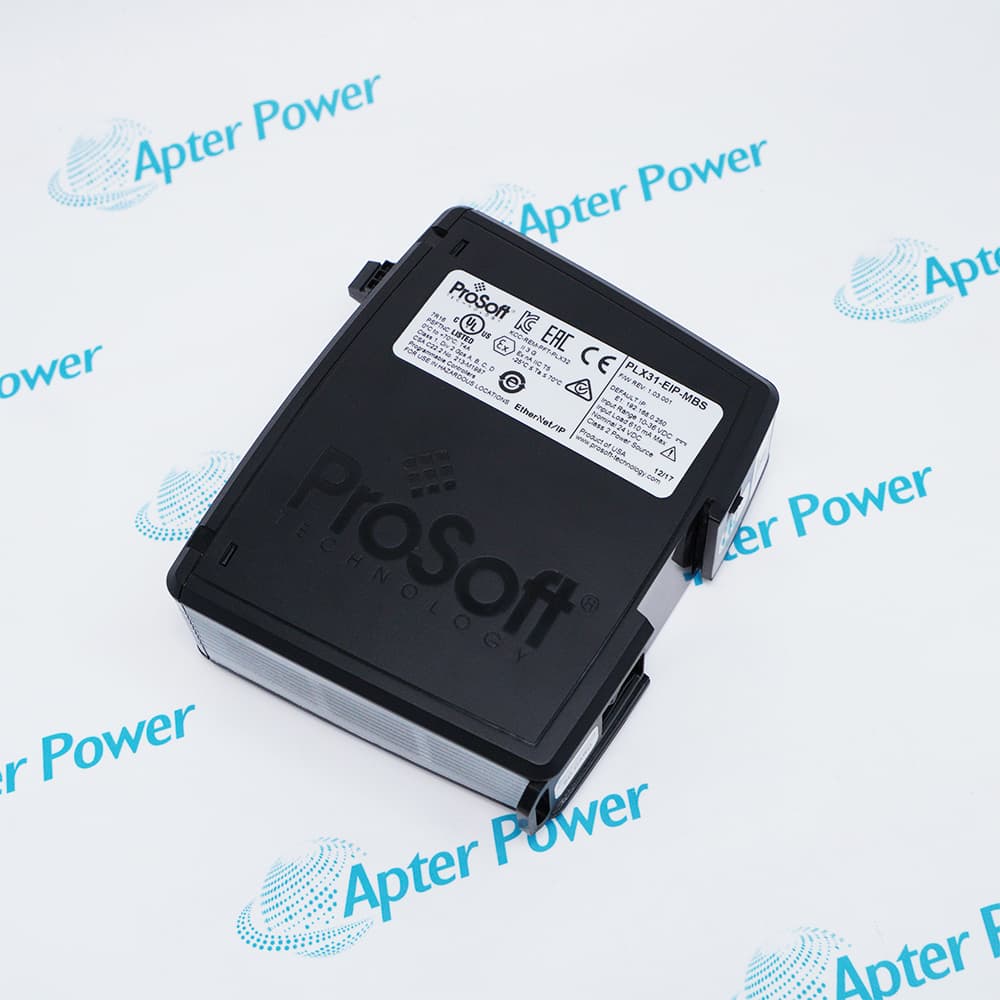

ProSoft PLX31-EIP-MBS is an EtherNet/IP to Modbus Serial Communication Gateway. It transfers data between EtherNet/IP controllers and Modbus Serial devices.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for PLX31-EIP-MBS
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for PLX31-EIP-MBS

  • Manufacturer:
    ProSoft
  • Part Number:
    PLX31-EIP-MBS
  • Product Family:
    ProSoft
  • Product Type:
    EtherNet/IP to Modbus Serial Communication Gateway
  • Stock:
    1
  • Number of Class 3 Server Connections:
    5
  • Supported PLC Types:
    PLC2, PLC5, SLC, CLX, CMPLX, MICROLX
  • Supported Message Types:
    PCCC and CIP
  • Class 3 ClientConnections:
    Connected: 2,Unconnected: 1
  • Number of Class 1 I/O Connections:
    2
  • I/O connection sizes:
    248/248
  • Max RPI time:
    5 ms per connection
  • Weight:
    0.25 kg
  • Estimated shipping dimensions:
    4,5x12.3x13.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications EtherNet/IP Modbus Serial Deployment

Features:

  • Multiple EtherNet/IP I/O connections with configurable RPIs
  • One configurable Modbus Serial application port
  • Up to 10,000 16-bit registers
PLX31-EIP-MBS combines EtherNet/IP messaging with one configurable Modbus Serial channel in the PLX31 ordering configuration.

The gateway can move control and status data through separate EtherNet/IP I/O connections, allowing different Request Packet Intervals for selected exchanges.

Select the serial electrical mode, Modbus role, node addressing, command mapping, and 24 VDC installation conditions before commissioning PLX31-EIP-MBS.

The ProSoft PLX31-EIP-MBS EtherNet/IP to Modbus Serial Communication Gateway is listed as Active / Available from OEM. Apter Power provides quotation and protocol-matching support.

ProSoft PLX31-EIP-MBS EtherNet/IP to Modbus Serial Communication Gateway Manuals, Datasheets, Links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ProSoft PLX31-EIP-MBS EtherNet/IP to Modbus Serial Communication Gateway Specs

General

  • ManufacturerProSoft Technology
  • ModelPLX31-EIP-MBS
  • ConditionNew Original ready stock
  • Product FamilyPLX3x Gateway

CIP data exchange

  • Server connections: Five Class 3 server connections are documented for explicit EtherNet/IP messaging.
  • Client messaging: The gateway supports two connected and one unconnected Class 3 client connection.
  • I/O transfer: Two Class 1 I/O connections provide 248 input and 248 output bytes.
  • Update interval: Each I/O connection supports a minimum documented RPI of 5 ms.

Serial channel operation

  • Port assignment: One application port is configured for Modbus Serial communication.
  • Electrical standards: RS-232, RS-422, and RS-485 wiring modes are supported by the serial interface.
  • Protocol framing: The channel can use Modbus RTU or Modbus ASCII framing.
  • Operating role: Configure the serial side as Master or Slave to match the connected devices.

Gateway installation

  • Power input: Use a 24 VDC nominal supply within the documented 10 to 36 VDC range.

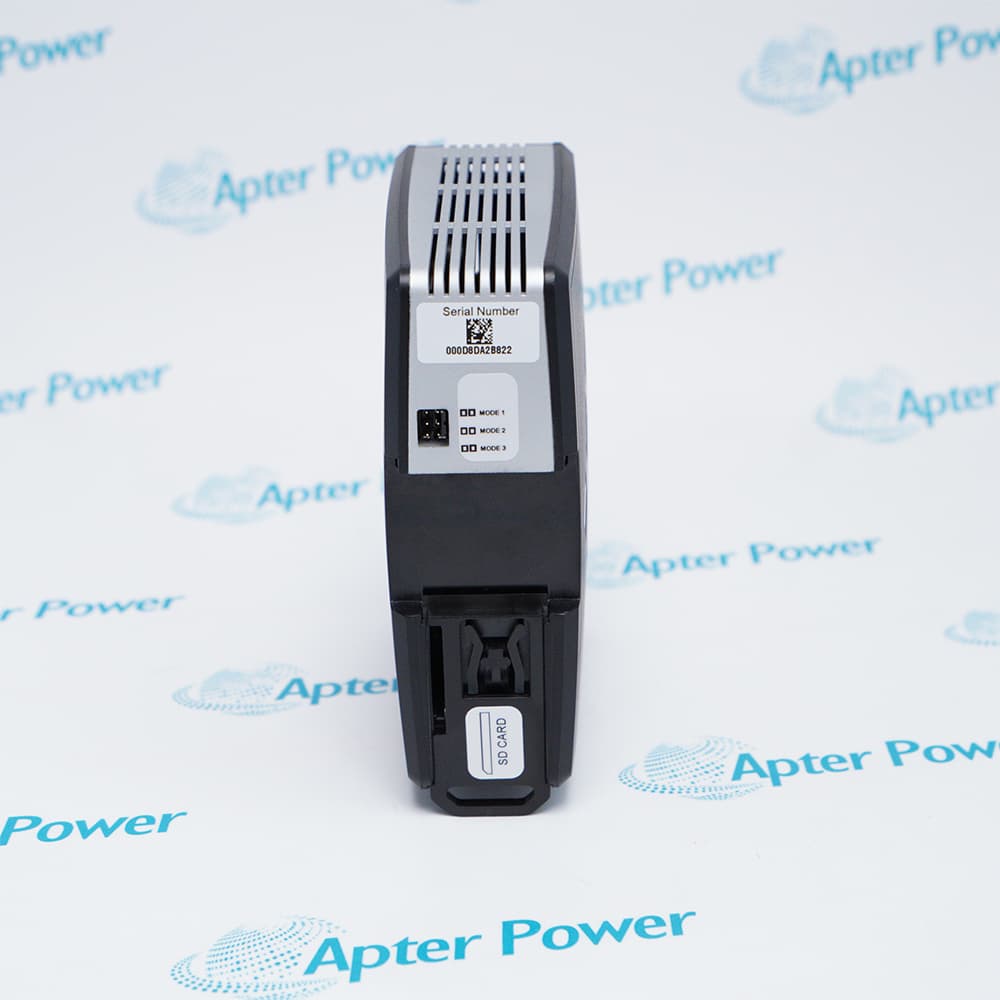

  • Configuration recovery: An optional SD card can store the gateway configuration for backup or transfer.
  • Environmental range: The specified operating temperature is -25°C to 70°C.
  • Network planning: Confirm EtherNet/IP connection sizes and Modbus register addresses before placing the gateway in service.
Description
The PLX31-EIP-MBS is an industrial communication gateway specifically engineered to bridge the gap between modern EtherNet/IP™ networks and legacy Modbus® Serial devices. This PLX31-EIP-MBS gateway enables high-speed bi-directional data transfers between EtherNet/IP™ PACs or devices and Modbus®-enabled PACs or devices, solving the critical interoperability challenges faced in mixed-environment industrial automation systems. Whether you are integrating Rockwell Automation® ControlLogix® and CompactLogix™ controllers, Schneider Electric® controllers, or connecting to established Modbus® Serial infrastructure, the PLX31-EIP-MBS provides the seamless protocol translation necessary to unify your control architecture without costly hardware replacements.

This PLX31-EIP-MBS communication gateway is specifically designed to handle complex data exchange requirements between disparate industrial networks, solving the problem of protocol incompatibility that often prevents newer EtherNet/IP™ systems from communicating with existing Modbus® Serial equipment. In practical application scenarios, the PLX31-EIP-MBS excels in manufacturing facilities where SCADA systems and Power Monitors utilizing Modbus® Serial protocols need to report data to modern EtherNet/IP™-based control systems. The PLX31-EIP-MBS is also ideal for process industries requiring real-time monitoring and control across mixed-vendor environments, enabling facilities to leverage their existing Modbus® Serial device investments while upgrading to contemporary EtherNet/IP™ control platforms.

The PLX31-EIP-MBS incorporates several advanced features that streamline integration and optimize operational performance. Data prioritization capabilities through multiple I/O connections allow you to set Request Packet Intervals (RPIs) for status and/or control data, effectively optimizing Ethernet bandwidth utilization. The PLX31-EIP-MBS includes an embedded EDS Add-On Profile, facilitating simplified integration and significantly reducing commissioning time during system setup. Additionally, the PLX31-EIP-MBS features an SD card slot (SD card optional) for storing configuration files, providing essential disaster recovery capabilities and enabling rapid module replacement without extensive reconfiguration.

For enhanced usability and security, the PLX31-EIP-MBS offers the ProSoft Discovery Service utility, which allows your PC to detect the gateway and modify its default IP address without requiring the PC to be on the same subnet. The PLX31-EIP-MBS also supports secure module configuration via a physical module switch (available in version 1.04 and greater), adding an extra layer of protection for your network settings. With support for up to 10,000 16-bit registers, the PLX31-EIP-MBS can exchange large volumes of data, making it suitable for data-intensive applications across nearly every industry where Modbus® Serial devices remain prevalent.
Alternative Names
PLX31 EIP MBS PLX31EIPMBS ProSoft PLX31-EIP-MBS PST PLX31-EIP-MBS PLX31-EIP-MBS PLX3x Gateway PLX31-EIP-MBS Protocol Gateway PLX31-EIP-MBS Datasheet PLX31-EIP-MBS Manual
Technical notes
PLX31-EIP-MBS EtherNet/IP to Modbus Serial Communication Gateway transfers data between EtherNet/IP controllers and Modbus Serial devices. Verify EtherNet/IP, Modbus Serial, Configuration settings against the official ProSoft documentation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How does PLX31-EIP-MBS connect EtherNet/IP equipment to serial devices?
PLX31-EIP-MBS translates data between EtherNet/IP connections and one configurable Modbus Serial application port.
How many Class 1 I/O connections does PLX31-EIP-MBS provide?
PLX31-EIP-MBS provides two Class 1 I/O connections, each supporting a 248-byte input and 248-byte output image.
Which serial interfaces can PLX31-EIP-MBS use?
PLX31-EIP-MBS supports RS-232, RS-422, and RS-485 wiring for its Modbus Serial port.
What should be configured before installing PLX31-EIP-MBS?
Before installing PLX31-EIP-MBS, confirm the Modbus role, serial framing, node addresses, data map, and EtherNet/IP connection settings.
How can PLX31-EIP-MBS configuration be recovered?
PLX31-EIP-MBS can use an optional SD card to store configuration files for backup or transfer to another gateway.
Is PLX31-EIP-MBS shown as discontinued by ProSoft?
The reviewed ProSoft product resources do not identify PLX31-EIP-MBS as a legacy product; verify the latest lifecycle notice before procurement.
Where can PLX31-EIP-MBS documentation and quotation support be obtained?
The PLX31-EIP-MBS Manuals tab contains the official datasheet, and Apter Power can assist with quotation and configuration review.
