140ACI03000C

/ 4.9
1001 reviews | Need a Specific Revision?

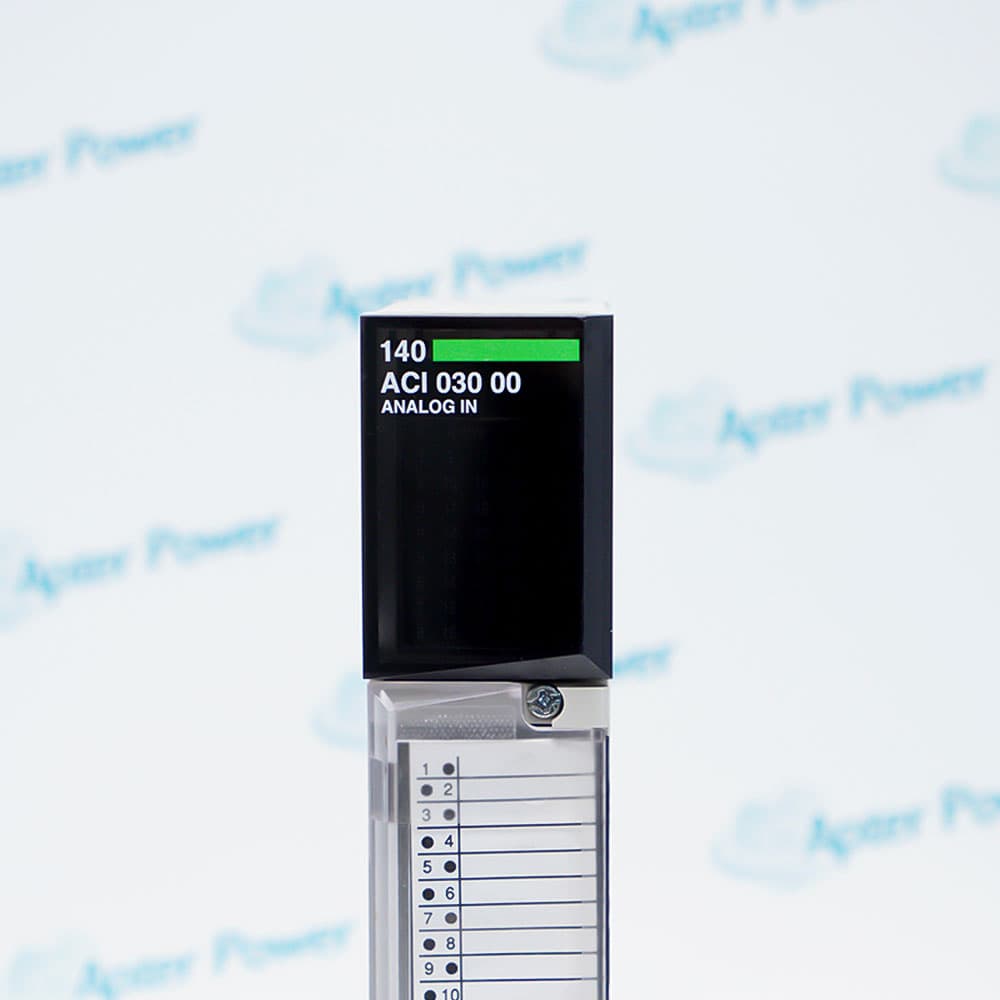

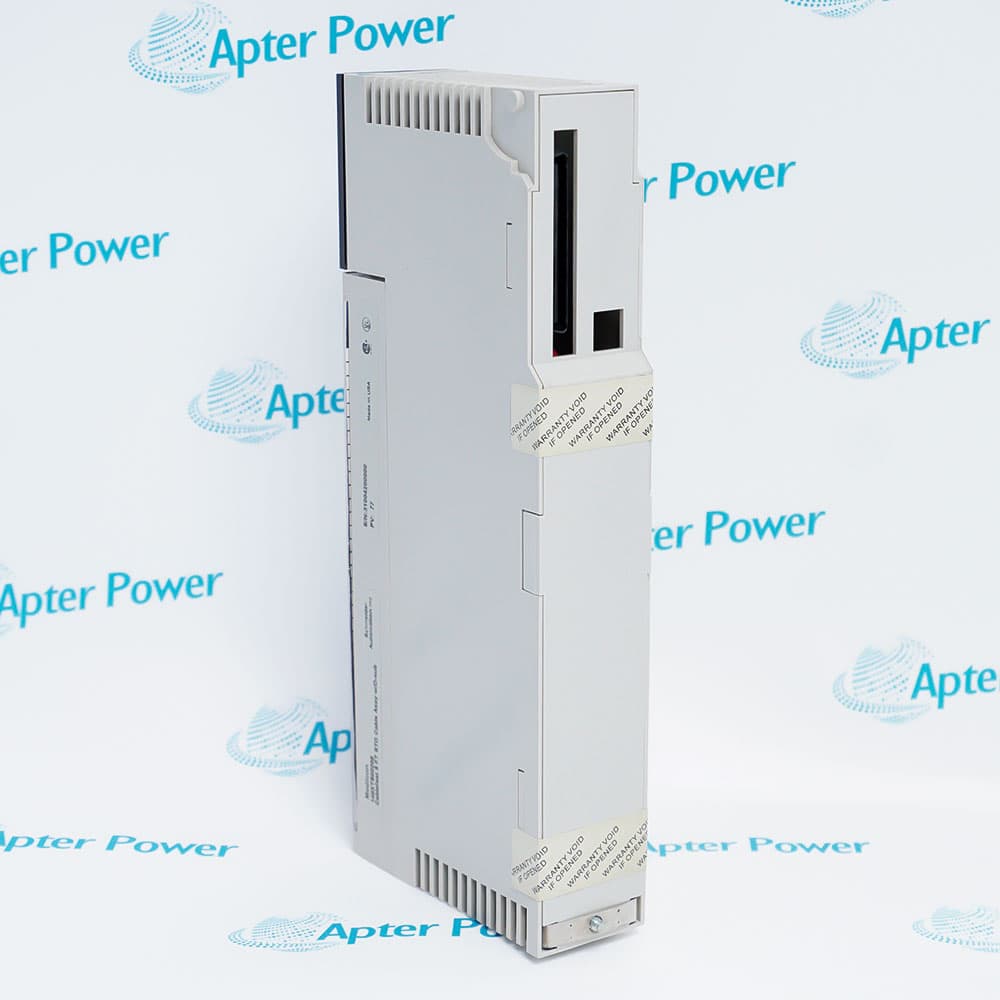

Schneider Electric 140ACI03000C analog input module converts differential voltage and current signals into high-resolution digital data, enabling accurate analog signal acquisition for Quantum automation systems.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 140ACI03000C
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 140ACI03000C

  • Manufacturer:
    Schneider Electric
  • Part Number:
    140ACI03000C
  • Product Family:
    Modicon Quantum
  • Product Type:
    Analog Input Module
  • Stock:
    3
  • Analogue input number:
    8
  • Input type:
    Differential
  • Addressing requirement:
    9 input words
  • Analogue input resolution:
    12 bits
  • Linear measuring range:
    1...5 V, 4...20 mA
  • Absolute maximum input:
    50 V DC, 25 mA
  • Input impedance:
    250 Ohm current +/- 0.01 %, > 20 MOhm voltage
  • Linearity error:
    +/- 0.04 %
  • Common mode rejection:
    > - 72 dB 60 Hz
  • Isolation between channels:
    30 V DC
  • Update time:
    5 ms
  • Bus current requirement:
    240 mA
  • Power dissipation in W:
    2 W
  • Module format:
    Standard
  • Ambient air temperature for operation:
    0…60 °C
  • Ambient air temperature for storage:
    -40…85 °C
  • Relative humidity:
    95 % without condensation
  • Operating altitude:
    <= 5000 m
  • Weight:
    0.46 kg
  • Estimated shipping dimensions:
    4x10.5x25cm
  • Tariff Code:
    8537101190
  • Country of origin:
    France
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Environment Installation Applications

Features:

  • Supports eight differential analog input channels for voltage and current measurement in a single standard module.
  • Delivers accurate signal conversion with 12-bit resolution, ±0.04% linearity error, and excellent common mode noise rejection.
  • Operates reliably across wide environmental conditions with up to 5000 m operating altitude and 95% non-condensing humidity tolerance.
Schneider Electric 140ACI03000C is built to acquire analog process signals from field devices and convert them into digital values for automation control. Support for both 1...5 V and 4...20 mA input ranges allows a single module to interface with many common industrial transmitters. Eight differential channels make it suitable for systems requiring multiple analog measurement points.

Signal quality is enhanced through high input impedance for voltage measurements, precision 250 Ohm current input impedance, and common mode rejection greater than -72 dB at 60 Hz. Combined with 12-bit resolution and a linearity error of only ±0.04%, the module delivers stable measurement performance for continuous process monitoring. A 5 ms update time also enables timely acquisition of changing process values.

Schneider Electric 140ACI03000C fits a standard module format and requires 240 mA of bus current while dissipating 2 W of power. The module includes 30 V DC isolation between channels and tolerates absolute maximum inputs up to 50 V DC or 25 mA. Operating temperatures from 0 to 60 °C, storage temperatures from -40 to 85 °C, and support for installations up to 5000 m make 140ACI03000C well suited for a broad range of industrial automation environments.

The 140ACI03000C Schneider Electric Analog Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric 140ACI03000C Analog Input Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Schneider Electric 140ACI03000C Analog Input Module Specs

General

  • Manufacturer Schneider Electric
  • Model 140ACI03000C
  • Condition New Original ready stock
  • Product Family 140ACI04000,140ACI04000C,140ACI05100SC
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Operating Temperature: 0°C to 60°C.
  • Storage Temperature: -40°C to 85°C.
  • Relative Humidity: 0% to 95% non-condensing.
  • Shock Resistance: Compliant with IEC 60068-2-6.
  • Protection Rating: IP20 enclosure protection.
  • Electromagnetic Interference Resistance: Compliant with IEC 61000-4.
  • Slot Selection: Supports any I/O slot on the Quantum backplane.
  • Hot-Swapping: Supports replacement while the system is powered on.
  • Terminals: Requires a 140XTS00200 40-pin terminal block.
  • Shielding Grounding: The signal cable shielding layer must be grounded at one end at the terminal.
  • Power Supply Confirmation: The module is directly supplied with 5V DC power from the base bus.
  • Securing and Fixing: After installation, tighten the fixing screws on the top and bottom of the module.
  • Chemical Processes: Used to monitor 4-20mA pressure transmitter signals from reactors.
  • Water Treatment: Connects to remote flow meters for precise control of pump valve openings.
  • Metallurgical Power: Collects 1-5V critical voltage sensing data from boilers or blast furnaces.
  • Existing Plant Retrofitting: Suitable for expansion and maintenance of existing Modicon Quantum systems.
Description
Schneider Electric 140ACI03000C is an analog input module featuring eight differential analog input channels with 12-bit resolution. The module supports both voltage and current measurements through linear ranges of 1...5 V and 4...20 mA, making it suitable for monitoring a wide variety of industrial process signals.

With an addressing requirement of nine input words and a 5 ms update time, 140ACI03000C provides timely acquisition of analog data for process control applications. An input impedance of 250 Ohm for current signals with ±0.01% accuracy and greater than 20 MOhm for voltage inputs helps maintain reliable signal measurement. The module also offers a linearity error of only ±0.04%, contributing to consistent measurement performance.

140ACI03000C operates in ambient temperatures from 0 to 60 °C and can be stored between -40 and 85 °C. The module withstands up to 95% non-condensing relative humidity and supports installation at operating altitudes up to 5000 m. With a standard module format, 240 mA bus current requirement, 2 W power dissipation, 30 V DC channel-to-channel isolation, common mode rejection greater than -72 dB at 60 Hz, and absolute maximum inputs of 50 V DC or 25 mA, 140ACI03000C delivers dependable analog signal processing for industrial automation systems.
Alternative Names
I40ACI03000C 14OACIO3OOOC 140ACI04000 140ACO13000 140ACO02000 140ACI05100SC 140ACI04000C 140AII33010
Technical notes
As a discontinued yet critical automation component, the Schneider Electric 140ACI03000C module ensures continuous runtime for existing legacy systems. This 8-channel analog unit offers robust 1000 V DC isolation between channels and the bus, maintaining loop integrity with a fast 5 ms update time.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What input signals does Schneider Electric 140ACI03000C support?
Schneider Electric 140ACI03000C accepts eight differential analog inputs and supports linear measurement ranges of 1...5 V and 4...20 mA for voltage and current applications.
How does 140ACI03000C achieve accurate measurements?
A 12-bit analog input resolution, ±0.04% linearity error, and input impedance of 250 Ohm for current or greater than 20 MOhm for voltage contribute to precise signal conversion.
Can 140ACI03000C operate in demanding industrial environments?
Yes. 140ACI03000C is rated for operation from 0 to 60 °C, storage from -40 to 85 °C, relative humidity up to 95% without condensation, and installation at altitudes up to 5000 m.
How quickly can 140ACI03000C update analog data?
The module provides a 5 ms update time, allowing process values to be refreshed rapidly for automation control.
