        BMXAMI0800

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

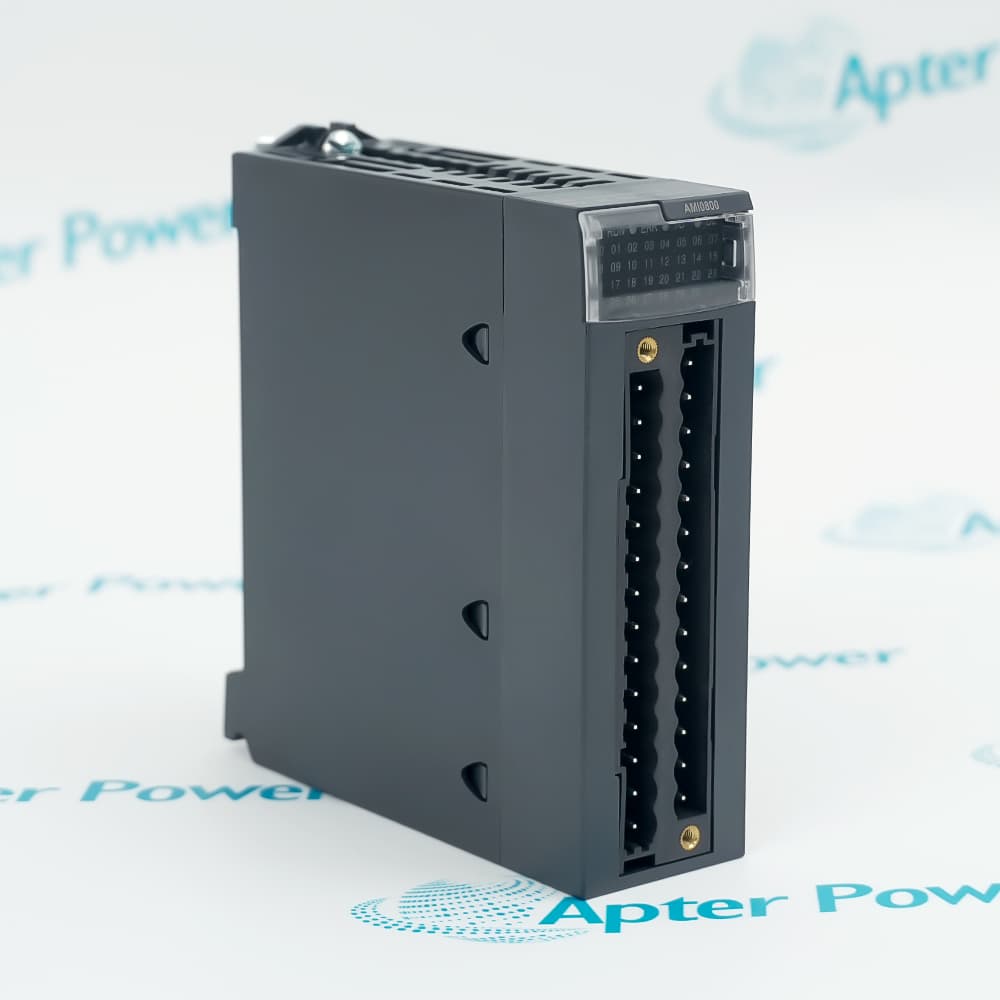

        The Model BMXAMI0800 is a Modicon X80 analog input module featuring 8 high-level input channels configurable for current (±20 mA, 0-20 mA, 4-20 mA) or voltage (±10 V, ±5 V, 0-10 V, 0-5 V, 1-5 V) signals.
        In Stock
        Ships by Wednesday, October 28
        Fast Shipping Available
        Get a quick price for BMXAMI0800
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for BMXAMI0800

        • Manufacturer:
          Schneider Electric
        • Part Number:
          BMXAMI0800
        • Product Family:
          Modicon X80
        • Product Type:
          Analog Non Isolated High Level Input Module
        • Stock:
          2
        • Analog Input Number:
          8
        • Input Types - Current:
          ±20 mA, 0-20 mA, 4-20 mA
        • A/D Conversion:
          16 bits
        • Internal Conversion Resistor:
          250 Ohm
        • Overload Protection:
          ±30 V (voltage), ±30 mA (current)
        • Filter Type:
          First order digital filtering
        • Measurement Resolution:
          0.36 mV (voltage), 1.4 μA (current)
        • Electrical Connection:
          28 ways 1 connector
        • Weight:
          0.12 kg
        • Estimated shipping dimensions:
          3.1x9.7x10.2cm
        • Tariff Code:
          8517795000
        • Country of origin:
          France
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Use Cases Environmental Ratings Compatibility & Interoperability

        Features:

        • 8 high-level analog input channels configurable for current or voltage signals
        • 16-bit A/D conversion with ±0.1% accuracy for voltage and ±0.3% , 1400 V DC isolation
        • IP20 protection,3 gn vibration and 30 gn shock resistance
        The BMXAMI0800 provides essential signal acquisition functions critical to the entire control path, serving as the primary interface between field sensors and the control system, directly affecting the proper, normal operation of the overall automation system. One BMXAMI0800 module can handle up to eight analog input channels, with each channel individually configurable for the required signal type.

        For applications requiring precise measurement across temperature variations, the BMXAMI0800 delivers exceptional accuracy with ±0.1% of full scale for voltage inputs and ±0.3% for current inputs across the full 0-60°C operating range. At 25°C reference temperature, the BMXAMI0800 achieves even higher precision with ±0.075% for voltage ranges and ±0.15% for current ranges.

        The BMXAMI0800's robust isolation and diagnostic features ensure reliable operation in demanding industrial environments. The module provides 1400 V DC isolation between channels and ground, as well as between channels and the bus, with 50 V DC isolation between individual channels. Comprehensive LED indication on the BMXAMI0800 includes RUN, per-channel diagnostic status, ERR, and I/O indicators for immediate visual feedback.

        The BMXAMI0800 Schneider Electric  Analog Non Isolated High Level Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        Schneider Electric BMXAMI0800 Analog Non Isolated High Level Input Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        Schneider Electric BMXAMI0800 Analog Non Isolated High Level Input Module Specs

        General

        • Manufacturer Schneider Electric
        • Model BMXAMI0800
        • Condition New Original ready stock
        • Product Family BMXAMI0810,BMXART0814,BMXAMI0410,BMXAMI0620
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Process Industries: Water and Waste Water, Mining, Minerals, and Metals, and Chemicals.
        • Infrastructure & Energy: Power Generation, Data Centers, and Transportation.
        • Manufacturing: Consumer Packaged Goods (CPG) for precise signal acquisition from sensors.
        • Specific Signals: Monitoring standard high-level signals such as 0–20mA, 4–20mA, and various voltage ranges (e.g., +/-10V, 0–10V, 1–5V).
        • Operating Temperature: 0 to 60°C (32 to 140°F).
        • Storage Temperature: -40 to 85°C (-40 to 185°F).
        • Relative Humidity: 5% to 95% at 55°C, non-condensing.
        • Ingress Protection: IP20.
        • Mechanical Resistance: Resists vibrations up to 3 gn and shocks up to 30 gn.
        • Operating Altitude: Up to 2000m without derating (up to 5000m with derating).
        • Severe Environments: A "H" version (BMXAMI0800H) is available with conformal coating for more extreme conditions.
        • Controllers: Fully compatible with Modicon M340 and Modicon M580 PACs.
        • Architectures: Can be used in local racks or remote I/O drops (Ethernet RIO).
        • Connectivity: Uses a 28-way removable terminal block; compatible with Telefast ABE7 pre-wired systems (e.g., ABE7CPA02/03/31) for simplified wiring.
        • HART Support: Supports analog signals with HART protocol when used with specific sub-bases like the ABE7CPA31E.
        Description
        The Model BMXAMI0800 is a high-performance analog input module designed for the Modicon X80 automation platform, offering eight versatile input channels capable of accepting both current and voltage signals. With support for current ranges including ±20 mA, 0-20 mA, and 4-20 mA, as well as voltage ranges of ±10 V, ±5 V, 0-10 V, 0-5 V, and 1-5 V, the BMXAMI0800 provides exceptional flexibility for connecting various industrial sensors and transmitters.

        Measurement accuracy is a key strength of the BMXAMI0800, with impressive error specifications across its operating range. At 25°C, the BMXAMI0800 achieves ±0.075% of full scale for voltage ranges and ±0.15% for current ranges, maintaining ±0.1% accuracy for voltage measurements and ±0.3% for current measurements across the full 0-60°C operating temperature range.

        Electrical isolation and environmental robustness are prominent features of the BMXAMI0800. The module provides 1400 V DC isolation between channels and ground, as well as between channels and the bus, with 50 V DC isolation between channels. The BMXAMI0800 withstands vibration up to 3 gn and shock up to 30 gn, operating reliably in ambient temperatures from 0-60°C.

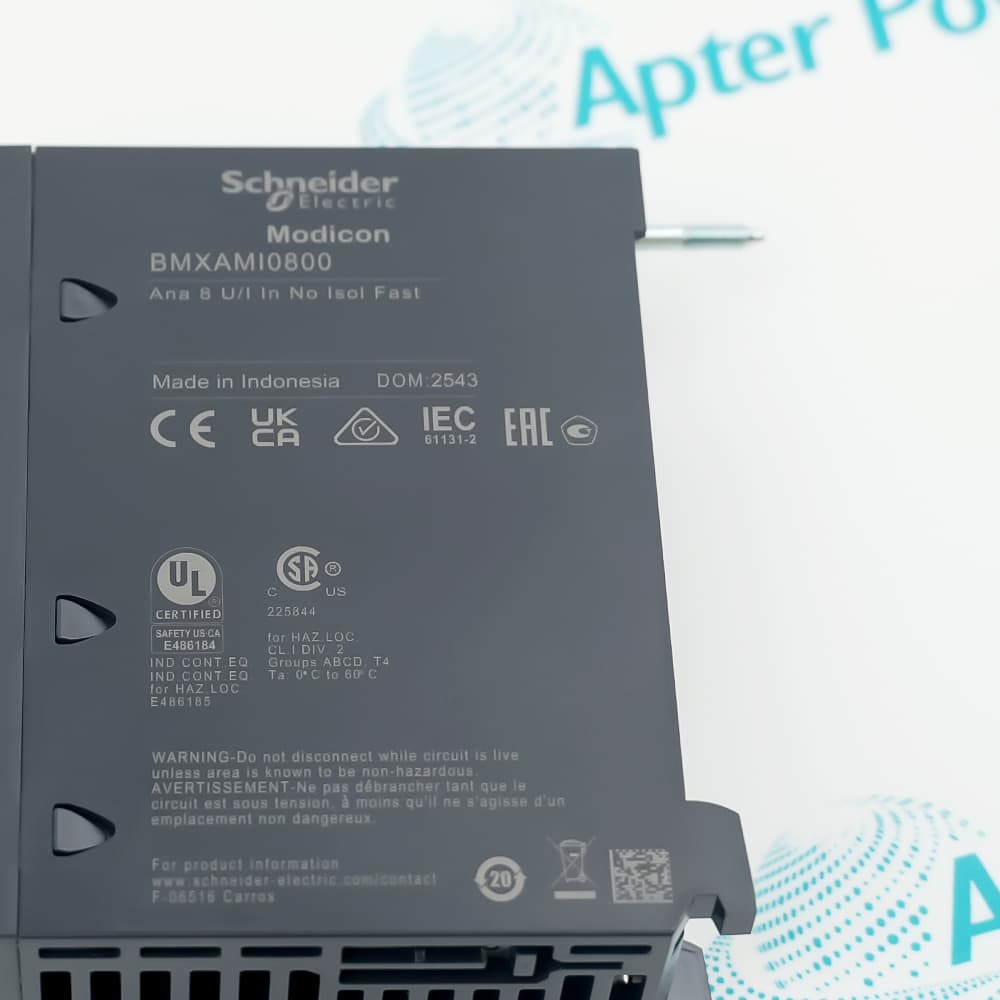

        Certifications and sustainability are integral to the BMXAMI0800 design, holding CE, UL, EAC, CSA, Merchant Navy, and RCM approvals while complying with EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards. As a Green Premium product, the BMXAMI0800 includes comprehensive environmental documentation including REACH and RoHS declarations, with mercury-free construction and available product environmental profiles.
        Alternative Names
        BMXAMIO8OO BMXFCW301S BMXP341000 BMXAMI0800H BMXAMI0810 BMXART0814 BMXAMI0410 BMXAMI0620
        Technical notes
        The Schneider Electric BMXAMI0800 offers eight high-level analog inputs with high-speed slew rates and 16-bit resolution, ensuring accurate data acquisition for demanding industrial processes. It supports a variety of software-configurable ranges, including 0 to 20 mA, 4 to 20 mA, and ±10V voltage signals, providing exceptional versatility.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What is the measurement accuracy of the BMXAMI0800 across its operating temperature range?
        The BMXAMI0800 delivers exceptional accuracy with ±0.1% of full scale for voltage measurements and ±0.3% of full scale for current measurements across the full 0-60°C operating temperature range. At 25°C reference temperature, the BMXAMI0800 achieves even higher precision with ±0.075% for voltage ranges and ±0.15% for current ranges, with temperature drift of 30 ppm/°C for voltage and 50 ppm/°C for current inputs.
        What isolation and protection features are provided by the BMXAMI0800?
        The BMXAMI0800 provides comprehensive isolation with 1400 V DC between channels and ground, 1400 V DC between channels and the bus, and 50 V DC between individual channels. Input protection includes overload tolerance up to ±30 V for voltage inputs and ±30 mA for current inputs, with 10 MOhm input impedance and 250 Ohm internal conversion resistor with 0.1% precision. The BMXAMI0800 also features ≥80 dB common mode rejection between channels for reliable measurements in electrically noisy environments.
        What certifications and environmental specifications does the BMXAMI0800 carry?
        The BMXAMI0800 holds multiple international certifications including CE, UL, EAC, CSA, Merchant Navy, and RCM, complying with EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards. Environmentally, the BMXAMI0800 operates from 0-60°C, stores from -40-85°C, withstands 3 gn vibration and 30 gn shock, and carries IP20 protection. As a Green Premium product, the BMXAMI0800 includes comprehensive REACH and RoHS declarations, is mercury-free, and provides product environmental profiles for sustainable procurement.
