    Apter Power supplies top-grade Schneider ElectricBMXDDI3202K replacement hardware, offering industrial facilities a trusted source for critical automation components to maintain continuous and efficient plant operations.

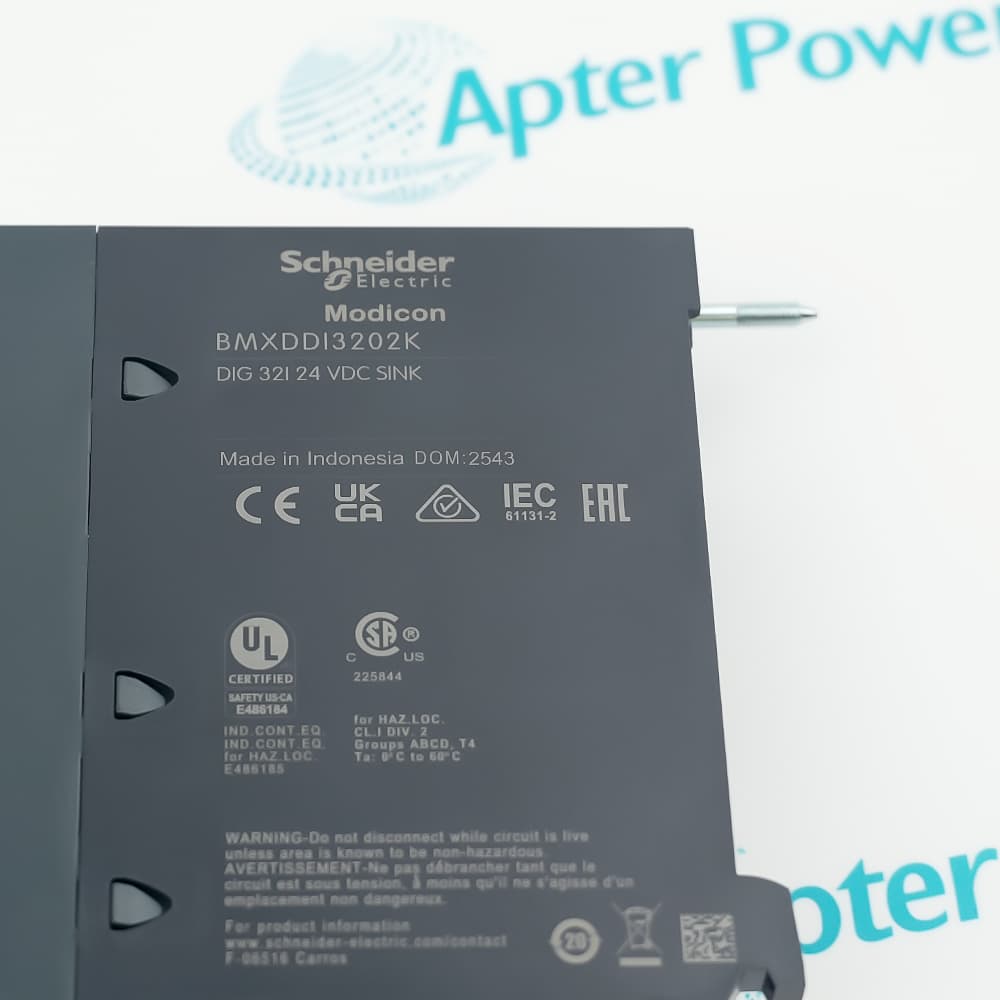

BMXDDI3202K

/ 4.9
1001 reviews | Need a Specific Revision?
The BMXDDI3202K discrete input module employs a positive logic (current sinking) input design to meet standard industrial field signal requirements.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for BMXDDI3202K
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for BMXDDI3202K

  • Manufacturer:
    Schneider Electric
  • Part Number:
    BMXDDI3202K
  • Product Family:
    Modicon X80
  • Product Type:
    Discrete Input Module
  • Stock:
    1
  • Range of product:
    Modicon X80
  • Discrete input number:
    32
  • Discrete input voltage:
    24 V DC positive
  • Discrete input current:
    2.5 mA
  • ensor power supply:
    19...30 V
  • Voltage state 1 guaranteed:
    ≥ 11 V
  • Current state 1 guaranteed:
    ≥ 2 mA
  • Voltage state 0 guaranteed:
    ≤ 5 V
  • Current state 0 guaranteed:
    ≤ 1.5 mA
  • Input impedance:
    9600 Ohm
  • Insulation resistance:
    > 10 MOhm 500 V DC
  • Weight:
    0.1 kg
  • Estimated shipping dimensions:
    0.32 × 1 × 0.86 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    France
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Environmental Ratings Performance & Efficiency

Features:

  • Interface Between the Field Devices and Modicon M340 PLC Backplane
  • Combines Capability of 24 V DC Signal Acquisition with Isolated Input Protection
  • Operates in Conjunction with the Modicon X80 Series and Standard M340 Configurations
The BMXDDI3202K operates as the Discrete Input Module in a Modicon X80 rack, providing reliable digital input acquisition for 32 isolated channels within the system. It continuously receives incoming 24 V DC signals (2.5 mA per channel, positive logic) and processes these inputs through the rack backplane to support steady state operation of all CPU and communication modules. Isolated input protection is standard with the BMXDDI3202K, ensuring complete electrical separation between field devices and internal circuitry to prevent ground loop interference and enhance system safety. The BMXDDI3202K has made improvements in several areas over previous input module designs in addition to incorporating compatibility with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2.

The BMXDDI3202K provides essential input functions common to the entire rack, and is a critical component of the control path, directly affecting the proper, normal operation of the overall automation system. One BMXDDI3202K input module is required per 32-point input requirement depending on the desired I/O density. The BMXDDI3202K occupies a standard slot position in the rack and can be located in any available I/O slot (not restricted to specific positions).

For High-Density Input applications, the Modicon X80 System requires additional BMXDDI3202K input modules installed in available slots. In addition to standard single module operation, the modular configuration also performs seamless integration. The Modicon X80 multi-module configuration executes input processing using the internal circuitry specified in the module specifications. Using this method, the input system continually monitors the status of all 32 channels. If the system detects that a specific input channel is activated (receiving 24 V DC signal within configured tolerance levels), it will automatically process the signal and update the corresponding bit in the input image table, making the data available to the CPU for program execution.

The BMXDDI3202K Schneider Electric Discrete Input Module may still be available for purchase and support from authorized distributors within the current product lifecycle by the manufacturer (OEM).
Schneider Electric BMXDDI3202K Discrete Input Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

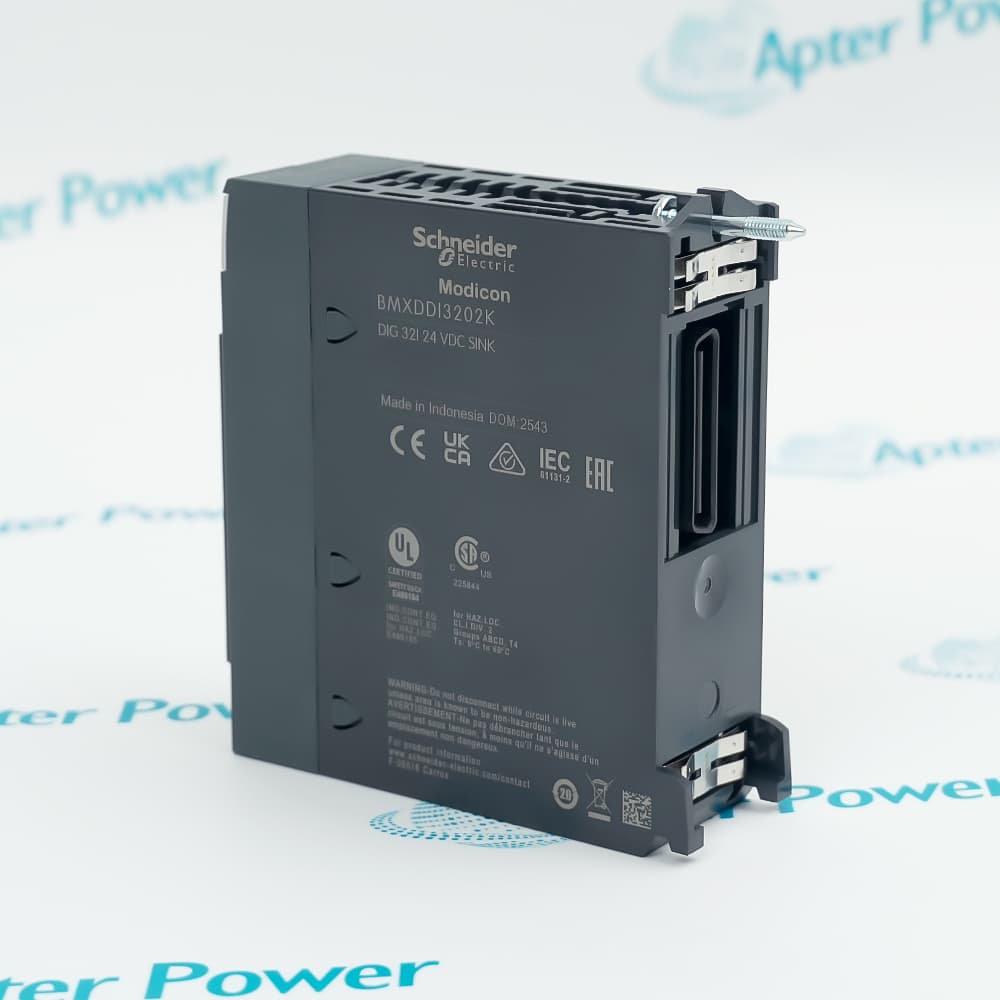

Schneider Electric BMXDDI3202K Discrete input module

General

  • Manufacturer Schneider Electric
  • Model BMXDDI3202K
  • Condition New Original ready stock
  • Product Family BMXDDO1602,BMXAMO0802,BMXAMI0800
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Discrete & Process Manufacturing Lines: The Schneider Electric BMXDDI3202K is widely deployed in automotive and assembly plants to aggregate high-speed signals from safety switches, limit switches, and pushbuttons.
  • Water & Wastewater Treatment Facilities: It provides dependable digital monitoring for remote pumping stations and valve feedback networks exposed to continuous industrial cycles.
  • Material Handling & Packaging Machinery: The module ensures precise, high-density state tracking for high-throughput sorting conveyors, packaging carousels, and palletizing systems.
  • Energy & Infrastructure Management: It acts as a reliable data acquisition hub within power distribution skid packages and building automation control panels.
  • Thermal Operating Range: Engineered to perform reliably in industrial environments spanning 0°C to 60°C ambient operating temperatures, with robust storage tolerance from -40°C to 85°C.
  • Humidity & Protective Treatment: Equipped with TC protective treatment and certified to handle relative humidity levels between 5% and 95% without condensation at 55°C.
  • Altitude & Mechanical Resilience: Supports operation up to 2,000 meters standard (and up to 5,000 meters with derating), complemented by high resistance to 3 gn vibration and 30 gn mechanical shock.
  • Enclosure & Electrical Protection: Features an IP20 ingress protection rating paired with built-in reverse polarity defense and external 0.5A fast-blow channel group fusing.
  • High-Speed Signal Filtering: Delivers optimized filtering performance with a typical response time of 4 ms (maximum 7 ms) to suppress electrical noise while maintaining responsiveness.
  • Low Power Dissipation: Operates with high thermal efficiency, keeping internal power dissipation restricted to 3.9 W or less to minimize cabinet heat accumulation.
  • Optimized Backplane Efficiency: Draws a minimal 140 mA current from the 3.3V DC rack backplane, preserving power budgets for large multi-slot automation nodes.
  • Exceptional Operational Reliability: Backed by an impressive MTBF (Mean Time Between Failures) reliability rating of 696,320 hours, ensuring long-term continuous uptime for critical operations.
Description
BMXDDI3202K is a discrete input module in the Modicon X80 range from Schneider Electric, designed for digital signal acquisition in industrial automation systems. As a module for the M340 platform, BMXDDI3202K delivers stable and reliable input signal processing, making it suitable for control applications that require high input density. The module is designed with positive logic (current sink) input type to meet standard industrial field signal requirements.

In terms of channel configuration, BMXDDI3202K provides 32 discrete inputs, with each channel featuring isolated design to enhance system noise immunity and operational stability. The module operates with a 24 V DC positive input voltage and a discrete input current of 2.5 mA per channel, making it well suited for common industrial sensor signal acquisition. Its electrical characteristics comply with the Modicon X80 system architecture, enabling efficient integration into distributed control systems.

Regarding field device compatibility, BMXDDI3202K supports connection with 2-wire and 3-wire proximity sensors conforming to IEC 60947-5-2. This allows BMXDDI3202K to be widely used in machinery manufacturing, process control, and various automated production lines for reliable status monitoring and digital signal acquisition. Overall, BMXDDI3202K stands out as a commonly used digital input solution in Modicon M340 systems due to its standardized interface, isolated input structure, and strong field adaptability.
Alternative Names
8MXDDI3202K BMXDD13202K BMXDDI32O2K BMXDDO1602 BMXXBP0800 BMXXBP0400 BMXXBP0400H BMXXBP1200H
Technical notes
The Schneider Electric BMXDDI3202K requires a standard 40-way FCN connector for secure, high-density field wiring and draws a typical current of 140 mA from the 3.3V DC rack backplane. Maintenance personnel must ensure that sensor supply voltage remains strictly within the 19V to 30V DC operational window to avoid erroneous sensor fault triggering.
