    Apter Power supplies top-grade Schneider Electric BMXDDO1602 replacement hardware, offering industrial facilities a trusted source for critical automation components to maintain continuous and efficient plant operations.

BMXDDO1602

/ 4.9
1001 reviews | Need a Specific Revision?

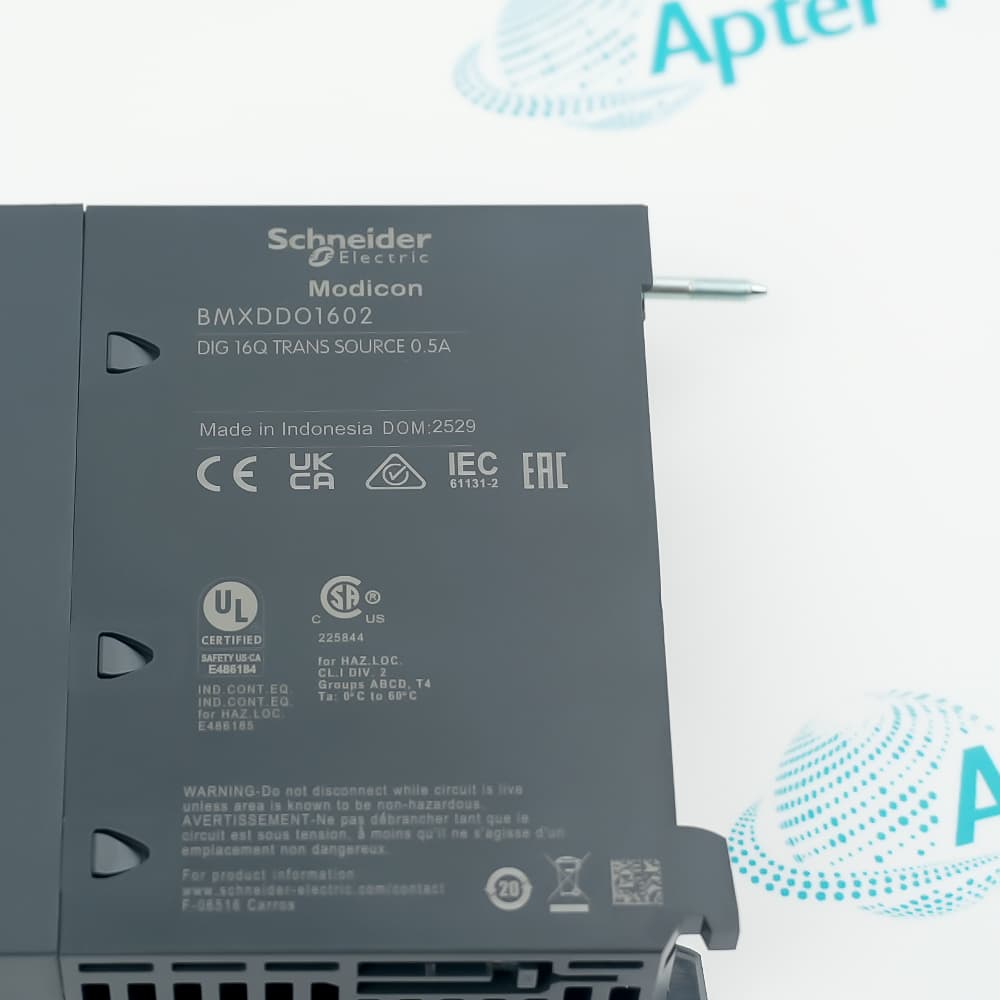

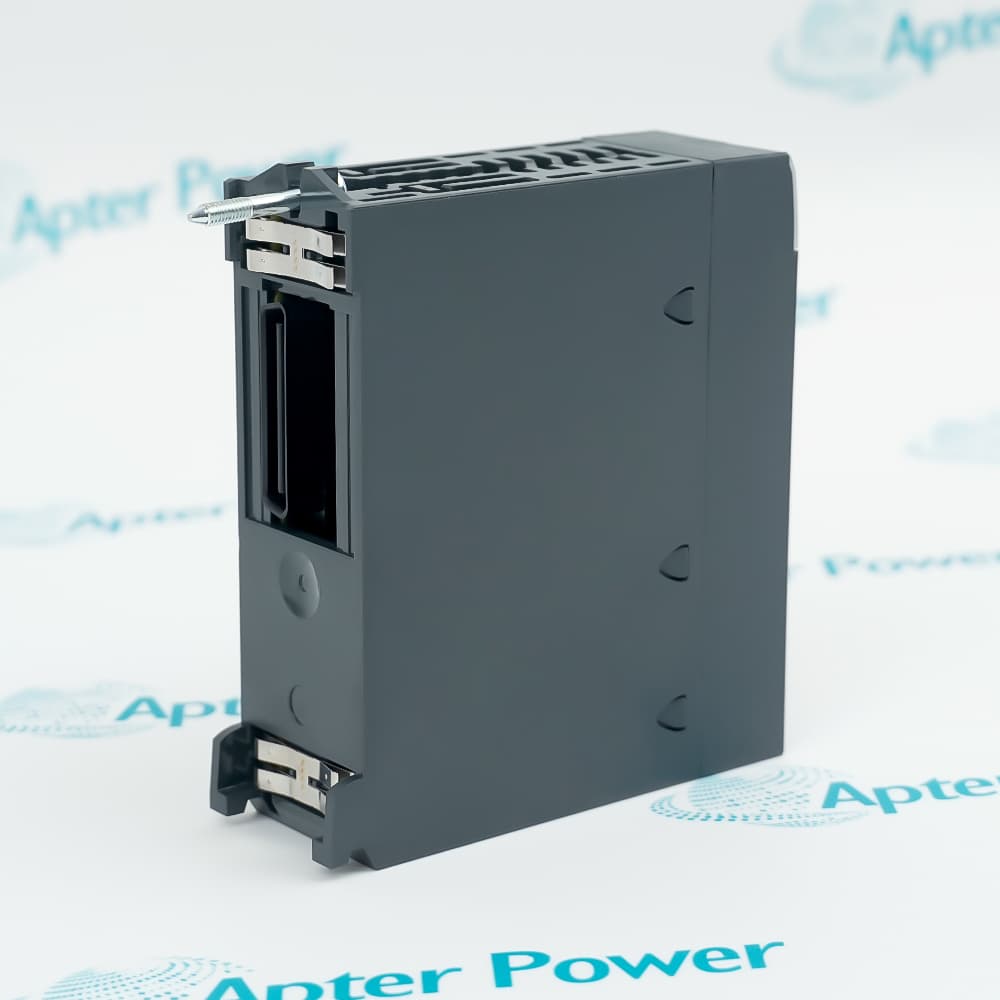

The BMXDDO1602 discrete output module is designed for reliable digital output applications in industrial automation systems.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for BMXDDO1602
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for BMXDDO1602

  • Manufacturer:
    Schneider Electric
  • Part Number:
    BMXDDO1602
  • Product Family:
    Modicon X80
  • Product Type:
    Discrete Output Module
  • Stock:
    1
  • Current per channel:
    0.625 A
  • Current per module:
    ≤ 10 A
  • Leakage current:
    ≤ 0.5 mA at state 0
  • [Ures] residual voltage:
    1.2 V at state 1
  • Insulation resistance:
    > 10 MOhm 500 V DC
  • Power dissipation in W:
    ≤ 4 W
  • Response time on output:
    1.2 ms
  • Paralleling of outputs:
    Yes : 2 maximum
  • Typical current consumption:
    100 mA at 3.3 V DC
  • Weight:
    0.16 kg
  • Estimated shipping dimensions:
    1.3cm × 0.9cm × 0.65cm
  • Tariff Code:
    8537101190
  • Country of origin:
    France
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Installation Guidelines Performance & Efficiency

Features:

  • Interface Between the Modicon X80 Rack Backplane and Field Devices
  • Combines Capability of High-Density Discrete Output with Positive Logic Control
  • Operates in Conjunction with the X80 Series and Standard Modicon PLCs
The BMXDDO1602 operates as the Discrete Output Module in a Modicon X80 rack, providing reliable digital output control to field devices within the system. It continuously processes 16 discrete output channels (24 VDC, 0.5 A per channel) with positive logic switching and distributes these control signals through the rack backplane to support steady state operation of all connected actuators and devices. Seamless signal integration is standard with the BMXDDO1602, however using an optional Redundant Configuration will allow enhanced system reliability in critical automation applications. The BMXDDO1602 has made improvements in several areas over previous output module designs in addition to incorporating solid-state switching capability within the X80 rack.

The BMXDDO1602 provides essential output functions common to the entire rack, and is a critical component of the control path, directly affecting the proper, normal operation of the overall automation system. One or more BMXDDO1602 modules are required per rack depending on the desired I/O expansion level. The BMXDDO1602 occupies only a single slot in the rack and can be located in any available I/O slot position (the dedicated I/O module slots).

For High-Density Output applications, the Modicon X80 System requires the BMXDDO1602 discrete output module installed in the appropriate slot. In addition to standard single module operation, the high-density configuration also performs reliable solid-state switching. The BMXDDO1602 output configuration executes control using the internal circuitry specified in the module specifications. Using this method, the output system continually monitors the health of all 16 channels. If the system detects that any output channel is operating outside configured parameters (outside voltage/current tolerance levels), it will automatically report the status and place an event in the System Event List.

The BMXDDO1602 Schneider Modicon X80 Discrete Output Module may still be available for purchase and support from authorized distributors beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric BMXDDO1602 Discrete Output Module Datasheets, Manuals, Specifications, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Schneider Electric BMXDDO1602 Discrete output module

General

  • Manufacturer Schneider Electric
  • Model BMXDDO1602
  • Condition New Original ready stock
  • Product Family BMXDDO1602H,BMXDDI3202K,BMXAMO0802
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • High-Speed Packaging Machinery: Deployed across manufacturing lines to orchestrate pneumatic actuators, solenoids, and indicators with stable, repeatable 1.2 ms control timing.
  • Process Interlocking Skids: Widely utilized in water treatment and chemical dosing plants to command safety-critical interlocks, sirens, and discrete pump starter relays.
  • Infrastructure Energy Management: Integrated directly into building management networks and power distribution blocks for continuous switching of auxiliary control loads.
  • Legacy System Upgrades: Acts as a drop-in 16-point hardware module for migrating older Quantum or Premium networks to high-speed Modicon M580 PAC networks.
  • Rack Alignment and Torque Profile: Insert lower locating pins into the X80 rack slot and swivel flush, securing the top mounting screw to a tightening torque of 0.4...1.5 N·m.
  • Dual-Stage Fusing Setup: Connect field side power through a 6.3A fast-blow master fuse, adding individual 2A lines for granular channel short-circuit safety.
  • Terminal Block Flexibility: Utilize removable 20-pin terminal interfaces (Screw BMXFTB2010, Caged BMXFTB2000, or Spring BMXFTB2020) according to panel vibration levels.
  • Pre-Commissioning Logic Review: Run interactive configuration diagnostics inside EcoStruxure Control Expert to verify fallback states prior to turning on field loads.
  • Low Latency Transition Rates: Keeps loop latencies minimized via solid-state transistor switching, allowing precise tracking across rapid cyclic automated operations.
  • Thermal Management Optimization: Dissipates a maximum of ≤ 4 Watts under full load, preventing control panel overheating and lowering cooling energy costs.
  • Long-Term Operational Lifetime: Boasts a verified MTBF rating of 409,413 Hours, ensuring continuous plant uptime and minimizing unexpected maintenance overhauls.
  • Granular Fault Troubleshooting: Utilizes independent channel indicators to help technicians quickly isolate faulty pre-actuator lines from healthy plant components.
Description
BMXDDO1602 is a discrete output module in the Modicon X80 range from Schneider Electric, designed for reliable digital output applications in industrial automation systems. As an important component of the X80 platform, BMXDDO1602 is primarily used to convert controller logic signals into switching outputs recognizable by field actuators, making it suitable for industrial environments that require stability and fast response.

In terms of output capability, BMXDDO1602 provides 16 discrete output channels compliant with EN/IEC 61131-2. The module adopts a solid-state output type with positive logic, delivering stable and reliable DC drive to field loads. The rated output voltage is 24 V DC with an allowable operating range of 19…30 V DC. Each output channel supports 0.5 A, meeting the driving requirements of common relays, contactors, and indicator devices.

From a compatibility perspective, BMXDDO1602 outputs conform to IEC 61131-2 Type 3 DC input standards and also support connection to non-IEC 61131-2 DC input devices, providing good adaptability across various industrial systems. With its solid-state design, standardized interface, and full compatibility with the Modicon X80 platform, BMXDDO1602 is widely used in process control, equipment automation, and distributed control system applications.
Alternative Names
BMXDD01602 BMXDDO16O2 BMXDDOI602 BMXDDI3202K BMXDDO1602H BMENOC0301 BMXAMI0800 BMXAMO0802
Technical notes
When operating near maximum load, the Schneider Electric BMXDDO1602 requires proper thermal management and external fuses. Engineers must ensure that the module's total current conforms to the temperature derating profile above 40°C to maintain optimal hardware lifespan.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is BMXDDO1602?
BMXDDO1602 is a discrete output module from the Modicon X80 product range by Schneider Electric. It is designed to provide reliable digital output control in industrial automation systems.
How many outputs does BMXDDO1602 provide?
BMXDDO1602 features 16 discrete output channels compliant with EN/IEC 61131-2, enabling it to control multiple field devices simultaneously.
What type of output technology does BMXDDO1602 use?
BMXDDO1602 uses solid-state output technology with positive logic, ensuring fast switching performance and high operational reliability.
What applications is BMXDDO1602 typically used for?
BMXDDO1602 is commonly used in process control systems, equipment automation, and distributed control environments where dependable digital output is required.
