    Maintain your legacy Momentum control systems with this original Schneider Electric processor adaptor, sourced by Apter Power for dependable, long-term system performance.

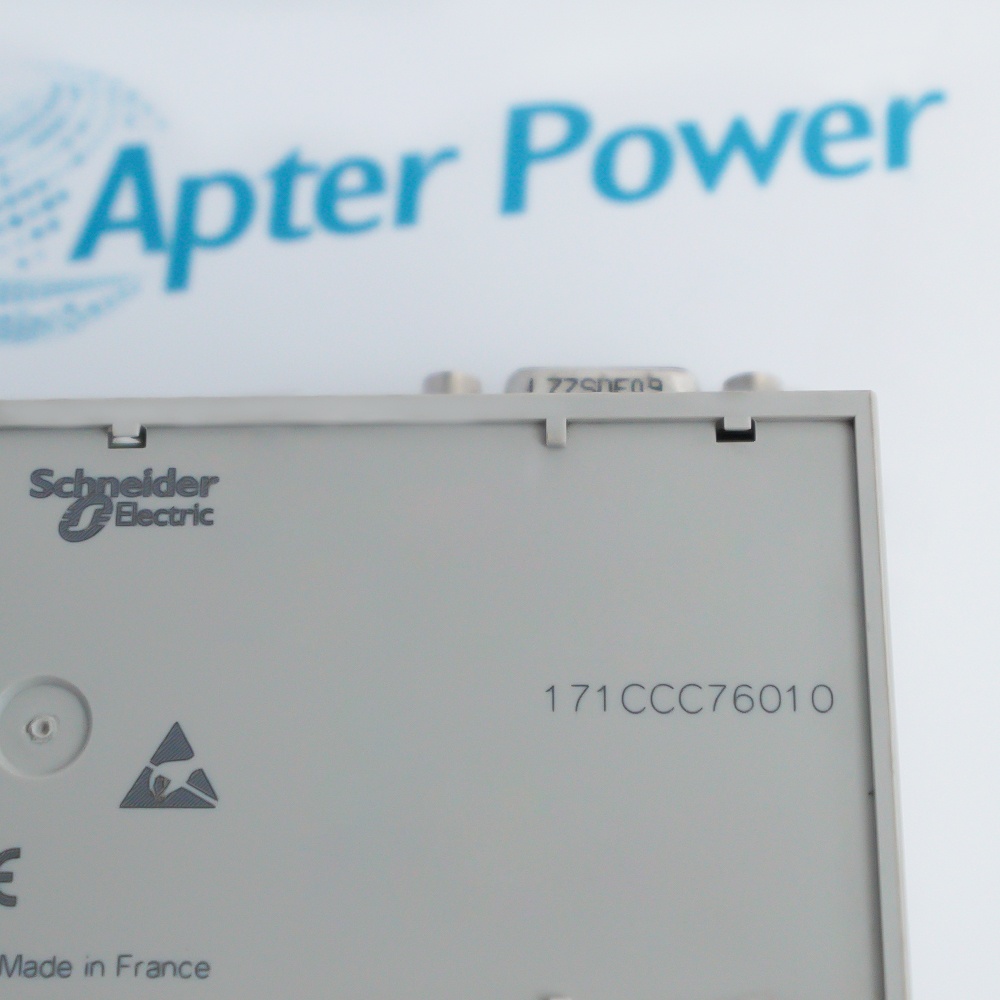

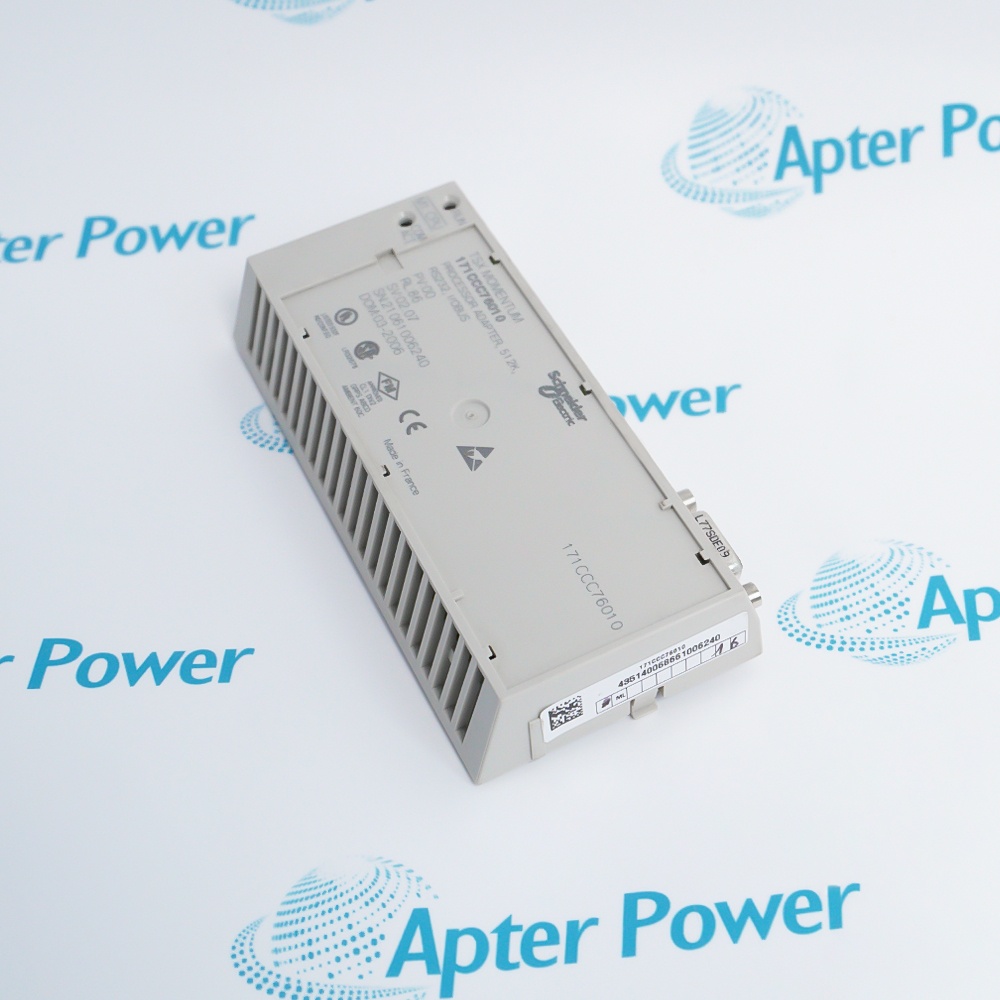

171CCC76010

/ 4.9
1001 reviews | Need a Specific Revision?
The Schneider Electric 171CCC76010 M1/M1E processor adaptor delivers processing and Modbus communication for Momentum automation systems while supporting both IEC and 984LL Execs.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 171CCC76010
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 171CCC76010

  • Manufacturer:
    Schneider Electric
  • Part Number:
    171CCC76010
  • Product Family:
    TSX Momentum
  • Product Type:
    M1/M1E Processor Adaptor
  • Stock:
    4
  • Communication port protocol:
    Modbus
  • Processor name:
    X 86 based (INTEL, AMD)
  • Clock frequency:
    32 MHz
  • Memory type:
    512 KB flash, 512 KB RAM.
  • Memory description:
    Program memory 18 kB LL984, Program memory 240 kB IEC, Data 24 kB.
  • Material:
    Lexan
  • Word length:
    16 bit
  • [Us] rated supply voltage:
    5.0 V DC +/-5 %
  • Supply:
    By Momentum I/O base
  • Exact time for 1 Kinstruction:
    1 ms
  • Register I/O processor capacity:
    26048 I/26048 O
  • I/O limit processor capacity:
    8192 bits max
  • I/O words/drop:
    128 I/O Concept, 80 I/O ProWORX.
  • Number of port:
    1 I/O bus, 1 RS232C non isolated.
  • Marking:
    CE
  • Ambient air temperature for operation:
    0…60 °C
  • Ambient air temperature for storage:
    -40…85 °C
  • Relative humidity:
    5…96 % without condensation
  • Operating altitude:
    2000 m
  • Shock resistance:
    <= 15 gn peak 11 ms half sine wave acceleration
  • Weight:
    0.08 kg
  • Estimated shipping dimensions:
    12.4x6.1x2.6cm
  • Tariff Code:
    7212200000
  • Country of origin:
    France
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Installation Operation Application Scenarios

Features:

  • Supports both IEC and 984LL Exec environments, providing compatibility with different Momentum application requirements.
  • Preserves application logic and state RAM during unexpected power interruptions and supports Flash storage for compatible 984LL programs.
  • Combines a 32 MHz X86-based processor, Modbus communication, and high I/O capacity for dependable Momentum automation control.
The Schneider Electric 171CCC76010 expands the processing capabilities of Momentum automation systems by combining control execution, communication, and memory management in a compact processor adaptor. Support for both IEC and 984LL Execs gives engineers greater flexibility when developing or maintaining industrial applications. The processor is suitable for systems that require stable operation and dependable program execution.

Communication is handled through a Modbus-compatible RS232C port together with an integrated I/O bus interface, allowing 171CCC76010 to exchange data efficiently with connected devices. The processor offers dedicated memory for IEC programs, 984LL programs, and application data while maintaining fast execution performance of 1 ms per 1K instruction. Register and I/O capacities allow the controller to manage complex Momentum installations.

The Schneider Electric 171CCC76010 is well suited for manufacturing, process automation, and distributed control applications where continuous operation is important. Updated execution firmware improves system reliability by preventing unnecessary Not Configured conditions during battery-low events, reducing maintenance interruptions. Combined with wide environmental specifications and CE compliance, the processor adaptor provides a dependable solution for industrial automation systems.

The 171CCC76010 Schneider Electric M1/M1E Processor Adaptor may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric 171CCC76010 M1/M1E Processor Adaptor Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Schneider Electric 171CCC76010 M1/M1E Processor Adaptor Specs

General

  • Manufacturer Schneider Electric
  • Model 171CCC76010
  • Condition New Original ready stock
  • Product Family 171CCS78000,171CCS76000,171CCS70010
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Modular snap-fit: Utilizes the Momentum series' signature baseless plug-in design, snapping directly onto any standard I/O base.
  • DIN rail compatible: Natively supports vertical or horizontal mounting on 35mm standard DIN rails, adapting to confined control box spaces.
  • Topology interface: The front panel integrates one Ethernet RJ45 interface, one Modbus RS232 serial port, and one I/O bus expansion port.
  • Cable Specifications: Shielded Twisted Pair (STP) cable is recommended for Ethernet connections. The maximum non-repeater transmission distance is strictly limited to 100 meters.
  • Built-in Storage: Equipped with 542 KB of built-in flash memory, including 180 KB of RAM buffer allocated specifically for user programs.
  • Protocol Concurrency: Supports Ethernet Modbus TCP protocol, allowing up to 32 TCP communication sockets to be opened simultaneously during operation.
  • Logic Clock: The internal microprocessor (CPU) provides a fine-grained single-task logic execution speed of 0.25 milliseconds/kilosteps (ms/kI).
  • Diagnostic Mechanism: The panel features four high-brightness LED status indicators: Ready, Run, Error, and LAN Act, providing real-time feedback on network and hardware health.
  • Distributed Edge Control: Suitable for edge computing applications such as pump stations and conveyor belts, which require large footprints, dispersed nodes, and independent logic control.
  • Industrial Network Gateway: Acts as a protocol conversion bridge between legacy Modbus RTU serial devices and the factory's upper-layer Ethernet (Modbus TCP).
  • OEM Machinery Support: Designed specifically for OEMs of packaging machinery, small machine tools, and other applications with stringent size requirements and a need for cost-effective standalone controllers.
  • Remote I/O Expansion: Through the integrated I/O bus, up to four additional I/O module docking stations can be locally expanded within a single site.
Description
The Schneider Electric 171CCC76010 is an M1/M1E processor adaptor built for Momentum automation platforms. Powered directly by the Momentum I/O base, it features a 32 MHz X86-based processor, 512 KB Flash memory, 512 KB RAM, and a 16-bit architecture to execute control applications efficiently. The processor supports Modbus communication through an RS232C non-isolated port and includes one I/O bus for system connectivity.

Memory resources include 18 kB of program memory for 984LL applications, 240 kB for IEC applications, and 24 kB of data memory. The 171CCC76010 supports both IEC and 984LL Execs, providing flexibility for different application requirements. In the event of an unexpected power interruption, application logic and state RAM values can be preserved. Programs using the 984LL Exec have the option of being saved to Flash, while specific IEC Exec applications have different Flash-saving limitations according to the supported processor versions.

The processor delivers an execution time of 1 ms per 1K instruction and supports up to 26,048 input registers and 26,048 output registers. It can manage up to 8,192 I/O bits, with capacities of 128 I/O words in Concept and 80 I/O words in ProWORX. Operating from a regulated 5.0 V DC supply provided by the Momentum I/O base, the 171CCC76010 combines reliable processing performance with efficient communication for industrial control systems.

The 171CCC76010 is constructed with Lexan material and carries CE marking for industrial applications. It operates in ambient temperatures from 0 to 60 °C and can be stored between -40 and 85 °C. The processor supports relative humidity from 5% to 96% without condensation, operates at altitudes up to 2000 m, and withstands shock levels up to 15 gn peak with an 11 ms half-sine wave acceleration. Updated IEC and 984LL Exec versions also prevent configured processors from entering a Not Configured state during battery-low conditions, allowing maintenance personnel time to replace the battery without interrupting normal operation.
Alternative Names
171CCC76O1O I7ICCC76010 171CCS70000 171CCS70010 171CCS7600 171CCS78000 171CCC78010 171CCC96020
Technical notes
The Schneider Electric 171CCC76010 serves as a compact M1E Processor Adaptor featuring an integrated Modbus TCP/IP Ethernet port. It offers a 180 KB user RAM capacity to deliver reliable decentralized control directly atop Modicon Momentum I/O bases.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What communication protocol does Schneider Electric 171CCC76010 support?
Schneider Electric 171CCC76010 supports the Modbus communication protocol through one non-isolated RS232C communication port.
How does 171CCC76010 protect application data during power loss?
During an unexpected power failure, 171CCC76010 preserves application logic and state RAM values, and 984LL applications can also be saved to Flash when supported.
Which execution environments can 171CCC76010 use?
171CCC76010 supports both IEC Execs and 984LL Execs, allowing users to select the execution environment that matches their application requirements.
Can 171CCC76010 save every application to Flash memory?
Not every application can be stored in Flash. Programs using the 984LL Exec support Flash saving, while certain IEC Exec configurations have specific limitations.
Why does 171CCC76010 require battery maintenance?
Battery power helps retain memory contents. Updated Exec versions allow 171CCC76010 to continue operating normally during battery-low conditions while notifying users to replace the battery within 30 days.
