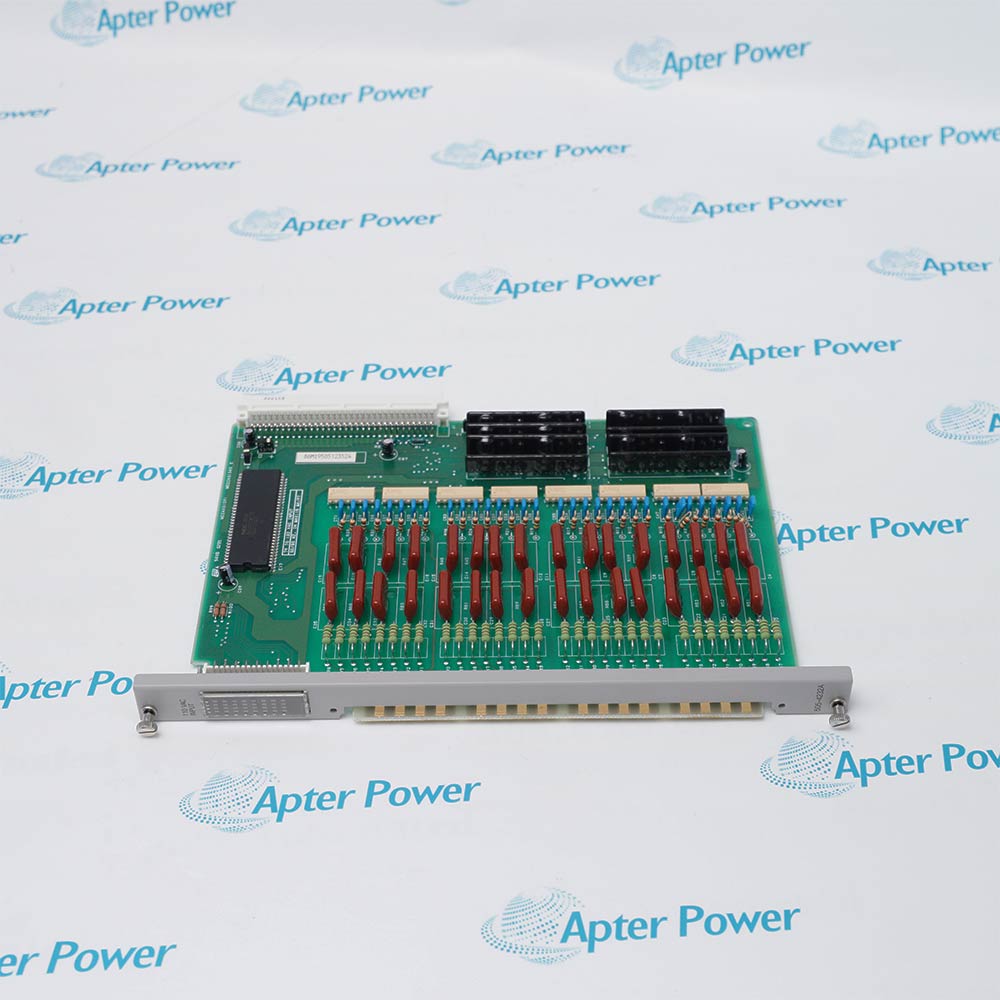

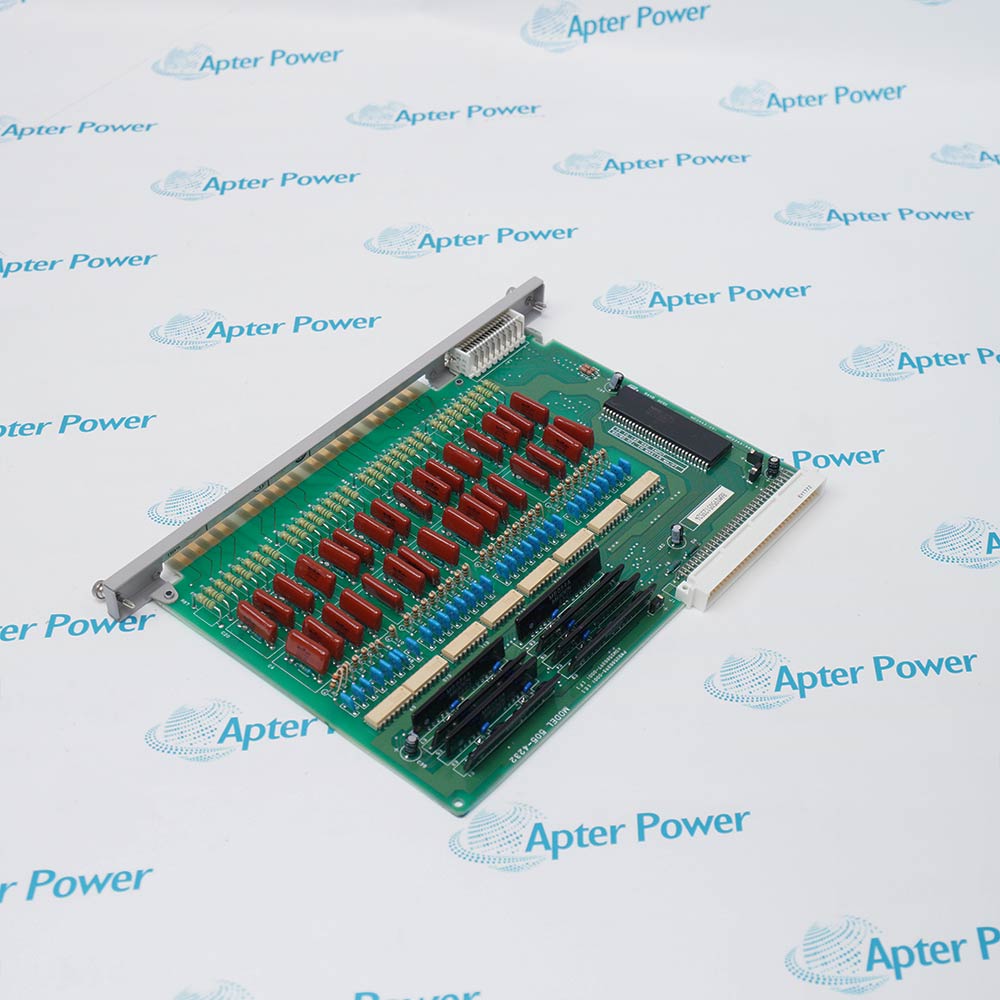

        Siemens 505-4232 is a single-wide SIMATIC TI505 input module with thirty-two IEC Type 1 channels for 100–115 VAC field signals.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for 505-4232
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 505-4232

        • Manufacturer:
          Siemens
        • Part Number:
          505-4232
        • Product Family:
          SIMATIC TI505 Input/Output Modules
        • Product Type:
          32-Point AC Discrete Input Module
        • Stock:
          1
        • Module family:
          SIMATIC TI505
        • Module type:
          Discrete AC input
        • Input count:
          32
        • Module width:
          Single-wide
        • Input classification:
          IEC Type 1
        • Rated voltage:
          100 to 115 VAC
        • ON-state voltage:
          79 to 132 VAC
        • OFF-state voltage:
          0 to 20 VAC
        • ON-state input current:
          4 to 15 mA
        • Maximum OFF current:
          1.5 mA
        • Module delay:
          6 to 30 ms
        • Base power:
          2.0 W
        • Operating frequency:
          47 to 63 Hz
        • Input groups:
          Four groups of eight
        • Group A:
          Inputs 1 to 8
        • Group B:
          Inputs 9 to 16
        • Group C:
          Inputs 17 to 24
        • Group D:
          Inputs 25 to 32
        • Field behavior:
          Sinking input connection
        • Tariff Code:
          8537101190
        • Country of origin:
          Germany
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Applications Compatibility Installation Diagnostics

        Features:

        • Provides thirty-two IEC Type 1 AC inputs in a single-wide module.
        • Accepts 79–132 VAC as ON and 0–20 VAC as OFF.
        • Divides the field terminals into four eight-channel return groups.
        The ordering identity is 505-4232, a 100–115 VAC SIMATIC TI505 discrete-input module with thirty-two points.

        A 6–30 ms module delay filters field transitions before each state is transferred to the controller base.

        Confirm AC line, neutral, terminal pinout, group returns and the 2 W base-power allowance before installing the module.

        Availability is subject to Apter Power inventory and sourcing confirmation.
        Verified resources for Siemens 505-4232: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Collects 110 VAC contact and device status signals in legacy SIMATIC TI505 control systems.
        • Consolidates thirty-two plant interlocks into a single-width controller I/O position.
        • Supports discrete monitoring of motor controls, switchgear and industrial utility equipment.
        • Each channel recognizes an ON state between 79 and 132 VAC.
        • The OFF-state voltage window extends from 0 to 20 VAC with a 1.5 mA maximum OFF current.
        • Rated operation covers 100–115 VAC at 47 to 63 Hz.
        • Inputs 1–8, 9–16, 17–24 and 25–32 use returns AR, BR, CR and DR respectively.
        • The field circuit uses a sinking AC input connection.
        • Unused AC, BC, CC and DC positions are not signal terminals on the 32-point block.
        • The front LED array gives a visual state indication for the module input points.
        • Troubleshooting should compare terminal voltage with the specified ON, transition and OFF regions.
        • A channel that never changes can indicate field wiring, return or controller-definition faults rather than a failed module.
        Description
        Siemens 505-4232 Thirty-two AC status points occupy one single-wide SIMATIC TI505 base position, providing high input density without combining every channel on one return. Four groups divide the field connections into manageable eight-point sections for cabinet wiring and fault isolation.

        Defined IEC Type 1 voltage windows help the controller distinguish a valid energized state from leakage, noise, or incomplete contact operation. Typical duties include reading limit switches, relay contacts, and other 100–115 VAC field devices into the controller image.

        An electrical match requires more than the same point count. Field-source voltage, frequency, grouped returns, terminal-block keying, sinking connection, base power, conductor placement, and controller definition must be checked before replacing another TI505 AC or DC input module.
        Alternative Names
        505-4232 505 4232 5054232 Siemens 505-4232 Siemens PPX:505-4232 SIMATIC TI505 505-4232 505-4232 32-Point AC Input Module
        Technical notes
        505-4232 uses four separate eight-point AC return groups; isolate 110 VAC field power and verify every return before transferring the terminal block.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What field voltage makes 505-4232 read ON?
        The official electrical table specifies 79 VAC minimum and 132 VAC maximum for the ON region.
        How are the thirty-two inputs on 505-4232 grouped?
        They are divided into four groups of eight, each with its own field return terminal.
        Which installations typically use 505-4232?
        It collects 110 VAC discrete states in installed SIMATIC TI505 PLC systems.
        What should a 505-4232 purchasing request include?
        Provide the complete catalog number, terminal block requirement, condition, quantity, destination and delivery date.
        Can 505-4232 replace a 24 VDC input module?
        No. Its IEC Type 1 AC thresholds, frequency, current and field-return wiring are different.
        Which reference confirms 505-4232 terminal assignments?
        The SIMATIC 505 Input/Output Modules User Manual 505-8105-2 provides the 32-point pinout and electrical specifications.
