    Discontinued / Obsolete by OEM
    Apter Power provides quotation, migration-sourcing support for Siemens Moore Module Bus hardware.

39MBXNAN 16180-1/14

/ 4.9
1001 reviews | Need a Specific Revision?

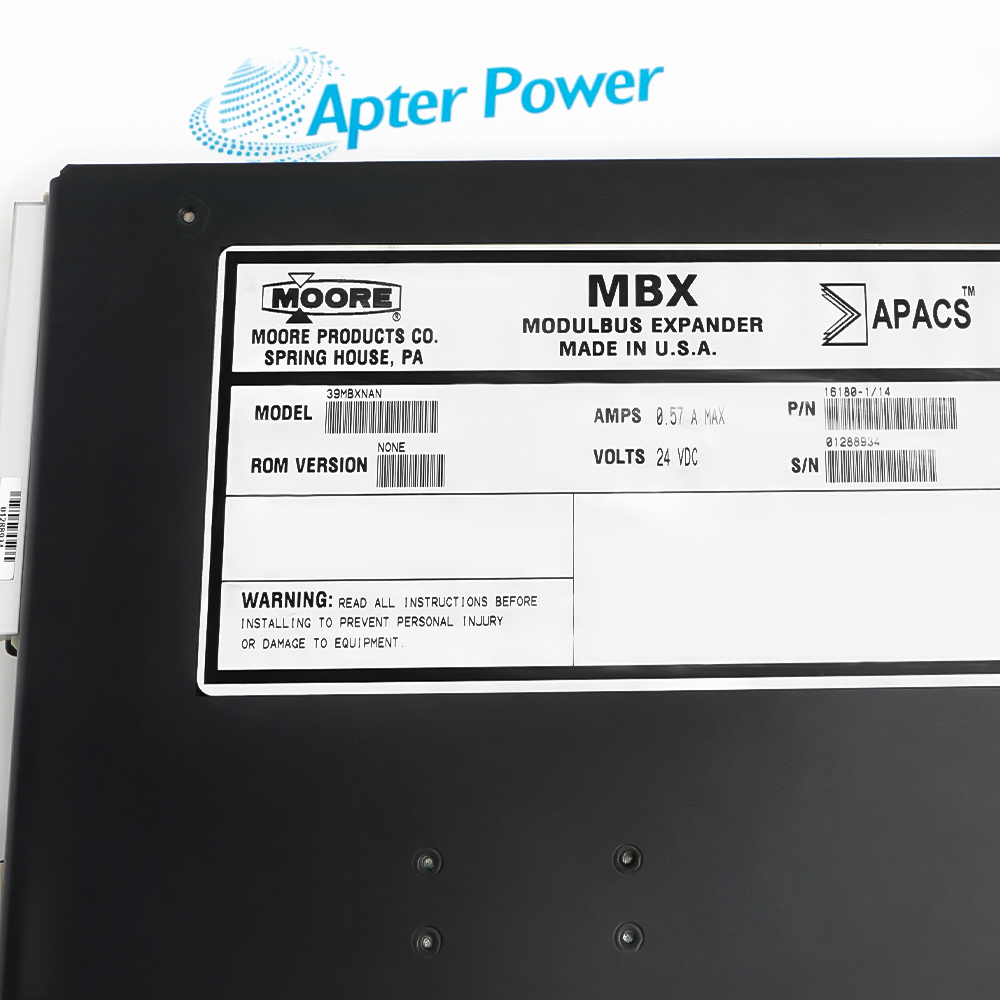

Siemens 39MBXNAN 16180-1/14 is a complete stock identifier for an APACS+ Module Bus Expander.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 39MBXNAN 16180-1/14
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 39MBXNAN 16180-1/14

  • Manufacturer:
    Siemens
  • Part Number:
    39MBXNAN 16180-1/14
  • Product Family:
    Siemens Moore
  • Product Type:
    APACS+ Module Bus Expander
  • Stock:
    1
  • Base model:
    39MBXNAN
  • Published product role:
    Module Bus Expander
  • System family:
    APACS+ / M-Net
  • Supply Voltage:
    24 VDC
  • Current:
    0.57 A max.
  • Complete stock identifier:
    16180-1/14
  • Successor context:
    Industrial Ethernet Module family
  • ROM Version:
    None
  • Weight:
    2 kg
  • Estimated shipping dimensions:
    4 x 25.7 x 30.5 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Module Bus Function Migration Paths Service Matching Product Applications

Features:

  • Module Bus expansion: The module serves the APACS+ M-Net communication architecture.
  • Network role: It extends Module Bus connectivity rather than generic Modbus communication.
  • Complete service label: The installed spare is identified as 39MBXNAN 16180-1/14.
The product belongs to the legacy APACS+ cabinet communication path.

Its function must be separated from controller-to-S7 and peer-to-peer requirements during migration.

The full installed code remains the service-matching reference.

Apter Power supports Siemens 39MBXNAN 16180-1/14 sourcing with quotation and communication-scope review.
Verified resources for Siemens 39MBXNAN 16180-1/14: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Product group: Siemens places 39MBXNAN in the M-Net family.
  • Communication scope: The module serves APACS+ Module Bus expansion.
  • Terminology boundary: Module Bus is not a statement of generic Modbus functionality.
  • Module Bus plus ACM-to-S7: Siemens lists IEM 6EQ20101AA005XX0 for this scope.
  • Peer-to-peer addition: Siemens lists 6EQ20102AA005XX0 when ACM/CCM peer traffic is required.
  • Engineered change: The IEM recommendation does not establish a drop-in swap.
  • Exact label: Keep 39MBXNAN 16180-1/14 intact on service documents.
  • Function map: Record Module Bus, controller and peer-to-peer communication duties.
  • Suffix boundary: The available OEM letter does not decode 16180-1/14.
  • APACS+ Module Bus expansion: The module supports the installed M-Net communication path.
  • Legacy network maintenance: Exact-label matching helps retain the existing module role.
  • Industrial Ethernet migration: The Siemens IEM paths support function-by-function modernization planning.
Description
The 39MBXNAN 16180-1/14 module expands Module Bus connectivity within an APACS+ M-Net installation. Its communication role belongs to the Siemens Module Bus architecture and should not be confused with generic serial Modbus networking.

In an operating system, 39MBXNAN 16180-1/14 supports the legacy communication path that links APACS+ resources through Module Bus. Service work should preserve that network role and the complete installed label.

For modernization, 39MBXNAN 16180-1/14 is replaced through an engineered Industrial Ethernet Module path. Siemens separates ACM-to-S7 plus Module Bus service from the option that adds ACM/CCM peer-to-peer communication, so the required data paths must be mapped before hardware is selected.
Alternative Names
39MBXNAN 16180-1/14 39MBXNAN 16180 1 14 39MBXNAN 16180-1-14 39MBXNAN16180114 UPH:39MBXNAN UPH 39MBXNAN Siemens 39MBXNAN 16180-1/14
Technical notes
39MBXNAN 16180-1/14 is an APACS+ M-Net/Module Bus expander, not a generic Modbus interface. Match the complete installed label and required communication paths before selecting a service spare or IEM migration route.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
A project specification calls 39MBXNAN 16180-1/14 a Modbus card. Is that correct?
No. Siemens places 39MBXNAN in the M-Net and Module Bus product group, so a Modbus-only specification describes the wrong communication function.
Which migration path should be evaluated when 39MBXNAN 16180-1/14 must retain Module Bus and add ACM-to-S7 communication?
Evaluate Siemens IEM 6EQ20101AA005XX0, which the maturity letter lists for Module Bus interface and ACM-to-S7 communication.
What changes if the replacement for 39MBXNAN 16180-1/14 must also support ACM or CCM peer-to-peer traffic?
Evaluate the IEM path that adds peer-to-peer support, listed as 6EQ20102AA005XX0, and map the required controller links before migration.
Can 39MBXNAN 16180-1/17 be accepted automatically in place of 39MBXNAN 16180-1/14?
No automatic equivalence is published. Keep the /14 label matched to the installed record unless project documentation establishes that the other hardware build is suitable.
Is an IEM a drop-in mechanical replacement for 39MBXNAN 16180-1/14?
Do not plan it as a drop-in swap. The Siemens recommendation is a migration path, so network functions, cabinet interfaces and configuration work must be engineered.
