39VIMCCN 16171-126/6

/ 4.9
1001 reviews | Need a Specific Revision?

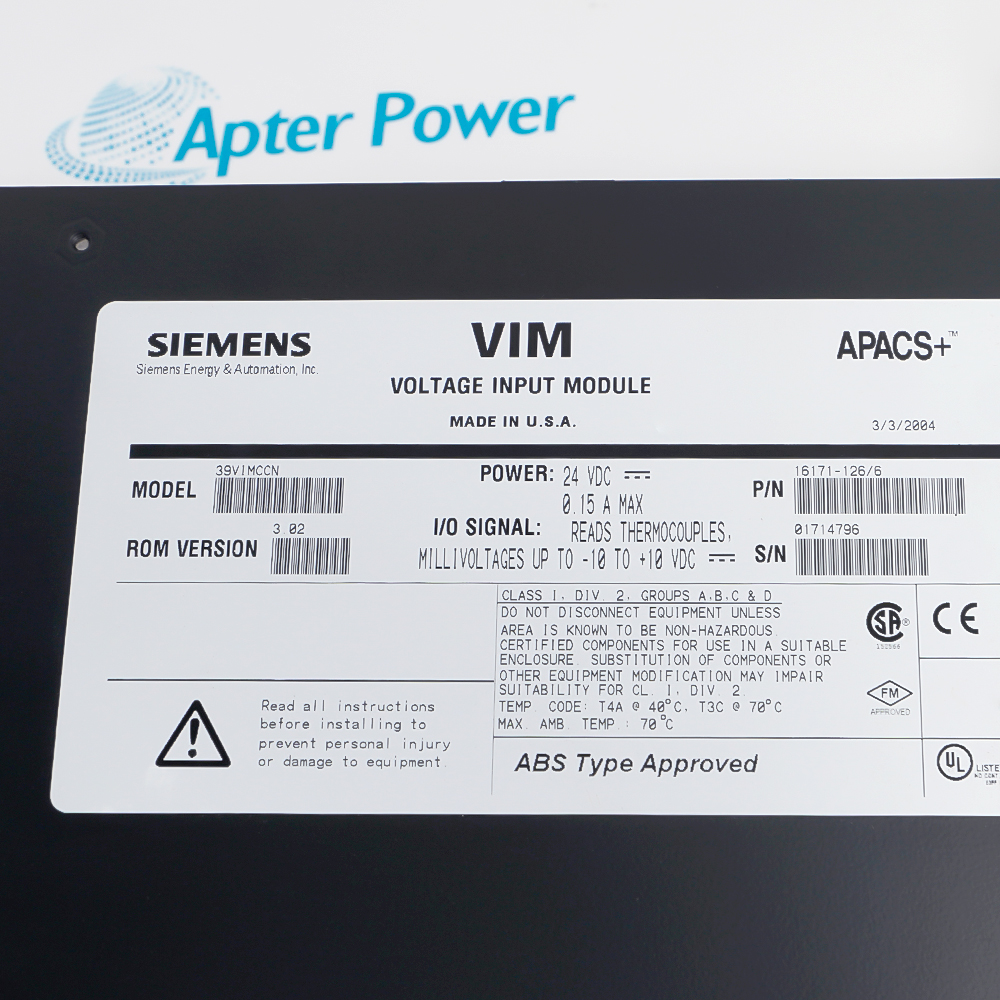

39VIMCCN 16171-126/6 is a Siemens APACS+ 16-channel isolated thermocouple and voltage input module. Its /6 assembly reference must be confirmed against the installed hardware and engineering database.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 39VIMCCN 16171-126/6
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 39VIMCCN 16171-126/6

  • Manufacturer:
    Siemens
  • Part Number:
    39VIMCCN 16171-126/6
  • Product Family:
    Siemens Moore
  • Product Type:
    APACS+ Voltage Input Module
  • Stock:
    1
  • Base module:
    39VIMCCN
  • System family:
    APACS+
  • Available inputs:
    16 isolated channels
  • Measurement modes:
    Thermocouple or voltage
  • Voltage window:
    Any supported range within -10 to +10 V
  • Standard voltage ranges:
    1-5 V, 0-5 V, +/-10 V, +/-5 V, +/-1 V
  • Custom voltage limits:
    -10 to +10 V for low and high entries
  • Voltage default range:
    1-5 V
  • Minimum scale default:
    0.0
  • Maximum scale default:
    100.0
  • Voltage filter default:
    0.016 second
  • Voltage response default:
    1.0 second
  • Thermocouple types:
    B, E, J, K, N1, N2, R, S, T
  • Thermocouple units:
    DegF, DegC, DegK, or DegR
  • Open-circuit handling:
    Disable, Up, or Down
  • Mains rejection setting:
    50 or 60 Hz
  • Redundant sensor setting:
    SharedTC Yes or No
  • Electrical isolation:
    Per channel from CPU, IOBUS, ground, and other channels
  • Weight:
    4.28 lbs (1.94 kg)
  • Estimated shipping dimensions:
    4 x 25.7 x 30.5 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Performance Monitoring Compatibility

Features:

  • Uses the exact 16171-126/6 assembly identifier within the 39VIMCCN family.
  • Provides isolated voltage and thermocouple input selection on 16 channels.
  • Supports standard and custom voltage spans with engineering-unit scaling.
The current configuration is 39VIMCCN 16171-126/6, a suffix-specific assembly in the Siemens APACS+ VIM family.

It supplies isolated temperature and voltage measurements to the control system with configurable signal conditioning.

Check the /6 label, field wiring, shared-sensor practice, channel ranges, scaling, filters, and fault responses before replacement.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for Siemens 39VIMCCN 16171-126/6:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Condition isolated voltage signals using a standard or custom span for process monitoring.
  • Acquire supported thermocouple types with configurable open-circuit direction and bias.
  • Replace a verified /6 VIM assembly in a maintained APACS+ cabinet configuration.
  • Voltage inputs use auto-ranging circuitry to retain resolution at millivolt levels.
  • Adjustable digital filtering reduces non-repetitive noise without changing the configured scale.
  • Step-response time can be tuned to balance faster response against repeatability and resolution.
  • Voltage channels return REAL values scaled from the selected electrical range to engineering units.
  • Minimum and maximum range limits allow underrange and overrange conditions to be reported.
  • Thermocouple bias can compensate for a known sensor offset in the configured engineering unit.
  • Thermocouple support includes B, E, J, K, N1, N2, R, S, and T selections.
  • Voltage operation supports five standard spans plus a custom range within -10 to +10 V.
  • SharedTC must match the redundant wiring practice used by the installed APACS+ input pair.
Description
Siemens 39VIMCCN 16171-126/6 provides 16 independently isolated measurement paths for thermocouple and voltage signals in an APACS+ control node. The channel architecture allows mixed low-level inputs to share one module without combining their electrical references.

Voltage span, thermocouple type, bias, engineering units, filtering, burnout direction, and response characteristics are assigned per channel. This flexibility supports furnaces, process skids, rotating-equipment auxiliaries, and other systems that require dependable analog acquisition.

Commissioning should retain the validated wiring schedule, calibration history, shielding practice, shared-sensor setting, and application scaling. Verifying each loop against the engineering database ensures that alarms, trends, and control calculations receive the intended signal behavior.
Alternative Names
39VIMCCN 16171-126/6 39VIMCCN-16171-126-6 39VIMCCN161711266 Siemens 39VIMCCN /6 Siemens APACS+ VIM /6 UPH:39VIMCCN Siemens 16171-126/6 Siemens Isolated Voltage Input Module
Technical notes
Do not substitute another suffix for 39VIMCCN 16171-126/6 without comparing the nameplate, project bill of material, terminal wiring, redundancy, and channel softlist.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which input modes are available on Siemens 39VIMCCN 16171-126/6?
The documented VIM family allows each of 16 isolated channels to be configured for a supported thermocouple or voltage input.
What determines compatibility for Siemens 39VIMCCN 16171-126/6?
Use the full /6 assembly label, hardware revision, APACS+ project record, terminal wiring, redundancy practice, and per-channel softlist.
How can Siemens 39VIMCCN 16171-126/6 handle noisy voltage signals?
The channel configuration provides adjustable low-pass digital filtering and step-response time; settings must follow the approved control strategy.
Can Siemens 39VIMCCN 16171-126/6 be newly ordered from the OEM?
The 39VIMCCN family appears in Siemens' APACS+ cancellation notice, so sourcing and delivery are checked against available supply.
What installation checks apply to Siemens 39VIMCCN 16171-126/6?
Confirm terminal polarity, channel isolation groups, thermocouple type, line frequency, SharedTC use, ranges, scaling, and open-circuit response.
What information is needed to quote Siemens 39VIMCCN 16171-126/6?
Send the complete nameplate, front and connector photos, quantity, destination, channel summary, and required delivery date.
