Features:
- APACS+ analog role: Operates as a standard analog module within the matching Siemens Moore architecture

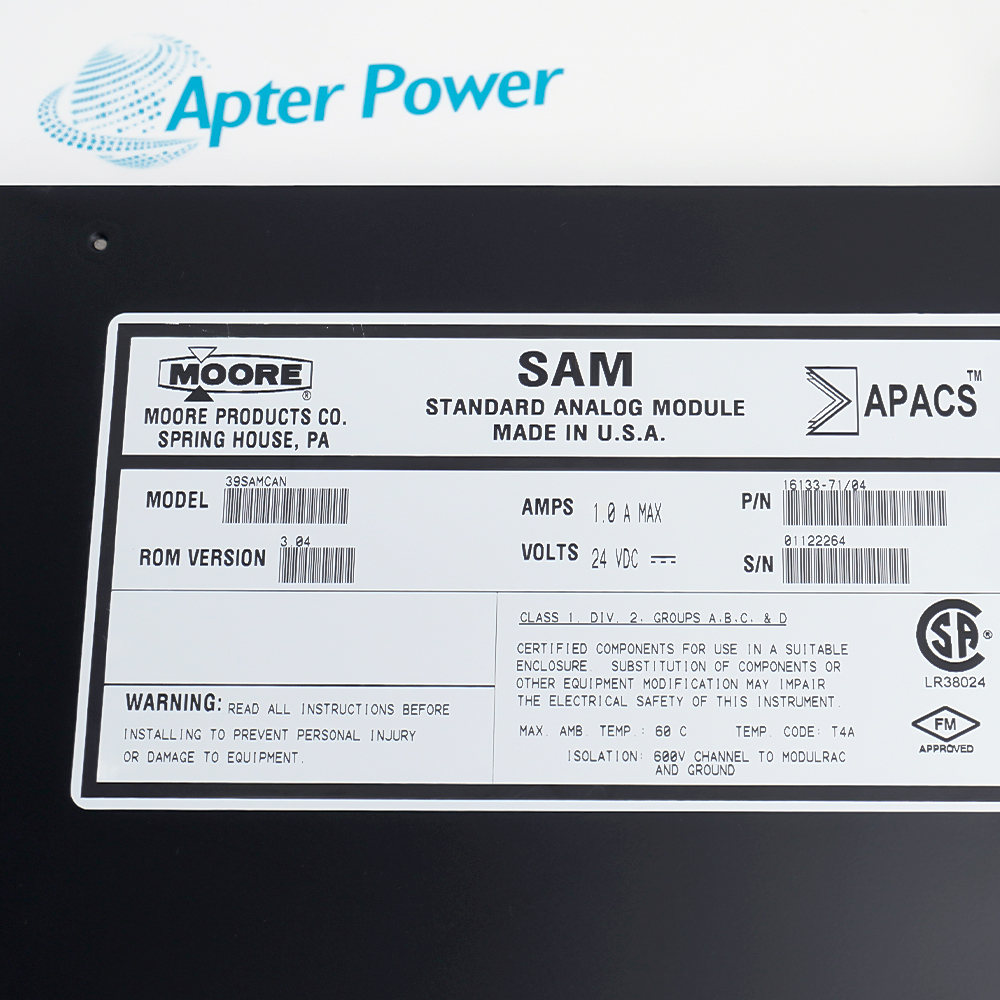

- Complete identity: Keeps 39SAMCAN and 16133-71/04 together for receiving and maintenance control
- Loop-dependent service: Requires carrier, termination and database records to define the installed use
The module belongs to a coordinated I/O assembly in which the carrier and termination hardware establish the physical interface.
Channel database, range and scaling records provide the engineering context needed to compare a spare with the operating installation.
Commissioning should verify the affected analog loops individually and preserve the site record for future migration work.
Apter Power supports Siemens Moore 39SAMCAN 16133-71/04 Standard Analog Module sourcing with documentation and loop-record review.
Siemens Moore 39SAMCAN 16133-71/04 Standard Analog Module Manuals,Datasheets,Link
Important Notice: Retain the complete label and verify carrier, termination and loop records before replacement.
- Module purpose: Participates in standard analog signal handling within a compatible APACS+ I/O station.
- System dependency: Relies on the installed carrier, terminal assembly and controller database.
- Channel context: Range, scaling and alarm behavior are defined by the project configuration.
- Evidence boundary: Family documentation does not by itself decode the full 16133-71/04 suffix.
- Slot location: Record the cabinet, rack and carrier position before removal.
- Terminal assembly: Identify the exact termination hardware connected to the module channels.
- Wiring schedule: Use loop drawings to keep signal and return paths assigned correctly.
- Physical inspection: Check connector condition and keying before accepting the spare.
- Database export: Save channel names, ranges, scaling and alarm limits before the outage.
- Calibration baseline: Retain recent loop-test or calibration results for comparison.
- Staged testing: Prove one affected channel at a time after hardware installation.
- Migration record: Document the final module identity and any approved database changes.
- Legacy analog I/O: Maintains analog channels in installed Siemens Moore APACS+ systems.
- Process loop service: Supports planned replacement where loop and termination records are available.
- Migration preparation: Provides traceable hardware identity during staged modernization projects.
- Installed-base spares: Keeps an exact label pairing for sites retaining the same I/O architecture.
