39VIMCCN 16171-126/3

/ 4.9
1001 reviews | Need a Specific Revision?

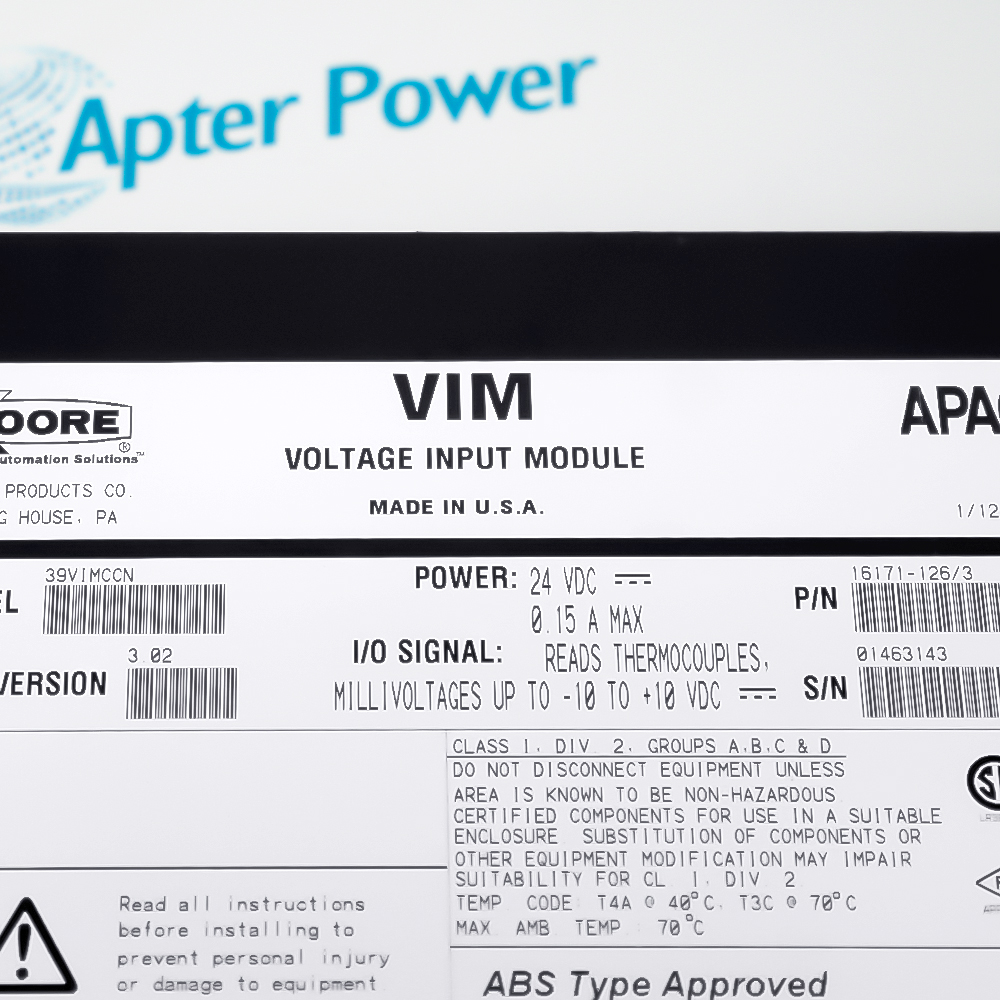

39VIMCCN 16171-126/3 is a Siemens APACS+ voltage input module with 16 isolated channels for thermocouple or voltage signals. The /3 assembly must be matched to the installed nameplate and channel configuration.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 39VIMCCN 16171-126/3
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 39VIMCCN 16171-126/3

  • Manufacturer:
    Siemens
  • Part Number:
    39VIMCCN 16171-126/3
  • Product Family:
    Siemens Moore
  • Product Type:
    APACS+ Voltage Input Module
  • Stock:
    1
  • Base module:
    39VIMCCN
  • Platform:
    APACS+
  • Channel count:
    16 isolated channels
  • Channel modes:
    Thermocouple input or voltage input
  • Thermocouple selections:
    B, E, J, K, N1, N2, R, S, T
  • Voltage selections:
    1-5 V, 0-5 V, +/-10 V, +/-5 V, +/-1 V, or custom
  • Readable voltage span:
    -10 to +10 V
  • Line frequency:
    50 or 60 Hz
  • Shared thermocouple:
    Yes or No
  • Thermocouple response:
    0.100 to 2.000 seconds
  • Voltage response:
    0.050 to 2.000 seconds
  • Digital filter:
    0.0 to 159.0 seconds
  • Burnout behavior:
    Disable, Up, or Down
  • Bias:
    Any REAL number
  • Scaling:
    Configurable minimum and maximum engineering values
  • Input isolation:
    Channel isolated from CPU, IOBUS, ground, and other channels
  • Default line frequency:
    60 Hz
  • Default thermocouple:
    Type J
  • Weight:
    4.19 lbs (1.9 kg)
  • Estimated shipping dimensions:
    4 x 25.7 x 30.5 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Temperature Configuration Environment

Features:

  • Provides 16 isolated thermocouple or voltage input channels.
  • Supports selectable input ranges through -10 to +10 V.
  • Applies configurable scaling, filtering, bias, and burnout detection.
The current configuration is 39VIMCCN 16171-126/3, combining the VIM base family with the exact /3 assembly reference.

It conditions isolated temperature and voltage signals for transfer to an APACS+ control module over the IOBUS.

Match the complete label and restore channel type, range, scaling, filtering, burnout, SharedTC, and wiring settings before installation.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for Siemens 39VIMCCN 16171-126/3:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Acquire thermocouple temperature signals using the supported sensor selections.
  • Measure low-level or process voltage signals within the configured channel range.
  • Maintain a legacy APACS+ analog-input position after exact suffix and project verification.
  • Thermocouple selections include B, E, J, K, N1, N2, R, S, and T types.
  • Each sensor type uses its documented minimum and maximum temperature limits.
  • Burnout detection can return the selected maximum or minimum operating value for an open circuit.
  • Set each channel for thermocouple or voltage operation before assigning scale and engineering units.
  • Choose 50 or 60 Hz line frequency so the notch-filter algorithm matches local power noise.
  • Configure SharedTC only when redundant modules share one thermocouple circuit.
  • Digital filtering can reduce non-repetitive electrical noise in the acquired signal.
  • Step-response settings trade response speed for repeatability and resolution.
  • Channel isolation limits propagation of field faults into logic, IOBUS, ground, or adjacent inputs.
Description
Siemens 39VIMCCN 16171-126/3 is a 16-channel APACS+ voltage input module for isolated thermocouple and low-level voltage measurement. Each channel is separated from the module logic, IOBUS, ground, and neighboring inputs to protect signal integrity.

Supported channel configuration includes thermocouple selection, voltage range, engineering scaling, digital filtering, line-frequency rejection, response time, and burnout behavior. These functions serve temperature acquisition, millivolt sensing, equipment monitoring, alarms, and process-control calculations.

Reliable measurement depends on preserving sensor type, polarity, shielding, grounding, calibration data, and the approved channel softlist. Correct cold-junction and shared-sensor arrangements help the module deliver stable values across mixed field circuits.
Alternative Names
39VIMCCN 16171-126/3 39VIMCCN-16171-126-3 39VIMCCN161711263 Siemens 39VIMCCN Siemens APACS+ VIM UPH:39VIMCCN Siemens 16171-126/3 Siemens Voltage Input Module /3
Technical notes
The /3 assembly of 39VIMCCN 16171-126/3 must be matched exactly, with line frequency, SharedTC, range, scaling, filter, bias, and burnout settings restored per channel.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What signal types can Siemens 39VIMCCN 16171-126/3 acquire?
The VIM family provides 16 isolated channels that can be configured for supported thermocouples or voltage inputs.
Can Siemens 39VIMCCN 16171-126/3 be exchanged with another 16171-126 suffix?
Do not assume interchangeability; compare the complete /3 nameplate, hardware revision, project settings, wiring, and installed system record.
Where is Siemens 39VIMCCN 16171-126/3 used?
It conditions thermocouple and voltage measurements for a control module through the APACS+ IOBUS.
Is Siemens 39VIMCCN 16171-126/3 discontinued?
Siemens includes the 39VIMCCN family in its APACS+ product-line cancellation notice; current sourcing is subject to quotation.
Which channel data must be preserved for Siemens 39VIMCCN 16171-126/3 replacement?
Save channel mode, sensor type, range, scale, bias, filter, response time, burnout behavior, line frequency, and SharedTC setting.
How can I request the Siemens 39VIMCCN 16171-126/3 manual and price?
Use the Apter datasheet for the official module pages and send nameplate images, channel configuration, quantity, destination, and delivery requirement.
