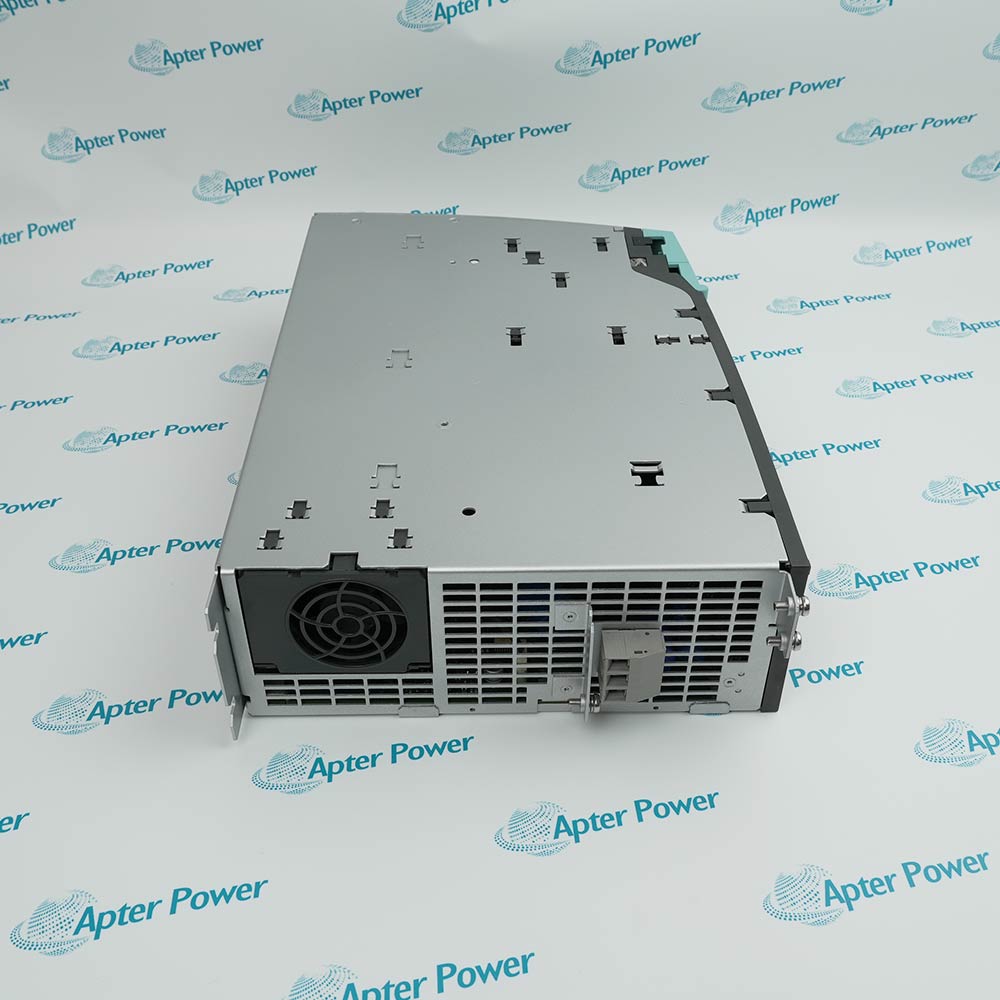

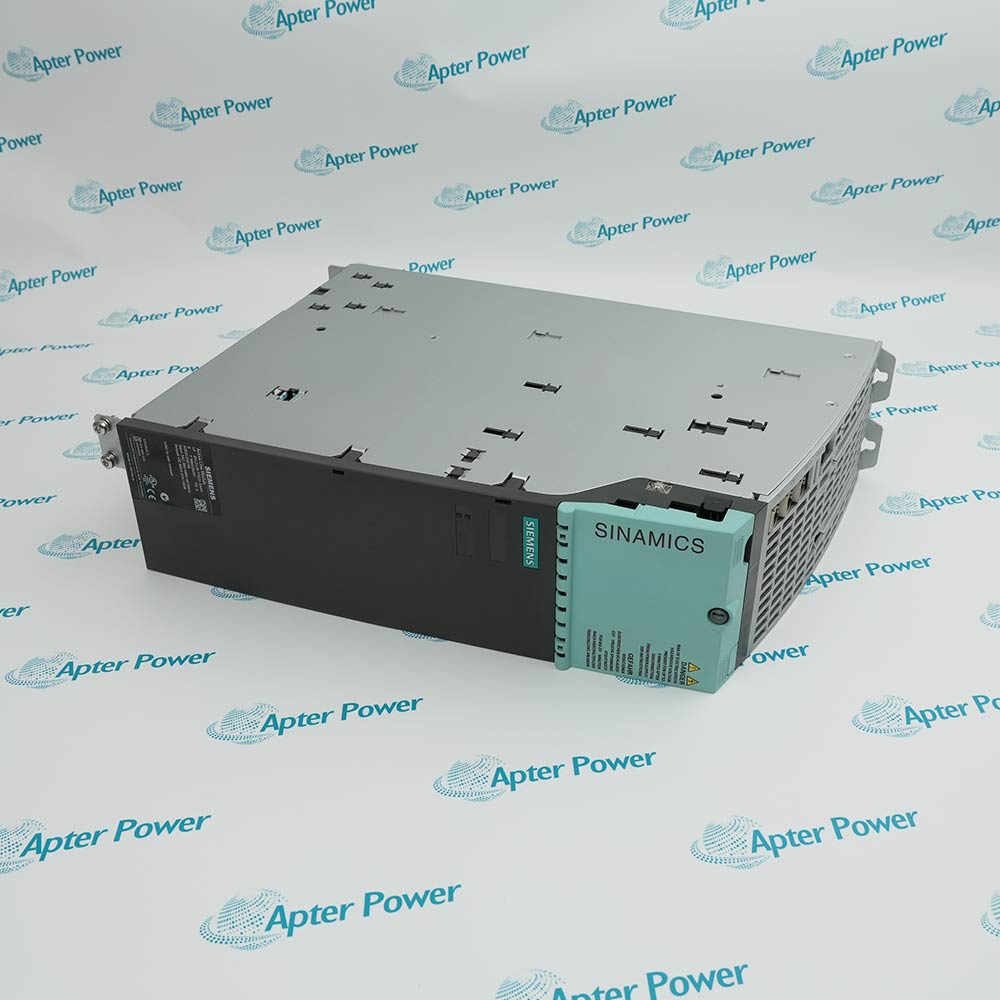

Siemens 6SL3130-6TE21-6AA4
Siemens 6SL3130-6TE21-6AA4
Siemens 6SL3130-6TE21-6AA4
Siemens 6SL3130-6TE21-6AA4
Siemens 6SL3130-6TE21-6AA4
Siemens 6SL3130-6TE21-6AA4
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com

6SL3130-6TE21-6AA4

/ 4.9
1001 reviews | Need a Specific Revision?
The 6SL3130-6TE21-6AA4 is a Siemens SINAMICS Smart Line Module Booksize with 16 kW infeed/regenerative power, 3-phase 380-480V input, 30A DC link current, and IP20 protection.
Get a quick price for 6SL3130-6TE21-6AA4
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6SL3130-6TE21-6AA4

  • Manufacturer:
    Siemens
  • Part Number:
    6SL3130-6TE21-6AA4
  • Product Family:
    Siemens SINAMICS
  • Product Type:
    Smart Line Module (Booksize)
  • System:
    SINAMICS S120
  • Input Phases:
    3 AC
  • Line Voltage:
    342-528 V
  • Line Frequency:
    47-63 Hz
  • Rated Infeed Power:
    16.0 kW (21.0 kW S6 duty, 35.0 kW max)
  • Rated Regenerative Power:
    16.0 kW
  • DC Link Capacitance:
    710 µF
  • Short-Circuit Strength:
    65 kA
  • Protection Class:
    IP20
  • Key Benefit:
    Solves regenerative DC link power for multi-axis drives in Booksize format, saving cabinet space while returning braking energy to the line for energy efficiency.
  • Weight:
    7.15 kg
  • Estimated shipping dimensions:
    10x27x41cm
  • Tariff Code:
    8517795000
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Communication and Connectivity Safety and Compliance

Features:

  • 16 kW rated infeed and regenerative power (35 kW max) with 30 A DC link current for multi-axis SINAMICS S120 drives.
  • Booksize format (100 mm width) with internal air cooling, saving cabinet space while providing 65 kA short-circuit strength.
  • Regenerative feedback capability returns braking energy to the line, reducing energy costs and eliminating the need for braking resistors.
The 6SL3130-6TE21-6AA4 is a Smart Line Module that serves as the front-end power supply for SINAMICS S120 multi-axis drive systems. It converts 3-phase AC line voltage (342-528 V) into a regulated DC link that powers multiple connected Motor Modules. Unlike standard diode bridges, this module is regenerative, meaning it feeds braking energy back into the line instead of dissipating it as heat in braking resistors. This reduces energy consumption and cabinet cooling requirements. The rated infeed and regenerative power is 16 kW (21 kW for S6 duty, 35 kW maximum), with a DC link current of 30 A at 540 V DC (27 A at 600 V DC). Maximum DC link current is 59 A.

This slim profile allows multiple modules to be mounted side by side in a shared cabinet, maximizing power density. The module weighs 7.0 kg and has IP20 protection. It uses internal air cooling with 0.016 m³/s airflow, suitable for ambient temperatures up to 40°C. Installation altitude is up to 1,000 m without derating. The module includes screw-type terminals for line connection (2.5-10 mm² / AWG 14-8) and an integrated shield connection plate for EMC compliance. The DC link busbars support up to 100 A.

The regenerative capability of the 6SL3130-6TE21-6AA4 is a key advantage for applications with frequent deceleration cycles, such as centrifuges, winders, and test stands. By returning energy to the line, the module reduces overall power consumption and eliminates the need for external braking resistors. The module has a short-circuit strength of 65 kA when used with recommended Class J fuses or UL489 circuit breakers. Power losses are 0.190 kW at rated power, with a sound pressure level of 60 dB. The electronics power supply requires 24 V DC (20 A busbar ampacity) and draws up to 0.95 A. The module meets CE and cULus standards and includes built-in radio interference suppression (category C2 with line filter).

The 6SL3130-6TE21-6AA4 Siemens Line Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

Siemens 6SL3130-6TE21-6AA4 Line Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Siemens 6SL3130-6TE21-6AA4 Line Module Specs

General

  • Manufacturer Siemens
  • Model 6SL3130-6TE21-6AA4
  • Condition New Original ready stock
  • Product Family 6SL3130-6TE21-6AA3,6SL3130-6TE21-6AA0,6SL3130-6TE23-6AA4
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Machine Tools and Machining Centers: Such as CNC lathes and milling machines, especially when used with the SINUMERIK 840D sl system.
  • Packaging and Printing Machinery: Suitable for production lines requiring multi-axis coordination and high dynamic response.
  • Lifting and Conveying Systems: Utilizing its 100% continuous energy feedback capability, it feeds electrical energy back to the grid when equipment slows down or lowers the load, significantly reducing energy consumption.
  • DRIVE-CLiQ Interface: The module is equipped with 3 DRIVE-CLiQ interfaces for communication with control units (such as the CU320-2). This digital interface enables automatic parameter identification and high-speed data exchange.
  • DC Bus (DC Link): Directly connects to downstream inverters (motor modules) via ribbon cables for power distribution.
  • Input Connection: Uses screw-type terminal blocks, supporting 3AC 380-480V voltage input.
  • 24V DC Electronic Power Supply: Features a dedicated 24V DC bus connection to power the internal electronic control circuitry of the module.
  • Functional Safety: As part of the S120 system, it supports essential Safety Integrated functions such as Safe Torque Off (STO) to prevent accidental motor start-up.
  • Environmental and Electromagnetic Compatibility (EMC): Compliant with CE and cULus certifications.
  • When used with a dedicated line filter, it meets Category C2 (EN 61800-3) standards, effectively suppressing radio interference.
  • Physical Protection: IP20 protection rating, book-size compact design suitable for installation in control cabinets.
Description
The 6SL3130-6TE21-6AA4 is a Smart Line Module for the Siemens SINAMICS S120 drive system in Booksize format. It provides active infeed and regenerative feedback capability for the DC link, supplying power to connected Motor Modules.

The 6SL3130-6TE21-6AA4 has a DC link capacitance of 710 µF and supports a maximum drive system capacitance of 20,000 µF. The DC link current is 30.0 A at 540 V DC (27.0 A at 600 V DC), with a maximum of 59.0 A. Input current varies with line voltage: 29.0 A at 380 V, 27.5 A at 400 V, 24.5 A at 480 V.

It features screw-type terminals for line connection (2.5-10 mm² / AWG 14-8) and an integrated shield connection plate. The module has an IP20 degree of protection, internal air cooling with 0.016 m³/s airflow, and operates at 0-40°C ambient temperature. Losses are 0.190 kW at rated power, with a sound pressure level of 60 dB.

This Smart Line Module solves the pain point of providing regenerative DC link power for multi-axis drive systems. The 6SL3130-6TE21-6AA4’s Booksize format saves cabinet space, while its regenerative capability returns braking energy to the line, reducing energy costs. Short-circuit strength of 65 kA (with recommended fuses) ensures robust protection.
Alternative Names
6SL3130-6TE21-6AA3 6SL3130-6TE21-6AB0 6SL3130-7TE21-6AA4
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What drive system is the 6SL3130-6TE21-6AA4 compatible with?
SINAMICS S120. It is a Smart Line Module that supplies the DC link for connected Motor Modules.
What is the maximum DC link current of the 6SL3130-6TE21-6AA4?
59.0 A. Rated DC link current is 30.0 A at 540 V DC (27.0 A at 600 V DC).
What is the short-circuit strength of this module?
65 kA when used with the recommended Class J fuse or UL489/CSA22.2 circuit breaker.
