6SL3246-0BA22-1FA0 VERSION 4.7

/ 4.9
1001 reviews | Need a Specific Revision?

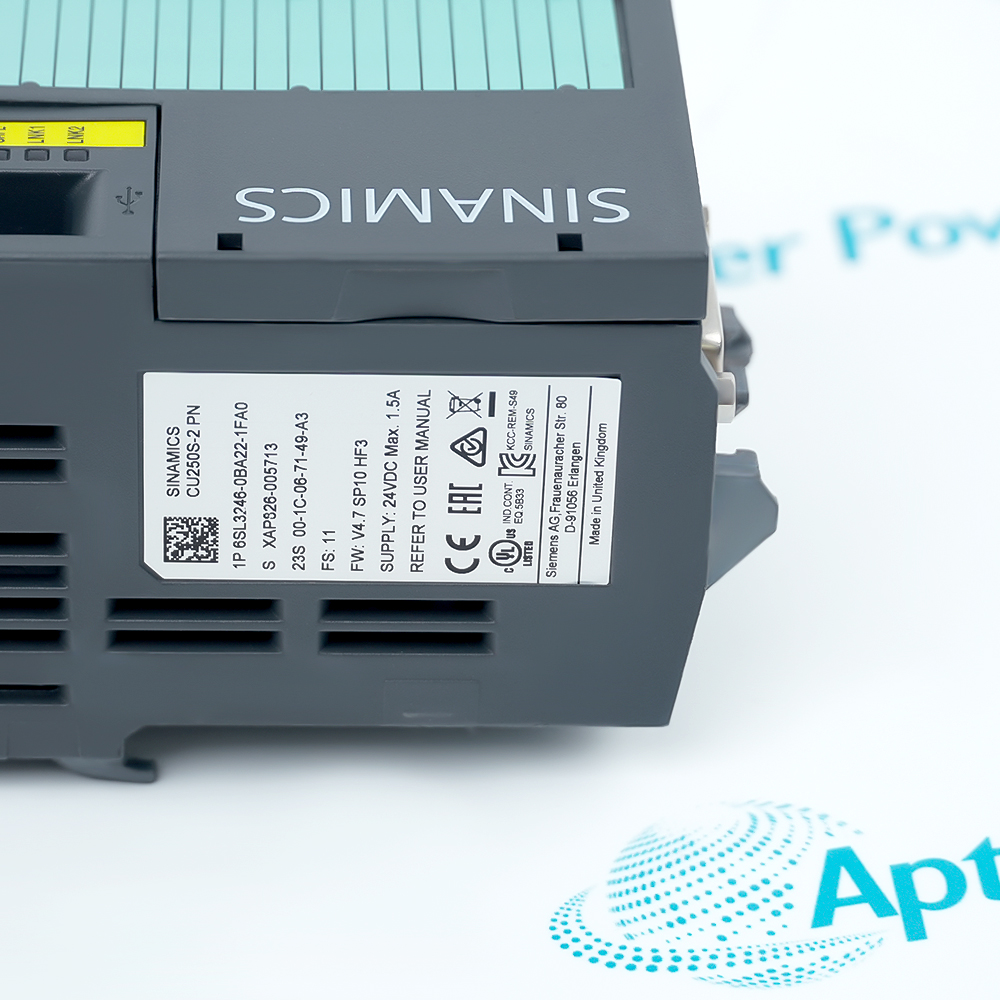

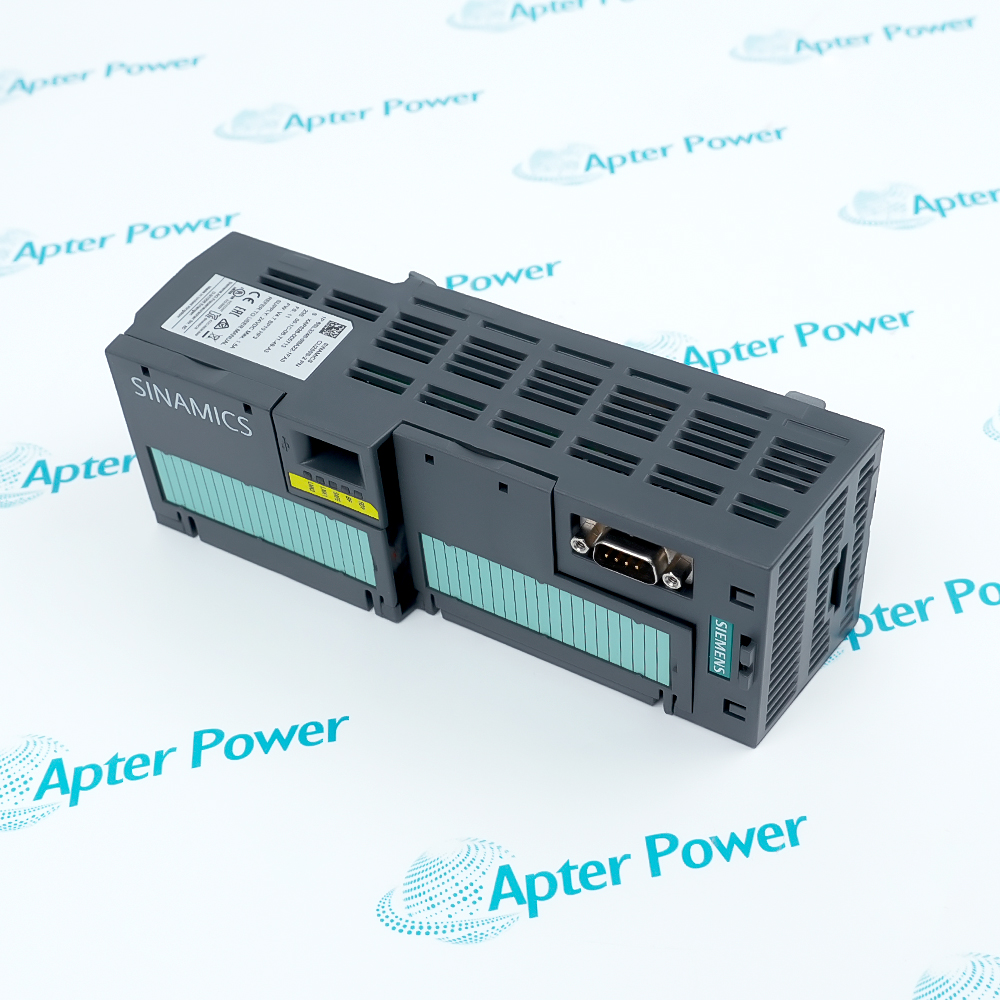

Siemens 6SL3246-0BA22-1FA0 VERSION 4.7 is a SINAMICS G120 CU250S-2 PN Control Unit for PROFINET and EtherNet/IP communication. It provides standard, fail-safe, encoder, and analog interfaces for compatible drive systems.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6SL3246-0BA22-1FA0 VERSION 4.7
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6SL3246-0BA22-1FA0 VERSION 4.7

  • Manufacturer:
    Siemens
  • Part Number:
    6SL3246-0BA22-1FA0 VERSION 4.7
  • Product Family:
    Siemens SINAMICS
  • Product Type:
    SINAMICS G120 CU250S-2 PN Control Unit
  • Stock:
    1
  • Control Unit:
    CU250S-2 PN
  • Communication:
    PROFINET and EtherNet/IP
  • Supply:
    24 V DC
  • Standard digital inputs:
    15
  • Fail-safe digital inputs:
    3 using 2 standard inputs each
  • Relay outputs:
    2 changeover and 2 make contacts
  • Analog interfaces:
    2 analog/digital inputs and 2 analog outputs
  • Protection:
    IP20
  • Weight:
    0.61 kg
  • Estimated shipping dimensions:
    7.3x19.9x6.7cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    Great Britain
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Control Interfaces Encoder & Safety Commissioning Match Product Applications

Features:

  • Control platform: CU250S-2 PN for compatible SINAMICS G120 drive systems.
  • Industrial Ethernet: Supports PROFINET and EtherNet/IP communication.
  • Integrated interfaces: Combines standard, fail-safe, encoder, relay, and analog connections.
Version 4.7 remains part of the installed identity because parameter and safety records can depend on firmware context.

The Power Module, motor, encoder, network telegram, and I/O map should be reviewed as one drive configuration.

Safety commissioning must follow the approved plant procedure after any Control Unit exchange.

Apter Power supports Siemens 6SL3246-0BA22-1FA0 VERSION 4.7 SINAMICS G120 CU250S-2 PN Control Unit quotations, technical documents, and configuration review.
Siemens 6SL3246-0BA22-1FA0 VERSION 4.7 SINAMICS G120 CU250S-2 PN Control Unit Manuals, Datasheets, Links
Important Notice: Manuals and supporting documents are provided for identification and engineering review. Confirm the complete product code before ordering.
  • Digital inputs: Map the standard and fail-safe signals to the saved project.
  • Outputs: Confirm relay and analog-output assignments before startup.
  • Supply: Verify the documented 24 VDC control supply and grounding.
  • Encoder: Match the feedback device, wiring, and motor data.
  • Fail-safe inputs: Retain the approved dual-channel assignment for enabled functions.
  • Acceptance: Repeat and document the required safety validation after service.
  • Version record: Keep version 4.7 with the parameter and memory-card evidence.
  • Network: Restore device name, IP, telegram, and controller configuration.
  • Diagnostics: Review alarms, motor identification, and signal status before release.
  • Closed-loop drives: Supports encoder-based speed or position control in configured machinery.
  • Networked automation: Links SINAMICS G120 drives to PROFINET or EtherNet/IP control systems.
  • Safety-integrated machines: Supports approved fail-safe drive functions when correctly commissioned.
Description
The Siemens 6SL3246-0BA22-1FA0 VERSION 4.7 page identifies the CU250S-2 PN Control Unit using the exact installed version record. The unit combines PROFINET/EtherNet-IP communication with drive control, encoder support, and integrated standard and fail-safe I/O.

A controlled exchange of 6SL3246-0BA22-1FA0 VERSION 4.7 requires the saved SINAMICS parameter set, firmware context, telegram selection, safety commissioning record, encoder type, and I/O assignment. The base article alone does not establish that another firmware state can be installed without engineering review.

After fitting 6SL3246-0BA22-1FA0 VERSION 4.7, commissioning should confirm network identity, motor data, encoder feedback, digital and analog signals, and every enabled safety function. Apter Power can support exact-version quotation, technical documentation, and configuration matching.
Alternative Names
6SL32460BA221FA0 6SL 3246-0BA22-1FA0 6SL3246 0BA22 1FA0 6SL3246-0BA22-1FAO 6SL3246-OBA22-1FA0 CU250S-2 PN 6SL3246-0BA22-1FA0 V4.7 6SL3246-0BA22-1FA0 FW 4.7
Technical notes
Treat 6SL3246-0BA22-1FA0 VERSION 4.7 as a version-controlled CU250S-2 PN installation. Preserve parameters, telegrams, network identity, encoder data, I/O mapping, memory-card context, and the safety acceptance record. Apter Power can align exact-version sourcing and documentation with the installed SINAMICS drive before quotation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is 6SL3246-0BA22-1FA0 VERSION 4.7?
It is a SINAMICS G120 CU250S-2 PN Control Unit recorded for the installed version 4.7 configuration.
Can a different firmware version replace 6SL3246-0BA22-1FA0 VERSION 4.7 without changes?
Not automatically. Check parameter compatibility, memory card, drive firmware, safety acceptance, and the approved project first.
What should be backed up before replacing 6SL3246-0BA22-1FA0 VERSION 4.7?
A complete backup includes parameters, telegrams, motor and encoder data, I/O assignments, safety settings, network identity, and diagnostic history.
Why might communication fail after installing 6SL3246-0BA22-1FA0 VERSION 4.7?
Troubleshooting should compare the device name, IP settings, fieldbus telegram, controller project, cable path, and permitted firmware combination.
What safety checks follow replacement of 6SL3246-0BA22-1FA0 VERSION 4.7?
The site-approved safety commissioning and acceptance test should be completed for every enabled fail-safe function.
What should accompany an RFQ for 6SL3246-0BA22-1FA0 VERSION 4.7?
A useful request includes the full label, version evidence, Power Module, motor and encoder details, project backup, quantity, destination, and document needs.
