6ES7193-6BP00-0DA0

/ 4.9
1001 reviews | Need a Specific Revision?

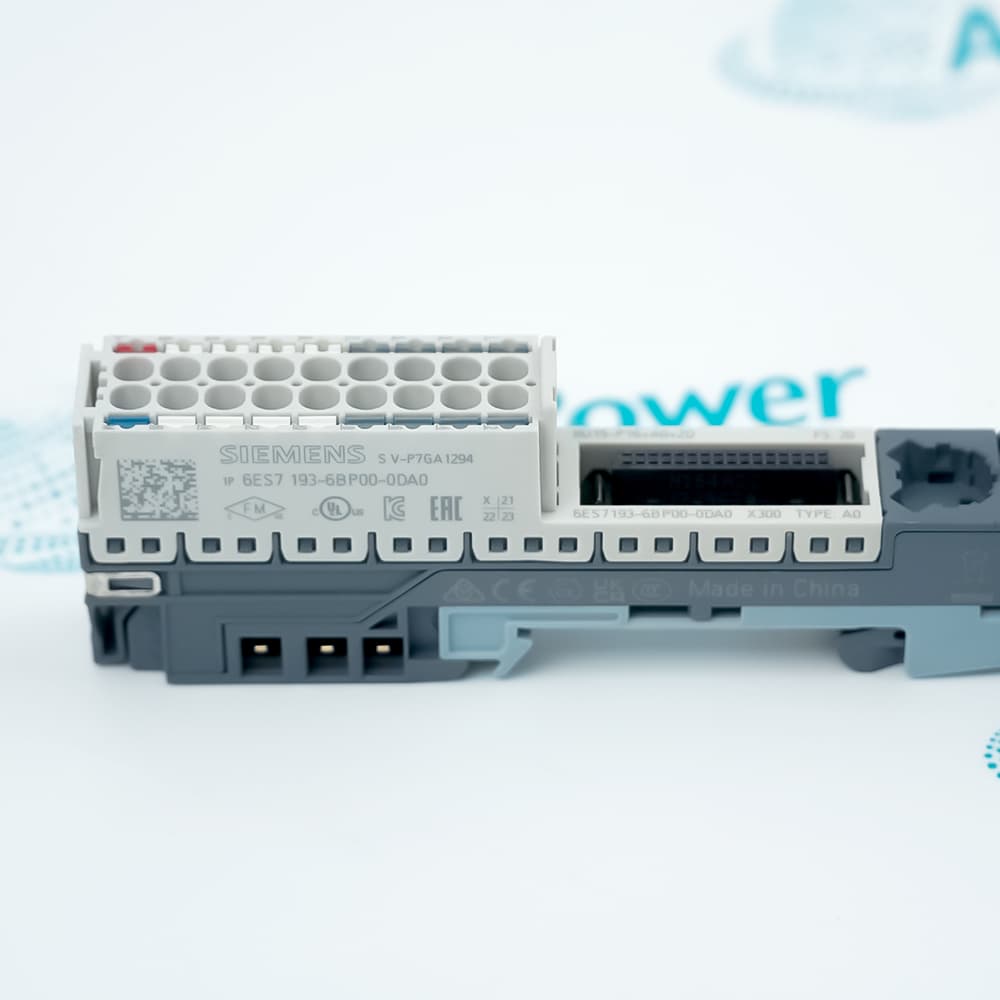

Siemens 6ES7193-6BP00-0DA0 is a BU15-P16+A0+2D ET 200SP BaseUnit that starts a new 24 V DC load group with push-in terminals.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6ES7193-6BP00-0DA0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7193-6BP00-0DA0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7193-6BP00-0DA0
  • Product Family:
    Siemens Simatic ET 200SP
  • Product Type:
    ET 200SP BaseUnit BU15-P16+A0+2D
  • Stock:
    1
  • BaseUnit designation:
    BU15-P16+A0+2D
  • BU type:
    A0
  • Potential group:
    New load group
  • Process terminals:
    16 push-in terminals
  • AUX terminals:
    None
  • P1/P2 bus capacity:
    10 A maximum
  • Process-terminal capacity:
    2 A maximum
  • Weight:
    0.047 kg
  • Estimated shipping dimensions:
    4.2 x 12.4 x 2.9 cm
  • Tariff Code:
    85366990
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Load Group Start Terminal Layout Current Capacity Product Applications

Features:

  • New load group: begins a separate ET 200SP potential group
  • Push-in field wiring: sixteen process terminals for a Type A0 module
  • 15 mm format: compact BaseUnit without AUX terminals
6ES7193-6BP00-0DA0 is defined by the way it starts, rather than continues, station power distribution.

The BU15-P16+A0+2D code fixes the terminal count, BaseUnit type, and absence of auxiliary terminals.

Its dark-base new-group role provides a visual station cue, but the exact article still controls the electrical arrangement.
Apter Power can review 6ES7193-6BP00-0DA0 load-group placement, terminal layout, condition, and quotation scope.
Siemens 6ES7193-6BP00-0DA0 ET 200SP BaseUnit BU15-P16+A0+2D Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • New group: the BaseUnit begins a separate potential segment.
  • Left connection: P1 and P2 are not continued from the neighboring base.
  • Supply: the new segment is designed around 24 V DC.
  • Visual coding: the dark BaseUnit indicates a new load-group position.
  • Process points: sixteen push-in terminals connect field wiring.
  • AUX bus: no auxiliary terminals are provided.
  • Power rails: two terminals connect to P1 and P2.
  • Module slot: the base accepts one Type A0 I/O module.
  • P1/P2 bus: maximum current is 10 A.
  • Process terminal: maximum current is 2 A.
  • Line protection: Siemens specifies external protection for the 24 V supply conductors.
  • Potential separation: the new group is separated from adjacent potential groups.
  • ET 200SP potential-group segmentation: introduce a new 24 V DC load group at a chosen slot.
  • Type A0 I/O mounting: provide the documented 15 mm BaseUnit and process terminals.
  • Push-in field termination: connect up to sixteen process conductors without an AUX terminal bank.
Description
Within an ET 200SP station, 6ES7193-6BP00-0DA0 creates a new potential group rather than continuing the power rails from the BaseUnit on its left. This deliberate separation lets a designer introduce another 24 V DC load segment at the required module position.

The connection field of 6ES7193-6BP00-0DA0 provides sixteen push-in process terminals for one Type A0 I/O module. Two terminals connect to the P1 and P2 bus, while no AUX terminals are present, so conductor routing must follow the exact BU15-P16+A0+2D layout.

Current capacity on 6ES7193-6BP00-0DA0 is limited to 10 A on the P1/P2 bus and 2 A at process terminals. These boundaries keep the BaseUnit choice tied to the intended load group and field wiring instead of to mechanical fit alone.
Alternative Names
6ES71936BP000DA0 Siemens BU15-P16+A0+2D ET 200SP A0 BaseUnit new load group 15 mm push-in ET 200SP BaseUnit
Technical notes
6ES7193-6BP00-0DA0 opens a new ET 200SP load group and does not bridge P1/P2 from the BaseUnit on its left. Installing it where the design expects a continued group interrupts that power path; align the BU type, dark-base position, and 24 V DC feed with the station potential-group plan before wiring.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Does 6ES7193-6BP00-0DA0 continue the power rails from the BaseUnit on its left?
No. Siemens identifies it as a new load-group BaseUnit. It must receive the intended supply for the new potential segment instead of relying on left-side bridging.
Can 6ES7193-6BP00-0DA0 be used where the project requires AUX terminals?
No AUX terminals are provided. Select a BaseUnit whose complete code includes the required auxiliary connections rather than adding an unsupported wiring assumption.
Which I/O module type fits 6ES7193-6BP00-0DA0?
The BaseUnit provides one Type A0 slot. Confirm that the planned ET 200SP electronic module specifies Type A0 and matches the sixteen process-terminal arrangement.
How much current can pass through the power bus of 6ES7193-6BP00-0DA0?
P1 and P2 are rated for a maximum of 10 A. Size the new group load and external protective device so that this bus limit is not exceeded.
What wire range can be landed on 6ES7193-6BP00-0DA0?
Siemens specifies push-in conductors from 0.14 to 2.5 mm². Use the permitted preparation and do not force a larger conductor into the process terminal.
Why is 6ES7193-6BP00-0DA0 a critical selection item even though it has no electronics?
The BaseUnit defines potential grouping, terminal layout, and module type. Choosing a bridged or AUX-equipped variant changes station power distribution even when the electronic module appears to fit.
