    Apter Power supports 6AV6545-0DB10-0AX0 quotations, documentation, legacy sourcing, and HMI migration guidance.

6AV6545-0DB10-0AX0

/ 4.9
1001 reviews | Need a Specific Revision?

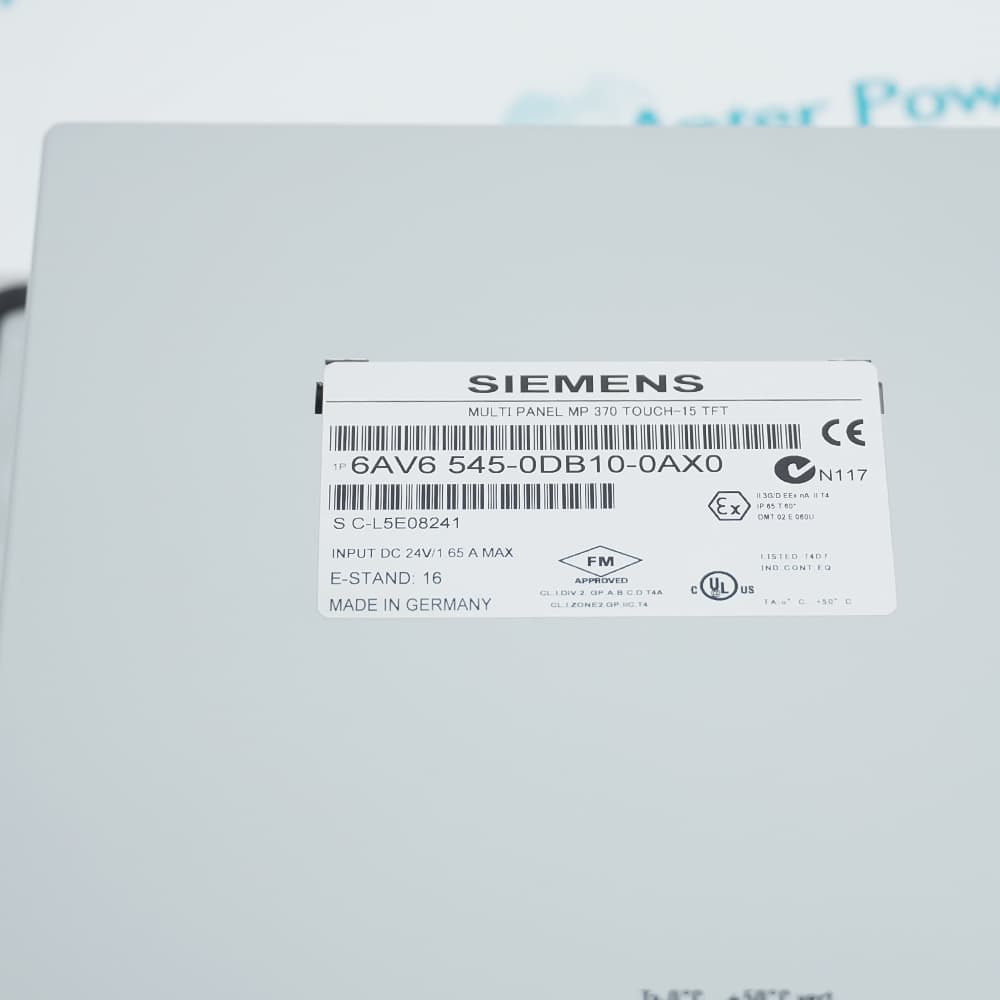

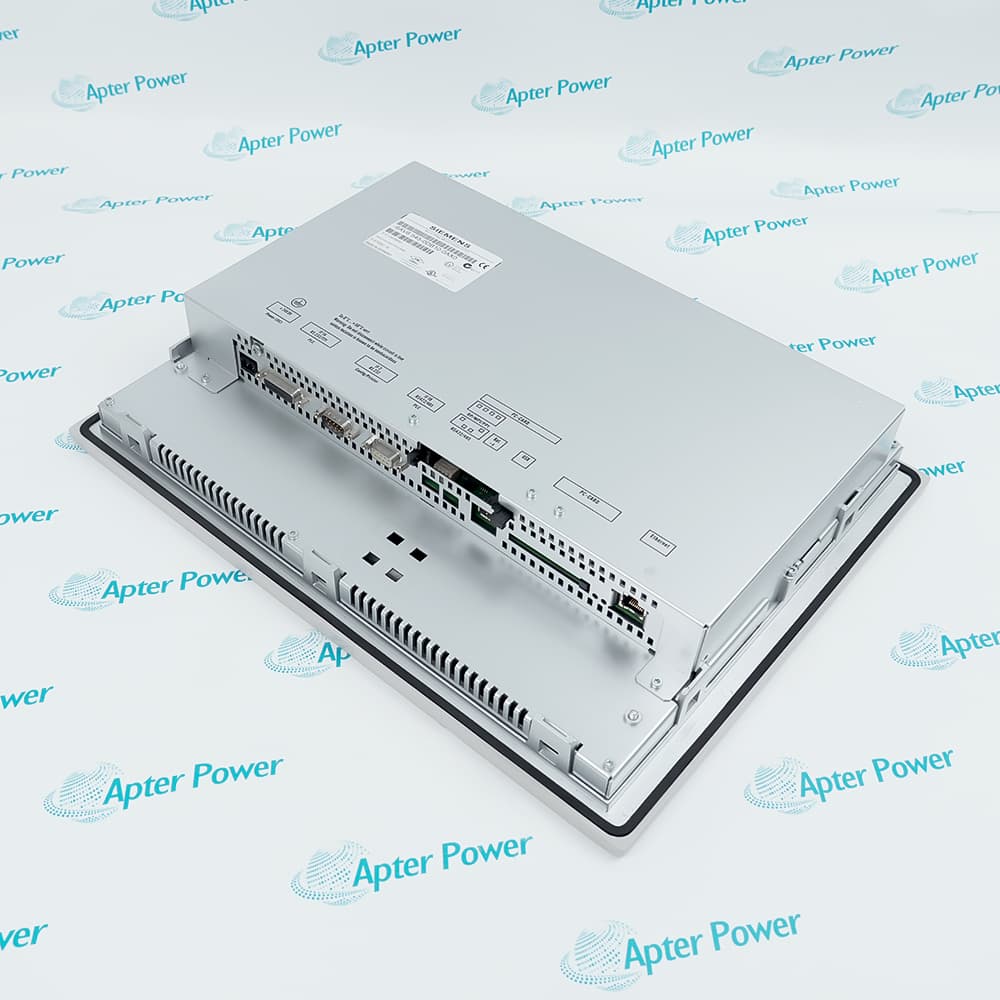

Siemens 6AV6545-0DB10-0AX0 is a SIMATIC MP 370 15-inch touch Multi Panel for legacy machine visualization and operator control.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6AV6545-0DB10-0AX0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6AV6545-0DB10-0AX0

  • Manufacturer:
    Siemens
  • Part Number:
    6AV6545-0DB10-0AX0
  • Product Family:
    Siemens Simatic HMI
  • Product Type:
    SIMATIC Multi Panel MP 370 15
  • Stock:
    1
  • Supply voltage:
    24 V DC
  • Permissible supply range:
    20.4 to 28.8 V DC
  • Current consumption, typical:
    1.4 A
  • Current consumption, maximum:
    1.8 A
  • Inrush current I²t, maximum:
    0.5 A²·s
  • Electronic fuse:
    Integrated
  • Backup battery:
    Optional lithium battery
  • Battery backup duration:
    Approximately 4 years
  • Processor:
    64-bit RISC
  • Operating system:
    Windows CE
  • User memory:
    12 MB flash; up to 7 MB for a WinCC flexible project
  • Engineering software:
    ProTool V6.0 SP2 or later; WinCC flexible Standard 2004 or later
  • Display:
    15.1-inch TFT, 256 colors
  • Resolution:
    1024 × 768 pixels
  • Touchscreen:
    Analog resistive
  • Device dimensions:
    400 × 310 × 69 mm
  • Mounting cutout:
    368 × 290 mm
  • Front protection:
    IP65; NEMA 4X/NEMA 12 indoor use
  • Rear protection:
    IP20
  • Ethernet:
    10/100 Mbit/s
  • Operating temperature:
    0 to 50 °C vertical; 0 to 35 °C inclined
  • Transport and storage temperature:
    −20 to 60 °C
  • Weight:
    12.57 lbs (5.7 kg)
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Installation Certifications Environment

Features:

  • Uses a 15.1-inch TFT display with 1024 × 768 resolution, 256 colors, and analog resistive touch operation.
  • Runs Windows CE on a 64-bit RISC processor with flash memory for legacy ProTool or WinCC flexible projects.
  • Provides Ethernet, serial communication, removable storage, and a 24 V DC industrial power interface.
The current ordering configuration is 6AV6545-0DB10-0AX0, a SIMATIC MP 370 15-inch Touch Multi Panel from Siemens for legacy industrial visualization and operator control.

In its intended role, the panel displays process values, alarms, recipes, and archives while exchanging operator commands and status data with connected controllers.

Before installation, verify the 368 × 290 mm cutout, connector assignment, supply wiring, PLC driver, engineering-software version, and archived project; then test communication and touch calibration.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for Siemens 6AV6545-0DB10-0AX0:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Supports operator stations that supervise machines, production cells, and process equipment through touch-based visualization and control.
  • Displays alarms, trends, recipes, archives, and process values for legacy SIMATIC automation installations.
  • Serves as a like-for-like spare in installed MP 370 systems when project files, drivers, wiring, and panel cutout are retained.
  • Fits a 368 × 290 mm mounting cutout and requires the documented installation clearances for ventilation and connector access.
  • Uses a 24 V DC supply with separate consideration for protective grounding, shielding, and routing of communication cables.
  • Maintains front-panel protection only when the mounting seal is intact and the panel is clamped evenly in the enclosure.
  • Carries CE conformity for the European market within the conditions documented for the MP 370 device family.
  • Includes North American approvals such as cULus and FM Class I, Division 2 for applicable installations.
  • Lists hazardous-area and regional marks including Ex Zone 2/22 and C-TICK in the Siemens operating documentation.
  • Operates from 0 to 50 °C in vertical mounting and from 0 to 35 °C at the documented maximum inclination.
  • Supports transport and storage from −20 to 60 °C when packed and handled within the specified environmental limits.
  • Allows relative humidity up to 85% without condensation, with front IP65 protection after correct enclosure mounting.
Description
Siemens 6AV6545-0DB10-0AX0 is a SIMATIC MP 370 15-inch Touch Multi Panel with a 15.1-inch TFT display, 1024 × 768 resolution, analog resistive touch input, and Windows CE. It provides a large operator interface for industrial machine and process visualization.

The panel presents operating screens, alarms, trends, recipes, archives, and process values while allowing operators to issue commands directly from the touchscreen. Its display area supports detailed graphics and clear navigation across complex control applications.

Communication services connect the HMI project with compatible SIMATIC controllers and plant networks, while removable storage supports project and data handling. The established panel format suits installed MP 370 stations that require consistent visualization and operator access.
Alternative Names
6AV6545-0DB10-0AX0 6AV6545 0DB10 0AX0 6AV65450DB100AX0 Siemens 6AV6545-0DB10-0AX0 SIMATIC HMI 6AV6545-0DB10-0AX0 Siemens MP 370 15 Touch 6AV6545-0DB10-0AX0 SIMATIC MP 370 6AV6545-0DB10-0AX0 6AV6545-0DB10-0AX0 MP 370 Touch
Technical notes
Before replacing 6AV6545-0DB10-0AX0, archive the HMI project and verify ProTool or WinCC flexible compatibility; isolate power before connector work.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What operator-panel configuration does Siemens 6AV6545-0DB10-0AX0 identify?
It identifies a SIMATIC MP 370 15-inch Touch Multi Panel with a 1024 × 768 TFT display and analog resistive operation.
Which engineering software is required for Siemens 6AV6545-0DB10-0AX0?
Siemens documents ProTool V6.0 SP2 or later and WinCC flexible Standard 2004 or later for this MP 370 generation.
Which installed applications are suited to Siemens 6AV6545-0DB10-0AX0?
It suits legacy machine and process interfaces that require operator control, alarms, recipes, archives, and controller communication.
How is Siemens 6AV6545-0DB10-0AX0 supply handled?
Siemens places MP 370 in its previous-systems documentation; Apter Power confirms available condition, price, and lead time during quotation.
Can a modern SIMATIC panel directly replace Siemens 6AV6545-0DB10-0AX0?
Not without engineering review; confirm cutout, wiring, project conversion, PLC driver, storage media, and communication interfaces before migration.
Which manual and system details should accompany a Siemens 6AV6545-0DB10-0AX0 quotation?
Use the MP 370 operating instructions and provide the existing project software, PLC type, interfaces, cutout, condition requirement, and quantity.
