Features:
- 1024x768 TFT with 65,536 colors, IP65 front protection, and 50,000 hour backlight life.
- 500 recipes (1000 records each, 1000 entries/record), 4096 variables, 500 screens, and 50 archives with 50,000 entries each.
- Connects to S7, Modbus, Allen Bradley, Mitsubishi, Omron, etc.; supports 16 online languages and 32 project languages.

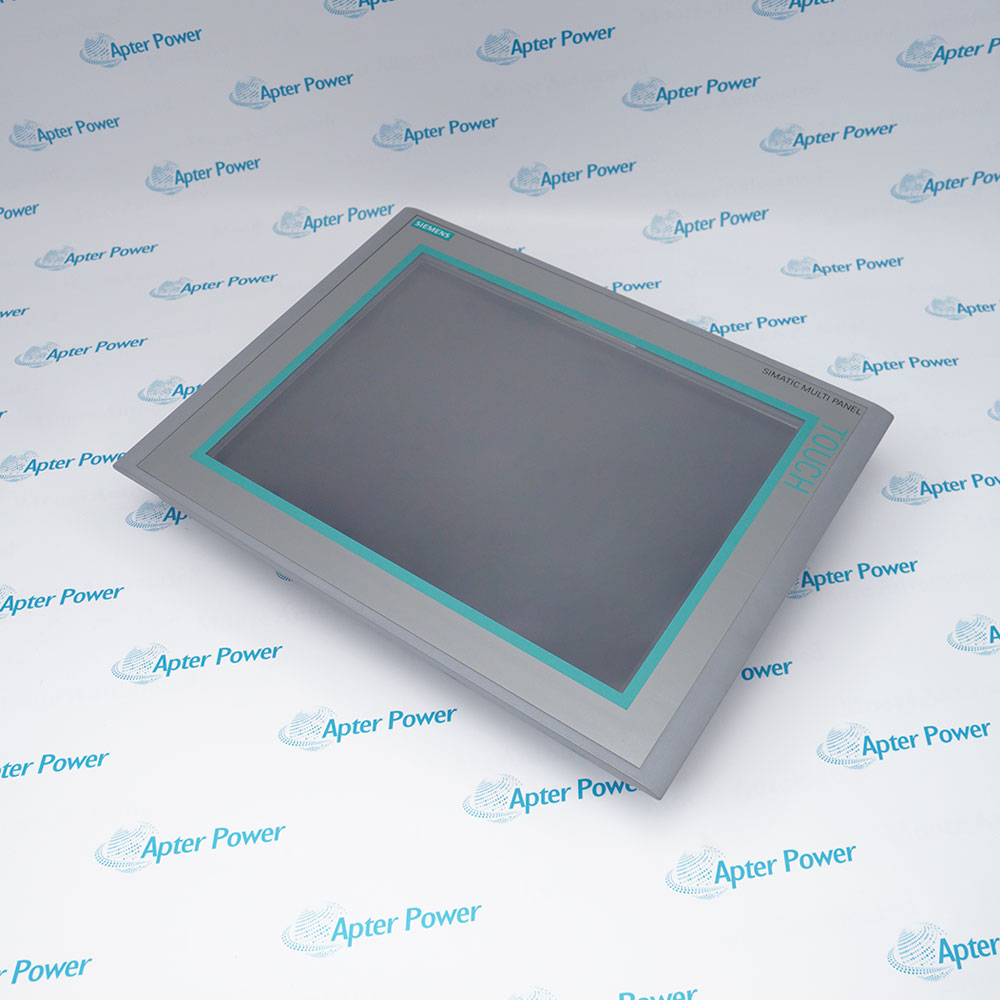

The 6AV6644-0AB01-2AX0 features a 15‑inch TFT display with 1024 x 768 pixel resolution and 65,536 colors. This high resolution allows complex process graphics, detailed machine schematics, and large amounts of text to be displayed clearly without scrolling. The touch screen is the primary operator input device, rated for industrial use. The front panel is IP65 – resistant to dust and water jets. The backlight has a mean time between failures of 50,000 hours at 25°C, which translates to nearly six years of 24/7 operation. For operators monitoring large production lines or complex machinery, the 15‑inch size reduces eye strain and allows multiple process values to be viewed simultaneously.
The 6AV6644-0AB01-2AX0 is a powerful data management tool for industrial HMI applications. It supports up to 500 recipes, each with 1000 data records and 1000 entries per record – ideal for industries like food processing or pharmaceutical manufacturing where frequent product changeovers require rapid parameter switching. The panel manages 4096 variables and can display 500 different screens. Message management includes 4000 bit messages and 200 analog messages, each with 8 process values per message and 80 characters per line.
The 6AV6644-0AB01-2AX0 offers exceptional controller compatibility. It connects to Siemens S7‑1200/1500/300/400, S5, PROFIBUS DP, PROFINET, as well as third‑party PLCs including Allen Bradley (DF1/DF485), Mitsubishi (FX), Omron, Modicon (Modbus), TI 505, and Telemecanique. This makes the 6AV6644-0AB01-2AX0 a universal HMI for mixed‑vendor automation lines. Transfer options include MPI/PROFIBUS, serial, USB, Ethernet, or external storage media with automatic transfer detection.
The 6AV6644-0AB01-2AX0 Siemens MultiPanel may still be available for purchase and support from Apter Power beyond
End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6AV6644-0AB01-2AX0 MultiPanel Manuals,
Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not
included with this equipment unless listed in the above stock item description. All prices are
shown in USD.
Siemens 6AV6644-0AB01-2AX0 MultiPanel Specs
General
- Manufacturer Siemens
- Model 6AV6644-0AB01-2AX0
- Condition New Original ready stock
- Product Family
6AV6644-0AB01-2AX1,6AV6644-0AA01-2AX0,6AV6644-0AB00-0AX0
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not
included with this equipment unless listed in the above stock item description. All prices are
shown in USD.
- SCADA-level Visualization: Suitable for advanced machine-level visualization tasks, and even small SCADA applications in multi-user systems.
- Precision Machinery Control: For example, Bruckner film stretching machines in the plastics industry, used to monitor key parameters such as temperature, speed, and tension.
- Data-Intensive Tasks: Supports recipe management, trend display, multi-level alarms, and data archiving; suitable for chemical, food processing, and energy monitoring.

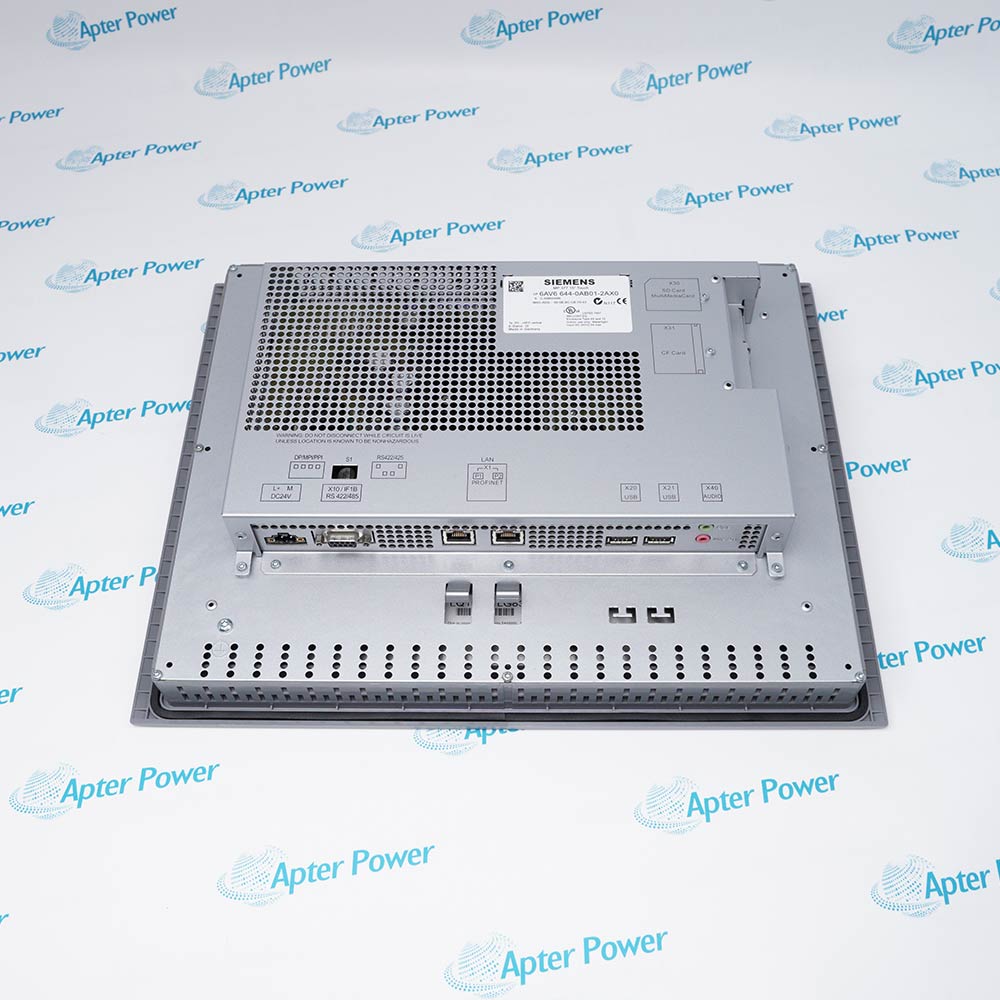

- Network Interface: Equipped with 2 Ethernet (RJ45) ports, supporting PROFINET IO, TCP/IP, and communication with a host computer.
- Serial Communication: Features 1 RS422 and 1 RS485 interface, supporting PROFIBUS (up to 12 Mbit/s) and MPI protocols.
- Slot Resources: Built-in 1 CF card slot and 1 MMC/SD card slot for data backup or recipe storage.
- Protection Rating: IP65 (dust and water resistant) on the front, IP20 on the back.
- Certifications: CE, UL, cULus, and FM Class I Div 2 (for use in hazardous areas) certified.
- EMC Compatibility: Complies with EN 55 011 Class A standards, suitable for use in industrial areas.
