    For 6AV6642-0BA01-1AX0, Apter Power provides quotations, manuals, product selection, and system matching.

6AV6642-0BA01-1AX0

/ 4.9
1001 reviews | Need a Specific Revision?

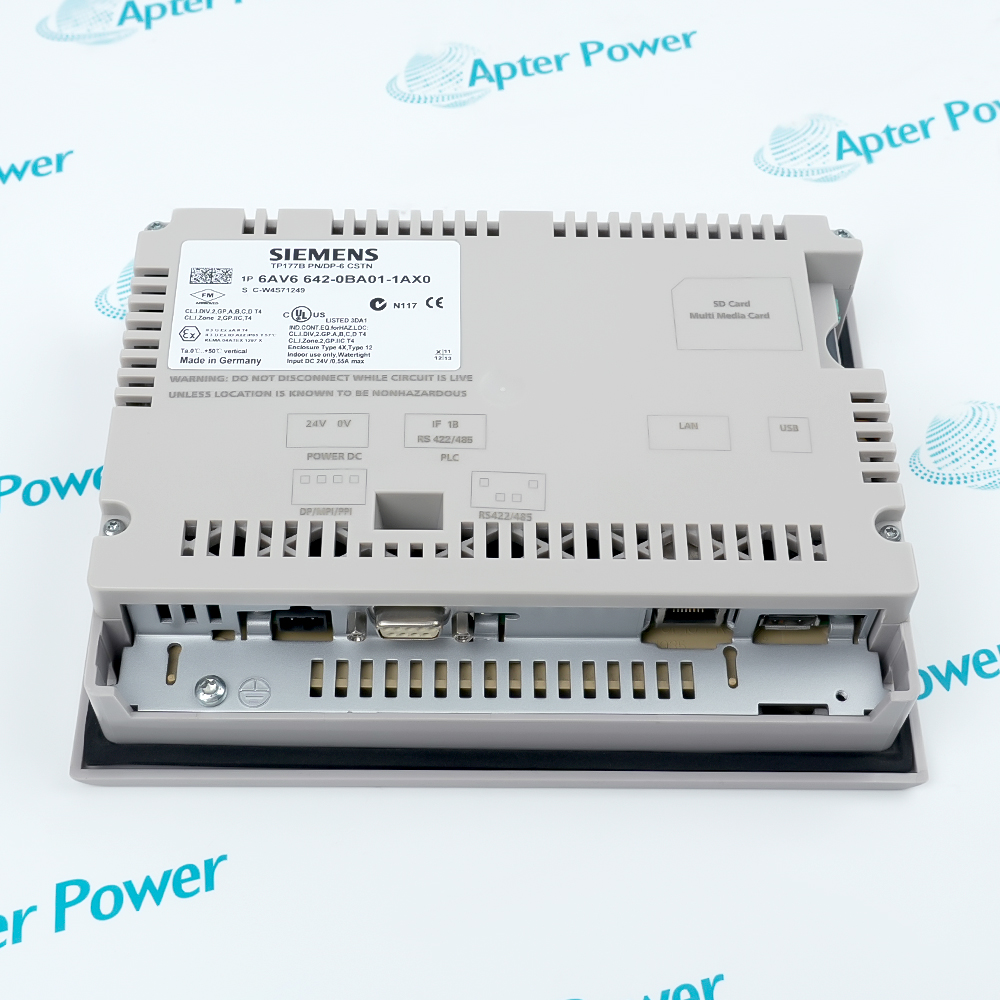

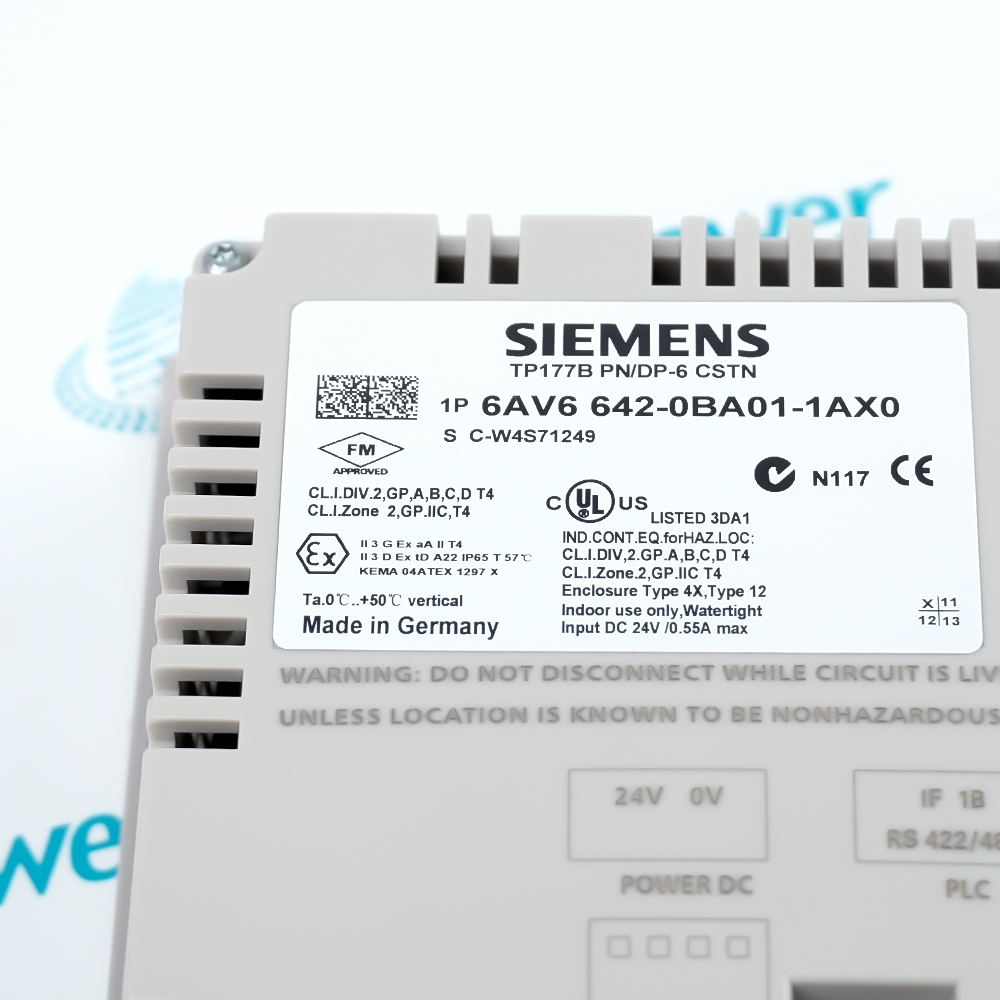

Siemens 6AV6642-0BA01-1AX0 is a TP177B PN/DP touch panel with a 5.7-inch color display, Ethernet, MPI/PROFIBUS DP, USB, and MMC storage.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6AV6642-0BA01-1AX0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6AV6642-0BA01-1AX0

  • Manufacturer:
    Siemens
  • Part Number:
    6AV6642-0BA01-1AX0
  • Product Family:
    Siemens Simatic HMI
  • Product Type:
    TP177B PN/DP 5.7-Inch Touch Panel
  • Stock:
    1
  • Display Technology:
    STN color
  • Screen Diagonal:
    5.7 in
  • Display Resolution:
    320 x 240 pixels
  • Display Colors:
    256
  • Touch Technology:
    Analog resistive
  • Processor:
    32-bit RISC, 200 MHz
  • Usable User Memory:
    2,048 KB
  • Industrial Ethernet:
    1 x RJ45, 10/100 Mbit/s
  • Serial Interfaces:
    1 x RS422 and 1 x RS485
  • Maximum RS485 Rate:
    12 Mbit/s
  • USB Interfaces:
    1
  • Removable Storage:
    1 x MultiMediaCard slot
  • Supported Siemens Networks:
    MPI / PROFIBUS DP / PROFINET
  • Runtime Languages:
    16
  • Project Languages:
    32
  • Maximum Messages:
    2,000
  • Maximum Variables:
    1,000
  • Maximum Screens:
    500
  • Recipe Capacity:
    100 recipes; 200 records each
  • Front Protection:
    IP65 / NEMA 4, 4X and 12
  • Rear Protection:
    IP20
  • Maximum Mounting Inclination:
    ±35°
  • Storage and Transport Temperature:
    -20 to 60 °C
  • Weight:
    2.334 lbs (1.059 kg)
  • Estimated shipping dimensions:
    26.2x19.5x9.1cm
  • Tariff Code:
    85371098
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Touch Display Network Paths Memory & Data Cabinet Fit

Features:

  • A 5.7-inch analog-resistive touch screen displays 320 x 240 pixels in 256 colors.
  • Ethernet and RS485/RS422 connections support network, fieldbus, and serial controller paths.
  • Two megabytes of user memory and an MMC slot separate internal project storage from removable media.
Siemens 6AV6642-0BA01-1AX0 maps controller variables to touch-screen objects and returns operator commands through the configured protocol.

The network and peripheral interfaces of 6AV6642-0BA01-1AX0 have separate roles for controllers, project transfer, printing, and removable media.

Cabinet installation keeps the IP65 front of 6AV6642-0BA01-1AX0 accessible while enclosing its IP20 rear electronics.

The Siemens 6AV6642-0BA01-1AX0 TP177B PN/DP 5.7-Inch Touch Panel may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6AV6642-0BA01-1AX0 TP177B PN/DP 5.7-Inch Touch Panel Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Screen, Input and Runtime Objects

  • Display surface: The STN screen presents 256 colors at 320 x 240 pixels.
  • Touch layer: The resistive surface sends the selected screen position to the configured object.
  • Runtime capacity: The project can organize 500 screens, 2,000 messages, and 1,000 variables.
  • Service functions: Touch calibration and clean-screen modes support alignment and safe surface cleaning.

Controller and Engineering Interfaces

  • Ethernet: The RJ45 interface carries 10/100 Mbit/s Industrial Ethernet and PROFINET communication.
  • Fieldbus: The RS485 path supports MPI and PROFIBUS DP at up to 12 Mbit/s.
  • Serial drivers: The RS422/RS485 hardware also supports the documented non-Siemens controller protocols.
  • Project transfer: WinCC flexible projects can be transferred through Ethernet, MPI/DP, serial, USB, or supported external media.

Internal and Removable Storage

  • User memory: Two megabytes of usable memory hold the configured HMI project.
  • MMC slot: A MultiMediaCard provides supported removable storage and transfer functions.
  • Recipe handling: One hundred recipes can contain up to 200 records with 200 entries per record.
  • Clock behavior: The synchronizable hardware clock is not battery-backed, so time restoration must be considered after power loss.

Front Seal and Rear Protection

  • Front protection: The installed front meets IP65 and NEMA 4, 4X, and 12.
  • Rear protection: The electronics behind the cutout remain IP20 and require cabinet protection.
  • Mounting position: The panel is specified for vertical mounting with a permitted inclination of ±35 degrees.
  • Thermal storage: Transport and storage are specified from -20 to 60 °C.
Description
Siemens 6AV6642-0BA01-1AX0 is a SIMATIC TP177B PN/DP operator panel for touch-based visualization and control. Its 5.7-inch STN screen presents a 320 x 240 project in 256 colors, and the analog-resistive surface converts the operator's screen position into the configured HMI action.

Controller data can reach 6AV6642-0BA01-1AX0 through the Ethernet port or the RS485/RS422 communication path. MPI, PROFIBUS DP, PROFINET, supported serial drivers, USB peripherals, and a printer connection therefore remain separate interfaces that must match the restored WinCC flexible project.

A 200 MHz RISC processor and 2 MB of usable user memory execute the runtime project on 6AV6642-0BA01-1AX0. The integrated flash stores screens and runtime objects, while the MultiMediaCard slot provides the removable medium used for supported transfer, backup, and data functions.

When 6AV6642-0BA01-1AX0 is installed in an enclosure, the operator side reaches IP65 and NEMA 4/4X/12 while the rear remains IP20. The 24 V DC supply, cabinet cutout, mounting inclination, and rear-side protection must be maintained independently of the protected front.
Alternative Names
6AV66420BA011AX0 6AV6642 0BA01 1AX0 6AV 6642 0BA01 1AX0 Siemens 6AV6642-0BA01-1AX0 6AV6642-0BA01-1AX0 TP177B PN/DP 6AV6642-OBAO1-1AXO 6AV6642-0BAOI-IAX0 Siemens TP177B 6AV6642-0BA01-1AX0
Technical notes
Through its Ethernet and RS485/RS422 paths, 6AV6642-0BA01-1AX0 separates network communication from USB and printer peripherals.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why can Ethernet project transfer work while MPI communication fails on 6AV6642-0BA01-1AX0?
The 6AV6642-0BA01-1AX0 Ethernet and RS485 paths use separate addresses, data rates, cables, termination, and WinCC flexible connection settings.
What data should be preserved before replacing 6AV6642-0BA01-1AX0?
Back up the 6AV6642-0BA01-1AX0 WinCC flexible project, controller links, recipes, users, passwords, alarm settings, and supported MMC data.
Why can the clock be wrong after power is restored to 6AV6642-0BA01-1AX0?
The hardware clock of 6AV6642-0BA01-1AX0 is synchronizable but not battery-backed, so it needs the configured time source after power loss.
How should a PROFIBUS fault on 6AV6642-0BA01-1AX0 be isolated?
Verify the 6AV6642-0BA01-1AX0 bus address, baud rate, connector termination, cable shielding, and controller connection in the restored HMI project.
Why might a USB peripheral not operate on 6AV6642-0BA01-1AX0?
Confirm that the peripheral type is supported by 6AV6642-0BA01-1AX0 and that the project assigns the USB device to the intended function.
What protection must the cabinet provide for 6AV6642-0BA01-1AX0?
Only the installed front of 6AV6642-0BA01-1AX0 is IP65/NEMA rated; the IP20 rear requires enclosure protection and correct ventilation.
