6ES7223-1PL32-0XB0

/ 4.9
1001 reviews | Need a Specific Revision?

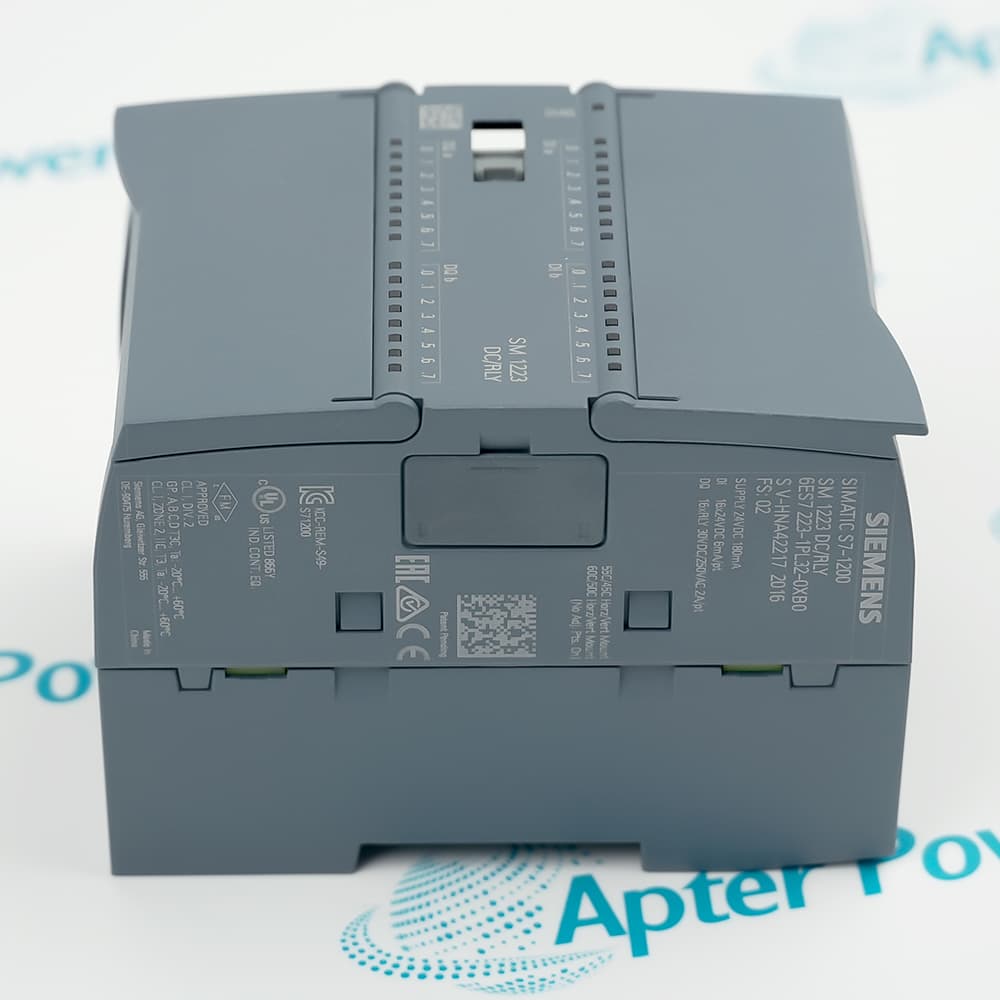

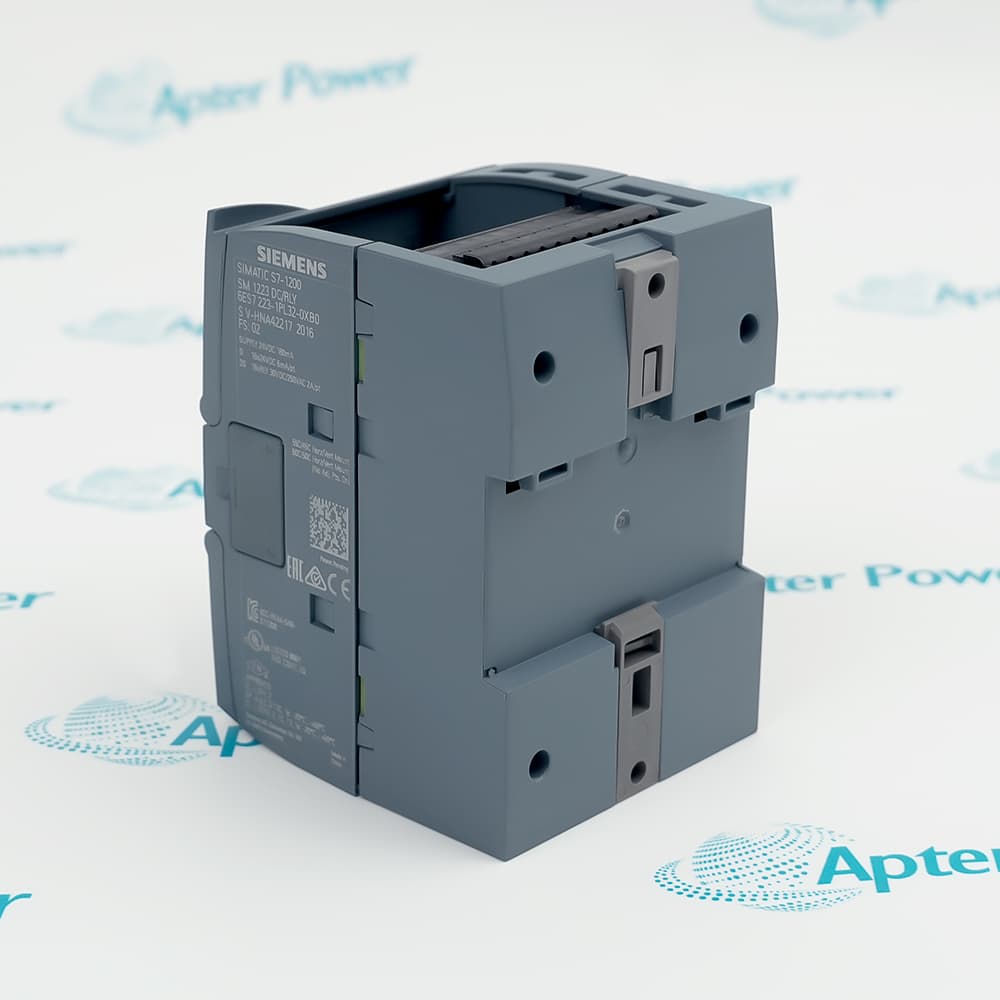

Siemens 6ES7223-1PL32-0XB0 is an S7-1200 SM 1223 module with sixteen 24 V DC inputs and sixteen 2 A relay outputs.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 6ES7223-1PL32-0XB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7223-1PL32-0XB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7223-1PL32-0XB0
  • Product Family:
    Siemens Simatic S7-1200
  • Product Type:
    S7-1200 SM 1223 Digital Input/Relay Output Module
  • Stock:
    1
  • Module designation:
    SM 1223 DI 16x24 V DC / DQ 16x relay
  • Digital inputs:
    16, sink/source
  • Input delay:
    0.2 to 12.8 ms, parameterizable by groups of four
  • Relay outputs:
    16, arranged in groups of four
  • Contact rating:
    2 A maximum
  • Switching range:
    5-30 V DC or 5-250 V AC
  • Output short-circuit protection:
    Not integrated
  • Weight:
    0.319 kg
  • Estimated shipping dimensions:
    8.8 x 11 x 8.5 cm
  • Tariff Code:
    85389091
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Input Filtering Relay Load Boundary Protection Planning Product Applications

Features:

  • Mixed expansion: sixteen digital inputs and sixteen relay outputs
  • Configurable filtering: input delay selectable in groups of four
  • Flexible switching: relay contacts support stated AC and DC load ranges
6ES7223-1PL32-0XB0 expands an S7-1200 with equal input and relay-output channel counts.

Relay isolation divides the sixteen outputs into four groups, which is useful when separate field potentials are required.

Because the outputs are electromechanical contacts, switching life and external protection are part of the application decision.
Apter Power can review 6ES7223-1PL32-0XB0 relay loading, input configuration, condition, and quotation requirements.
Siemens 6ES7223-1PL32-0XB0 S7-1200 SM 1223 Digital Input/Relay Output Module Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Channel count: sixteen digital inputs accept 24 V DC field signals.
  • Sensor mode: the input bank supports sink/source wiring.
  • Delay settings: values from 0.2 to 12.8 ms are selectable.
  • Grouping: input delay is parameterized in groups of four.
  • Contact count: sixteen relay outputs are provided.
  • Per-contact limit: resistive load current is 2 A maximum.
  • Voltage range: contacts switch 5-30 V DC or 5-250 V AC.
  • Lamp load: Siemens gives separate AC and DC wattage limits.
  • Short circuits: output protection must be provided externally.
  • Group layout: relay channels are isolated in sets of four.
  • Contact life: electrical life is lower than the mechanical operating count.
  • Inductive loads: suppression and the published 2 A limit apply.
  • S7-1200 mixed I/O expansion: add sixteen sensor inputs and sixteen relay-controlled loads.
  • AC or DC device switching: use the isolated contacts inside the published ranges.
  • Adjustable input conditioning: tune digital-input delay by four-channel groups.
  • Externally protected field circuits: coordinate branch protection with the relay bank.
Description
A single S7-1200 expansion position gains sixteen sensor inputs and sixteen isolated relay outputs with 6ES7223-1PL32-0XB0. The relay contacts allow the output bank to switch either AC or DC loads within their stated voltage and current limits, rather than being restricted to transistor-output voltage polarity.

Input response on 6ES7223-1PL32-0XB0 can be parameterized in groups of four across several delay settings. That lets an engineer balance signal filtering against reaction time while retaining the module’s two input groups and four isolated output groups in the hardware layout.

For load control, 6ES7223-1PL32-0XB0 provides no internal short-circuit protection on the relay outputs. External protection and the published contact-life limits therefore belong in the circuit design, especially where inductive or high-inrush loads would shorten relay service life.
Alternative Names
6ES72231PL320XB0 Siemens SM 1223 16DI 16 relay S7-1200 16 input 16 relay output module SM1223 DI16 DQ16 relay 2A
Technical notes
Relay outputs on 6ES7223-1PL32-0XB0 are rated 2 A but have no integrated short-circuit protection. A fault can damage contacts or field wiring before the PLC diagnoses the load, so provide external branch protection and keep inrush, inductive suppression, and the four-channel output-group current within the Siemens limits.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can 6ES7223-1PL32-0XB0 switch both AC and DC loads?
Yes. The relay contacts support the published 5-30 V DC and 5-250 V AC ranges. Keep each load within its current, lamp, and inductive ratings.
Does 6ES7223-1PL32-0XB0 protect its relay outputs from a short circuit?
No. Siemens requires protection outside the module. Add correctly rated branch protection so a field fault does not rely on the relay contact or PLC diagnostics to clear current.
How is input delay configured on 6ES7223-1PL32-0XB0?
Choose one of the supported 0.2-12.8 ms settings for each group of four inputs. Use longer filtering only where the added response time is acceptable.
Can 6ES7223-1PL32-0XB0 replace a transistor-output SM 1223 without wiring changes?
Not automatically. Its outputs are relay contacts with different voltage, grouping, delay, life, and protection behavior. Rework the electrical design and hardware configuration before substitution.
Why can relay life be lower than the operating count shown for 6ES7223-1PL32-0XB0?
Mechanical life assumes no rated electrical load, while contact life depends on current, voltage, inrush, and load type. Use the application switching duty when estimating maintenance intervals.
What should be included in a quote for 6ES7223-1PL32-0XB0?
State the exact module, required terminal hardware, load voltages, and external protection scope. This prevents a relay version from being quoted against a transistor-output requirement.
