6ES7232-4HD32-0XB0

/ 4.9
1001 reviews | Need a Specific Revision?

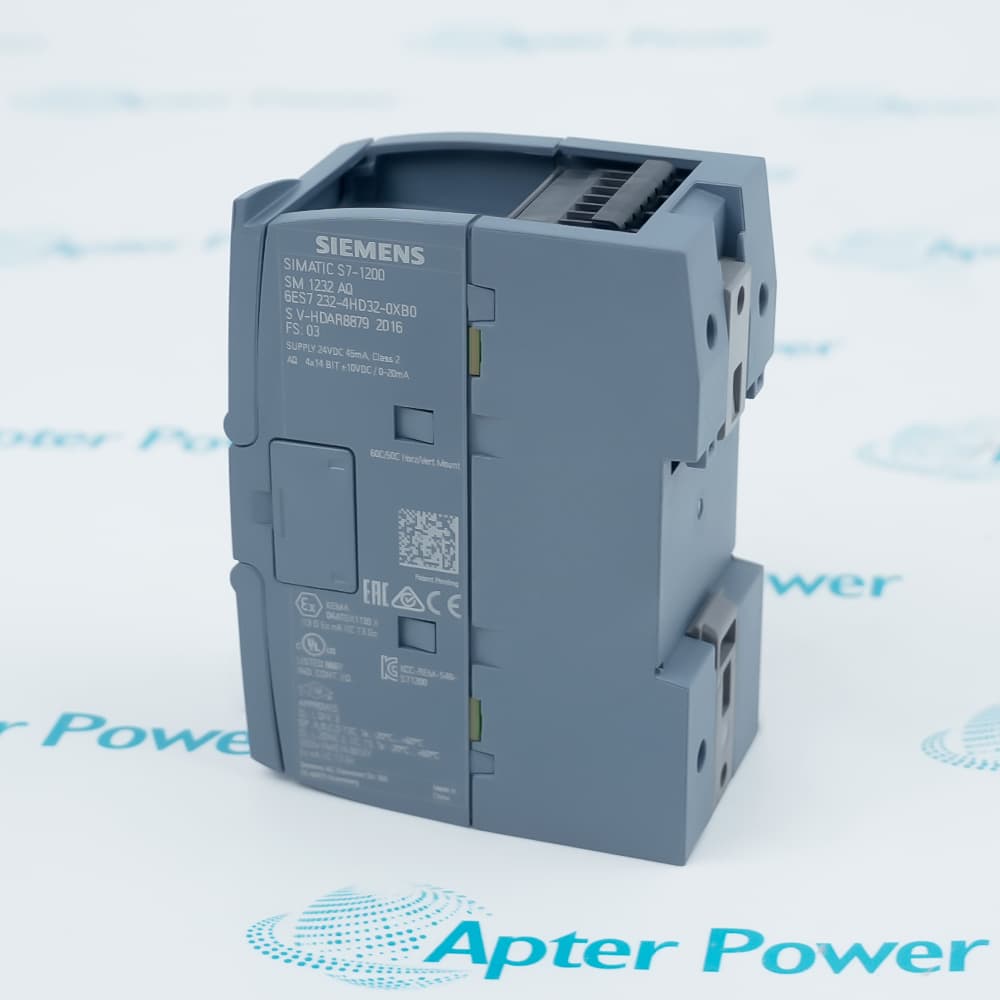

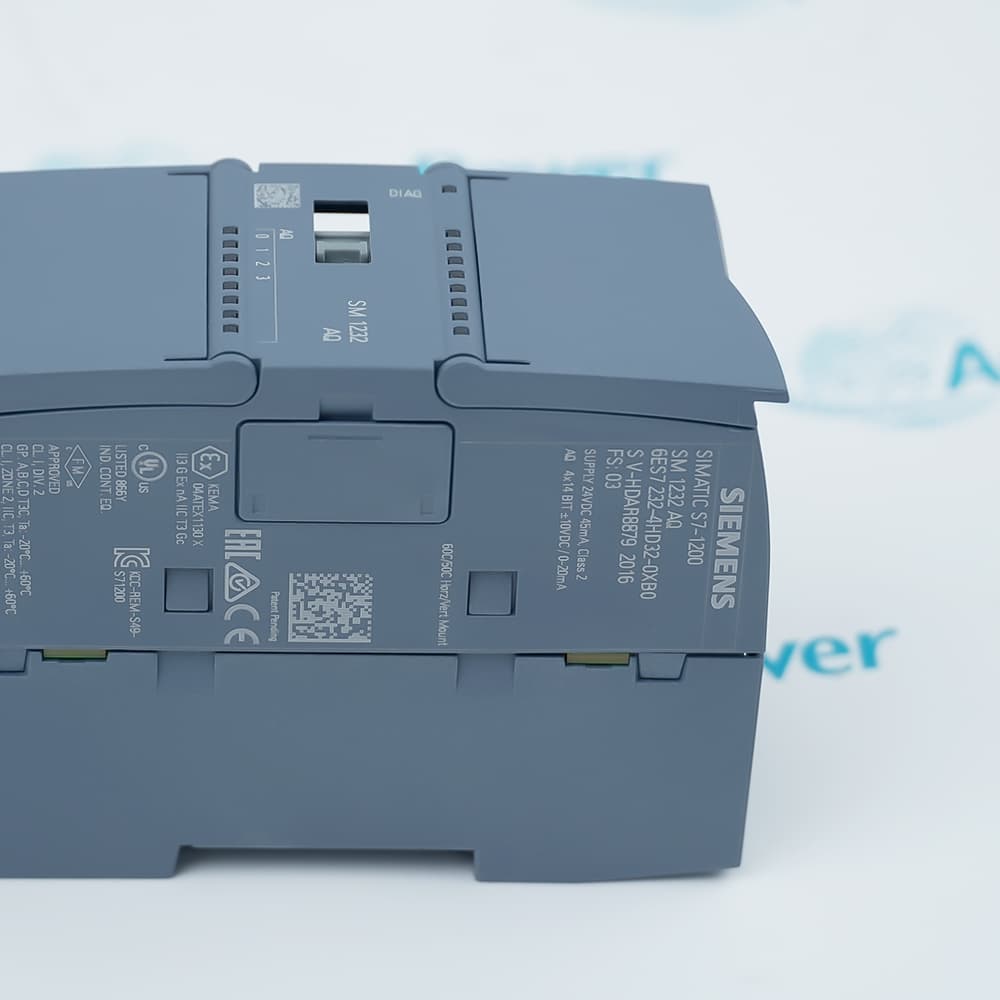

Siemens 6ES7232-4HD32-0XB0 is a SIMATIC S7-1200 SM 1232 module with four configurable current or voltage analog outputs.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6ES7232-4HD32-0XB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7232-4HD32-0XB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7232-4HD32-0XB0
  • Product Family:
    Siemens Simatic S7-1200
  • Product Type:
    SM 1232 Analog Output Module
  • Stock:
    1
  • Supply Voltage:
    24 V DC
  • Analog Outputs:
    4 current or voltage outputs
  • Voltage Range:
    -10 to +10 V
  • Current Ranges:
    0 to 20 mA; 4 to 20 mA
  • Resolution:
    14 bit voltage; 13 bit current
  • Load Impedance:
    1,000 ohm minimum voltage; 600 ohm maximum current
  • Cable Length:
    100 m maximum, shielded twisted pair
  • Protection:
    IP20
  • Weight:
    0.178 kg
  • Estimated shipping dimensions:
    8.8 x 10.8 x 5.7 cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Output Planning Wiring Checks Commissioning Product Applications

Features:

  • Mixed signal planning: Four channels can be assigned to the documented current or voltage applications.
  • S7-1200 integration: Hardware identity and project configuration remain tied to one station record.
  • Controlled commissioning: Range, scaling and final-device response are proven together.
The module sits between controller calculations and analog final devices, so configuration and field wiring must agree before any output is forced.

A replacement plan captures the current hardware configuration and uses one protected loop at a time for return-to-service testing.

The resulting acceptance record links each configured channel to its real device response, making later troubleshooting more dependable.

Apter Power can help review the Siemens 6ES7232-4HD32-0XB0 hardware identity, output mode, load and S7-1200 station context before quotation.
Siemens 6ES7232-4HD32-0XB0 SM 1232 Analog Output Module Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Signal mode: Identify current or voltage service for every channel.
  • Load review: Confirm the receiving device and total loop burden.
  • Scaling record: Preserve engineering-unit limits and fail-safe behavior.
  • Spare channels: Define the safe unused-channel state in the project.
  • Safe process state: Prevent unintended commands during field work.
  • Polarity: Trace channel terminals to the intended device.
  • Shielding: Apply the site grounding method consistently.
  • Segregation: Keep analog conductors away from noise-producing circuits.
  • Configuration match: Confirm the project recognizes the exact module.
  • Range proof: Test the configured signal without exceeding the receiver.
  • Loop response: Observe the final device and feedback together.
  • Release record: Save final scaling and as-left results.
  • Valve positioning: Sends controlled analog commands to compatible positioners.
  • Drive references: Provides speed or process references to approved equipment.
  • Setpoint transmission: Delivers current or voltage commands to field controllers.
  • Legacy loop support: Restores an existing S7-1200 analog output position.
Description
6ES7232-4HD32-0XB0 adds four analog command channels to a SIMATIC S7-1200 station, allowing each project to assign current or voltage output behavior within the documented module ranges.

6ES7232-4HD32-0XB0 is selected from the complete hardware catalog number, the planned signal type and the connected load. Channel wiring, common reference and shielding should be reviewed before the module is issued to site.

6ES7232-4HD32-0XB0 commissioning is a loop-by-loop task. The safest release proves the configured range, wiring polarity, engineering-unit scaling and final actuator response without allowing an unintended command to reach the process.
Alternative Names
6ES7 232-4HD32-0XB0 6ES72324HD320XB0 SM 1232 AQ 4x14 Bit
Technical notes
Place all controlled equipment in a safe state before wiring or replacing this analog output module. Verify the selected current or voltage range, load impedance, channel common, shielding and 24 V DC supply. Force outputs only under an approved commissioning plan, and stop if scaling or actuator direction is uncertain.
