        6ES7234-4HE32-0XB0

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

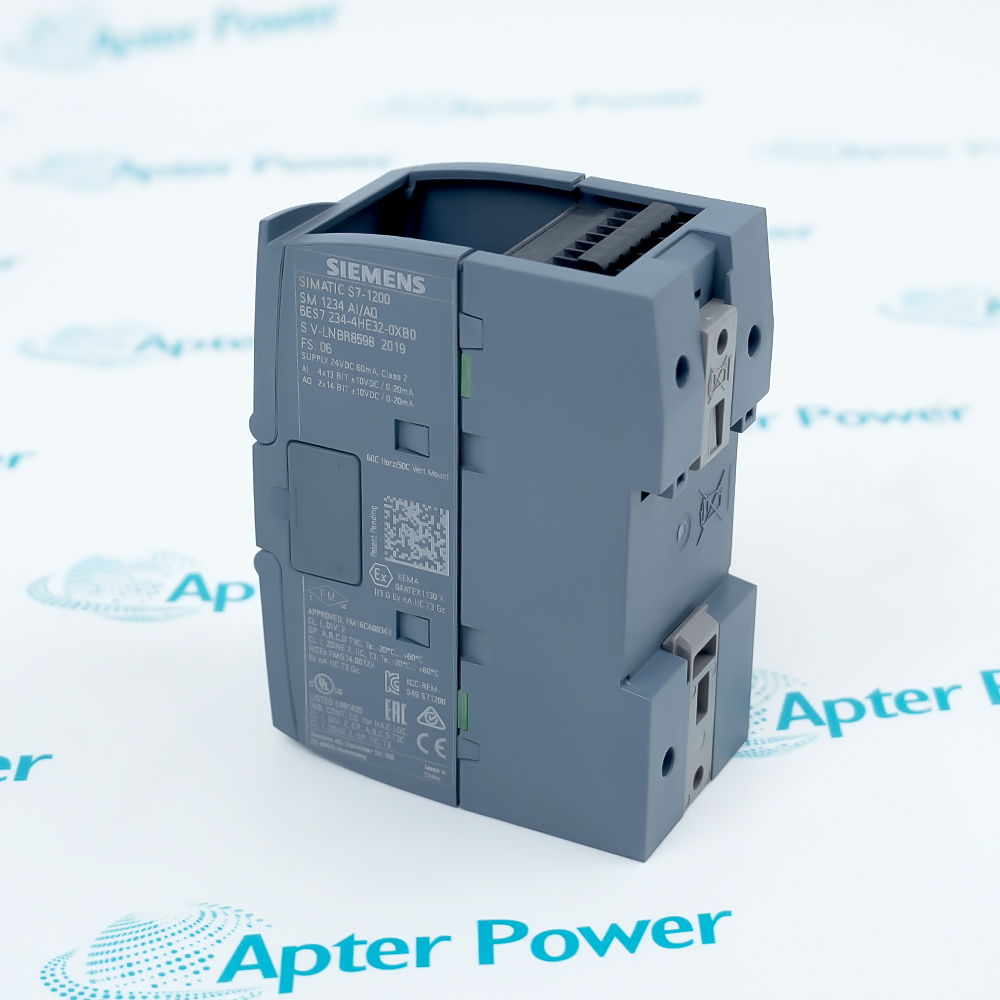

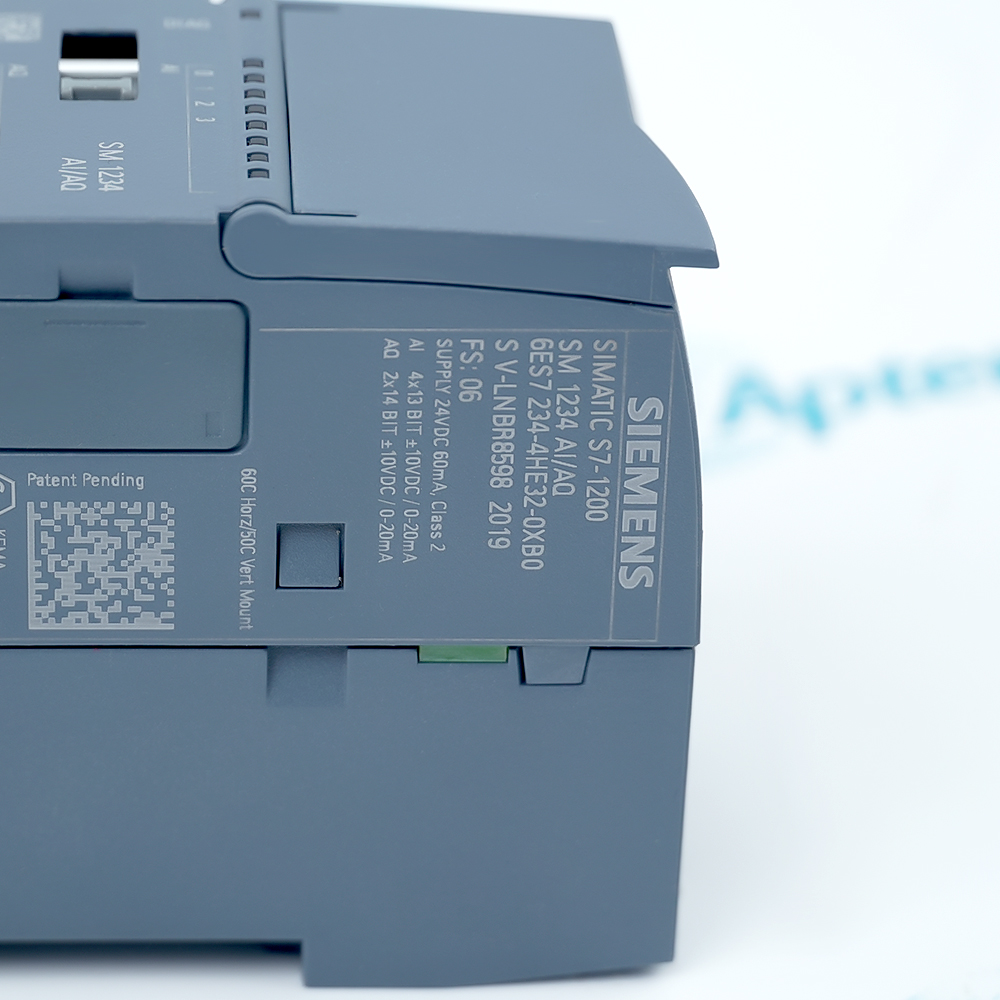

        Siemens 6ES7234-4HE32-0XB0 is an SM 1234 mixed analog module with four differential inputs and two analog outputs.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for 6ES7234-4HE32-0XB0
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 6ES7234-4HE32-0XB0

        • Manufacturer:
          Siemens
        • Part Number:
          6ES7234-4HE32-0XB0
        • Product Family:
          Siemens Simatic S7-1200
        • Product Type:
          SIMATIC S7-1200 SM 1234 signal module
        • Stock:
          1
        • Analog inputs:
          4 differential channels
        • Input ranges:
          ±10 V, ±5 V, ±2.5 V, 0–20 mA and 4–20 mA
        • Analog outputs:
          2 voltage or current channels
        • Output ranges:
          ±10 V and 0–20 mA
        • Resolution:
          Inputs 12 bit plus sign; voltage outputs 14 bit; current outputs 13 bit
        • Maximum conversion cycle:
          625 µs
        • Power loss:
          2 W
        • Protection class:
          IP20
        • Weight:
          0.179 kg
        • Estimated shipping dimensions:
          4.5x10x7.5cm
        • Tariff Code:
          85389091
        • Country of origin:
          Germany
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Signal Ranges Channel Diagnostics Wiring & Setup Product Applications

        Features:

        • Mixed analog I/O: four differential inputs and two analog outputs share one S7-1200 expansion position
        • Selectable ranges: input and output channels are configured for the connected voltage or current signal
        • Channel diagnostics: range and wiring faults can be evaluated at individual channels
        Configuration focus: Assign every channel to the field device's actual signal type.

        Commissioning focus: Compare raw values, scaling and output response before enabling closed-loop control.

        Diagnostic focus: Interpret range and wire faults against the selected channel configuration.

        Apter Power supports Siemens 6ES7234-4HE32-0XB0 signal module quotations, technical documents and S7-1200 configuration review.
        Siemens 6ES7234-4HE32-0XB0 SIMATIC S7-1200 SM 1234 4AI/2AO signal module Manuals,Datasheets,Link
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Input channels: Use the configured voltage or current range that corresponds to the transmitter output.
        • Output channels: Select voltage or current operation to suit the actuator input.
        • Engineering units: Scale raw values in the CPU program only after the hardware range is confirmed.
        • Overrange or underrange: Compare the live signal with the selected range and inspect polarity.
        • Open circuit: Check transmitter power, terminal seating and cable continuity where the configured range supports wire-break diagnostics.
        • Unstable value: Review shielding, grounding, cable routing and process filtering.
        • Before power-up: Confirm module position, terminal assignment and 24 V DC distribution.
        • During configuration: Set the exact signal range and diagnostic behavior in the S7-1200 hardware project.
        • During testing: Compare a known field signal with the raw and scaled PLC values.
        • Process skids: Read pressure, temperature or flow transmitters and command analog valves or drives.
        • Machine utilities: Monitor analog sensors while providing setpoints to proportional devices.
        • Test equipment: Acquire reference signals and generate controlled analog outputs from one expansion position.
        Description
        A compact S7-1200 panel can use 6ES7234-4HE32-0XB0 to acquire four differential analog values and command two analog outputs from one expansion position. Combining both signal directions reduces separate module count while keeping each channel assigned to its own voltage or current range.

        When 6ES7234-4HE32-0XB0 handles transmitter loops and analog actuators together, its hardware configuration must align the signal type, reference potential and diagnostic behavior with each field circuit. This relationship helps technicians interpret overrange, underrange and open-circuit events against the configured channel rather than treating every abnormal value as a module fault.

        During commissioning, 6ES7234-4HE32-0XB0 can be checked channel by channel by comparing a known field signal with the raw PLC value, scaled engineering value and commanded output response. That sequence provides a traceable path from instrument wiring to the process value used by the control program.
