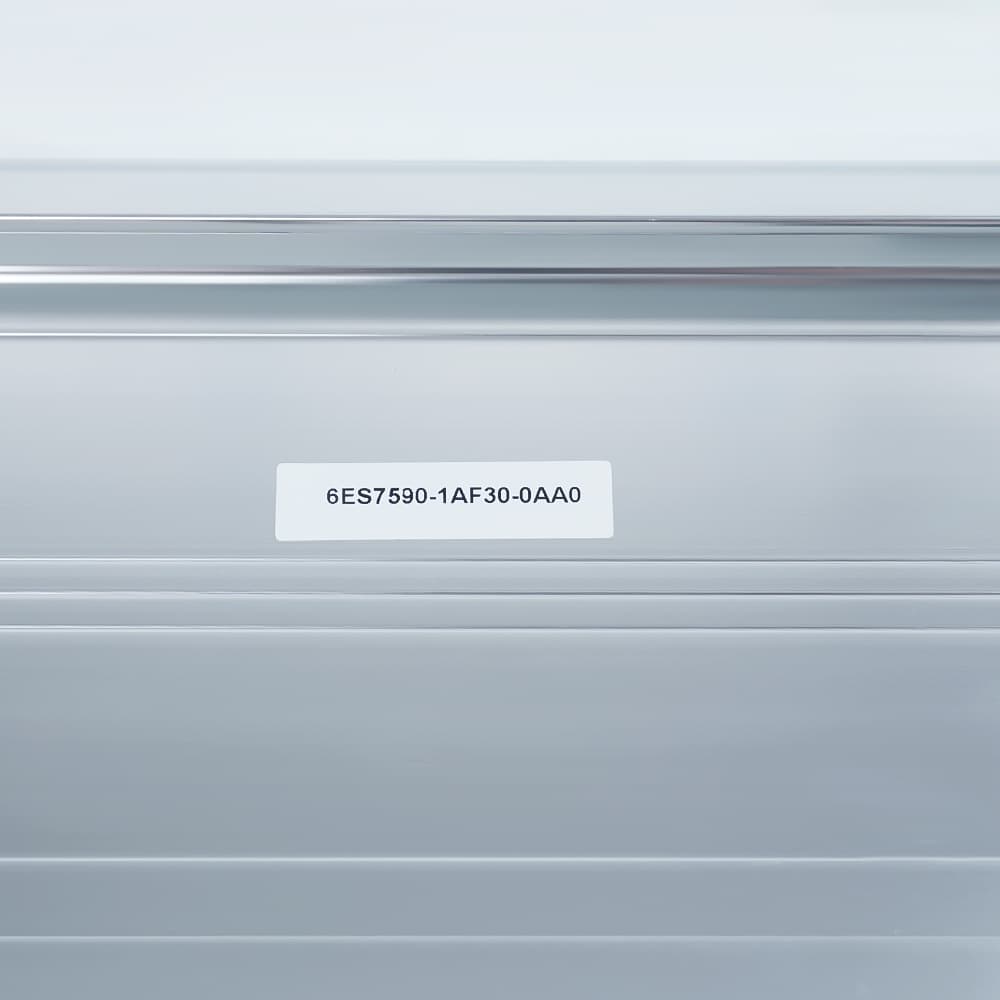

Siemens 6ES7590-1AF30-0AA0 is the 530 mm SIMATIC S7-1500 mounting rail with grounding screw and integrated accessory rail.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for 6ES7590-1AF30-0AA0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7590-1AF30-0AA0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7590-1AF30-0AA0
  • Product Family:
    Siemens Simatic S7-1500
  • Product Type:
    S7-1500 530 mm Mounting Rail
  • Stock:
    1
  • Material:
    Aluminum
  • Surface Design:
    Galvanically isolated
  • Rail Length:
    530 mm
  • Included Components:
    Grounding screw and integrated accessory rail
  • Weight:
    1.034 kg
  • Estimated shipping dimensions:
    53 x 15.5 x 1.6 cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Rail Planning Installation Cabinet Service Product Applications

Features:

  • Station foundation: The rail supports the mechanical arrangement of an S7-1500 station.
  • Grounding provision: The included screw supports the documented bonding method.
  • Accessory space: An integrated rail accepts approved panel accessories.
The main selection question is whether the 530 mm rail fits the planned cabinet and module arrangement with service clearance.

Installation then focuses on flat mounting, swarf control and a verified protective-earth path rather than software configuration.

A documented layout and earth-continuity result gives later module additions a stable mechanical and safety baseline.

Apter Power can help confirm the Siemens 6ES7590-1AF30-0AA0 rail length, cabinet layout and S7-1500 mounting requirement before quotation.
Siemens 6ES7590-1AF30-0AA0 S7-1500 530 mm Mounting Rail Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Layout: Reserve module, connector and cable-bend space before drilling.
  • Fixing surface: Use a flat cabinet backplane that will not twist the rail.
  • Accessory zone: Keep terminal and protection devices clear of S7-1500 service access.
  • Expansion allowance: Include only approved spare space in the cabinet plan.
  • Cabinet isolation: De-energize and protect installed equipment before drilling.
  • Swarf control: Keep chips and debris out of modules and wiring ducts.
  • Fastening: Secure the full rail without bowing or local distortion.
  • Grounding: Complete and verify the documented protective-bonding connection.
  • Module removal: Preserve space for connectors and service tools.
  • Visual inspection: Check looseness, corrosion and mechanical damage during shutdowns.
  • Earth continuity: Reverify bonding after cabinet modifications.
  • Change record: Update layout drawings when mounted equipment moves.
  • S7-1500 controller panels: Forms the mechanical base for a defined station layout.
  • Machine cabinets: Supports controller and accessory placement with planned service clearance.
  • Panel replacement: Restores a damaged or modified 530 mm station rail.
  • Expansion projects: Provides a documented rail option when the approved cabinet design changes.
Description
6ES7590-1AF30-0AA0 provides the mechanical and grounding base for a SIMATIC S7-1500 station across a 530 mm rail length. It is a passive installation component rather than a powered module.

6ES7590-1AF30-0AA0 should be planned from the cabinet layout: fixing points, usable rail space, cable clearances, heat paths and the approved protective-bonding arrangement all affect the finished station.

6ES7590-1AF30-0AA0 installation quality is verified before modules are energized. A straight, securely fixed rail with a documented earth connection prevents mechanical strain and gives the S7-1500 assembly a repeatable service baseline.
Alternative Names
6ES7 590-1AF30-0AA0 6ES75901AF300AA0 S7-1500 530 mm Mounting Rail S7-1500 Mounting Rail
Technical notes
This mounting rail has no firmware or active circuitry, but installation quality affects the complete S7-1500 station. De-energize the cabinet, protect equipment from metal swarf, use the approved fixing and grounding method, and check straightness and clearances. Do not energize modules until protective bonding is verified.
