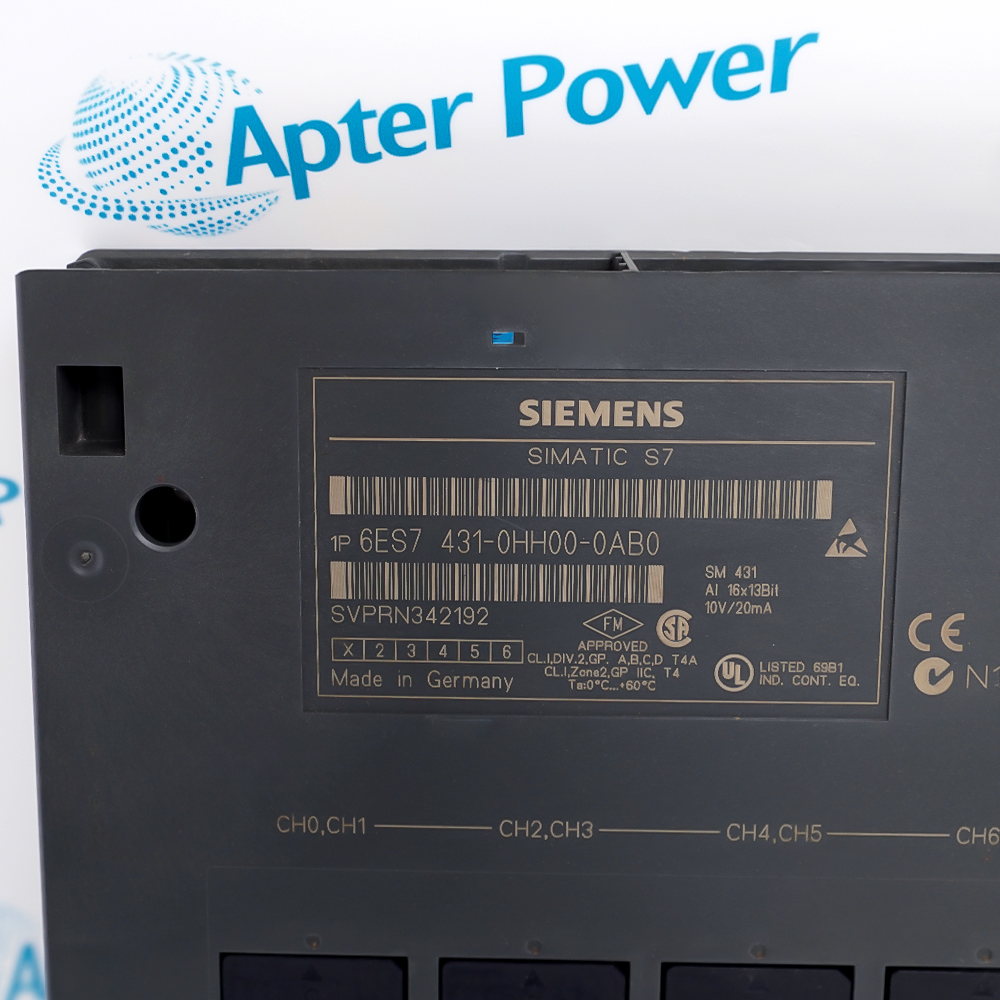

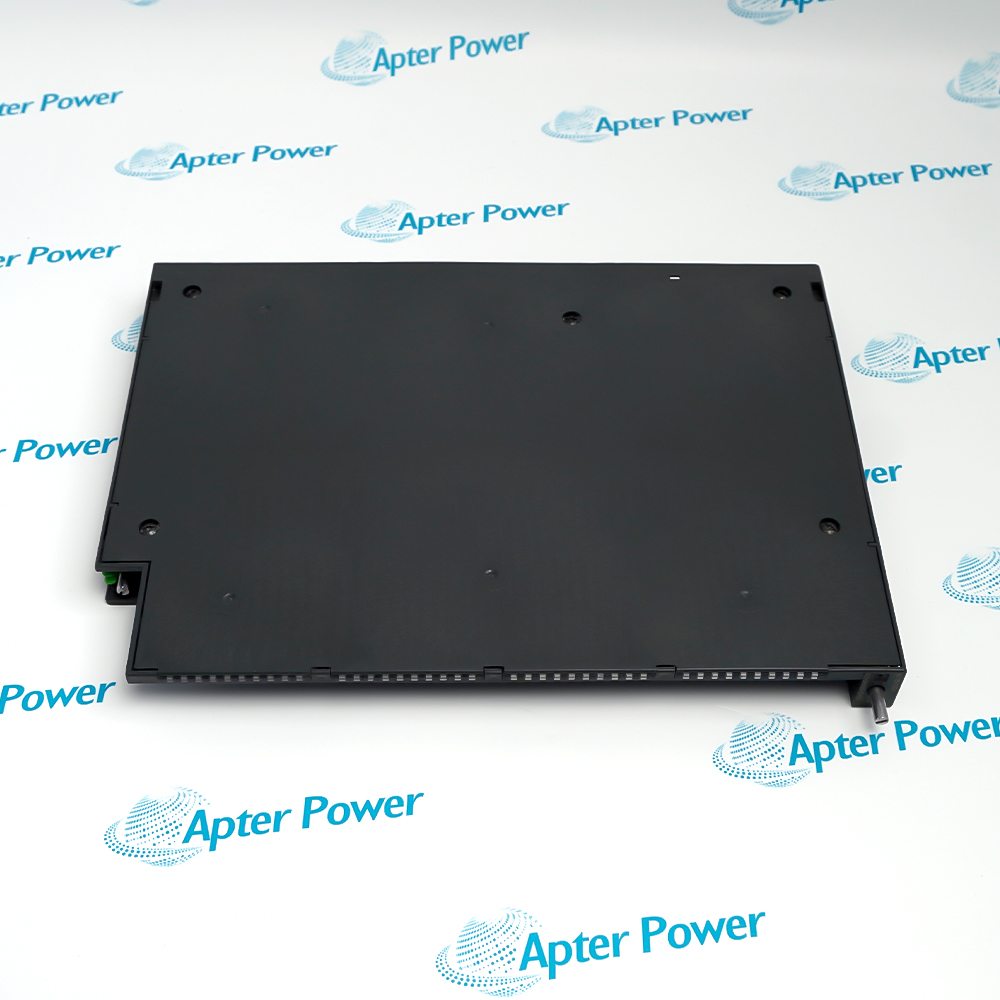

Siemens 6ES7431-0HH00-0AB0 is a SIMATIC S7-400 SM 431 non-isolated 16-channel analog input module for voltage and current signals.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 6ES7431-0HH00-0AB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7431-0HH00-0AB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7431-0HH00-0AB0
  • Product Family:
    Siemens Simatic S7-400
  • Product Type:
    SIMATIC S7-400 SM 431 16-Channel Analog Input Module
  • Stock:
    1
  • Input channels:
    16 voltage/current inputs
  • Resolution:
    13 bit
  • Voltage ranges:
    1 to 5 V; -1 to +1 V; -10 to +10 V
  • Current ranges:
    -20 to +20 mA; 4 to 20 mA
  • Input resistance:
    100 kΩ for 1 to 5 V and ±10 V; 10 MΩ for ±1 V; 50 Ω for current ranges
  • Two-wire transmitter supply:
    24 VDC L+; up to 400 mA with 16 fully controlled transmitters
  • Backplane current at 5 VDC:
    100 mA maximum
  • Power loss:
    2 W typical
  • Shielded cable length:
    200 m maximum
  • Basic conversion time:
    55 ms at 50 Hz; 65 ms at 60 Hz
  • Total module conversion time:
    880 ms at 50 Hz; 1040 ms at 60 Hz
  • Isolation test voltage:
    500 VAC or 707 VDC
  • Dimensions:
    2.5 × 29.0 × 21.0 cm
  • Weight:
    0.5
  • Weight:
    0.5 kg
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Signal Types Timing Wiring Application
  • Sixteen voltage or current input channels
  • Thirteen-bit conversion resolution
  • Two-wire transmitter supply through 24 V L+

6ES7431-0HH00-0AB0 is a non-isolated SM 431 analog input module for Siemens SIMATIC S7-400 systems.

Its sixteen channels acquire configured voltage or current signals, including 4 to 20 mA transmitter loops, with 13-bit resolution.

Correct application depends on the selected range, field wiring, L+ transmitter load, common-mode limits, shielding, addresses, and conversion timing.

Availability, condition, price, and shipping time for 6ES7431-0HH00-0AB0 are confirmed during quotation.

Siemens 6ES7431-0HH00-0AB0 SM 431 Analog Input Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Supported voltage ranges include 1 to 5 V, ±1 V, and ±10 V.
  • Supported current ranges include ±20 mA and 4 to 20 mA.
  • Thermocouple, RTD, and resistance measurement are not supported.
  • Basic conversion time is 55 ms with 50 Hz integration.
  • Basic conversion time is 65 ms with 60 Hz integration.
  • All-channel conversion is 880 ms at 50 Hz or 1040 ms at 60 Hz.
  • Use shielded field cable up to the documented 200 m maximum.
  • Check the total L+ current before supplying two-wire transmitters.
  • Preserve channel range assignments and front-connector wiring.
  • Voltage-signal acquisition in SIMATIC S7-400 control systems.
  • Current-loop acquisition for industrial process measurements.
  • Supply and acquisition of up to sixteen qualified two-wire transmitters.
Description
6ES7431-0HH00-0AB0 is a Siemens SM 431 analog input module for the officially documented SIMATIC S7-400 control platform.

The non-isolated module provides 16 voltage or current inputs with 13-bit resolution. It supports ±10 V, ±20 mA, and 4 to 20 mA ranges and can supply two-wire transmitters from the 24 V L+ connection.

Before installation or replacement, confirm the configured signal ranges, two-wire transmitter load, channel addresses, shielding, common-mode conditions, front-connector wiring, and the absence of thermocouple, RTD, resistance, and diagnostics functions.
Alternative Names
6ES7431-0HH00-0AB0 6ES74310HH000AB0 Siemens 6ES7431-0HH00-0AB0 SIMATIC S7-400 6ES7431-0HH00-0AB0 SM 431 6ES7431-0HH00-0AB0 Siemens SIMATIC S7-400 SM 431 6ES7431-0HH00-0AB0
Technical notes
6ES7431-0HH00-0AB0 accepts voltage and current only; it has no diagnostics or isolation. Preserve channel ranges, transmitter supply, addresses, shielding, and front-connector wiring.
