          For Siemens 6DD1607-0AA2, Apter Power supports quotations, manuals, product selection, and system matching.

        6DD1607-0AA2

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

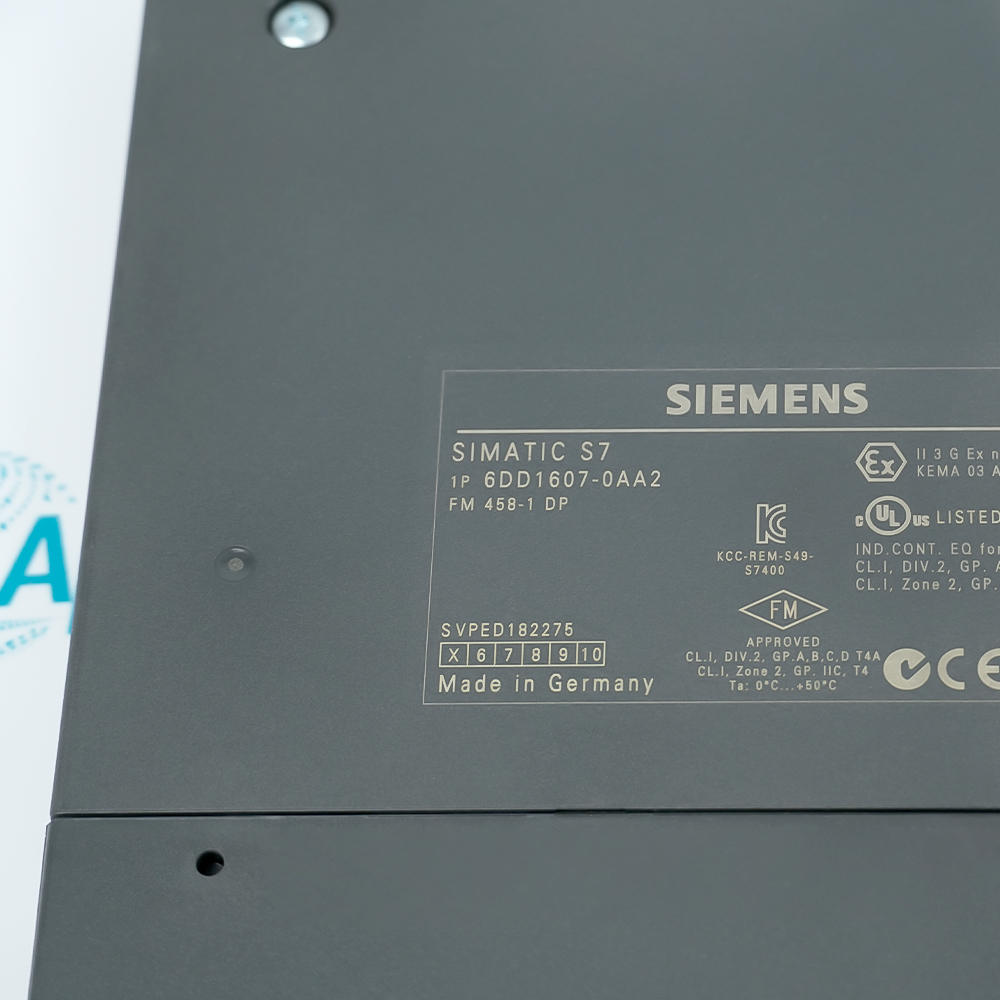

        Siemens 6DD1607-0AA2 is an FM 458-1 DP application module that executes arithmetic, closed-loop and open-loop control tasks in SIMATIC S7-400 systems while exchanging distributed I/O and drive data over PROFIBUS DP.
        In Stock
        Ships by Wednesday, October 28
        Fast Shipping Available
        Get a quick price for 6DD1607-0AA2
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 6DD1607-0AA2

        • Manufacturer:
          Siemens
        • Part Number:
          6DD1607-0AA2
        • Product Family:
          Siemens Simatic S7-400
        • Product Type:
          FM 458-1 DP Application Module
        • Stock:
          1
        • 5 V Supply Range:
          4.8-5.25 V DC
        • 24 V Supply:
          Supported
        • Current Consumption:
          1.5 A typical; 3 A maximum
        • Backup Memory:
          SRAM
        • Backup Current:
          15 µA maximum
        • Hardware Clock:
          Real-time clock
        • Clock Resolution:
          500 ms
        • Digital Inputs:
          8 at connector X2
        • Input Rating:
          24 V DC
        • Signal 0 Range:
          -1 to +6 V
        • Signal 1 Range:
          13.5-33 V
        • Signal 1 Current:
          3 mA typical at 24 V
        • Input Delay:
          5 µs maximum, 0-to-1
        • PROFIBUS Equidistance:
          Supported with interrupt-task connection
        • Direct Data Exchange:
          Supported
        • Digital Input Isolation:
          Via optional interface modules only
        • Weight:
          2.205 lbs (1 kg)
        • Estimated shipping dimensions:
          29×4.8×21.1cm
        • Tariff Code:
          85389091
        • Country of origin:
          Germany
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Input Logic DP Exchange Clock Backup Status Paths

        Features:

        • Keeps local input evaluation separate from PROFIBUS DP data exchange.
        • Supports equidistant PROFIBUS DP and direct device data exchange.
        • Retains operating data in backed SRAM alongside a hardware clock.
        The FM 458-1 DP module performs calculation and control work inside a SIMATIC S7-400 rack.

        Its local digital inputs remain separate from the PROFIBUS DP communication path used for distributed devices.

        Clock, backup and alarm functions provide timing, retention and status information around the control task.

        The Siemens 6DD1607-0AA2 FM 458-1 DP Application Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        Siemens 6DD1607-0AA2 FM 458-1 DP Application Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        How the eight local inputs are interpreted

        • Connector X2: All eight digital input channels enter through this connector.
        • Logical 0: An input between -1 and +6 V is evaluated as the low state.
        • Logical 1: The high-state window extends from 13.5 to 33 V.
        • Transition time: A 0-to-1 change is accepted within 5 microseconds maximum.

        PROFIBUS services around the control task

        • Equidistance: The DP path can operate with timing linked to interrupt tasks.
        • Direct exchange: Slave-to-slave communication is supported without using the X2 inputs.
        • Distributed I/O: The interface connects remote I/O and drive data to module processing.
        • Separation: Optional interface modules provide galvanic separation where the input design requires it.

        Retained data and timekeeping

        • Stored context: SRAM retains the module data under backup.
        • Backup load: The battery circuit draws no more than 15 microamps.
        • Time base: The onboard real-time clock resolves 500 ms intervals.
        • Power boundary: The module accepts both the documented 5 V and 24 V DC supplies.

        Status and alarm handling

        • Alarm support: The module reports alarm events to the automation system.
        • Input state: Each channel is evaluated against the defined low and high voltage windows.
        • Bus state: DP communication status is distinct from the local X2 channel condition.
        • Retained state: Backed memory preserves stored data independently of the real-time clock resolution.
        Description
        Siemens 6DD1607-0AA2 is the FM 458-1 DP application module for the SIMATIC S7-400 platform. It performs arithmetic, closed-loop control and open-loop control tasks while providing a PROFIBUS DP path for distributed I/O and drives.

        Eight digital inputs enter 6DD1607-0AA2 through connector X2. The 24 V DC input circuit distinguishes a logical 0 from -1 to +6 V and a logical 1 from 13.5 to 33 V, with a maximum 0-to-1 delay of 5 microseconds.

        On the bus side, 6DD1607-0AA2 supports PROFIBUS DP equidistance and direct data exchange between devices. These services link time-coordinated communication and slave-to-slave transfers to the module's control workload without routing those signals through the eight local inputs.

        Backed SRAM and a real-time hardware clock preserve the module's stored operating context. For 6DD1607-0AA2, the clock has 500 ms resolution, the backup circuit draws no more than 15 microamps, and alarm capability supplies status information to the automation system.
        Alternative Names
        Siemens 6DD1607-0AA2 6DD16070AA2 6DD 1607 0AA2 6DD1 607-0AA2 6DD1607-0AA2 FM458-1 DP FM458-1 DP Application Module Siemens FM458-1 DP 6DDI607-0AA2
        Technical notes
        Siemens 6DD1607-0AA2 combines eight fast 24 V digital inputs, PROFIBUS DP services, backed SRAM and a hardware clock for S7-400 control tasks.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Why does Siemens 6DD1607-0AA2 list both 5 V and 24 V DC supplies?
        Siemens 6DD1607-0AA2 uses the documented module supply structure while its X2 digital inputs are rated for 24 V DC signaling.
        Which voltage window should be checked when an X2 input on Siemens 6DD1607-0AA2 does not change state?
        For Siemens 6DD1607-0AA2, verify that a low signal is within -1 to +6 V and a high signal is within 13.5 to 33 V.
        Can Siemens 6DD1607-0AA2 exchange data directly between PROFIBUS devices?
        Yes. Siemens 6DD1607-0AA2 supports PROFIBUS DP direct data exchange as well as equidistant operation tied to interrupt tasks.
        What provides input isolation for Siemens 6DD1607-0AA2?
        The local digital inputs of Siemens 6DD1607-0AA2 are not inherently galvanically isolated; isolation is available through optional interface modules.
        How are retained data and time kept on Siemens 6DD1607-0AA2?
        Siemens 6DD1607-0AA2 combines backed SRAM with a real-time clock whose resolution is 500 ms and whose backup current is limited to 15 microamps.
