6ES7414-1XG02-0AB0

/ 4.9
1001 reviews | Need a Specific Revision?

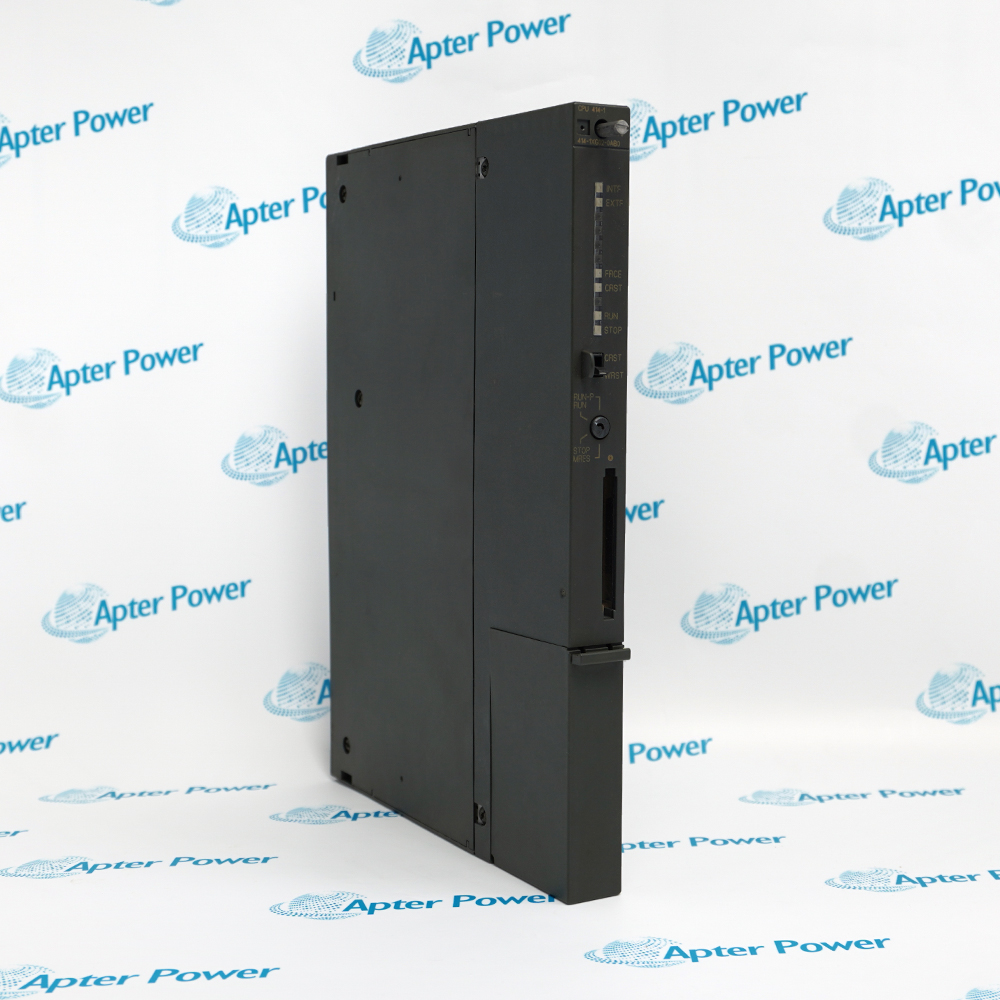

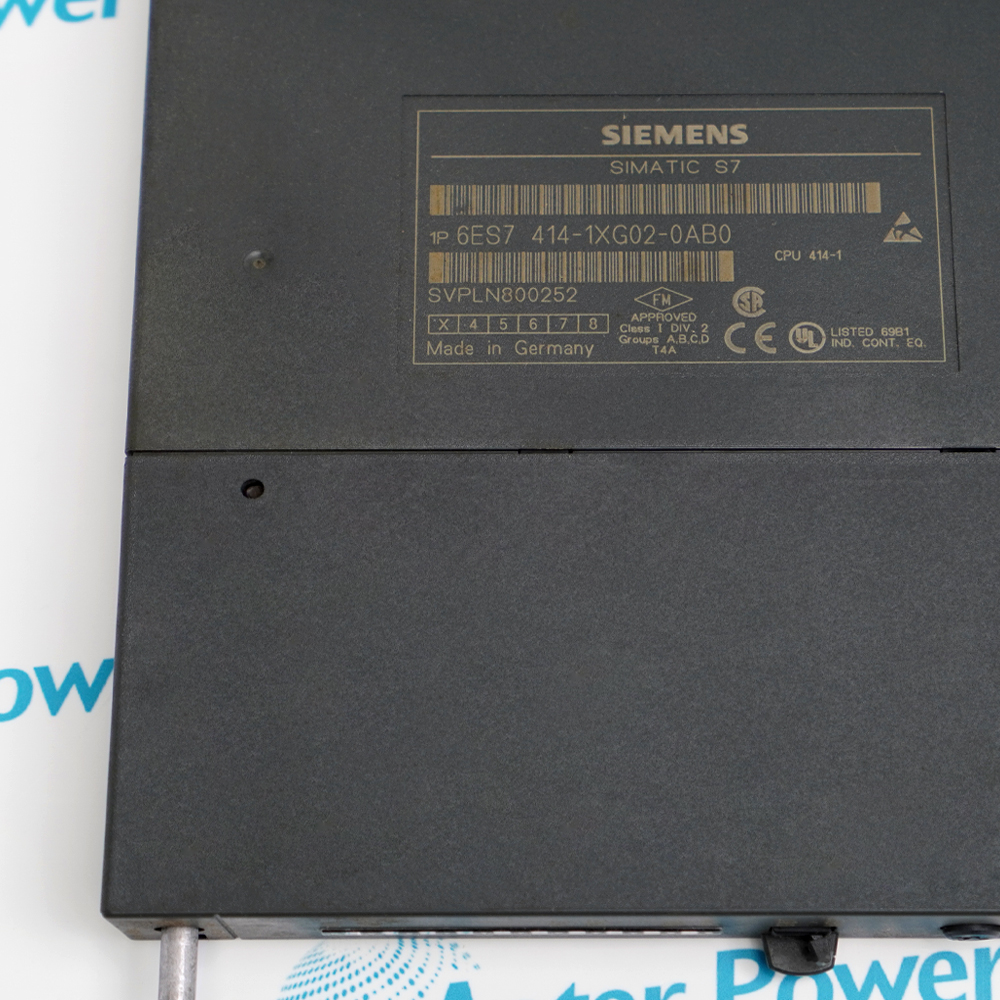

Siemens 6ES7414-1XG02-0AB0 is a SIMATIC S7-400 CPU 414-1 with 128 KB working memory and an integrated MPI interface. It executes central control tasks in established modular S7-400 systems.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6ES7414-1XG02-0AB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7414-1XG02-0AB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7414-1XG02-0AB0
  • Product Family:
    Siemens Simatic S7-400
  • Product Type:
    CPU 414-1 Processor Module
  • Stock:
    1
  • Working memory:
    128 KB
  • Integrated interface:
    MPI
  • Controller platform:
    SIMATIC S7-400
  • CPU designation:
    414-1
  • Programming system:
    STEP 7
  • Lifecycle replacement:
    Cancelled without replacement
  • Weight:
    2.269 lbs (1.029 kg)
  • Estimated shipping dimensions:
    30.30 x 23.30 x 4.00 cm
  • Tariff Code:
    85371091
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Compatibility Programming Updates

Features:

  • Provides 128 KB working memory for S7-400 control programs.
  • Uses an integrated MPI interface for engineering and S7 communication.
  • Coordinates modular signal and communication hardware in the central rack.
The XG02 article is the single-interface CPU 414-1 execution, not a multi-network CPU variant.

It processes the plant program and schedules rack I/O, timed events and diagnostic responses.

An exact spare decision requires the STEP 7 archive, memory medium and the complete fitted-rack inventory.

The cancelled CPU is available only through confirmed legacy sourcing channels.
Verified resources for Siemens 6ES7414-1XG02-0AB0:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Maintain process or machine control in a legacy S7-400 central rack.
  • Support MPI-connected engineering devices and operator interfaces.
  • Preserve an installed application while a replacement architecture is designed.
  • The CPU operates within the SIMATIC S7-400 rack and backplane architecture.
  • Signal modules and communication processors must remain supported by the archived project.
  • A different CPU family requires analysis of memory, interfaces, and instruction compatibility.
  • Cyclic organization blocks process the input image and calculate output states.
  • Interrupt and diagnostic organization blocks handle events outside the normal scan sequence.
  • STEP 7 defines the hardware configuration and downloadable user program.
  • The archived project must preserve the exact CPU order number and released firmware level.
  • Firmware-dependent hardware-catalog selection must be checked before restoring the controller.
  • Siemens lists no direct replacement, so a platform migration requires a separately validated project update.
Description
6ES7414-1XG02-0AB0 is the CPU 414-1 version built around 128 KB of working memory and an integrated MPI communication interface. It acts as the program-processing center of a modular S7-400 rack.

During each cycle the processor reads the configured process image, executes the STEP 7 user program and transfers calculated states to installed output modules. Organization blocks also handle diagnostics, timing and event-driven interrupts within the controller architecture.

This article reached the end of its product lifecycle without a direct replacement. Any continued-use plan should secure the memory card, archived project, rack inventory and communication-processor details before deciding between a matched spare and a complete migration.
Alternative Names
6ES7414-1XG02-0AB0 6ES7414 1XG02 0AB0 6ES74141XG020AB0 Siemens 6ES7414-1XG02-0AB0 Siemens CPU 414-1 XG02 Siemens S7-400 CPU 414-1 Siemens SIMATIC 414-1 128KB
Technical notes
6ES7414-1XG02-0AB0 has no direct Siemens successor; recover the STEP 7 project and confirm every communication processor before disturbing the running rack.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What distinguishes Siemens 6ES7414-1XG02-0AB0 from multi-interface CPU 414 variants?
This execution is identified as CPU 414-1 with an integrated MPI interface rather than the additional DP interfaces of other models.
How does Siemens 6ES7414-1XG02-0AB0 participate in the S7-400 scan?
It updates the process image, runs the STEP 7 program and writes the calculated states to configured output modules.
Why should the fitted communication processors be inventoried for Siemens 6ES7414-1XG02-0AB0?
The CPU's own MPI connection may be supplemented by external CP modules whose protocols and projects affect replacement planning.
What does 'cancelled without replacement' mean for Siemens 6ES7414-1XG02-0AB0?
Siemens does not identify a direct order-code successor, so continued operation relies on matched spares or an engineered platform migration.
Can a higher-memory S7-400 CPU automatically replace Siemens 6ES7414-1XG02-0AB0?
No. Interface set, rack support, firmware, memory-card format, execution behavior and STEP 7 configuration must all be compared.
Which archive package helps source Siemens 6ES7414-1XG02-0AB0 correctly?
Supply the full CPU label, memory-card data, STEP 7 project, rack list, CP inventory, quantity and destination.
