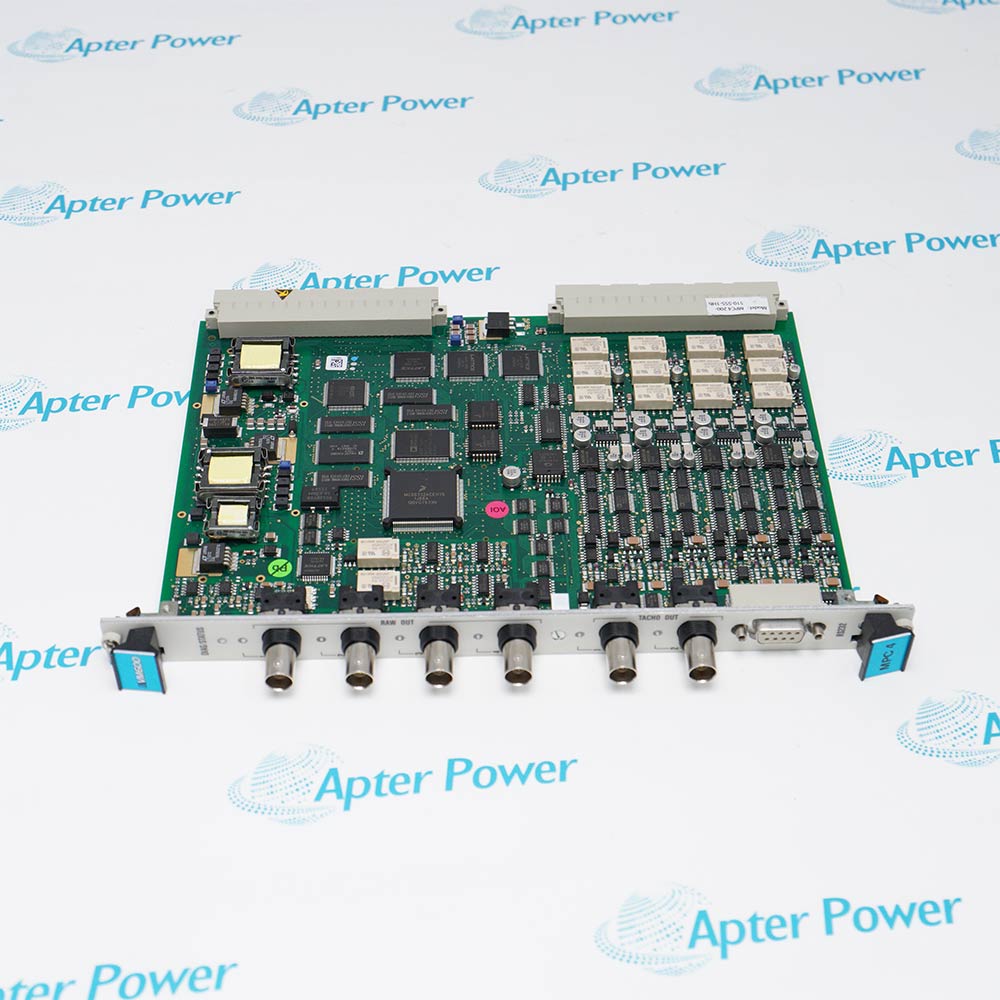

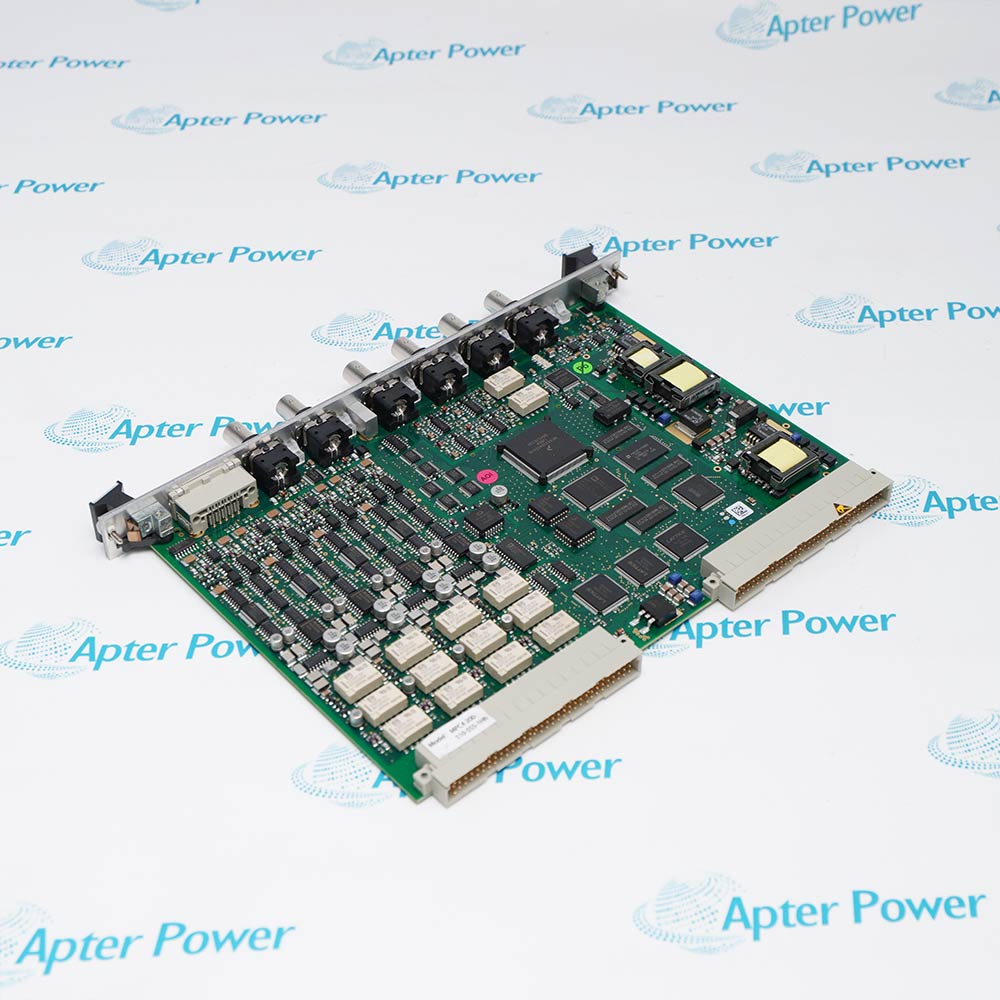

Vibro-Meter 200-510-076-114 is a VM600 MPC4 protection processor that converts vibration and speed inputs into filtered measurements, adaptive alarms and buffered diagnostic signals.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 200-510-076-114
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 200-510-076-114

  • Manufacturer:
    Vibro-Meter
  • Part Number:
    200-510-076-114
  • Product Family:
    VM600 Machinery Protection System
  • Product Type:
    Machinery Protection Card
  • Stock:
    1
  • Module function:
    Continuously online machinery protection
  • Dynamic channels:
    4, individually programmable
  • Tachometer channels:
    2, individually programmable
  • Sensor power:
    Integrated supplies for sensors and signal conditioners
  • Processing:
    Real-time digital signal processing
  • Serviceability:
    Hot-swappable
  • Filter types:
    Programmable broad-band and narrow-band
  • Tracking function:
    Simultaneous amplitude and phase in order-tracking mode
  • Alarm thresholds:
    Programmable Alert, Danger and OK set points
  • Adaptive limits:
    Adaptive Alert and Danger levels
  • Buffered access:
    Front-panel BNC raw-signal connectors
  • Status indication:
    Front-panel LEDs
  • Operating modes:
    Protection and basic condition monitoring
  • Available architectures:
    Standard, separate-circuits and safety versions
  • Rack family:
    VM600
  • Companion interface:
    IOC4T input/output card
  • Protection outputs:
    Alert, Danger and OK logic
  • Channel setup:
    Software programmable
  • Target assets:
    Rotating machinery
  • Weight:
    0.97 lbs (0.44 kg)
  • Estimated shipping dimensions:
    2 x 19 x 26.1 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Switzerland
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Performance Compatibility & Interoperability Efficiency

Features:

  • Combines programmable filters with order-synchronous amplitude and phase measurement.
  • Exposes conditioned raw sensor signals at front BNC connectors for portable analysis.
  • Supports adaptive Alert and Danger levels for changing operating regimes.
The exact ordering reference is 200-510-076-114, within the six-channel VM600 MPC4 protection-card range.

Its digital processing separates broad-band health values from narrow-band fault components and can follow machine orders for stable phase and amplitude observation during speed changes.

Retain the existing card-type requirements during replacement, including circuit separation or safety approval when applicable. Confirm channel scaling and alarm logic from the active configuration rather than copying another rack.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for Vibro-Meter 200-510-076-114: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Tracks vibration orders during machine run-up, coast-down and load transitions.
  • Separates narrow-band mechanical signatures from overall protection measurements.
  • Feeds VM600 alarm and status logic for compressors, pumps and large rotating trains.
  • Real-time DSP calculates protection values continuously from all configured channels.
  • Programmable narrow-band filters isolate selected mechanical frequencies from overall vibration.
  • Order tracking couples amplitude and phase calculations to a tachometer reference.
  • The card operates in a VM600 rack and uses an associated IOC4T for rear field termination.
  • Supported IEPE accelerometers and proximity systems can receive power from the integrated supplies.
  • Existing software files must match the installed MPC4 version and its channel architecture.
  • Four dynamic channels and two tachometer channels are processed together without external multiplexing.
  • Front buffered outputs reduce the need to disturb field connections during diagnostic work.
  • Live replacement shortens maintenance interruption when the approved procedure is used.
Description
Vibro-Meter 200-510-076-114 Within a VM600 protection rack, this MPC4 configuration supervises four vibration channels alongside two independent speed references. Sensor excitation, measurement conversion, and alarm evaluation remain coordinated on the card, giving each connected machine point its own processing and health logic.

Changing-speed equipment benefits from simultaneous amplitude and phase calculation tied to tachometer input. The processor can follow rotating orders, separate narrowband components from overall vibration, and maintain continuous evaluation as the machine passes through run-up, steady operation, or coast-down conditions.

Commissioning focuses on restoring the exact engineering context rather than copying a neighboring card. Channel scaling, transducer bias, filter selection, threshold logic, bypass states, rear termination, and any safety-related architecture must match the approved project before trip duties are returned to service.
Alternative Names
200-510-076-114 200 510 076 114 200510076114 Vibro-Meter 200-510-076-114 Meggitt 200-510-076-114 VM600 MPC4 200-510-076-114 200-510-076-114 Machinery Protection Card
Technical notes
200-510-076-114 must be matched to the installed MPC4 architecture and IOC4T pair; restore channel scaling and alarm logic only from the approved rack configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which filter functions distinguish 200-510-076-114?
Software provides programmable broad-band and narrow-band filters for different monitored fault components.
What is available at the front BNC ports of 200-510-076-114?
They expose buffered raw sensor signals for independent analysis without disturbing field wiring.
How does 200-510-076-114 follow a variable-speed machine?
A tachometer reference supports simultaneous order-tracked amplitude and phase measurement.
Which revision details belong in a 200-510-076-114 enquiry?
State the full code, label revision, companion IOC4T, software release, condition and required delivery.
What relationship must be preserved between 200-510-076-114 and IOC4T?
The protection processor and rear interface operate as a matched card pair in corresponding rack positions.
What configuration record is needed after fitting 200-510-076-114?
Restore channel scaling, filters, alarm levels and tachometer assignments from the approved VM600 project file.
