        IQS450 204-450-000-002
        IQS450 204-450-000-002
        IQS450 204-450-000-002
        IQS450 204-450-000-002
        IQS450 204-450-000-002
        IQS450 204-450-000-002
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Discontinued / Obsolete by OEM
          Confirm the complete suffix and installed chain before sourcing.

        IQS450 204-450-000-002

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

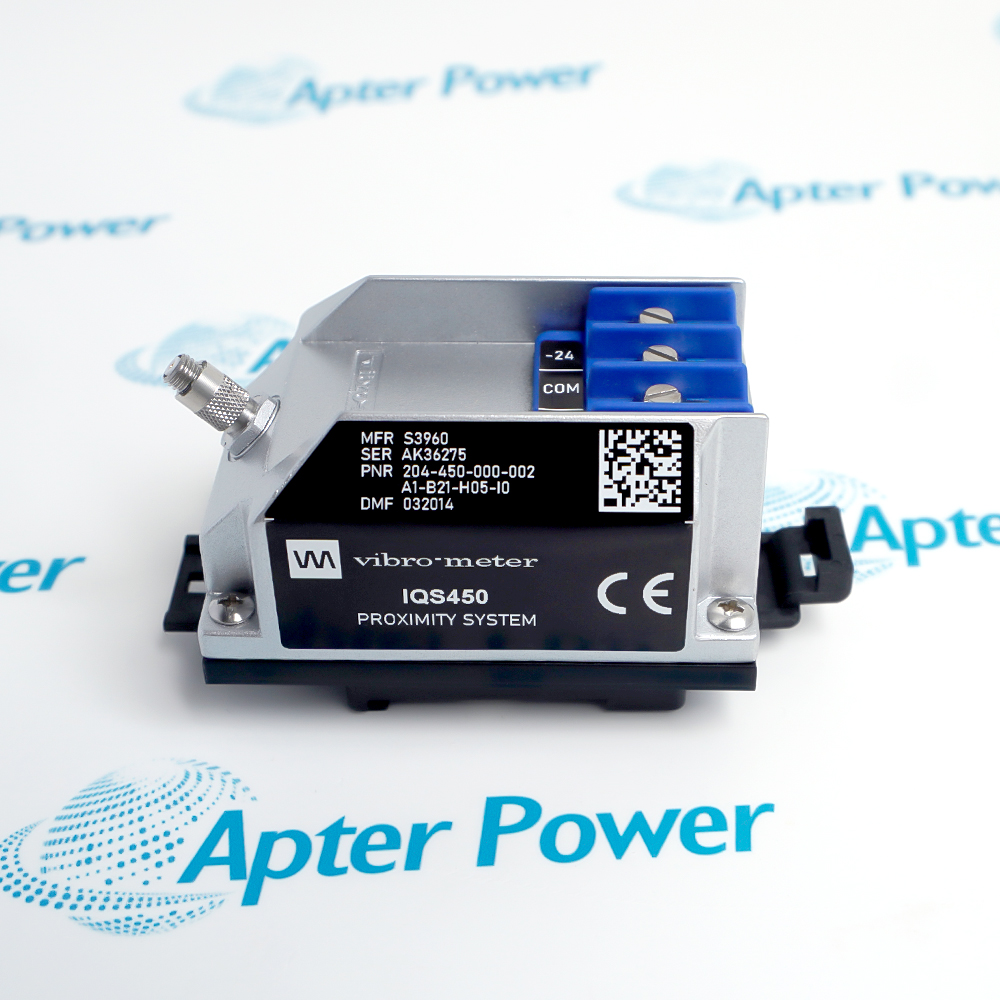

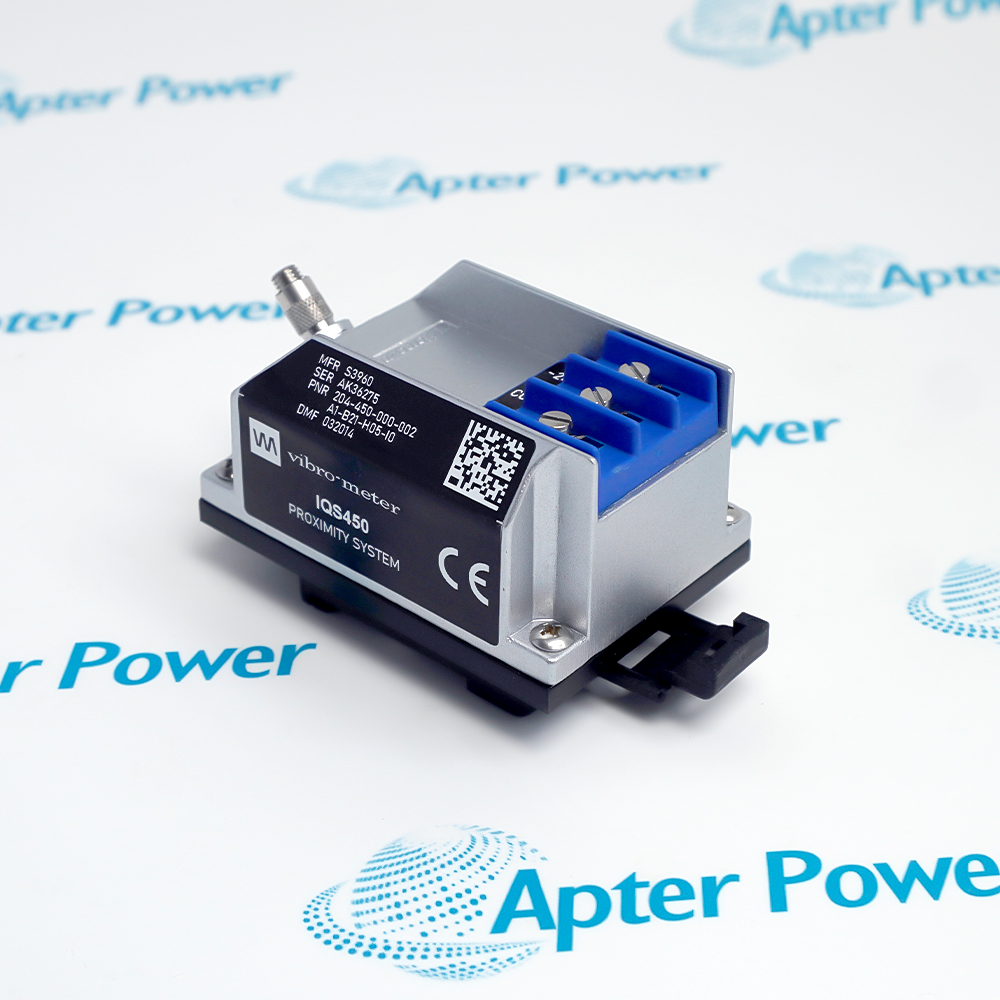

        Vibro-Meter IQS450 204-450-000-002 signal conditioner for configured TQ442 / EA402 proximity measurement chains; full A/B/H/I code required.
        In Stock
        Ships by Friday, October 30
        Fast Shipping Available
        Get a quick price for IQS450 204-450-000-002
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for IQS450 204-450-000-002

        • Manufacturer:
          Vibro-Meter
        • Part Number:
          IQS450 204-450-000-002
        • Product Family:
          Vibro-Meter
        • Product Type:
          Signal Conditioner
        • Stock:
          1
        • Supply Voltage:
          -20 to -32 VDC
        • Operating Temperature:
          -35 to +85 °C (subject to thermal derating)
        • Degree of Protection:
          IP40
        • Construction:
          Aluminium
        • Mounting:
          Two or four M4 screws; MA130 option suffix-dependent
        • Storage Temperature:
          -40 to +85 °C
        • Output Types:
          Voltage or current, suffix-dependent
        • Voltage Output Wiring:
          3-wire
        • Current Output Wiring:
          2-wire
        • Terminal Capacity:
          Up to 2.5 mm²
        • Ordering Structure:
          A/B/H/I suffixes
        • Base Ordering Number:
          204-450-000-002
        • Weight:
          0.25 kg
        • Estimated shipping dimensions:
          10.5x5.3x5.2cm
        • Tariff Code:
          9018902090
        • Country of origin:
          Switzerland
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Ordering Interface Installation Applications

        Features:

        • Base ordering number: 204-450-000-002
        • Signal conditioning for a configured TQ442 / EA402 proximity chain
        • Voltage-output and current-output configurations
        IQS450 supplies the high-frequency drive to the probe and conditions the returned signal for the monitoring channel.

        The complete A/B/H/I suffix is part of the ordering identity and must remain with the base number during procurement and service review.

        Electrical and mechanical acceptance must be based on the installed measurement-chain record, not on physical similarity alone.

        For Vibro-Meter IQS450 204-450-000-002 enquiries, Apter Power can help review the complete nameplate code and installed TQ/EA measurement-chain context.
        Vibro-Meter IQS450 204-450-000-002 Signal Conditioner Manuals,Datasheets,Link Important Notice: Use the complete A/B/H/I ordering code and installed probe-and-extension-cable record when requesting documentation. The base number alone does not define a service-ready configuration.ye
        • A suffix: standard, Ex i or Ex nA environment
        • B suffix: measurement range and voltage/current sensitivity
        • H suffix: total calibrated system length
        • I suffix: conditioner only or MA130-mounted assembly
        • Supply: -20 to -32 VDC
        • Voltage-output versions use a three-wire connection
        • Current-output versions use a two-wire connection
        • Terminal conductors: up to 2.5 mm²
        • Mount with two or four M4 screws as documented
        • Use the I suffix to confirm bare or MA130-mounted supply
        • Maintain the documented thermal-derating and wiring clearances
        • Verify grounding, polarity and output wiring before energising
        • Non-contact shaft position and vibration measurement chains
        • Use only with the documented TQ probe and EA extension-cable configuration
        • Confirm loop scaling and alarm or trip logic after replacement
        • Application responsibility remains with the approved site engineering record
        Description
        IQS450 204-450-000-002 is the base ordering number for the signal conditioner used in a configured Vibro-Meter TQ442 and EA402 proximity measurement system. It excites the probe and converts the returned signal into a voltage or current output for the monitoring channel.

        IQS450 204-450-000-002 is not a complete selectable configuration by itself. The A, B, H and I suffixes define the environment approval, measurement range and sensitivity, total system length, and whether the conditioner is supplied alone or on an MA130 mounting adaptor.

        Before replacing IQS450 204-450-000-002, compare the complete nameplate code with the installed probe, extension cable, output type and mounting arrangement. Stop the exchange when a suffix or the installed measurement-chain record is missing, because a base-number match does not establish interchangeability.
        Alternative Names
        IQS450 204-450-000-002 Vibro-Meter IQS450 Vibro-Meter 204-450-000-002 IQS450 Signal Conditioner IQS450 204450000002 204450000002 IQS450-204-450-000-002 Vibro Meter IQS450 204-450-000-002
        Technical notes
        Before replacing IQS450 204-450-000-002, record the full A/B/H/I suffix because the base ordering number does not define environment approval, measurement range or output, total system length, or mounting. A base-number match alone cannot demonstrate interchangeability; stop the exchange if any suffix or installed TQ/EA chain record is missing.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What identification must a buyer include when requesting IQS450 204-450-000-002?
        Provide the complete nameplate code, including A/B/H/I suffixes, plus the installed probe and extension-cable references. Hold the order if any suffix is unreadable, because the base number does not define the finished configuration.
        Can IQS450 204-450-000-002 from a standard loop replace a unit in an Ex i installation?
        No assumption is permitted. The A suffix and the hazardous-area documentation must match the approved installation. Stop the exchange when the environment code or certification record cannot be verified.
        Why can a physically matching IQS450 204-450-000-002 produce the wrong process value?
        The B suffix selects measurement range and voltage or current sensitivity. A different B code can change scaling even when the enclosure and base number look identical; verify the channel configuration before energising.
        What must maintenance check after changing a cable in an IQS450 204-450-000-002 measurement chain?
        Confirm that the H suffix still matches the calibrated total system length. Treat a probe or extension-cable change as a chain reconfiguration and do not return the loop to service until the documented length is restored.
        How should receiving distinguish an installation-ready IQS450 204-450-000-002 spare?
        Check the I suffix and the delivered hardware. I0 denotes the signal conditioner only, while I1 denotes the conditioner assembled on an MA130 mounting adaptor; do not infer the mounting arrangement from the carton description.
        What acceptance checks are required before IQS450 204-450-000-002 returns to service?
        Verify the full suffix, supply polarity, output wiring, grounding, loop scaling and the site-approved alarm or trip response. Stop if the installed-chain record is incomplete or if any observed output differs from the approved commissioning values.
