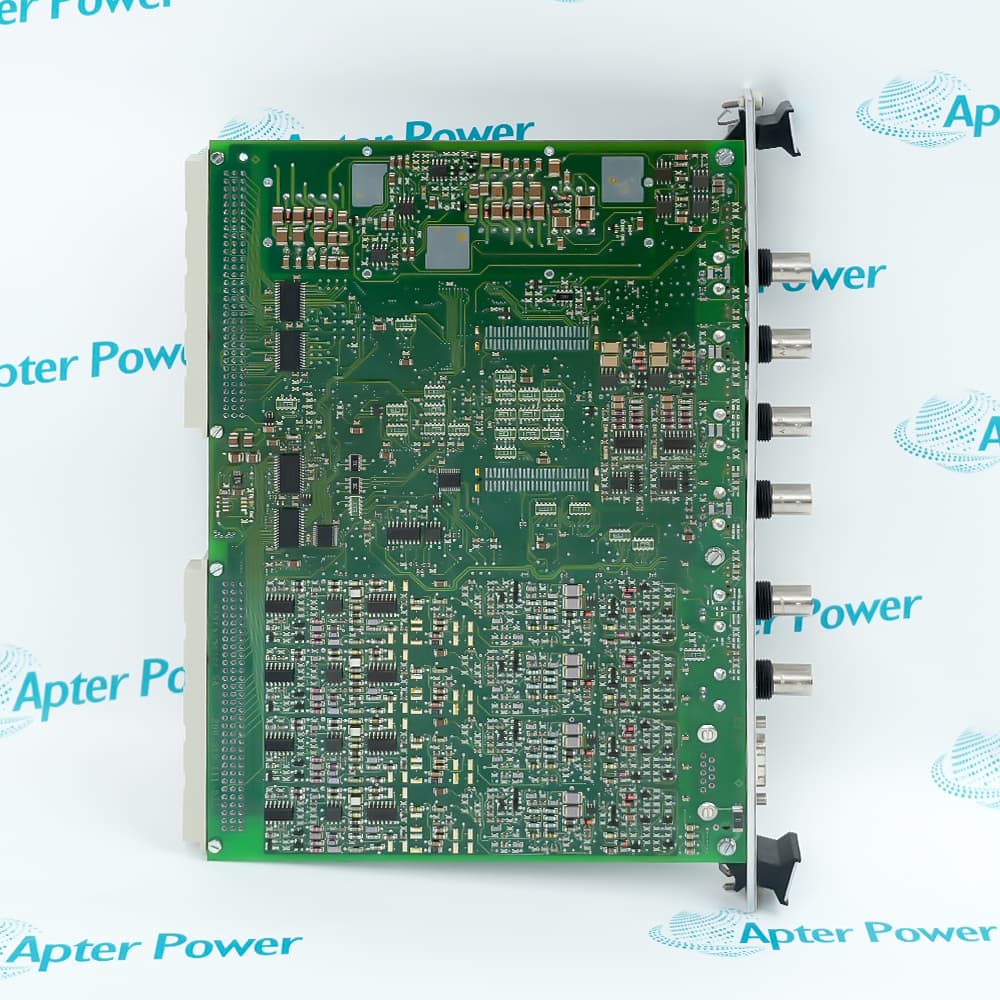

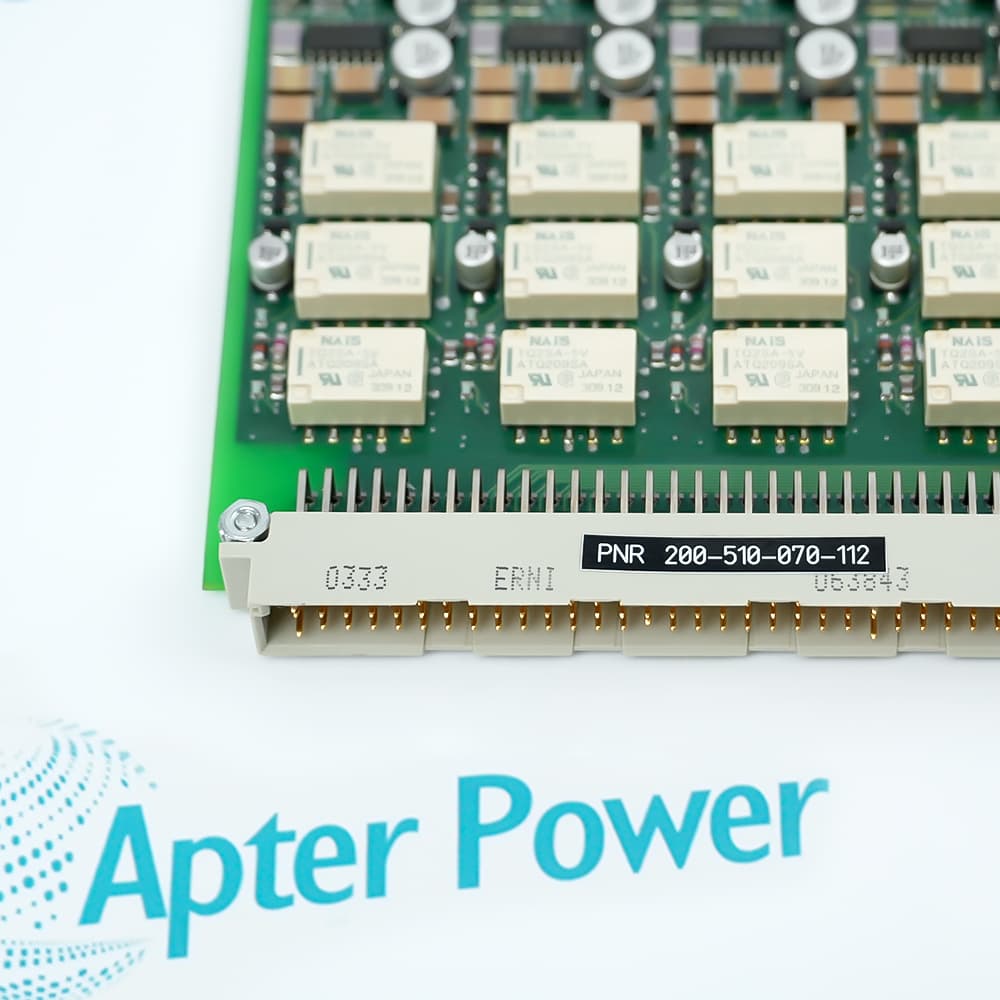

VM600 MPC4 200-510-070-112

Features:

• Provides four dynamic signal inputs and two tachometer inputs with fully programmable configuration
• Integrates advanced DSP-based digital processing with multi-channel measurement and alarm capability
• Functions as a card pair with the IOC4T input/output card in standard, separate circuits and safety versions

The VIBRO METER VM600 MPC4 200-510-070-112 operates as the central machinery protection card in a VM600 rack, providing real-time measurement and monitoring for up to four dynamic signal inputs and up to two speed inputs simultaneously. It continuously processes incoming signals from acceleration, velocity, displacement (proximity), and various speed sensors using state-of-the-art DSP techniques, and distributes processed data through the rack architecture to support comprehensive machinery protection for all connected monitors and modules. Seamless multi-parameter monitoring is standard with the VM600 MPC4 200-510-070-112, including relative and absolute vibration, Smax, eccentricity, thrust position, absolute and differential housing expansion, displacement, and dynamic pressure. The VM600 MPC4 200-510-070-112 has incorporated programmable broad-band and narrow-band filters, digital integration or differentiation, rectification methods (RMS, mean value, true peak, or true peak-to-peak), and order tracking with simultaneous amplitude and phase monitoring within the VM600 series system.

The VM600 MPC4 200-510-070-112 provides essential protection functions common to the entire machinery monitoring path, and is a critical component of the protection system, directly affecting the proper, normal operation of the overall VM600 MPS. One VM600 MPC4 200-510-070-112 machinery protection card is required per monitoring channel set, and it always functions as a card pair using an IOC4T input/output card. The VM600 MPC4 200-510-070-112 integrates front panel BNC connectors for easy raw signal analysis, along with seven front panel LEDs that show system status and alarm conditions. Six additional LEDs indicate whether the OK System has detected a fault and whether an alarm has occurred on each channel.

For comprehensive machinery protection applications, the VM600 system requires the VM600 MPC4 200-510-070-112 to be installed in conjunction with the corresponding IOC4T card. In addition to standard card-pair operation, the VM600 MPC4 200-510-070-112 also performs continuous self-test and diagnostic routines. The VM600 MPC4 200-510-070-112 executes OK System monitoring using the internal circuitry specified in the card design. Using this method, the OK System continually monitors the level of signals provided by the sensors. If the VM600 MPC4 200-510-070-112 detects that a sensor is no longer providing stable output due to a broken transmission line, faulty transducer, or conditioner, it will automatically indicate the fault through dedicated front panel LEDs and route alarm signals internally to drive relays on optional relay cards such as the IRC4 and RLC16, while the processed dynamic signals and speed signals remain available as analog outputs (0 to 10 V and 4 to 20 mA) at the rear of the rack.
