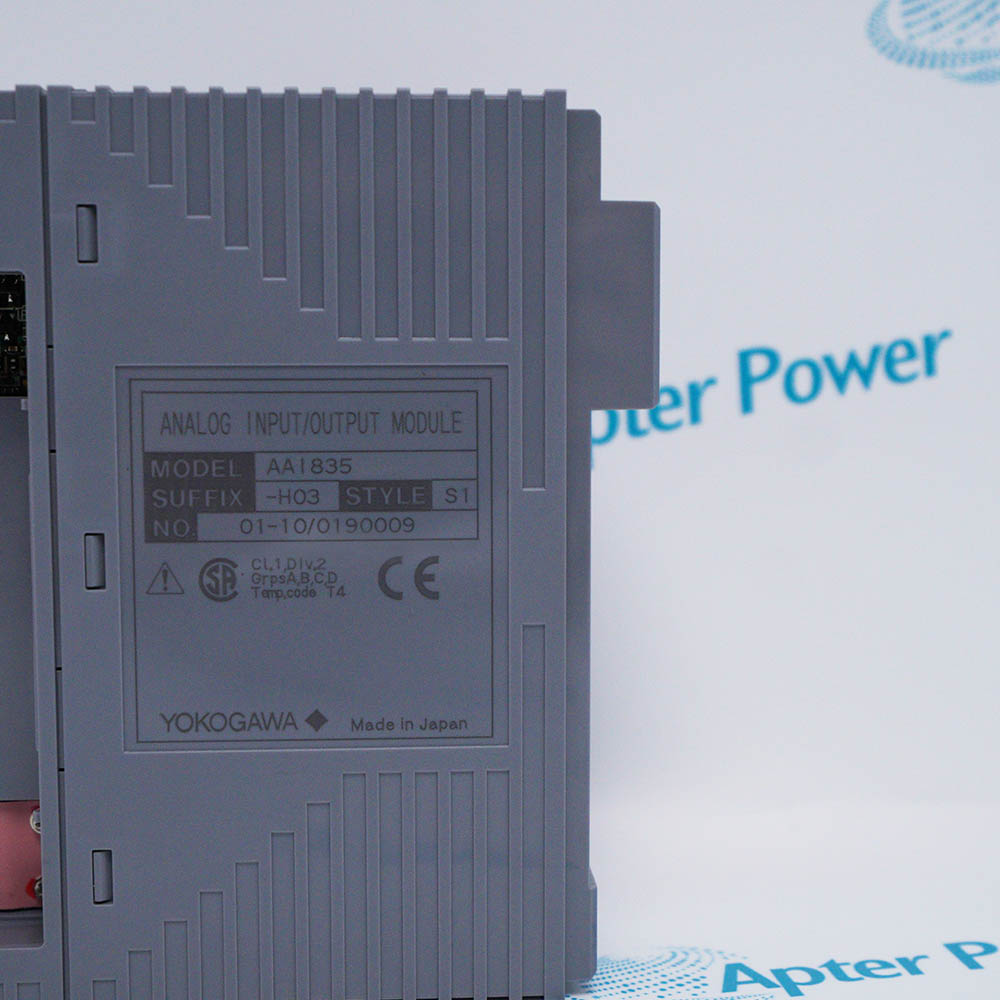

Yokogawa.AA1835-H03

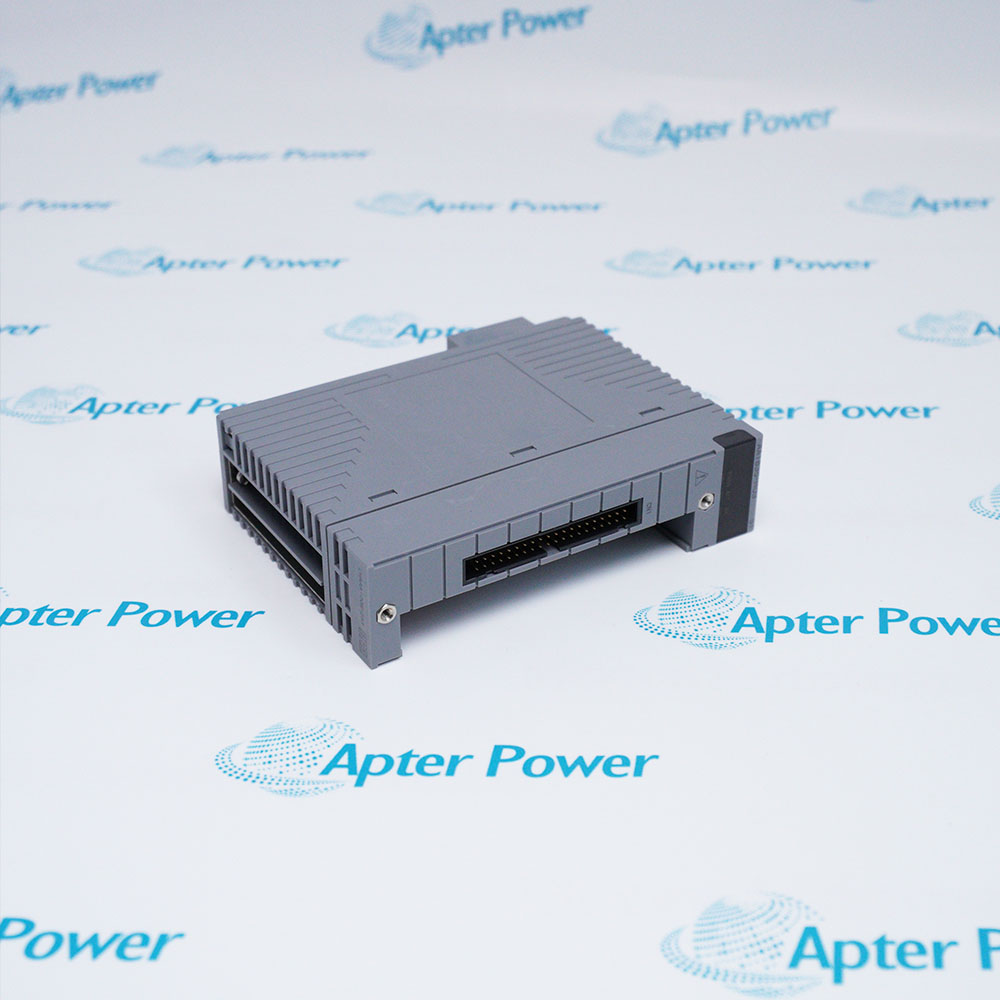

Yokogawa.AA1835-H03
Yokogawa AAI835-H03
Yokogawa.AA1835-H03
Yokogawa.AA1835-H03
Yokogawa AAI835-H03
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com

AAI835-H03

/ 4.9
1001 reviews | Need a Specific Revision?
The Yokogawa AAI835-H03 is an isolated Analog Input/Output Module featuring 4 input channels and 4 output channels for 4-20 mA signals, designed for the CENTUM VP/CS 3000 DCS.
Get a quick price for AAI835-H03
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for AAI835-H03

  • Manufacturer:
    Yokogawa
  • Part Number:
    AAI835-H03
  • Product Family:
    Centum CS-Centum VP
  • Product Type:
    Analog I/O Module
  • Input Resistance (Power ON):
    250-320 Ω (approx. 250 Ω nominal)
  • Input Resistance (Power OFF):
    ≥500 kΩ (loop open)
  • Allowable Input Current:
    25 mA
  • Allowable Load Resistance (Output):
    0 to 750 Ω
  • Circuit-Open Detection:
    Output current < 0.65 mA
  • Accuracy (Input):
    ±16 µA
  • Accuracy (Output):
    ±48 µA
  • Data Update Period:
    10 ms
  • Transmitter Power Supply:
    ≥15.0 V at 20 mA; ≤29.3 V at 0 mA
  • Temperature Drift:
    ±16 µA / 10°C
  • Weight:
    0.34 kg
  • Estimated shipping dimensions:
    3.2x10.7x13cm
  • Tariff Code:
    8538909190
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Firmware & Updates Operating Environment Applications

Features:

  • Full Channel-to-Channel & System Isolation
  • Integrated HART Communication on 4 Input Channels
  • Dual-Redundant Configuration Support
The Yokogawa AAI835-H03 provides 500V AC isolation between each input/output channel and between channels and the system ground. This eliminates ground loop errors, rejects common-mode noise from VFDs and motors, and protects the control system from field wiring faults. This isolation is essential for applications with long cable runs (up to 600 meters) or mixed grounding potentials across field instruments .

The Yokogawa AAI835-H03 with -H suffix supports HART (Highway Addressable Remote Transducer) protocol on all 4 input channels without additional hardware. This allows the DCS to read secondary variables (PV, SV, TV, FV) from smart transmitters, access device diagnostic information, and perform remote configuration of field instruments directly through the same 4-20 mA wiring. HART data is accessible when using EB401 firmware revision 2 or higher .

The Yokogawa AAI835-H03 can be paired with an adjacent identical module to create a dual-redundant I/O configuration. If the primary module fails, the secondary module automatically takes over without process interruption or control loop bump. This feature is critical for safety-instrumented functions (SIFs), emergency shutdown systems (ESD), and other high-availability applications in refining and power generation where downtime carries significant financial or safety consequences .

The AAI835-H03 Yokogawa  isolated Analog Input/Output Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Yokogawa AAI835-H03 isolated Analog Input/Output Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Yokogawa AAI835-H03 isolated Analog Input/Output Module

General

  • Manufacturer Yokogawa
  • Model AAI835-H03
  • Condition New Original ready stock
  • Product Family AAI835-H00,AAI135-H53,AAI835-H50
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • System Compatibility: Fully compatible with CENTUM VP (R3.02 and later) and CENTUM CS 3000 (R3.05 and later). HART function requires EB401 firmware revision 2 or higher on the communication module .
  • Firmware Update Method: No user field firmware update required. Module revision is identified by STYLE code (e.g., S1, S3). Different STYLE versions are functionally compatible, but mixing very different STYLE codes on the same RIO bus is not recommended by Yokogawa .
  • HART Enablement: For Yokogawa AAI835-H03, HART communication is enabled by the -H suffix in the model number. This is a hardware-designated feature and cannot be enabled via software on -S (standard) suffix modules. Confirm suffix code before ordering if HART functionality is required .
  • Diagnostic Access: The Yokogawa AAI835-H03 reports module status (power, communication, channel health) to the CENTUM VP system for display on the operator workstation. Modules equipped with HART also report field device status (e.g., "Maintenance Required," "Out of Specification") and provide user-configurable alarms.
  • Temperature Range: 0 to 60°C (32 to 140°F) for standard modules; -20 to 70°C (-4 to 158°F) for modules with -3 suffix option, suitable for outdoor enclosures or unheated shelters .
  • Humidity: 10 to 90% RH, non-condensing – Standard indoor control room environment.
  • Altitude: Up to 2,000 meters (6,560 feet) without performance derating; higher altitudes require consideration of reduced cooling air density.
  • Atmosphere: Pollution Degree 2 (non-conductive pollution only) – Suitable for clean industrial control rooms and IP54 protection-rated field enclosures. For sandy/dusty environments, additional enclosure protection required.
  • Oil & Gas Production & Refining: Monitoring wellhead pressure and flow (4-20 mA inputs) while controlling chemical injection pumps and ESD valves (4-20 mA outputs). The Class I, Div 2 / ATEX Zone 2 certification allows installation in classified areas around separators, compressors, and storage tanks .
  • Chemical & Petrochemical Processing: Connecting to pH, conductivity, and gas analyzers for reaction monitoring, with outputs driving modulating control valves for reagent dosing. Channel isolation prevents cross-contamination of signals from aggressive chemical environments.
  • Power Generation: Reading steam pressure, feedwater flow, and bearing temperature transmitters; outputs controlling turbine governor valves and boiler combustion dampers. Dual-redundant configuration supports high-availability requirements for critical turbine control loops .
  • Pharmaceutical & Biotech Manufacturing: Monitoring fermentation vessel parameters (temperature, pH, dissolved oxygen) and controlling sterile media addition and cooling jacket valves. HART capability enables digital access to smart transmitter diagnostics for batch record compliance.
Description
The Yokogawa AAI835-H03 integrates 4 analog input and 4 analog output channels in a single, compact module designed for Yokogawa's FIO (Field Input/Output) architecture. Each channel is fully isolated from other channels and from the system ground, providing excellent immunity to ground loops and electrical noise commonly encountered in industrial environments. This isolation feature is critical for maintaining signal integrity in long-distance field wiring scenarios .

The Yokogawa AAI835-H03 supports standard 4-20 mA current loop signals, the industry-standard communication method for pressure, temperature, flow, and level transmitters. On the output side, it can drive control signals to modulating valves, actuators, and VFDs. The module is compatible with pressure clamp terminals (ATI3S series), MIL connector cables, or KS cables, offering flexible field wiring options to suit different installation requirements .

Safety compliance is a key attribute of the Yokogawa AAI835-H03. It carries Class I, Division 2, Groups A, B, C, D and ATEX Zone 2 hazardous area certifications with Temperature Code T4 (maximum surface temperature ≤135°C). This allows installation in environments where flammable gases or vapors may occasionally be present, including petrochemical skids, paint booths, and oil & gas processing facilities .

The Yokogawa AAI835-H03 can be configured for dual-redundant operation, where two adjacent modules work in parallel to provide continuous operation in case of a single module failure. This feature is essential for critical control loops in refining, power generation, and pharmaceutical manufacturing where process interruption is unacceptable .

Alternative Names
AA1835-H03 AAI835-H53 AA1835-H53 AAI835-H00 AAI135-H53 AAI835-H50
Technical notes
The Yokogawa AAI835-H03 provides 500V AC isolation between channels and between channels and system ground, effectively preventing ground loop interference .The Yokogawa AAI835-H03 requires external loop power (24V DC) for 2-wire transmitters; a transmitter power supply is integrated within the module delivering ≥15.0V at 20mA for each input channel .
