ADV141-P10

/ 4.9
1001 reviews | Need a Specific Revision?

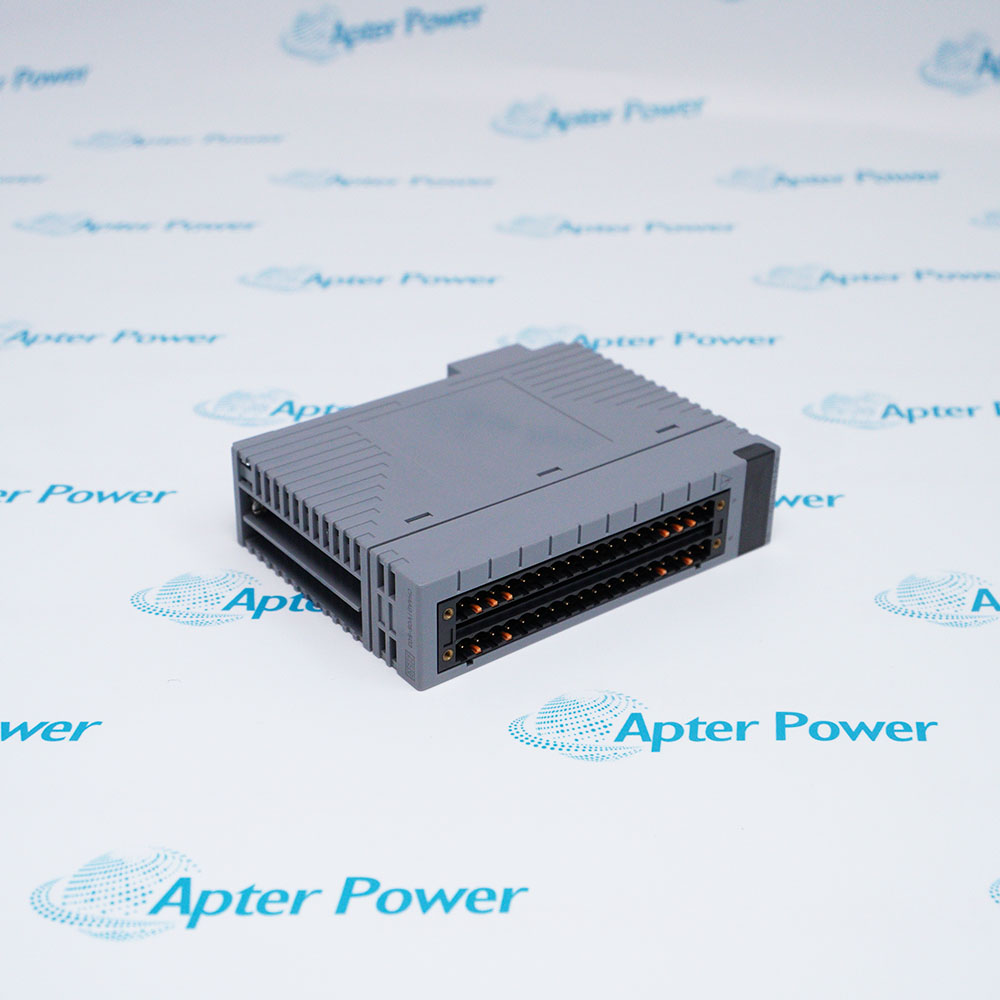

The Yokogawa ADV141-P10 is a high-reliability AC Digital Input Module designed specifically for Yokogawa CENTUM VP and other Distributed Control Systems (DCS) .
Get a quick price for ADV141-P10
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for ADV141-P10

  • Manufacturer:
    Yokogawa
  • Part Number:
    ADV141-P10
  • Product Family:
    Centum CS-Centum VP
  • Product Type:
    AC Digital Input Modules

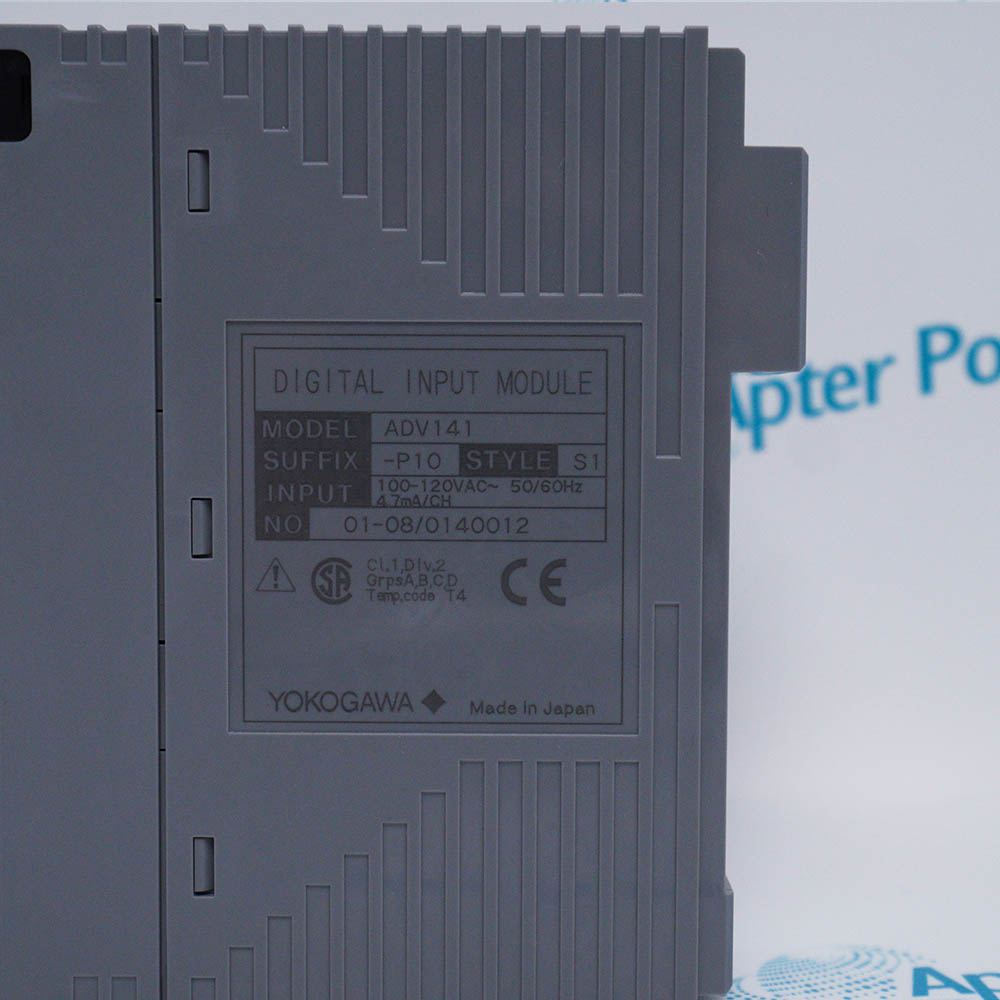

  • Rated Voltage:
    100 to 120 V AC, 50/60 Hz
  • Input ON Voltage:
    80 to 132 V AC (Peak: 113 to 187 V)
  • Input OFF Voltage:
    ≤ 20 V AC (Peak: 28 V)
  • Typical Current:
    4.7 mA (@120V/60Hz) per channel
  • Max Current Consumption:
    500 mA (5 V DC)
  • Withstanding Voltage:
    2 kV AC (Signal to System) / 1.35 kV AC (Between Commons)
  • Response Time (Status):
    ≤ 160 ms
  • Weight:
    0.28 kg
  • Estimated shipping dimensions:
    3.2x10.7x13cm
  • Tariff Code:
    8538909190
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Performance & Efficiency Monitoring & Control Applications

Features:

  • High Noise Immunity with Group Isolation
  • Dual-Redundancy with Online Replacement
  • Versatile Signal Conditioning for Legacy Systems
The Yokogawa ADV141-P10 features robust galvanic isolation. Unlike basic modules, it separates the 16 channels into 2 groups of 8 channels, allowing different AC phases per group while withstanding 1.35 kV AC between commons, effectively blocking high-voltage transients.

To support critical control loops, the Yokogawa ADV141-P10 is fully compatible with dual-redundant configurations. In a redundant pair setup, it supports hot swapping; a faulty module can be replaced online without interrupting the process control logic or causing I/O force errors.

The Yokogawa ADV141-P10 is not limited to standard dry contacts. It supports a wide ON voltage range (80-132V AC) and is compatible with the ATA141 pressure clamp terminal, making it the ideal drop-in replacement for aging CENTUM CS or VP systems without requiring a complete re-wiring of the marshalling cabinets.

The ADV141-P10 Yokogawa AC Digital Input Modules may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Yokogawa ADV141-P10 AC Digital Input Modules Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Yokogawa ADV141-P10 AC Digital Input Modules

General

  • Manufacturer Yokogawa
  • Model ADV141-P10
  • Condition New Original ready stock
  • Product Family ADV141-P10,ADV141-P12,ADV141-P13
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Fast System Response: Status input response time of ≤160 ms ensures the DCS receives alarms without perceptible delay.
  • High Isolation Protection: Withstands 2 kV AC, reducing downtime caused by lightning strikes or inductive kickback from field relays.
  • Simplified Installation: Supports pressure clamp terminals for tool-less wiring, drastically cutting installation and maintenance time.
  • High Density: 16 channels in a single slot minimize rack space requirements, increasing the I/O density per node unit.
  • Real-time Status Detection: Provides High/Low (ON/OFF) voltage logic to the DCS controller for real-time display.
  • Pushbutton Logic: Dedicated function for counting operator pushbutton edges (max 2.5 Hz).
  • Fault Diagnosis: Utilizes channel-isolated design to prevent a short in one field device from shutting down an entire common group.
  • Visual Indication: Onboard LEDs allow for instant visual verification of signal acquisition without needing a communicator.
  • Process Interlocks: Monitoring limit switches and running feedback from pumps/motors in Oil & Gas refineries.
  • Legacy System Upgrades: Direct replacement for failing I/O in existing CENTUM CS and VP systems.
  • Auxiliary Monitoring: Reading status signals from MCCs (Motor Control Centers) and package skids.
  • Power Distribution: Monitoring breaker trip status and isolator positions in thermal power plants.
Description
The Yokogawa ADV141-P10 utilizes robust electrical isolation technology to protect your control system from voltage spikes and industrial noise. With a withstand voltage rating of 2 kV AC between the input signal and the system, it ensures data integrity and equipment safety even in electrically noisy environments . Whether monitoring pump statuses or limit switches, this module guarantees accurate state detection.

Specifically manufactured for the Japanese market and widely used in CENTUM CS and VP systems, the Yokogawa ADV141-P10 offers true plug-and-play compatibility . It supports dedicated cabling (AKB332) and pressure clamp terminals, making upgrades or field replacements straightforward without extensive rewiring .

To meet the demands of critical process control, the Yokogawa ADV141-P10 supports dual-redundant configurations. By installing two modules in adjacent slots, the system can automatically switch operations in case of a failure, minimizing downtime and ensuring continuous monitoring of your essential assets .
Alternative Names
ADV141-P10 ADV141-P12 ADV141-P13 ADV142-P10 ADV142-P13
Technical notes
To facilitate field wiring, the Yokogawa ADV141-P10 is typically paired with the ATA141 pressure clamp terminal block (or similar variants like ATA4S). It is critical to note that the 16 channels are divided into 2 isolated groups of 8 channels each (Common X and Common Y). AC input signals connected to the same common terminal must share the same electrical phase to prevent short circuits.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which terminal block should be used for Yokogawa ADV141-P10?
For standard applications, Yokogawa recommends using the ATA141 (or ATA4S) Pressure Clamp Terminal Block. This terminal block is designed for a direct fit with the module and allows for tool-less, maintenance-free wiring of AC field signals directly into the Yokogawa ADV141-P10, reducing installation time and points of failure.
How are the channels electrically organized inside the Yokogawa ADV141-P10?
The 16 input channels are not a single common group. The Yokogawa ADV141-P10 divides them into two isolated groups of 8 channels each. This allows you to connect two different AC phases or separate AC sources to the same module safely, provided the signals within the same group share the same phase.
Is the Yokogawa ADV141-P10 suitable for highly corrosive working environments?
The standard Yokogawa ADV141-P10 (S1 suffix) is designed for normal industrial environments. For harsh or corrosive environments (such as wastewater treatment or chemical processing), you should specify the S2 variant. The S2 variant includes a G3 conformal coating that protects the circuit board from humidity, dust, and corrosive gases.
Does the Yokogawa ADV141-P10 comply with international safety standards?
Absolutely. The Yokogawa ADV141-P10 complies with CE Marking (EMC and Safety Directives) and EAC Marking. The isolation design meets reinforced insulation standards, ensuring safe operation for industrial control equipment handling high AC voltages.
