ADV561-P10 S1

/ 4.9
1001 reviews | Need a Specific Revision?

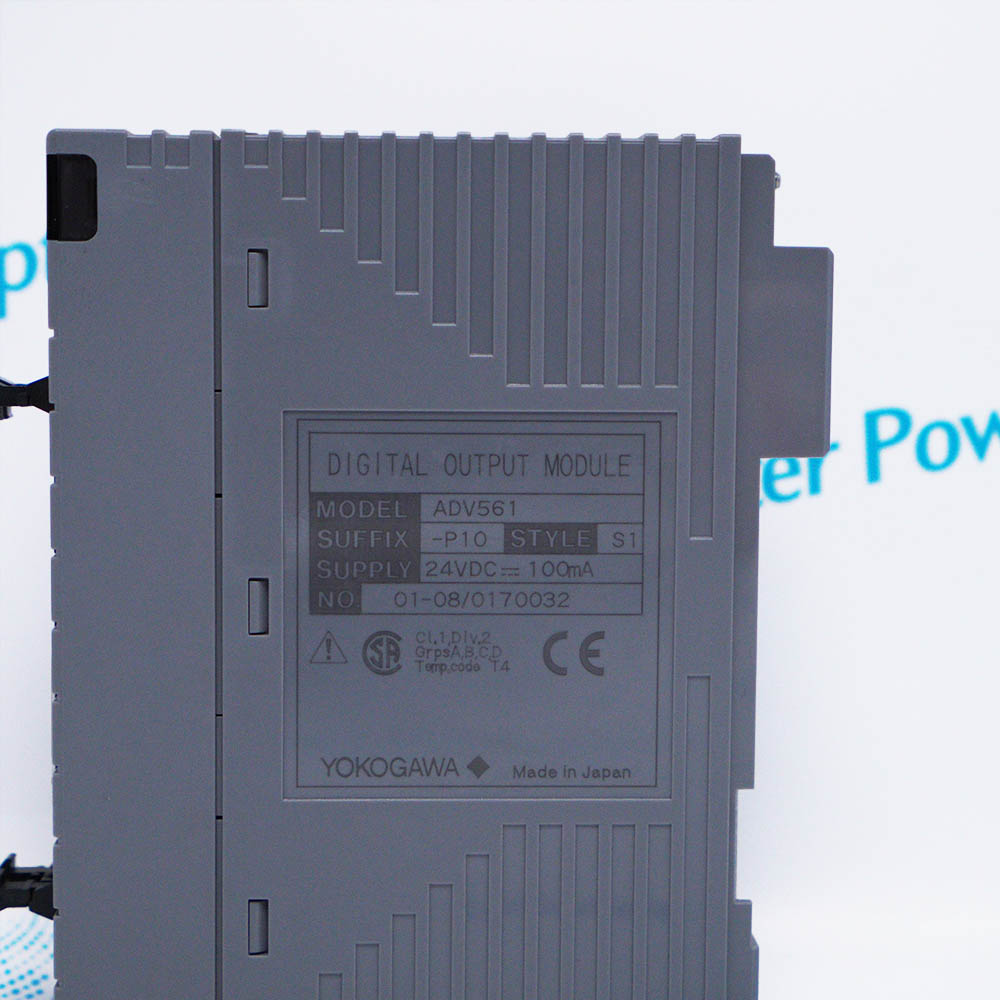

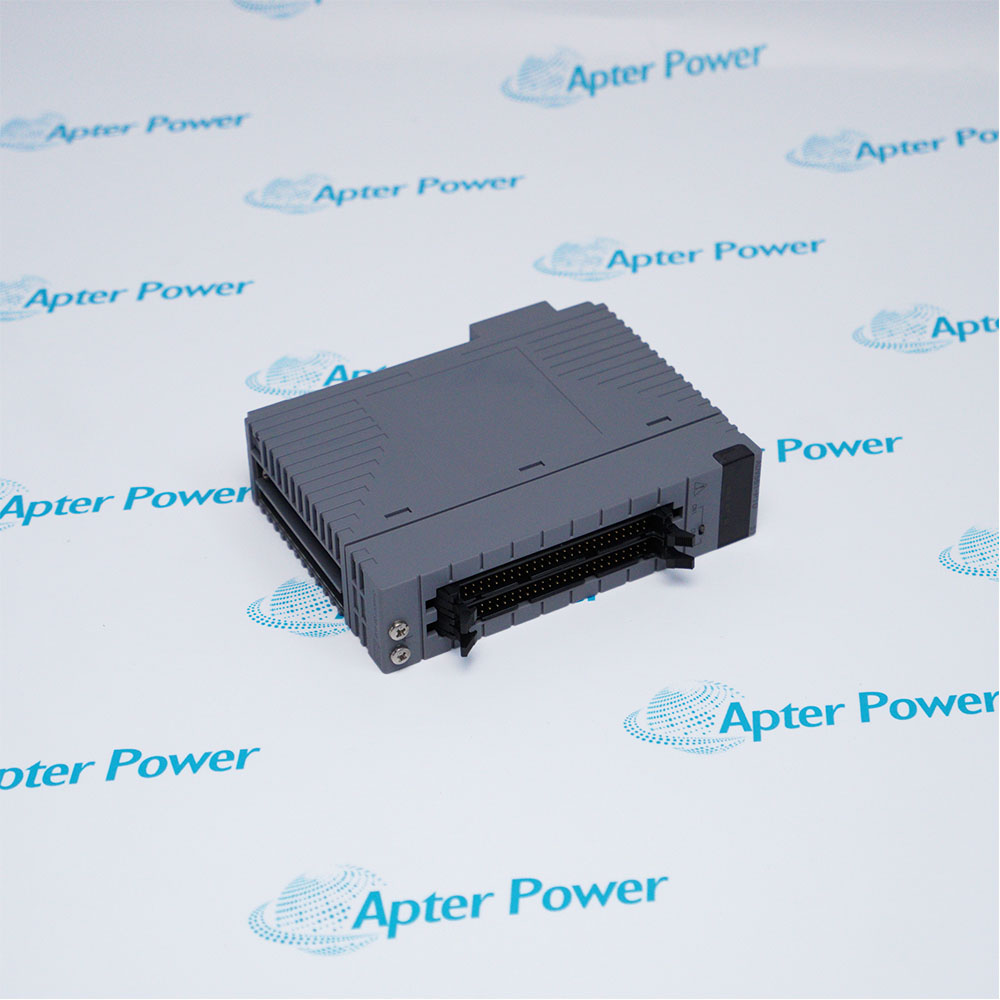

Yokogawa ADV561-P10 S1 is a high-density 64-channel digital output module designed for the CENTUM VP Distributed Control System (DCS), delivering reliable 24 V DC transistor contact signals for demanding industrial automation.
Get a quick price for ADV561-P10 S1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for ADV561-P10 S1

  • Manufacturer:
    Yokogawa
  • Part Number:
    ADV561-P10 S1
  • Product Family:
    Centum CS-Centum VP
  • Product Type:
    Digital Output Modules
  • Number of Channels:
    64 channels
  • Output Format:
    Current sink (transistor contact)
  • Rated Load Voltage:
    24 V DC
  • Max Load Current:
    100 mA per channel @ 26.4 V DC
  • External Power Supply:
    20.4 to 26.4 V DC
  • Max Output ON Voltage:
    2 V DC
  • Max Leakage Current (OFF):
    0.1 mA
  • Pulse Width Range:
    8 ms to 7200 s
  • Output Response Time:
    ≤ 3 ms (status output)
  • Weight:
    0.3 kg
  • Estimated shipping dimensions:
    3.2x12x13cm
  • Tariff Code:
    8538909190
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Operating Environment Compatibility & Interoperability

Features:

  • Massive 64-Channel Density
  • Built-In Pulse & Time-Proportioning Outputs
  • Redundant-Ready & Harsh Environment Tolerant
The Yokogawa ADV561-P10 S1 integrates 64 discrete output points in a single module, significantly lowering your cost per point and reducing control cabinet footprint. This density makes it ideal for large-scale burner management, motor control centers, or any application requiring hundreds of DO channels without expanding racks.

Unlike standard DO cards that only turn devices on/off, the Yokogawa ADV561-P10 S1 can generate precise pulses from 8 ms to 7200 s, as well as time-proportioning waveforms. Use this feature for electric heater duty-cycle control, solenoid valve dithering, or blinking alarm annunciators without writing complex logic in the controller.

The Yokogawa ADV561-P10 S1 supports fail-safe dual redundancy (primary/standby) to maintain output control even during module failure or maintenance. Combined with 2 kV AC isolation and optional G3 corrosion protection, it delivers continuous operation in high-voltage switching rooms, outdoor cabinets, and corrosive atmospheres like pulp mills or chemical plants.

The ADV561-P10 S1 Yokogawa high-density 64-channel digital output module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Yokogawa ADV561-P10 S1 high-density 64-channel digital output module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Yokogawa ADV561-P10 S1 high-density 64-channel digital output module

General

  • Manufacturer Yokogawa
  • Model ADV561-P10 S1
  • Condition New Original ready stock
  • Product Family DV142-S02 S1,ADV142-S03 S1,ADV141-S13 S1
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Burner Management Systems (BMS) – Controls fuel shut-off valves and igniters in boiler safety systems.
  • Electric Heater Duty-Cycle Control – Uses time-proportioning output to regulate temperature without analog thyristor units.
  • Motor Control Centers (MCC) – Sends start/stop commands to contactors for pumps, fans, and conveyors.
  • Solenoid Valve Manifolds – Drives dozens of on/off valves in skid-mounted water treatment or chemical dosing systems.
  • Temperature Range – Standard: 0 to 55 °C; Extended (option 3): -20 to 70 °C for cold climates or unheated enclosures.
  • Corrosive Protection – Optional ISA Standard G3 coating (suffix code 3) resists H₂S, SO₂, and salt mist.
  • Humidity – Designed for 5 to 95 % RH non-condensing, typical for indoor control rooms and field shelters.
  • Electrical Immunity – Withstands 2 kV AC dielectric strength; use surge-absorbing terminal blocks (e.g., ATD5S-10) for high-inductive load switching.
  • Control System – Fully compatible with Yokogawa CENTUM VP (all versions supporting ESB bus), as well as Field Control Units AFV30S/D, AFV40S/D.
  • Bus Nodes – Installs into ESB Bus Node Units (ANB10S/ANB10D) and Optical ESB Node Units (ANB11S/ANB11D).
  • Termination Options – Works with AKB337 dedicated cable, MIL connector cables, pressure clamp terminals (ATD5S/D5D), and KS Cable Interface Adapter ATD5A-00.
  • Redundancy – Hot-standby dual-redundant operation when paired with identical ADV561 module and proper backplane configuration.
Description
The Yokogawa ADV561-P10 S1 packs 64 independent digital output channels into a single compact module, drastically reducing the number of modules required for large-scale control applications. This high-density design allows end-users to optimize I/O cabinet space while simplifying field wiring through dedicated AKB337 cables or MIL connectors.

Beyond basic status output, the Yokogawa ADV561-P10 S1 features programmable pulse width output and time-proportioning ON/OFF output functions. With pulse widths adjustable from 8 milliseconds up to 7200 seconds and a resolution of 8 ms (plus max. 1 ms ON/OFF delay), this module is ideal for precise motor jogging, valve stroking, or energy-saving duty-cycle control.

The Yokogawa ADV561-P10 S1 supports dual-redundant configurations (hot standby) to eliminate single points of failure in critical safety loops. It also withstands 2 kV AC isolation between output signals and the system, plus 500 V AC isolation per every 16 commons. With optional ISA Standard G3 coating and a wide temperature range (-20 to 70 °C), the module is built for harsh petrochemical and power plant environments.
Alternative Names
DV142-S02 S1 ADV142-S03 S1 ADV141-S13 S1 ADV142-P13 S1
Technical notes
When using the Yokogawa ADV561-P10 S1, ensure an external 24 V DC power supply (20.4–26.4 V DC) is connected because the module is a current-sink type. For driving DC relays, always install a spark killer diode across the load to prevent voltage spikes from damaging the output transistor.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
In what applications is the Yokogawa ADV561-P10 S1 most commonly used?
It is widely used in oil & gas, petrochemical, power generation, and water treatment plants. Typical use cases include driving solenoid valves for on/off control, controlling motor starters, managing burner flame safety systems, and providing pulse outputs for flow totalizers or slow-speed counters.
Can the Yokogawa ADV561-P10 S1 detect field wiring issues like short circuits?
No, being a standard transistor output module, it does not include built-in open-wire or short-circuit diagnostics. However, you can monitor the commanded vs. actual state externally. For advanced diagnostics, Yokogawa recommends using their intelligent I/O or adding external monitoring relays.
Is the Yokogawa ADV561-P10 S1 compliant with global safety standards?
Yes, it complies with CENTUM VP system-wide certifications. For explosion protection (hazardous area I/O), you must refer to TI 33Q01J30-01E and select appropriate termination boards, because the module itself is non-incendive but can be connected to intrinsically safe barriers.
What cables and terminal blocks work with Yokogawa ADV561-P10 S1?
You can use the dedicated AKB337 cable (provides 500 V AC withstand voltage), or a standard MIL connector cable (performance depends on cable spec). For termination, Yokogawa offers pressure clamp terminal blocks (e.g., ATD5S/D5D series) and the ATD5A-00 KS Cable Interface Adapter.
