    Apter Power supports ADV859-P00 S1 quotations, documentation, product selection, and ST2 matching.

ADV859-P00 S1

/ 4.9
1001 reviews | Need a Specific Revision?

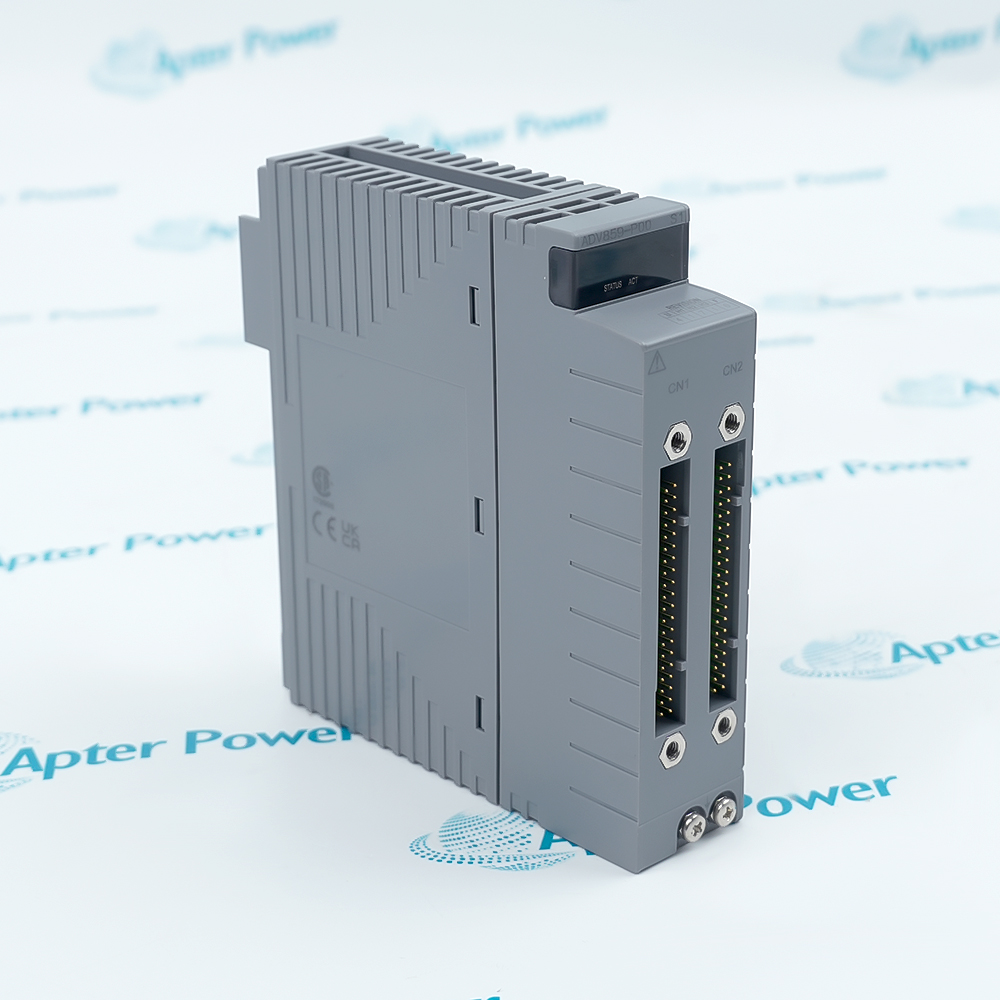

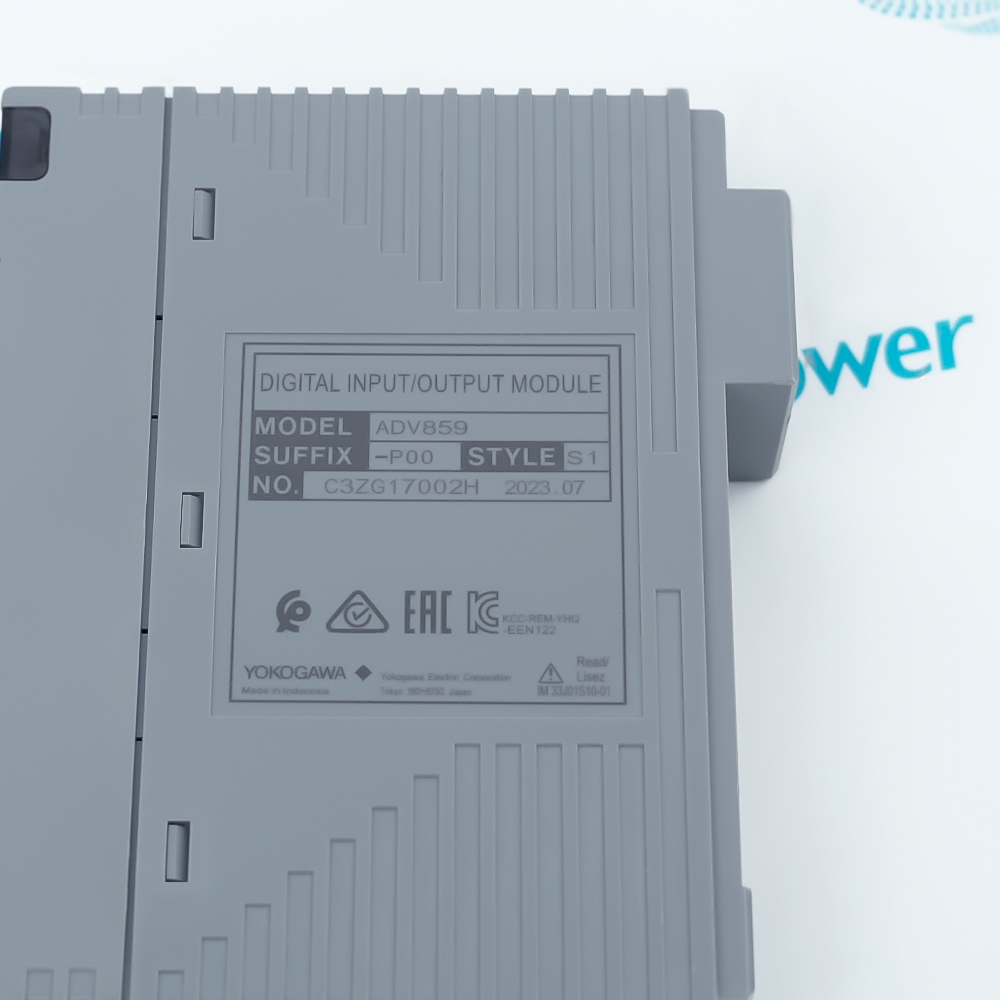

Yokogawa ADV859-P00 S1 is an ST2-compatible digital I/O module with sixteen isolated status inputs and sixteen isolated transistor outputs connected through a dedicated KS2 cable.
In Stock
Fast Shipping Available
Get a quick price for ADV859-P00 S1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for ADV859-P00 S1

  • Manufacturer:
    Yokogawa
  • Part Number:
    ADV859-P00 S1
  • Product Family:
    Centum CS-Centum VP
  • Product Type:
    ST2-Compatible 16-Input / 16-Output Digital I/O Module
  • Stock:
    1
  • Contact-input OFF state:
    100 kohms or more
  • Contact-input ON state:
    200 ohms or less
  • Minimum shorted-contact current:
    ut 16 ms or less1.25 mA
  • Voltage-input OFF range:
    4.5–25 V DC
  • Voltage-input ON state:
    ±1 V DC, 200 ohms or less
  • Status-input response:
    8 ms
  • Output type:
    Transistor contact
  • Output rating:
    30 V DC, 100 mA for resistive or inductive load
  • Output response:
    16 ms or less
  • Pulse width:
    8 ms–7200 s
  • Pulse resolution:
    8 ms plus maximum 1 ms ON/OFF delay
  • Maximum module current:
    450 mA at 5 V DC
  • External connection:
    Dedicated KS2 cable
  • Output-function suffix:
    -P, pulse-width / time-proportional output functions
  • Style:
    S1
  • Weight:
    0.661 lbs (0.3 kg)
  • Estimated shipping dimensions:
    3.28x12.72x13cm
  • Tariff Code:
    8538900000
  • Country of origin:
    Indonesia
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Input Logic Output Drive Pulse Timing ST2 Wiring

Features:

  • Combines sixteen isolated field-status inputs with sixteen isolated transistor outputs.
  • Supports standard status output, pulse-width and time-proportional output operation.
  • Uses a KS2 cable to connect the ST2-compatible module to matching terminal hardware.
Yokogawa ADV859-P00 S1 places input monitoring and output switching in one isolated I/O assembly.

Contact or voltage conditions enter the input side, while transistor contacts drive separate DC field loads.

The -P00 suffix defines pulse-capable output functions and the basic hardware type; S1 identifies the installed style.

The Yokogawa ADV859-P00 S1 ST2-Compatible Digital I/O Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Yokogawa ADV859-P00 S1 Digital I/O Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Contact and Voltage State Evaluation

  • Signal Types: Each channel evaluates either a contact-resistance state or a voltage-input state.
  • State Thresholds: Open and closed conditions use separate thresholds before a status reaches the system.
  • Input Isolation: The sixteen input paths remain electrically isolated from one another.

Isolated Transistor Load Switching

  • Load Switching: Sixteen transistor contacts switch resistive or inductive 30 V DC loads.
  • Relay Suppression: A spark-killer diode is required across a DC relay coil driven by an output.
  • Output Isolation: Isolated output channels keep separate field-load circuits from sharing signal paths.

Paired-Terminal Pulse Functions

  • Terminal Pairs: Pulse-width output uses two contiguous terminal numbers beginning with an odd number.
  • Function Mixing: Time-proportional outputs can be mixed with pulse-width pairs under the documented terminal rules.
  • Timing Resolution: Programmed pulse duration is built in 8 ms increments with the output switching delay added.

KS2 Cable and Terminal Hardware

  • Dedicated Cable: The KS2 dedicated cable carries input and output channels to the terminal hardware.
  • Terminal Boards: MUB, U2B, EUB, MRI and MRO boards provide the documented ST2 field terminations.
  • Direct Connection: The cable can connect directly to the module without an intermediate pressure-clamp adapter.
Description
Yokogawa ADV859-P00 S1 is an ST2-compatible digital I/O module that combines sixteen isolated status inputs with sixteen isolated transistor outputs. One module therefore returns field contact or voltage states while issuing separate semiconductor output commands through the same ST2 connection structure.

On the input side, Yokogawa ADV859-P00 S1 distinguishes open and closed contacts by resistance and can also evaluate the documented voltage-state ranges. The status-input path transfers a qualified field condition to the system after the specified response interval.

Each output in Yokogawa ADV859-P00 S1 switches a DC load through a transistor contact. The -P code also provides pulse-width and time-proportional functions, with pulse timing built from the documented 8 ms resolution and the output response delay.

The dedicated KS2 cable connects Yokogawa ADV859-P00 S1 to compatible MUB, U2B, EUB, MRI or MRO terminal hardware. Channel isolation separates the individual field paths, and a suppression diode is required when an output drives a DC relay coil.
Alternative Names
ADV859-P00 S1 ADV859 P00 S1 ADV859P00S1 Yokogawa ADV859-P00 S1 YOKOGAWA ADV859-P00 S1 CENTUM ADV859-P00 S1 ADV859-P00 Style S1 ADV859-P00 S1 Digital I/O Module
Technical notes
Yokogawa ADV859-P00 S1 combines sixteen isolated status inputs and sixteen isolated transistor outputs through an ST2-compatible KS2 cable path.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What I/O combination is provided by Yokogawa ADV859-P00 S1?
Yokogawa ADV859-P00 S1 provides sixteen isolated status inputs and sixteen isolated transistor outputs in one ST2-compatible module.
Which field signals can the inputs of Yokogawa ADV859-P00 S1 evaluate?
Yokogawa ADV859-P00 S1 accepts contact-resistance states or voltage status signals within the documented ON and OFF thresholds.
How should a DC relay coil be driven by Yokogawa ADV859-P00 S1?
When a transistor output of Yokogawa ADV859-P00 S1 drives a DC relay, a spark-killer diode must be connected across the inductive load.
What does the -P code add to Yokogawa ADV859-P00 S1?
The -P code of Yokogawa ADV859-P00 S1 enables pulse-width and time-proportional output functions in addition to ordinary status output.
Why do pulse-width outputs use terminal pairs on Yokogawa ADV859-P00 S1?
Yokogawa ADV859-P00 S1 assigns one pulse-width output to two contiguous terminals, and the first terminal in the pair must be odd-numbered.
Which field connection belongs with Yokogawa ADV859-P00 S1?
Yokogawa ADV859-P00 S1 uses the dedicated KS2 cable to connect its ST2 I/O channels to the documented compatible terminal hardware.
