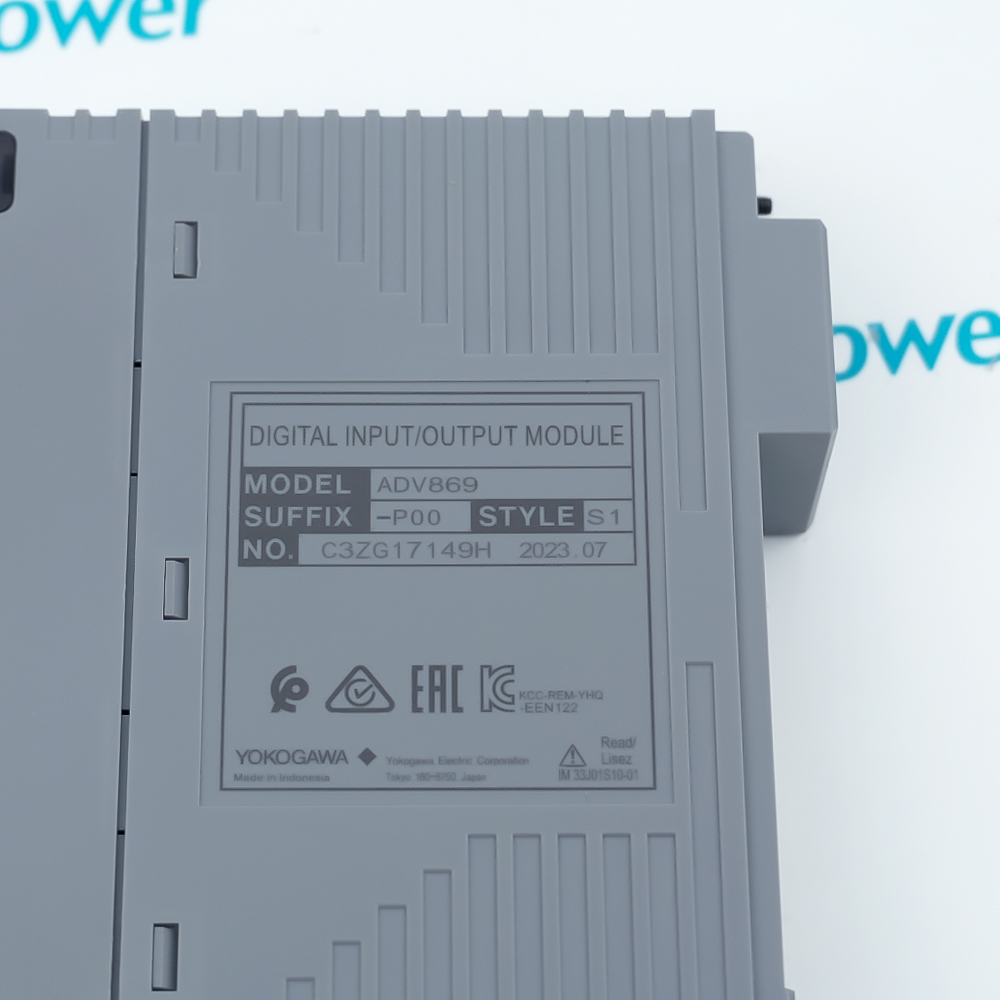

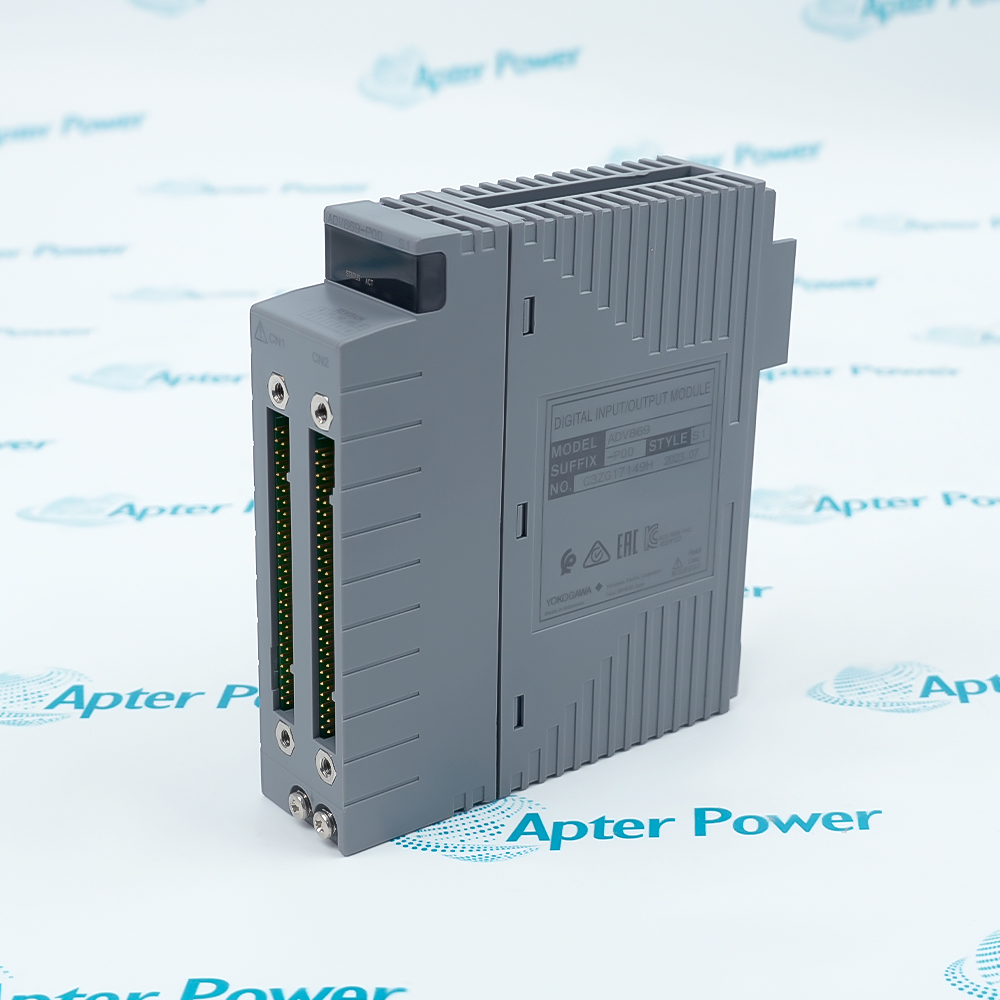

ADV869-P00 S1

/ 4.9
1001 reviews | Need a Specific Revision?
Yokogawa ADV869-P00 S1 is a CENTUM VP FIO module combining 32 digital inputs and 32 transistor outputs. It interfaces field contacts and 30 V DC loads through an ST5-compatible connection for plant monitoring and control.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for ADV869-P00 S1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for ADV869-P00 S1

  • Manufacturer:
    Yokogawa
  • Part Number:
    ADV869-P00 S1
  • Product Family:
    Centum CS-Centum VP
  • Product Type:
    Digital I/O Module
  • Stock:
    1
  • Input Channels:
    32
  • Output Channels:
    32
  • Input Common Grouping:
    Common minus every 16 channels
  • Input Signal Types:
    No-voltage contact or voltage input
  • Contact Input OFF Resistance:
    100 kΩ or higher
  • Contact Input ON Resistance:
    200 Ω or lower
  • Minimum Detection Current:
    1.25 mA
  • Voltage Input OFF Range:
    4.5 to 25 V DC
  • Voltage Input ON Range:
    -1 to +1 V DC
  • Input Response Time:
    8 ms
  • Output Type:
    Transistor output
  • Rated Output Voltage:
    30 V DC
  • Maximum Output Current:
    100 mA per channel
  • Output Response Time:
    16 ms or less
  • Pulse Output Width:
    8 ms to 7200 s
  • 5 V DC Current Consumption:
    800 mA
  • Module Mass:
    Approx. 0.3 kg
  • Module Width:
    32.8 mm
  • Module Height:
    127.2 mm
  • Module Depth:
    130 mm
  • Weight:
    0.6614 lbs (0.3 kg)
  • Estimated shipping dimensions:
    3.2 x 12.7 x 13 cm
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Connectivity Monitoring & Control Performance

Features:

  • Combines 32 digital inputs and 32 transistor outputs in one FIO module.
  • Common-minus input groups are arranged in two blocks of sixteen channels.
  • ST5-compatible field interfacing supports the documented KS9 cable connection.
The P00 ordering configuration provides mixed discrete I/O with style S1, combining contact or voltage sensing and transistor switching in one module.

It supports plant status acquisition, command outputs, pulse control, and sequence logic within a CENTUM VP field I/O architecture.

Confirm the ST5 interface, cable, channel commons, load polarity, and project database assignment before installation or replacement.

Availability is subject to style, revision, and supply confirmation.
Verified resources for Yokogawa ADV869-P00 S1: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Collects discrete field states from switches, relay contacts, and compatible voltage sources.
  • Drives annunciators, interposing relays, solenoids, and other approved 30 V DC loads.
  • Supports sequence control and interlock logic where input and output points are required together.
  • The P00 interface is documented for connection through an ST5-compatible adapter.
  • A KS9 cable carries the module I/O circuits to the corresponding field termination arrangement.
  • Input commons are separated into two sixteen-channel groups for organized field wiring.
  • Input states update at the documented response interval for controller logic processing.
  • Output commands are converted to transistor switching at the field interface.
  • Pulse-output timing can be configured across the supported duration range for discrete control tasks.
  • Input response is specified at 8 ms for predictable status acquisition.
  • Output response is 16 ms or less under the documented operating conditions.
  • Each transistor channel switches approved loads up to the stated 30 V DC and 100 mA limits.
Description
Yokogawa ADV869-P00 S1 combines 32 field input points and 32 transistor output points in a single CENTUM VP FIO module. Its mixed-channel layout consolidates status acquisition and discrete actuation for panel designs that need both functions at one node.

Input circuits accept contact or voltage signals, while the output section switches 30 V DC loads up to the documented per-channel limit. Defined response timing and pulse-width control support plant sequences, annunciation, and interlock-related logic handled by the host control system.

The P00 configuration is intended for use through the compatible ST5 interface and KS9 cable arrangement. Before replacement, verify common grouping, channel assignment, load polarity, connector layout, and software configuration so the installed wiring matches the new module.
Alternative Names
Yokogawa ADV869-P00 S1 Yokogawa ADV869 P00 S1 ADV869P00S1 Yokogawa ADV869-P00 Yokogawa ADV869 P00 ADV869-P00 S1 Digital I/O Module Yokogawa ADV869 ST5 Interface Module Yokogawa ADV869 32-Input 32-Output Module
Technical notes
When installing Yokogawa ADV869-P00 S1, verify the 16-channel common groups and output-load polarity before connecting the ST5 interface cable.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How are field points divided on Yokogawa ADV869-P00 S1?
The module combines separate input and output sections, with the input commons grouped in blocks of sixteen for field wiring.
Which interface hardware is expected with Yokogawa ADV869-P00 S1?
The P00 configuration is documented for an ST5-compatible interface using the specified KS9 cable arrangement; verify the installed connector and adapter.
Can Yokogawa ADV869-P00 S1 directly replace an ADV151 input module?
No. ADV151 is an input-only module, while ADV869 combines digital inputs and transistor outputs. I/O mapping and wiring must be engineered before substitution.
What commissioning check is critical for Yokogawa ADV869-P00 S1 outputs?
Confirm output polarity, external load rating, common wiring, and channel assignment before enabling control logic.
How should the supply status of Yokogawa ADV869-P00 S1 be confirmed?
The official general specification should be checked together with the requested revision and regional supply channel; current documentation alone is not an inventory guarantee.
Which records help quote Yokogawa ADV869-P00 S1 correctly?
Provide the full suffix, style code S1, cabinet type, ST5 or cable details, quantity, destination, and any required certification documentation.
