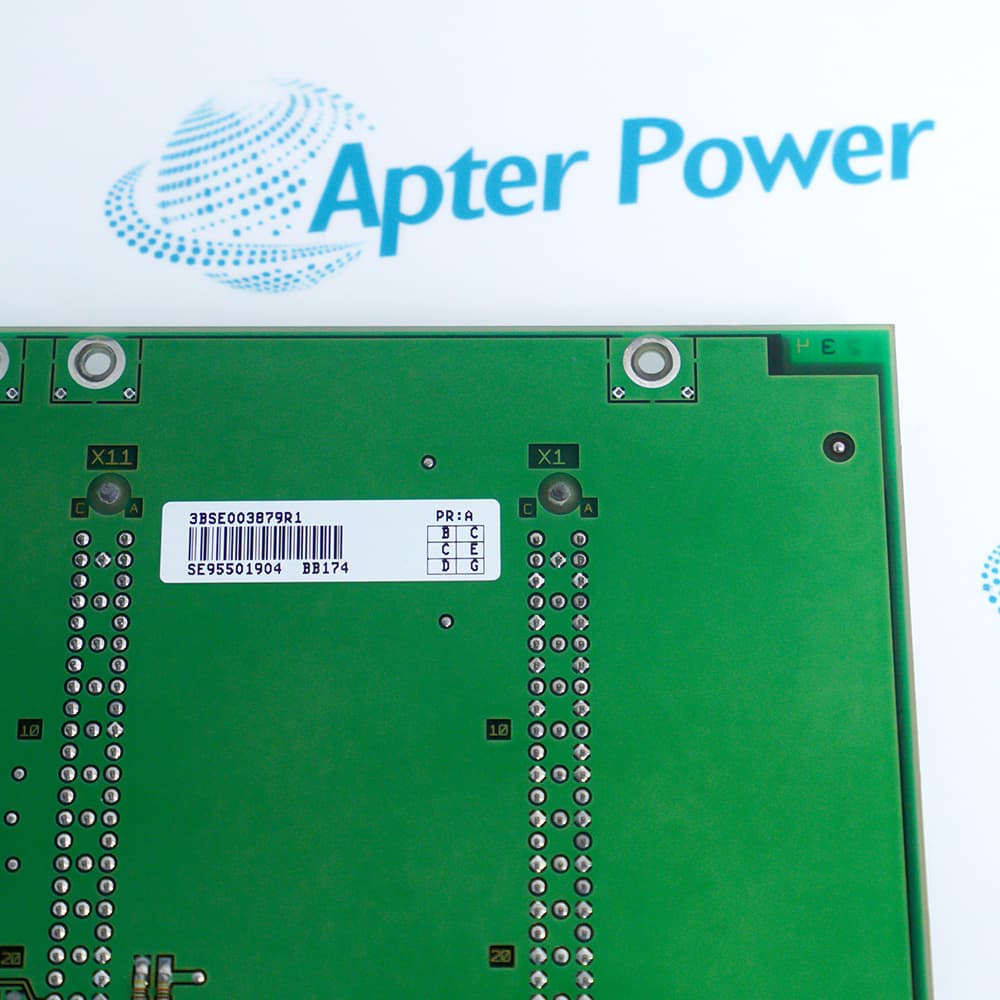

ABB 3BSE003879R1 is a BB174 backplane for DSRF 185 and DSRF 185M S100 I/O central-unit assemblies.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 3BSE003879R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3BSE003879R1

  • Manufacturer:
    ABB
  • Part Number:
    3BSE003879R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    BB174 Backplane
  • Stock:
    1
  • Function:
    Backplane for DSRF 185 and DSRF 185M
  • I/O Family:
    S100 I/O
  • WEEE Category:
    Small equipment; no external dimension exceeds 50 cm
  • Number of Batteries:
    0
  • Dimensions:
    38.7 × 1.98 × 11.7 cm
  • Weight:
    0.5 kg
  • Tariff Code:
    8538900000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Compatibility S100 Role Cabinet Interface Application
  • Officially designated BB174 backplane.
  • Specified for DSRF 185 and DSRF 185M.
  • Classified within ABB S100 I/O central-unit hardware.

3BSE003879R1 is an ABB BB174 backplane designed for Advant OCS S100 I/O central-unit assemblies.

It provides the documented backplane identity for DSRF 185 and DSRF 185M hardware used in Advant Master and MOD 300 system classifications.

Before installation or replacement, verify the complete product ID, BB174 designation, DSRF chassis, connector positions and installed S100 I/O arrangement.

Availability, condition, price, and shipping time for 3BSE003879R1 are confirmed during quotation.

ABB 3BSE003879R1 BB174 Backplane Manuals, Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Documented for the DSRF 185 equipment chassis.
  • Documented for the DSRF 185M equipment chassis.
  • Assigned to the S100 I/O central-unit hardware group.
  • The associated S100 I/O architecture serves as the central process interface for Advant Controller 400 series process controllers.
  • S100 I/O uses parallel communication with the host controller for centralized I/O systems and high-speed applications.
  • Module-level signal and data processing distributes selected tasks away from the host-controller CPU.
  • S100 I/O interface modules connect to the process through screw terminals on cabinet-mounted connection units.
  • Prefabricated cables link the modules and connection units while supporting termination in the controller cabinet or adjacent cabinets.
  • S100 connection units support both signal-oriented and device-oriented field-wiring arrangements.
  • DSRF 185 S100 I/O central-unit assemblies
  • DSRF 185M S100 I/O central-unit assemblies
  • Advant Master and MOD 300 S100 I/O installations
Description
3BSE003879R1 is an ABB BB174 backplane for Advant OCS S100 I/O central-unit hardware.

The backplane is officially specified for DSRF 185 and DSRF 185M and appears in both Advant Master and MOD 300 S100 I/O classifications.

Before replacement, confirm the complete 3BSE003879R1 identity, BB174 designation, DSRF chassis type, connector positions and installed S100 I/O arrangement.
Alternative Names
3BSE003879R1 ABB 3BSE003879R1 BB174 ABB BB174 BB174 3BSE003879R1 ABB BB174 3BSE003879R1
Technical notes
3BSE003879R1 is the BB174 backplane for DSRF 185 and DSRF 185M; verify the chassis, connector alignment and complete S100 I/O arrangement before replacement.
