Features:
- Serves as a PA-T connector, allowing up to four PROFIBUS-PA field devices (pressure transmitters, valves, analyzers) to connect to a single bus segment, reducing cabling complexity and installation costs
- Designed for direct installation in Zone 1 hazardous areas where explosive gas atmospheres may be present. IP66 enclosure protects against dust and powerful water jets, enabling outdoor and washdown installations
- Incorporates an RC termination network that can be activated or deactivated as needed, ensuring proper impedance matching and signal integrity on the PROFIBUS-PA segment for reliable communication

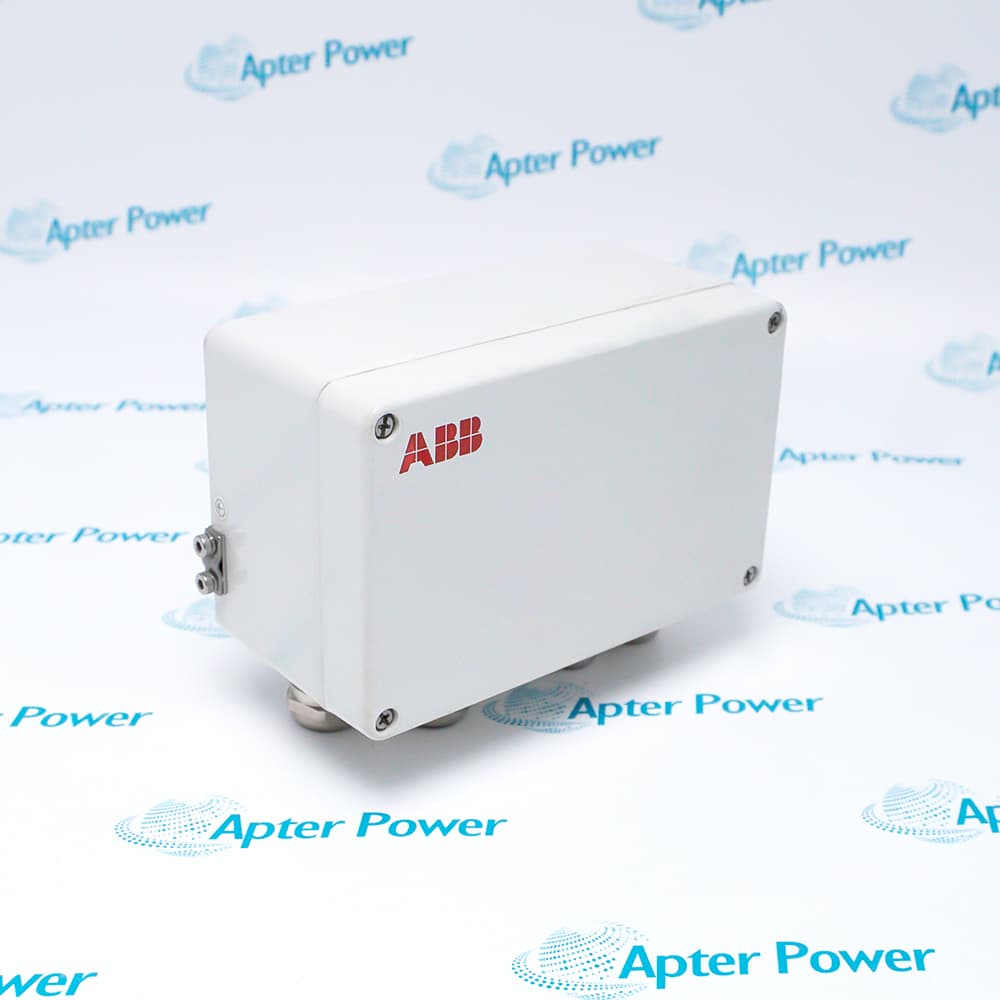

The D-63754 703866 63611-2110 is specifically designed as a 4-fold fieldbus distributor for PROFIBUS-PA networks. PROFIBUS-PA (Process Automation) is a communication protocol widely used in process industries for connecting field instruments such as pressure transmitters, temperature sensors, level transmitters, valves, and analyzers. In a typical installation, a single PROFIBUS-DP segment from the control system must be converted and distributed to multiple PA devices. The D-63754 703866 63611-2110 acts as a "PA-T connector" (T-shaped connector), providing four output ports for field device connections. This eliminates the need for multiple individual couplers or complex wiring schemes.
The D-63754 703866 63611-2110 is engineered for installation directly in hazardous classified areas. Zone 1 (as defined by IEC 60079-10) is an area where an explosive gas atmosphere is likely to occur in normal operation—for example, near flanges, valves, or sampling points in chemical plants or oil refineries. Equipment installed in Zone 1 must meet stringent safety requirements to prevent ignition. The D-63754 703866 63611-2110 meets these requirements through its explosion-proof design and intrinsic safety principles. The IP66 enclosure rating (Ingress Protection) means the module is dust-tight (first digit 6) and protected against powerful water jets from any direction (second digit 6).
Proper termination is critical for reliable communication on any fieldbus network. PROFIBUS-PA segments require specific termination resistors at both ends of the trunk cable to match impedance, prevent signal reflections, and ensure stable data transmission. The D-63754 703866 63611-2110 includes an integrated RC termination network that can be switched into the circuit as needed. This feature allows the module to serve as the end-of-segment terminator when it is installed at the physical end of the fieldbus trunk.
The D-63754 703866 63611-2110 ABB Multibarriere Module may still be available for purchase and support from Apter Power beyond
End-Of-Life (EOL) by the manufacturer (OEM).
ABB D-63754 703866 63611-2110 Multibarriere Module Manuals,
Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not
included with this equipment unless listed in the above stock item description. All prices are
shown in USD.
ABB D-63754 703866 63611-2110 Multibarriere Module Specs
General
- Manufacturer ABB

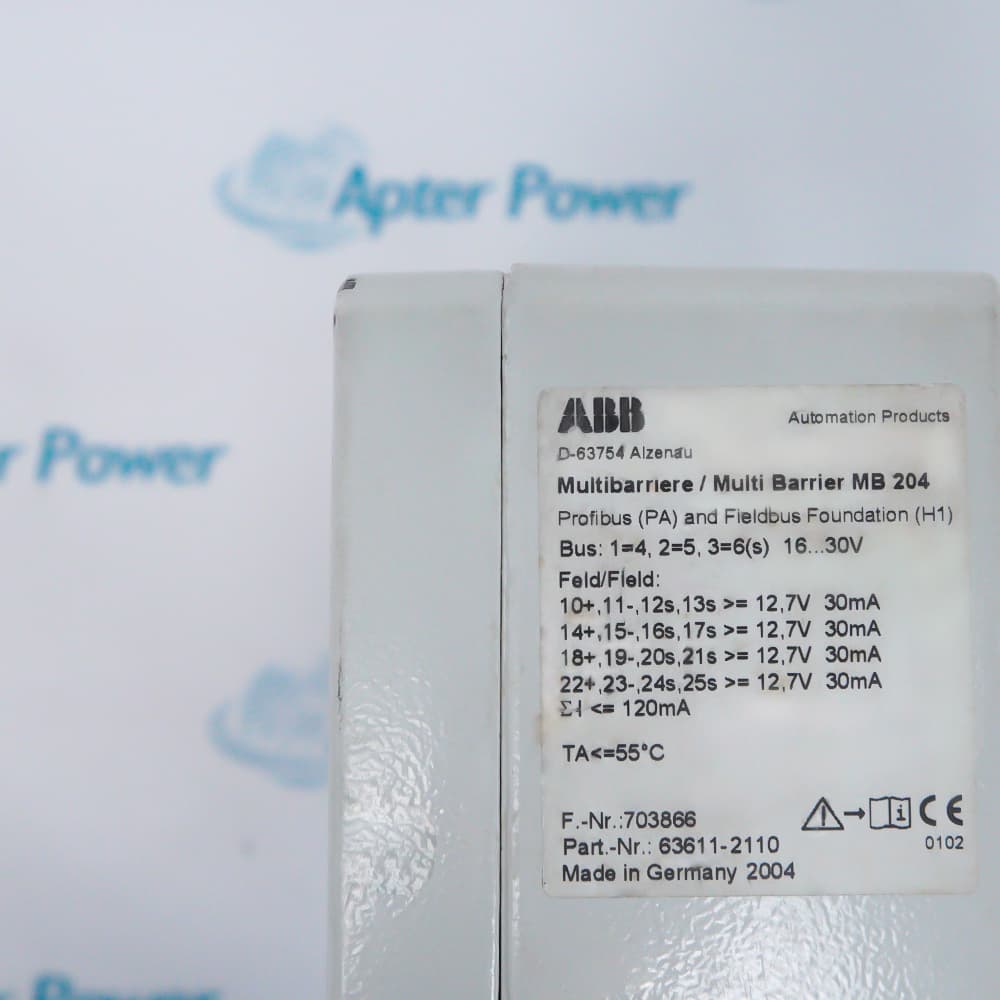

- Model D-63754 703866 63611-2110
- Condition New Original ready stock
- Product Family
07BT62R1,07EA63R1,07KP60R101,07KR91 GJR5250000R0101
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not
included with this equipment unless listed in the above stock item description. All prices are
shown in USD.
- Oil & Gas (Upstream and Downstream): Installed as a physical and electrical barrier between non-hazardous control rooms and highly explosive field zones (Zone 1 / Zone 2).
- Chemical and Pharmaceutical Processing: Deployed around hazardous reaction vessels, distillation columns, and blending storage tank farms to prevent any accidental excess electrical energy in the control room from propagating into volatile field environments.
- Safety Instrumented Systems (SIS): Acts as a critical component in emergency shutdown (ESD) circuits. It integrates up to 16 inputs and 16 outputs to handle complex safety interlock matrix control.
- Fieldbus Segment Protection: Primarily used to connect multiple field devices to a single fieldbus trunk line.
- Ambient Operating Temperature: -25°C to +60°C (-13°F to 140°F), allowing reliable operation in extreme unconditioned outdoor enclosures or freezing industrial environments.
- Heavy Industrial Housing (Heavy-duty unit): Rated at IP66, making it completely dust-tight and highly resistant to powerful water jets. It can be directly wall-mounted or pipe-mounted right next to the process units.
- Internal Sub-assembly Card: When supplied as an internal spare board, it must be installed inside an authorized explosion-proof junction box (Ex d / Ex e) or climate-controlled cabinet.
- Fieldbus Diagnostics: Operating over standard communication protocols (such as PROFINET or PROFIBUS-PA profiles), the module continually digitizes its internal status.
- Real-Time Health Status: Higher-level Distributed Control Systems (DCS, like ABB Ability System 800xA) can monitor channel-by-channel electrical metrics (voltage levels, current draw, and communication quality) directly from the central control room without physical field inspection.
- Intelligent Short-Circuit Protection: If a field instrument or a spur cable gets damaged, flooded, or shorted, the module's internal electronic switches react within microseconds to isolate or limit the current of that specific channel.
