ABB DSTC170 57520001-BK is a DSTC 170 connection unit associated by ABB with MasterView communication modules and MasterPiece 200/200-1 control-system accessories.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for DSTC170 57520001-BK
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DSTC170 57520001-BK

  • Manufacturer:
    ABB
  • Part Number:
    DSTC170 57520001-BK
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Connection Unit
  • Stock:
    1
  • ABB Type Designation:
    DSTC 170 Test
  • Catalog Description:
    DSTC 170 Connection Unit
  • System Context:
    MasterView communication modules; MasterPiece 200 and 200/1 accessories
  • Dimensions:
    24 × 8 × 3.5 cm
  • WEEE Category:
    Product not in WEEE scope
  • Weight:
    0.41 kg
  • Tariff Code:
    85369095
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Service Scope Connections Replacement Application
  • ABB product identity TES57520001-BK for the DSTC 170 connection unit
  • Connection-unit function for MasterView communication-module installations
  • Accessory context for MasterPiece 200 and MasterPiece 200/1 control systems

DSTC170 57520001-BK is an ABB connection unit designed for documented MasterView and MasterPiece control-system installations.

The unit provides the physical connection and termination interface between the installed communication hardware, field cabling, and associated control-system assembly.

Before installation or replacement, verify the complete TES57520001-BK identity, connector arrangement, terminal mapping, cable orientation, rack position, and applicable system drawings.

Availability, condition, price, and shipping time for DSTC170 57520001-BK are confirmed during quotation.

ABB DSTC170 57520001-BK Connection Unit Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • ABB documentation identifies the listed scope as testing and inspection of the DSTC 170 connection unit
  • Possible repair of the connection unit must be ordered separately
  • Required inspection, repair, and return scope should be confirmed before the unit is submitted for service

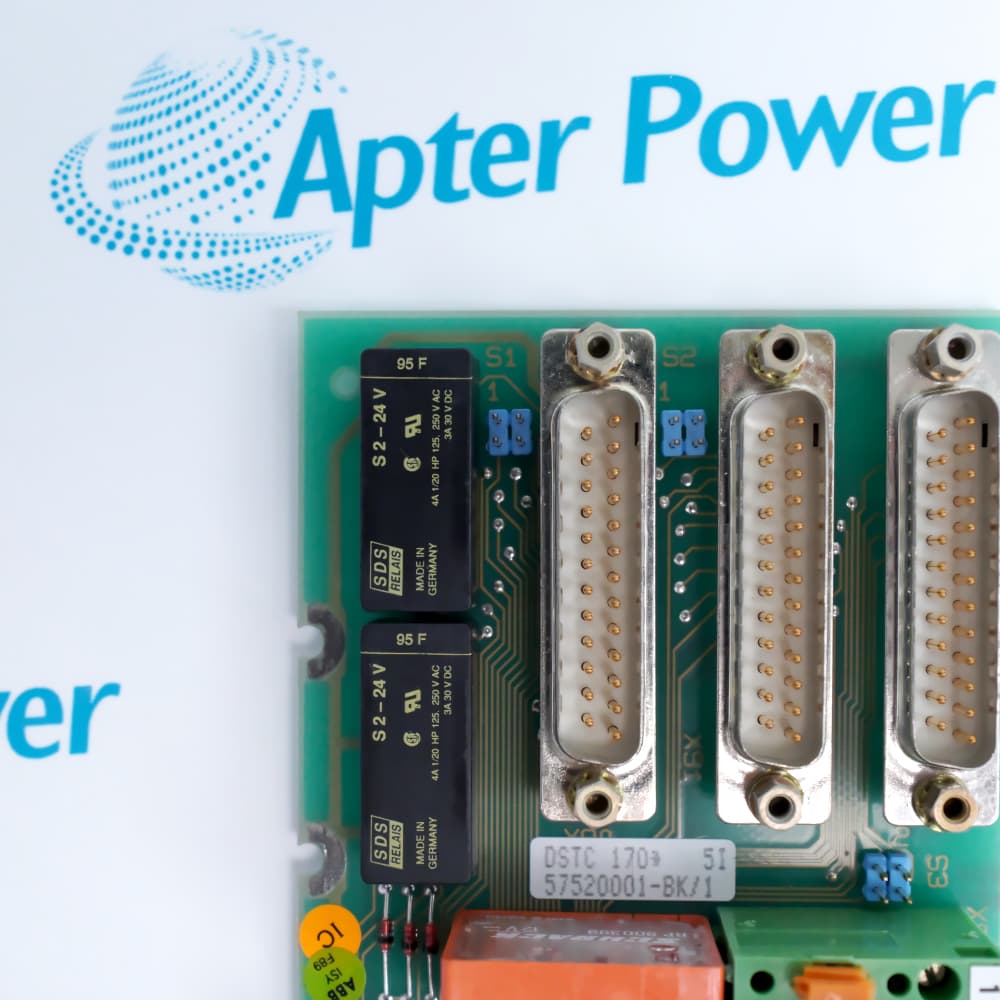

  • Three multi-pin D-sub connection interfaces visible on the connection-unit board
  • Numbered field-terminal blocks arranged along the board edge
  • Internal multipin connector for integration with the installed control-system assembly
  • Match every DSTC170 connector position with the installed connection assembly
  • Preserve the original terminal mapping and cable orientation during replacement
  • Verify the applicable MasterView or MasterPiece rack drawings before energizing
  • Connection and termination interface for MasterView communication modules
  • Control-system accessory connection in MasterPiece 200 installations
  • Control-system accessory connection in MasterPiece 200/1 installations
Description
ABB DSTC170 57520001-BK is the DSTC 170 Connection Unit identified by ABB product ID TES57520001-BK.

ABB categorizes the unit with MasterView communication modules and as an accessory for MasterPiece 200 and MasterPiece 200/1 control systems.

The ABB product record lists testing and inspection as the available service scope; repair must be ordered separately when required.
Alternative Names
DSTC170 57520001-BK DSTC 170 57520001-BK DSTC170 57520001 BK ABB DSTC170 57520001-BK TES57520001-BK 57520001-BK DSTC 170
Technical notes
DSTC170 57520001-BK replacement requires the exact TES57520001-BK identity, connector orientation, cable mapping, rack context, and MasterPiece or MasterView drawings.
