Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Active / Available from OEM
    Apter Power can assist with quotation and sourcing for DSTD196 3BSE004725R1.

DSTD196 3BSE004725R1

/ 4.9
1001 reviews | Need a Specific Revision?

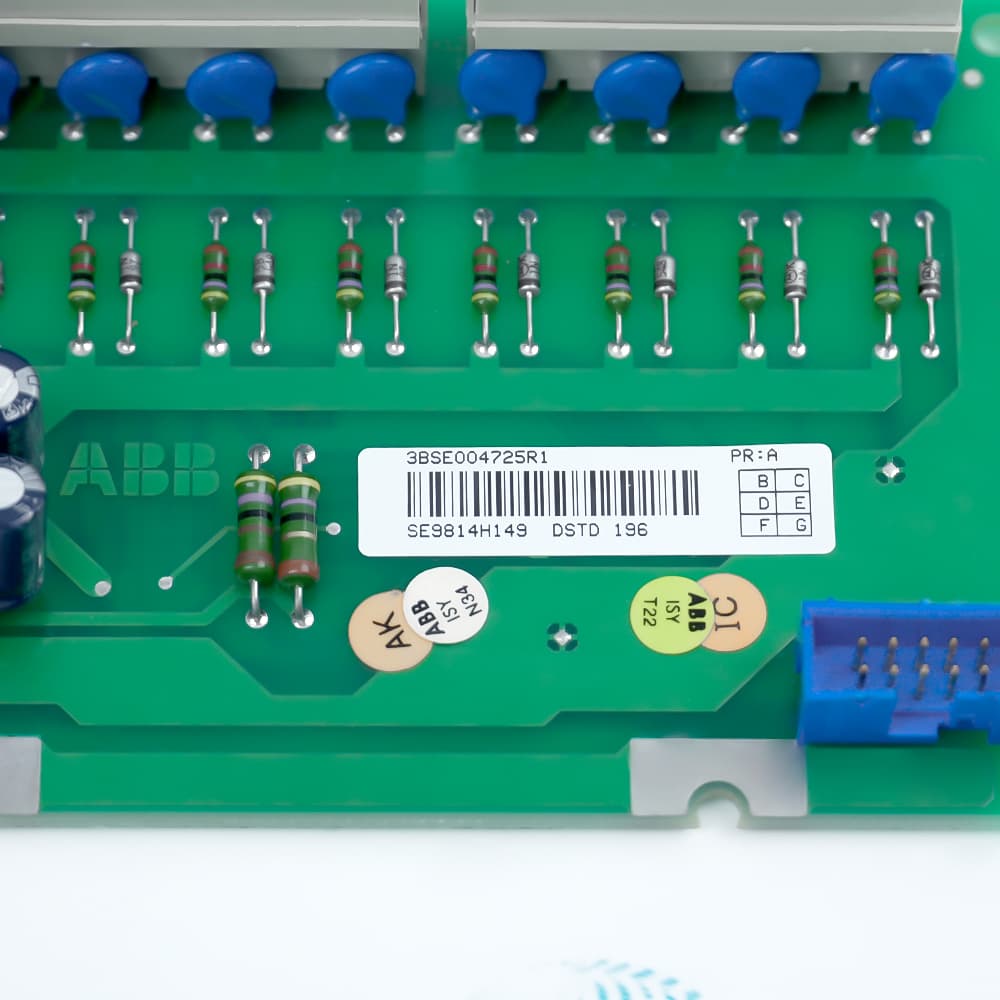

ABB DSTD196 3BSE004725R1 is an eight-channel S100 connection unit that interfaces 24 V DC field inputs with an Advant OCS digital input assembly.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for DSTD196 3BSE004725R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DSTD196 3BSE004725R1

  • Manufacturer:
    ABB
  • Part Number:
    DSTD196 3BSE004725R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Connection Unit
  • Stock:
    1
  • Channel Capacity:
    8 channels
  • Electrical Configuration:
    24 VDC bias
  • Compatible Input Boards:
    DSDI 110AK02 or DSDI 115K01
  • Connection Cable:
    DSTK 165
  • I/O Arrangement:
    4 x 8-channel digital input set
  • System Context:
    S100 digital inputs
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Signal Interface Board Pairing S100 Integration Replacement Checks

Features:

  • Eight field channels connect 24 V DC digital signals to the S100 input assembly.
  • Article number 3BSE004725R1 identifies the DSTD 196 termination variant.
  • A 120 mm connection-unit body aligns with the associated cabinet layout.
The bias arrangement of DSTD196 3BSE004725R1 separates it from the galvanically isolated DSTD195 and the higher-voltage DSTD197 and DSTD198 alternatives.

DSDI 110 hardware can combine four eight-channel units for scanning, interrupt handling, and pulse-extension functions without changing the field-side connection identity.

A DSDI 115 arrangement uses the same four-group concept for scanned inputs, with DSTK 165 providing the connection path between the input board and its termination units.

Apter Power can assist with pricing and sourcing for ABB DSTD196 3BSE004725R1 S100 Connection Unit.
ABB DSTD196 3BSE004725R1 DatasheetImportant Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Field-channel behavior of DSTD196 3BSE004725R1

  • Input grouping: Eight terminals form one field channel group for the connected S100 input board.
  • Bias circuit: The 24 V DC configuration serves the designated DSTD196 termination path.
  • Variant boundary: Higher-voltage DSTD197 and DSTD198 units require different field circuits.
  • Isolation choice: Applications requiring the DSTD195 isolation arrangement should not substitute DSTD196.

DSDI relationships for DSTD196 3BSE004725R1

  • DSDI 110 set: Scanning, interrupt operation, and pulse extension are available through the associated input-board arrangement.
  • DSDI 115 set: Scanning operation uses four eight-channel connection units on the field side.
  • Interconnect: DSTK 165 links the selected DSDI board to the group of connection units.
  • Capacity: Four DSTD positions together serve the 32-channel set architecture.

Position of DSTD196 3BSE004725R1 in local I/O

  • Termination role: Field conductors land at the connection unit before signals reach the digital input board.
  • Local I/O: The assembly belongs to the S100 digital input hardware used with Advant OCS controllers.
  • Modular selection: Each eight-channel termination position can match the electrical needs of its field group.
  • Maintenance scope: Board, cable, and connection-unit identities should remain associated when an input group is serviced.

Preserving the DSTD196 3BSE004725R1 configuration

  • Article marking: Retain 3BSE004725R1 together with DSTD196 when recording the installed unit.
  • Voltage match: Confirm the field circuit is the 24 V DC variant before fitting a replacement.
  • Board identity: Determine whether the connected assembly uses DSDI 110 or DSDI 115 hardware.
  • Cable continuity: Inspect the DSTK 165 path if an entire eight-channel group becomes unavailable.
Description
ABB DSTD196 3BSE004725R1 is an eight-channel connection unit for S100 digital input assemblies, providing the field-side termination required by compatible Advant OCS input hardware.

The 24 V DC arrangement distinguishes DSTD196 3BSE004725R1 from adjacent DSTD connection units intended for isolated, 110/120 V, or 230 V signals.

Four units can form the field-connection portion of a 32-channel input set. In this arrangement, DSTD196 3BSE004725R1 works with the applicable DSDI input board through the DSTK 165 connection cable.

Its 120 mm mechanical length supports consistent mounting within the associated connection-unit layout, while the complete type and article number identify DSTD196 3BSE004725R1 for maintenance and replacement work.
Alternative Names
DSTD 196 3BSE004725R1 DSTD196-3BSE004725R1 DSTD1963BSE004725R1 3BSE004725R1 DSTD196 ABB DSTD 196 ABB 3BSE004725R1 DSTD I96 3BSE004725R1 DSTD196 3BSEOO4725R1
Technical notes
ABB DSTD196 3BSE004725R1 uses a 120 mm connection-unit format; preserve the 24 V DC variant when matching the eight-channel field termination.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can a technician avoid selecting the wrong voltage variant when replacing ABB DSTD196 3BSE004725R1?
Check that ABB DSTD196 3BSE004725R1 carries the 24 V DC designation; adjacent DSTD units serve different voltage or isolation arrangements.
Which input boards can be paired with ABB DSTD196 3BSE004725R1 in a local S100 input set?
ABB DSTD196 3BSE004725R1 can be used in the listed four-by-eight-channel arrangements built around DSDI 110 or DSDI 115 input hardware.
How should ABB DSTD196 3BSE004725R1 be connected to the associated input board?
Use the DSTK 165 connection cable for ABB DSTD196 3BSE004725R1 and confirm the cable path matches the selected DSDI assembly.
What should be checked if channels connected through ABB DSTD196 3BSE004725R1 do not register?
For ABB DSTD196 3BSE004725R1, trace the 24 V DC field supply, terminal wiring, DSTK 165 cable, and the matching DSDI input-board channel group.
Can ABB DSTD196 3BSE004725R1 replace DSTD195 without reviewing the circuit?
ABB DSTD196 3BSE004725R1 must not be substituted solely by size because DSTD195 has a different isolation description despite sharing the eight-channel format.
How does ABB DSTD196 3BSE004725R1 fit into a 32-channel input arrangement?
A 32-channel arrangement can use four eight-channel connection units, with ABB DSTD196 3BSE004725R1 selected where the 24 V DC configuration is required.
Which markings should be recorded before removing ABB DSTD196 3BSE004725R1?
Record both DSTD196 and 3BSE004725R1, then note the connected DSDI board and DSTK 165 cable so ABB DSTD196 3BSE004725R1 is matched correctly.
