G2E140-PI32-10

/ 4.9
1001 reviews | Need a Specific Revision?

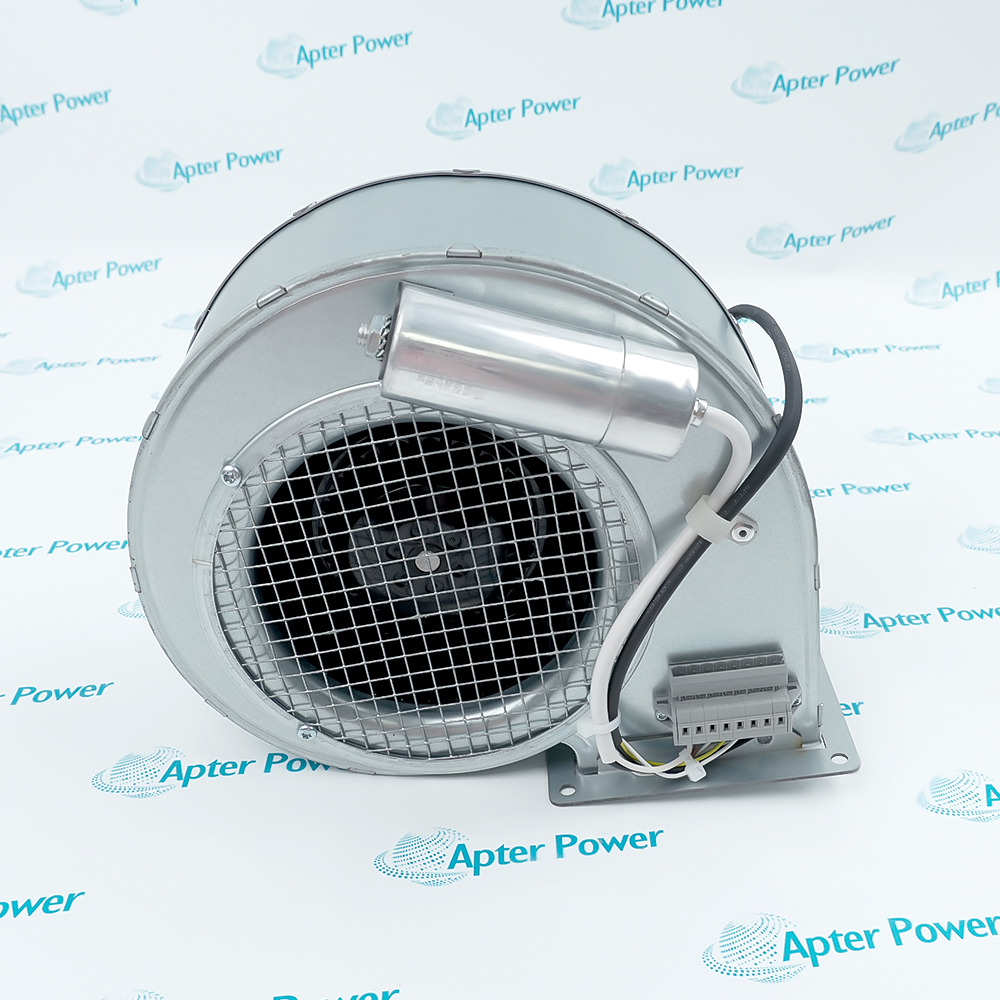

ABB G2E140-PI32-10 is an EBM-Papst 115 VAC centrifugal cooling fan specified in ABB ACS800-604LC control-module cooling documentation.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for G2E140-PI32-10
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for G2E140-PI32-10

  • Manufacturer:
    ABB
  • Part Number:
    G2E140-PI32-10
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    AC centrifugal cooling fan
  • Stock:
    1
  • Rated voltage:
    115 VAC
  • Frequency:
    60 Hz
  • Rated current:
    1.9 A
  • Start current:
    3.8 A
  • Fan technology:
    centrifugal
  • OEM type:
    EBM-Papst G2E140-PI32-10
  • Application context:
    ACS800-604LC control-module cooling
  • Electrical connection:
    AC mains fan circuit in ABB assembly
  • Family notation:
    G2E140-PI32-XX, 115 VAC option
  • Dimensions:
    21.5 x 25.5 x 15 cm
  • Weight:
    3.4 kg
  • Tariff Code:
    8414593000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Cooling-fan role Ordering and voltage check Replacement boundary Application
  • ABB long-life centrifugal cooling fan identified by item code 10032971
  • 115 V AC, 60 Hz operation with 1.9 A nominal and 3.8 A starting current
  • Provides cooling airflow through the ACS800-604LC R7i/R8i brake-module heat exchanger

G2E140-PI32-10 is an EBM-Papst long-life centrifugal fan documented by ABB under item code 10032971 for ACS800-604LC brake-module cooling.

ABB specifies a 115 V AC, 60 Hz supply, 1.9 A nominal current, and 3.8 A starting current. The fan provides airflow through the brake module’s air-to-liquid heat exchanger.

Each R7i or R8i brake module requires one cooling fan and its matching installation kit. Confirm the voltage, mounting position, connector arrangement, and airflow direction; the 230 V G2E140-PI51-09 is not a direct substitute.

Availability, condition, price, and shipping time for G2E140-PI32-10 are confirmed during quotation.

ABB G2E140-PI32-10 Centrifugal Cooling Fan Manuals, Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Moves cooling air through the ACS800-604LC brake module’s air-to-liquid heat exchanger
  • Supports thermal control of each R7i or R8i brake module during operation
  • ABB specifies one cooling fan and one matching installation kit for each brake module

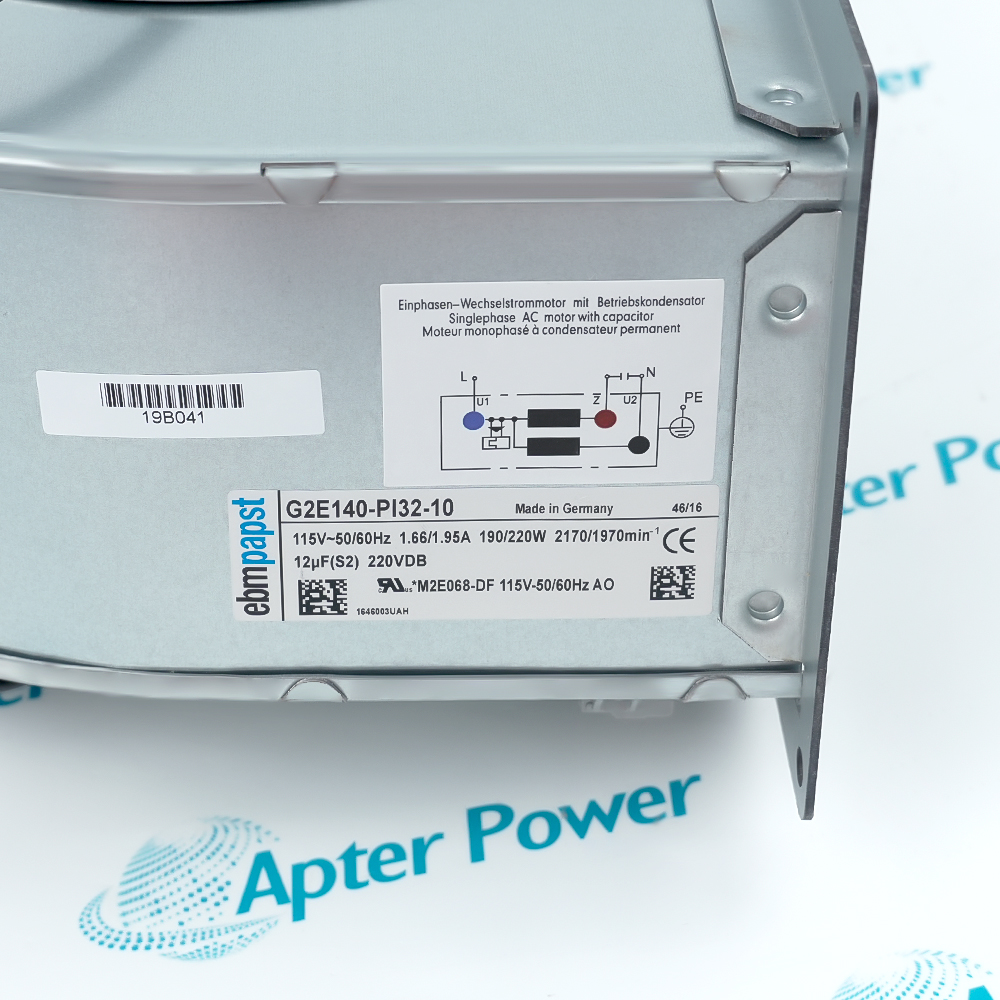

  • Confirm the fan nameplate identifies G2E140-PI32-10 with a 115 V AC, 60 Hz supply
  • Match ABB item code 10032971 to the installed fan and purchase documentation
  • Do not substitute the 230 V G2E140-PI51-09 fan for the 115 V PI32 version
  • Match ABB item code 10032971 and the complete G2E140-PI32-10 nameplate before replacement.
  • Use only the documented 115 V AC, 60 Hz configuration with 1.9 A nominal current and 3.8 A starting current.
  • Do not substitute G2E140-PI51-09, which ABB lists as a separate 230 V AC, 50 Hz fan configuration.
  • Cooling for ABB ACS800-604LC liquid-cooled brake units using R7i or R8i brake modules
  • Forced airflow through the brake module’s air-to-liquid heat exchanger
  • Service replacement for ABB item 10032971 in documented 115 V AC installations
Description
ABB G2E140-PI32-10 is identified in the ABB ACS800-604LC hardware manual as the EBM-Papst centrifugal fan option used in the control-module cooling assembly.

The exact ABB table associates this model family with the 115 VAC option, while the electrical line records 115 VAC, 60 Hz, 1.9 A rated current and 3.8 A starting current.

Before publication or replacement, match the complete model, voltage, frequency, assembly position and airflow path; the related 230 VAC G2E140-PI51 family is not interchangeable by appearance alone.
Alternative Names
G2E140-PI32-10 EBM-Papst G2E140-PI32-10 ABB G2E140-PI32-10 G2E140 PI32 10 G2E140PI3210 ABB 10032971 10032971
Technical notes
G2E140-PI32-10 requires confirmation of the 115 VAC/60 Hz option, ACS800-604LC mounting position, and original ABB order reference before replacement; mixing the 230 VAC PI51 family is the main risk.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Before replacing ABB G2E140-PI32-10, how can a technician confirm that the installed fan is the correct voltage option?
Compare the physical fan label, the cabinet wiring, and the ABB ACS800-604LC ordering table; the documented PI32 option is 115 VAC at 60 Hz, and the 230 VAC PI51 family must not be assumed equivalent.
Can ABB G2E140-PI32-10 be installed in any ACS800-604LC cabinet that has the same mounting opening?
No. Confirm the control-module assembly size, fan position, airflow direction, connector/wiring arrangement, and the exact ABB ordering reference before treating the mechanical opening as sufficient evidence.
Which official ABB documents should be kept with a purchase request for ABB G2E140-PI32-10?
Keep the ACS800-604LC hardware manual page showing the ordering table and exact model line together with the ABB long-life fan technical note that maps the G2E140-PI32-10 type.
What electrical checks should be completed before energizing ABB G2E140-PI32-10 after replacement?
Verify the supply is 115 VAC, the circuit frequency is 60 Hz, the fan wiring is secure, protective devices are intact, and the airflow direction agrees with the cabinet cooling design.
If ABB G2E140-PI32-10 runs but the cabinet temperature remains high, what should be investigated?
Check rotation and airflow direction, blocked intake or exhaust paths, incorrect fan option, loose wiring, cabinet heat load, and whether the fan is installed in the documented control-module position.
What information should a buyer provide when requesting ABB G2E140-PI32-10?
Provide the complete model, installed drive/control-module family, voltage and frequency, assembly position, nameplate photograph, required quantity, and any visible wiring or mounting differences.
How should ABB G2E140-PI32-10 replacement records be documented for future service?
Record the removed model, replacement model, voltage, current values, installation date, assembly position, airflow direction, wiring changes, and the official ABB document used for the selection.
