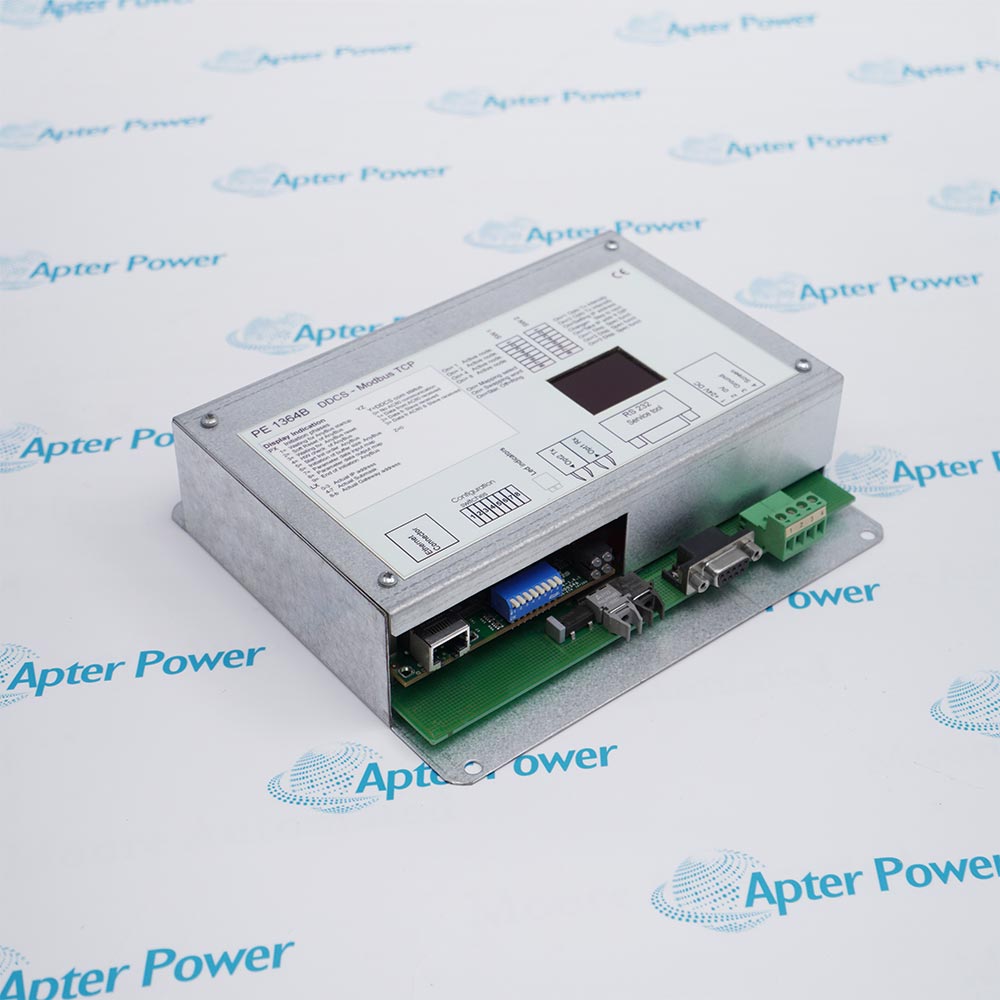

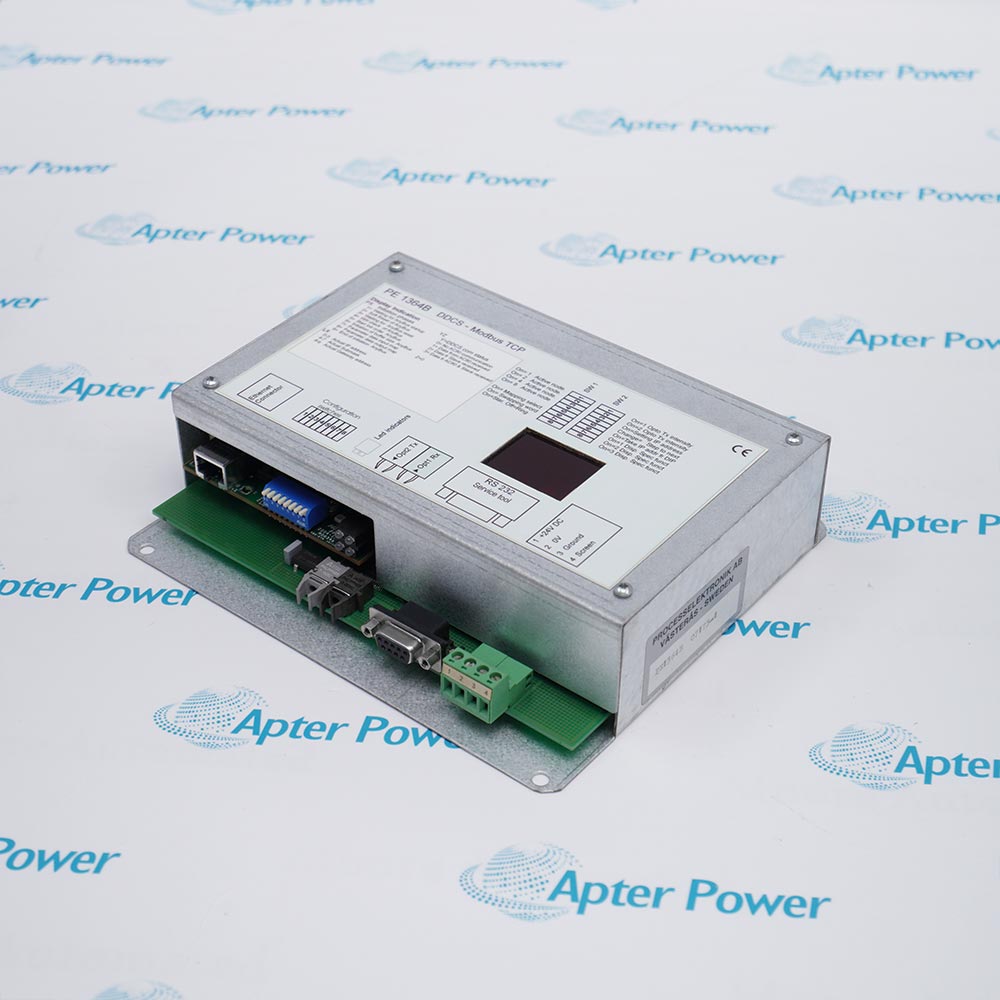

Processelektronik PE1364B converts ABB ModuleBus/DDCS traffic to Modbus TCP with optical DDCS and Ethernet connectivity.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for PE1364B
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for PE1364B

  • Manufacturer:
    ABB
  • Part Number:
    PE1364B
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    ModuleBus/DDCS to Modbus TCP Converter
  • Stock:
    1
  • Manufacturer:
    Processelektronik AB
  • DDCS nodes:
    18
  • Datasets per node:
    8
  • Supply:
    12–30 V DC; 170 mA at 24 V DC
  • Optical communication:
    4 Mbit/s DDCS
  • Optical media:
    1.0 mm POF or 200 µm HCS
  • Maximum optical distance:
    15 m POF; 200 m HCS
  • Ethernet:
    RJ45 Modbus TCP
  • Service interface:
    RS-232, 9-pin D-sub, Modbus RTU 9600 baud
  • Protection:
    IP00
  • Operating temperature:
    +5 to +40 °C
  • Storage temperature:
    -40 to +70 °C
  • Dimensions:
    19.6 × 17.0 × 5.0 cm
  • Weight:
    0.24 kg
  • Tariff Code:
    8517629900
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals DDCS Mapping Optical Link Modbus Commissioning Application
  • ModuleBus/DDCS to Modbus TCP protocol conversion
  • Eighteen DDCS nodes with eight datasets per node
  • POF or HCS optical communication with RJ45 Ethernet output

PE1364B connects ABB DDCS environments to Modbus TCP supervision without changing the original drive or controller network.

Its configuration determines which DDCS nodes and datasets are exposed, so the saved mapping is part of the replacement scope.

Confirm the original manufacturer label, optical medium, fiber length, IP settings and IP00 enclosure arrangement before commissioning.

Availability, condition, price, and shipping time for PE1364B are confirmed during quotation.

Processelektronik AB PE1364B ModuleBus/DDCS to Modbus TCP Converter Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Record every enabled DDCS node before replacement.
  • Preserve the eight-dataset selections used by each configured node.
  • Confirm active-slave or listener behavior against the existing network design.
  • Match the installed 1.0 mm POF or 200 µm HCS medium.
  • Keep the link within the documented distance for the selected fiber.
  • Inspect optical connectors and routing before restoring network traffic.
  • Restore the converter IP address and client access settings.
  • Validate the register map against live DDCS values.
  • Test loss-of-DDCS and loss-of-Ethernet behavior in the host application.
  • ABB AC80 and AC800 DDCS data integration
  • ABB AC4xx ModuleBus data access
  • DCS600 drive data exposure to Modbus TCP clients
Description
PE1364B is a ProcessElektronik communication converter that transfers ABB ModuleBus/DDCS data to a Modbus TCP network.

It can manage up to eighteen DDCS nodes with eight datasets per node and provides an RJ45 Ethernet connection alongside POF or HCS optical communication.

Replacement and commissioning require the original node mapping, dataset configuration, optical-medium selection, fiber length, IP settings and enclosure arrangement to be retained.
Alternative Names
PE1364B PE 1364B Processelektronik PE1364B Processelektronik AB PE1364B
Technical notes
Processelektronik PE1364B requires confirmation of manufacturer identity, DDCS node and dataset mapping, optical medium, IP settings and enclosure protection before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What should a buyer request to avoid a configuration mismatch when sourcing Processelektronik PE1364B?
Request the original nameplate, saved DDCS node and dataset mapping, optical-medium type and existing Modbus TCP register map so the replacement can be configured for the installed network before shipment.
What must be matched before replacing Processelektronik PE1364B on a DDCS network?
Record the configured DDCS node range, dataset mapping, optical medium, fiber length and Modbus TCP register use before removing the converter.
Can Processelektronik PE1364B use either plastic or hard-clad silica fiber?
Yes, but the installed optical transceivers and distance must match the documented POF or HCS option; the two media should not be treated as interchangeable without checking the link.
Why might a Modbus TCP client read no useful data from Processelektronik PE1364B after replacement?
The Ethernet connection can be active while the DDCS node or dataset mapping is wrong. Restore the saved mapping and confirm that the selected DDCS nodes are actually present.
What should be preserved before resetting Processelektronik PE1364B?
Retain IP settings, DDCS configuration, node assignments, dataset selections and any register map used by the supervisory client.
Can Processelektronik PE1364B be installed without an enclosure?
It is documented as IP00 equipment, so the final installation must provide the required enclosure, spacing and environmental protection.
What should be tested after commissioning Processelektronik PE1364B?
Verify DDCS communication on each required node, confirm the expected dataset values through Modbus TCP and check that loss-of-link behavior is handled by the host system.
