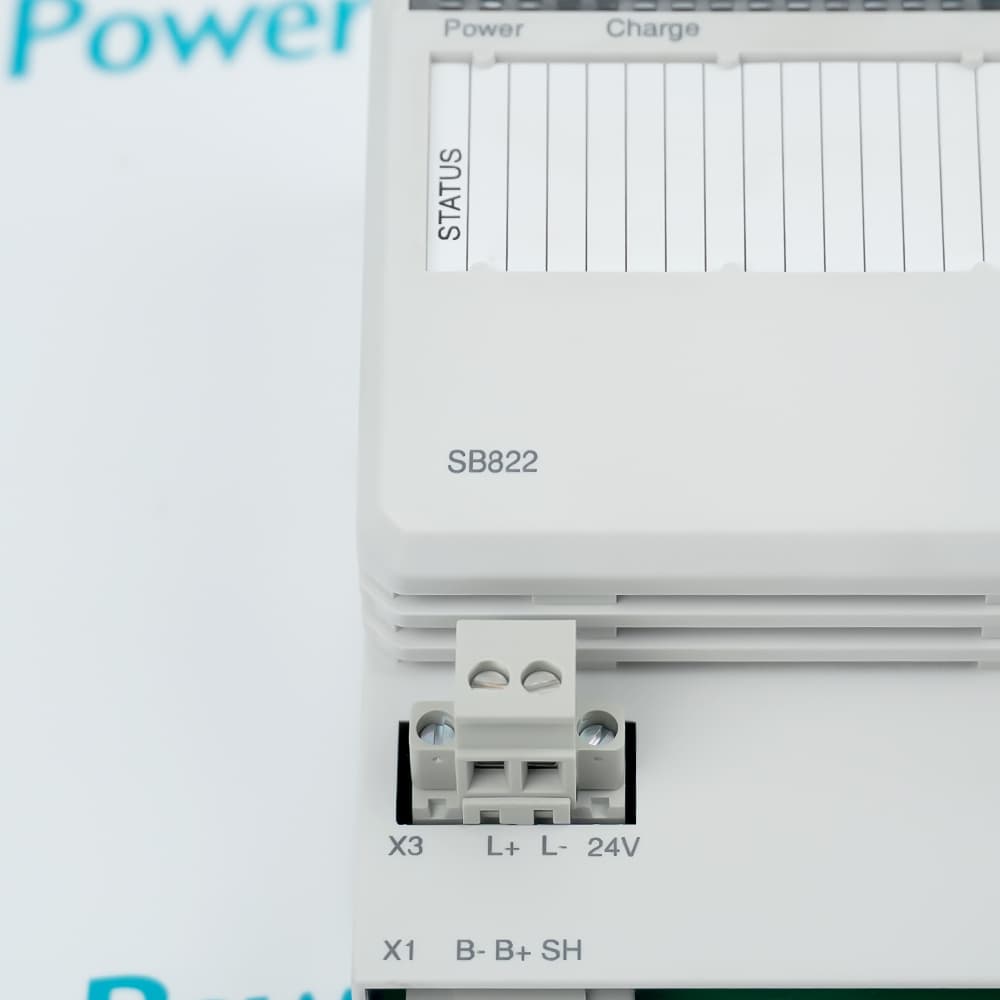

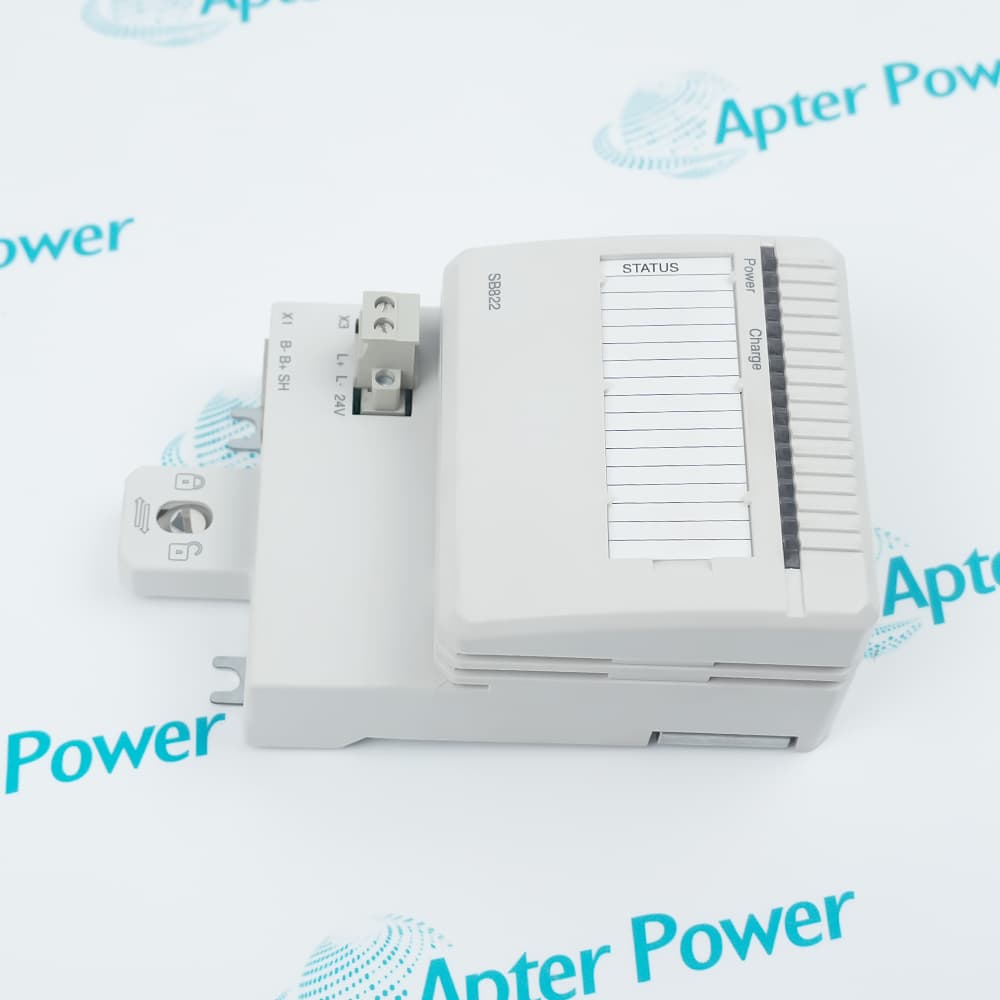

ABB SB822 3BSE018172R1 is a DIN-rail rechargeable lithium-ion battery unit that provides memory backup for supported AC 800M processor units.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for SB822 3BSE018172R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SB822 3BSE018172R1

  • Manufacturer:
    ABB
  • Part Number:
    SB822 3BSE018172R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    AC 800M Rechargeable Battery Unit
  • Stock:
    1
  • Battery chemistry:
    Lithium-ion
  • Rated battery voltage:
    3.75 V
  • Rated capacity:
    2.4 Ah
  • Included connection cable:
    TK821V020
  • Mounting:
    External DIN rail
  • Ambient operating temperature:
    0 to 55°C
  • Protection class:
    IP20
  • Corrosion protection:
    ISA-S71.04 G2
  • Pollution degree:
    2
  • Dimensions:
    8.58 × 13.6 × 5.85 cm
  • Rated output voltage:
    3.6 V
  • Maximum output current:
    0.05 A
  • Connection cable length:
    2 m
  • Weight:
    0.55 kg
  • Tariff Code:
    8507600090
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals CPU Match Installation Battery Care Application
  • Provides rechargeable memory backup for supported AC 800M processor units
  • Uses a 3.75 V, 2.4 Ah lithium-ion battery in an external DIN-rail housing
  • Includes the TK821V020 cable for the documented processor connection

ABB SB822 3BSE018172R1 is an AC 800M rechargeable battery unit designed to preserve processor memory when normal power is lost.

Selection depends on the installed PM8xx processor because ABB publishes different minimum backup times for different processor groups when the battery is fully charged.

Before installation or replacement, verify the processor model, DIN-rail mounting, ambient temperature, TK821V020 cable, battery charge and approved lithium-battery handling procedure.

Availability, condition, price, and shipping time for SB822 3BSE018172R1 are confirmed during quotation.

ABB SB822 3BSE018172R1 AC 800M Rechargeable Battery Unit Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Confirm that the installed PM8xx processor is listed for SB822 backup
  • Use the processor-specific minimum backup time when planning an outage
  • Do not substitute SB821 backup-time expectations for the rechargeable SB822
  • Mount the complete unit on DIN rail with ventilation and service access
  • Use the included TK821V020 cable without unapproved extensions or repairs
  • Keep the unit within the documented 0 to 55°C operating range
  • Fully charge the unit before relying on the published minimum backup time
  • Investigate falling backup time before a planned controller shutdown
  • Handle storage, transport and replacement under the site lithium-battery procedure
  • Memory backup for AC 800M PM851, PM856 and PM860 processor installations
  • Memory backup for AC 800M PM861, PM864, PM865 and PM866 processor installations
  • Memory backup for AC 800M PM858, PM862, PM866A, PM867 and PM891 processor installations
Description
ABB SB822 3BSE018172R1 is an external rechargeable battery unit for supported AC 800M processor units.

The unit uses a 3.75 V, 2.4 Ah lithium-ion battery and connects through the included TK821V020 cable to support processor memory during loss of normal power.

Before installation or replacement, confirm the processor model, required backup time, DIN-rail space, ambient conditions, cable condition, charging state and plant battery-handling procedure.
Alternative Names
SB822 3BSE018172R1 SB822 3BSE018172R1 ABB SB822 ABB SB822 3BSE018172R1 AC 800M SB822
Technical notes
ABB SB822 3BSE018172R1 is a rechargeable AC 800M backup unit with processor-specific minimum backup times; verify the PM8xx model, full charge and TK821V020 cable before service.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can ABB SB822 3BSE018172R1 replace an SB821 external battery unit without review?
No. SB822 is rechargeable and has processor-specific backup times that differ from SB821; verify the processor, cable, mounting and outage requirement before substitution.
Which AC 800M processors are compatible with ABB SB822 3BSE018172R1?
ABB documents SB822 backup times for PM851/856/860 families, PM861/864/865, PM858/862/866/866A/867 and PM891; match the exact installed processor.
Is the connection cable included with ABB SB822 3BSE018172R1?
Yes. ABB identifies TK821V020 as the included cable, but its presence, connector condition and length should still be confirmed in the quoted stock.
Why can ABB SB822 3BSE018172R1 provide less backup time than expected?
Check charge state, battery age, ambient temperature, processor type, cable connection and whether the outage exceeded the processor-specific minimum backup period.
Can ABB SB822 3BSE018172R1 be mounted inside any unventilated cabinet location?
No. Maintain DIN-rail clearance, IP20 enclosure protection and the documented 0 to 55°C ambient range, and keep the unit accessible for inspection and replacement.
What should be checked before storing or shipping ABB SB822 3BSE018172R1?
Follow the applicable lithium-ion battery transport and storage procedure, protect the cable and housing, and record condition and charge status before the unit is placed in service.
How should ABB SB822 3BSE018172R1 be tested after installation?
Confirm the correct processor connection and charging state, review controller diagnostics, then perform a controlled power-loss test that is shorter than the documented processor-specific backup time.
