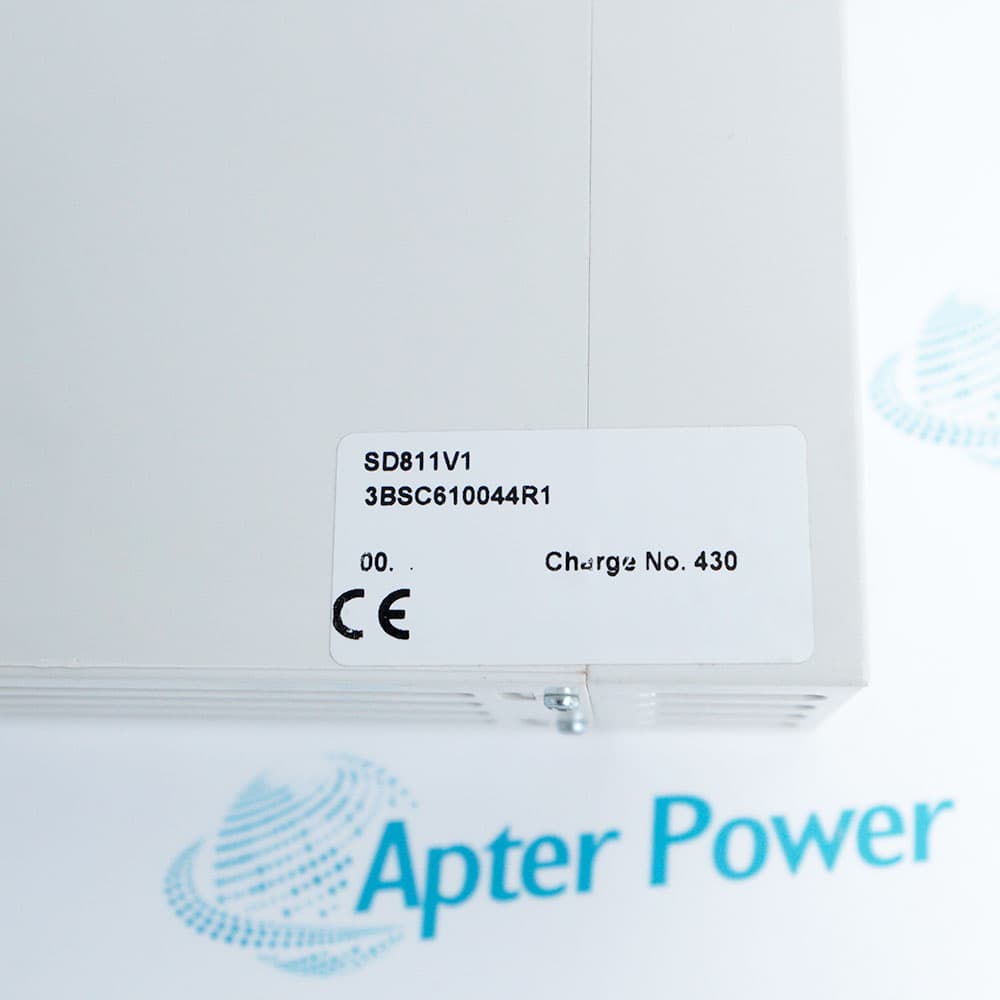

ABB SD811V1 3BSC610044R1
ABB SD811V1 3BSC610044R1
ABB SD811V1 3BSC610044R1
ABB SD811V1 3BSC610044R1
ABB SD811V1 3BSC610044R1
ABB SD811V1 3BSC610044R1
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Active / Available from OEM
    Prevent unexpected voltage drops and maintain system stability by sourcing factory-original ABB power modules directly through Apter Power to guarantee maximum uptime for your critical processes.

SD811V1 3BSC610044R1

/ 4.9
1001 reviews | Need a Specific Revision?
ABB SD811V1 3BSC610044R1 power supply module converts an input voltage of 110–240 VAC into a stable +24 VDC output, providing reliable power for industrial automation equipment.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for SD811V1 3BSC610044R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SD811V1 3BSC610044R1

  • Manufacturer:
    ABB
  • Part Number:
    SD811V1 3BSC610044R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Power Supply Module
  • Stock:
    4
  • Input Voltage:
    110–240 VAC
  • Output Voltage:
    +24 VDC
  • Output Current:
    2.5 A
  • Output power:
    Approx. 60 W
  • Mounting method:
    Standard DIN rail mounting
  • Operating temperature:
    +5 to +55 °C (up to +70 °C, but output power will need to be dated)
  • Storage temperature:
    -25 to +70 °C
  • Relative humidity:
    Maximum 95% (non-condensing)
  • Weight:
    0.5 kg
  • Estimated shipping dimensions:
    5x12.8x10cm
  • Tariff Code:
    2942000000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Installation Certifications Application Scenarios

Features:

  • Wide 110–240 VAC input range supports flexible industrial power distribution.
  • Delivers a regulated +24 VDC output with 2.5 A current and approximately 60 W power capacity.
  • Standard DIN rail mounting enables quick installation and efficient cabinet integration.
Industrial automation systems rely on stable DC power, and ABB SD811V1 3BSC610044R1 provides dependable AC-to-DC power conversion for control equipment. The module converts a broad AC input range into a regulated +24 VDC output, supporting consistent operation of connected devices. Its electrical characteristics make it suitable for a wide variety of industrial applications.

The standard DIN rail mounting method simplifies installation and maintenance while helping maintain an organized control cabinet layout. With an output current of 2.5 A and approximately 60 W of output power, the module is well suited for supplying power to automation components that require reliable DC voltage. Stable power delivery contributes to improved system performance and operational continuity.

ABB SD811V1 3BSC610044R1 is built for industrial environments where dependable operation is essential. The module operates between +5 and +55 °C and can be used at temperatures up to +70 °C when output power is appropriately derated. Storage temperatures from -25 to +70 °C and a maximum non-condensing relative humidity of 95% provide additional flexibility for transportation, storage, and installation.

The SD811V1 3BSC610044R1 ABB Power Supply Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB SD811V1 3BSC610044R1 Power Supply Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB SD811V1 3BSC610044R1 Power Supply Module Specs

General

  • Manufacturer ABB
  • Model SD811V1 3BSC610044R1
  • Condition New Original ready stock
  • Product Family SD802F 3BDH000012R1,SD821 3BSC610037R1
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Installation Method: Standard 35mm DIN rail vertical mounting.
  • Heat Dissipation Clearance: At least 100mm clearance is required above and below the module.
  • Wire Cross-Section: 0.2 to 2.5 mm² wires are recommended.
  • Redundant Connection: Supports parallel expansion with SS811 modules.
  • Safety Standards: Complies with EN 60950-1 industrial equipment safety requirements.
  • Electromagnetic Compatibility: Meets EN 61000-6-2 industrial immunity standards.
  • Explosion-proof Certification: ATEX Zone 2 hazardous area certification.
  • Classification Society Certification: DNV-GL certified. Mainstream marine environmental certifications.
  • Distributed Systems: Core power distribution for the ABB 800xA control system.
  • Harsh Environments: Suitable for G3-level highly corrosive chemical and petrochemical plant rooms.
  • Field Power Supply: Provides isolated power to 24V DC field sensors and actuators.
  • Critical Redundancy: Used in control cabinets for uninterrupted operation, such as in thermal power plants.
Description
ABB SD811V1 3BSC610044R1 power supply module accepts a wide input voltage range of 110–240 VAC and delivers a regulated +24 VDC output with an output current of 2.5 A. With an output power of approximately 60 W, the module provides dependable DC power for industrial control systems and associated automation devices.

The module is designed for standard DIN rail mounting, allowing convenient installation inside industrial control cabinets. Its compact mounting method simplifies system integration while supporting organized panel layouts. ABB SD811V1 3BSC610044R1 is suitable for applications requiring continuous and stable power conversion from AC to DC.

ABB SD811V1 3BSC610044R1 operates within an ambient temperature range of +5 to +55 °C. The module can operate at temperatures up to +70 °C, although output power will need to be derated under those conditions. Storage temperatures from -25 to +70 °C and a maximum relative humidity of 95% under non-condensing conditions allow the module to perform reliably in a variety of industrial environments.
Alternative Names
SD8IIVI 3BSC6I0044RI SD811V1 3BSC61OO44R1 SD802F 3BDH000012R1 SD812 3BSC610023R0001 SD821 3BSC610037R1 SD822 3BSC610038R1 SD834 3BSC610067R1 SS832 3BSC610068R1
Technical notes
Engineered for continuous operations, the ABB SD811V1 (3BSC610044R1) power supply features an advanced parallel capability for modern 2 × SD811 redundancy configurations. It maintains a stable 60 W power delivery even under severe environmental fluctuations in critical control networks. Its robust design minimizes downtime by safely decoupling field loads from sensitive controller electronics.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can ABB SD811V1 3BSC610044R1 be mounted on a DIN rail?
Yes. ABB SD811V1 3BSC610044R1 is intended for standard DIN rail mounting, making installation straightforward in control cabinets.
Which operating temperatures are recommended for ABB SD811V1 3BSC610044R1?
Normal operation is specified from +5 to +55 °C. Temperatures up to +70 °C are permitted when output power is derated.
Does ABB SD811V1 3BSC610044R1 require humidity control?
The module supports environments with a maximum relative humidity of 95%, provided condensation does not occur.
