TU812V1 3BSE013232R1

/ 4.9
1001 reviews | Need a Specific Revision?

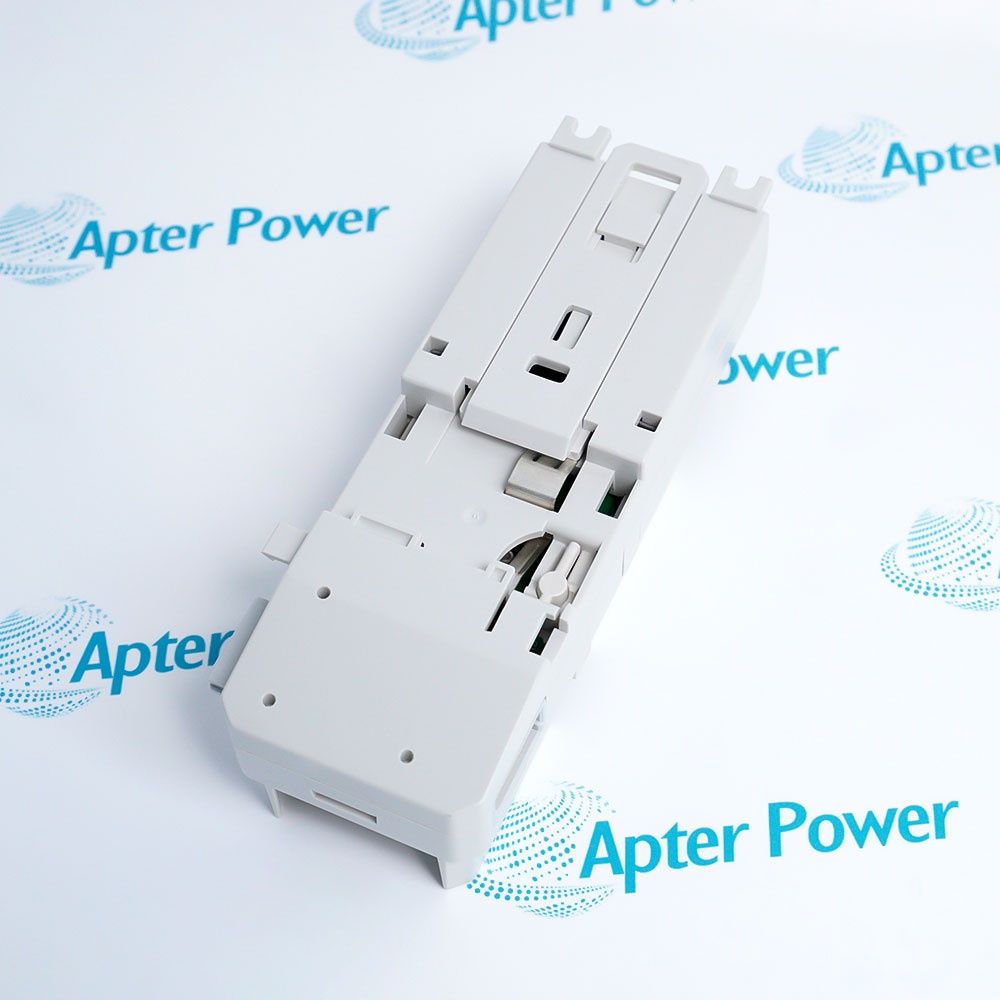

ABB TU812V1 3BSE013232R1 is a compact 16-channel termination base with a 25-pin D-sub field interface for the S800 I/O family.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for TU812V1 3BSE013232R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for TU812V1 3BSE013232R1

  • Manufacturer:
    ABB
  • Part Number:
    TU812V1 3BSE013232R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Compact Module Termination Unit
  • Stock:
    1
  • MTU Type:
    Compact
  • Termination Interface:
    25-pin male D-sub connector
  • I/O Channels:
    16
  • Rated Signal Voltage:
    50 V
  • I/O Arrangement:
    Single
  • Compatible I/O Modules:
    AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO840, DO880, DP820, and DP840
  • Process Connections:
    25-pin male D-sub; up to 16 I/O signals
  • Maximum Current per I/O Channel:
    2 A
  • Maximum Process-Connection Current:
    5 A
  • Conductor Range:
    Defined by the mating 25-pin D-sub connector
  • Recommended Torque:
    Not applicable to the D-sub process connector
  • Stripping Length:
    Not applicable to the D-sub process connector
  • Dielectric Test:
    500 V AC
  • Mounting Direction:
    Both directions
  • Horizontal Mounting Limit:
    55 C
  • Vertical Mounting Limit:
    40 C
  • Mechanical Keying:
    Two keys with six positions each; 36 configurations
  • Operating Temperature:
    0 to +55 C
  • Storage Temperature:
    -40 to +70 C
  • Relative Humidity:
    5-95%, non-condensing
  • Protection Rating:
    IP20
  • Pollution Degree:
    2
  • Corrosion Protection:
    G3
  • EMC:
    EN 61000-6-4 and EN 61000-6-2
  • Equipment Class:
    Class I
  • Weight:
    0.17 kg
  • Estimated shipping dimensions:
    6.4 x 17 x 6.4 cm
  • Tariff Code:
    85371098
  • Country of origin:
    Bulgaria
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications D-sub I/O Fit Mount

Features:

  • D-sub field interface: A 25-pin male D-sub carries up to 16 I/O signals.
  • Compact 16-channel format: The official voltage class is 50 V.
  • Single I/O arrangement: Mechanical keying controls the permitted module position.

TU812V1 provides a compact field-termination boundary for the officially listed analog, digital, pulse, and positioning modules.

The D-sub connection changes the field-wiring interface compared with terminal-block MTUs, so the mating connector must be checked separately.

Procurement should match TU812V1 and 3BSE013232R1 with the installed I/O module and cabinet drawings.

Availability is subject to Apter Power's current inventory and sourcing confirmation.

TU812V1 3BSE013232R1 Compact Module Termination Unit Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

ABB TU812V1 3BSE013232R1 Compact Module Termination Unit Specs

General

  • ManufacturerABB
  • ModelTU812V1 3BSE013232R1
  • ConditionNew and factory sealed
  • Product FamilyS800 I/O Module Termination Units

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Connector and signal checks

  • Connector type: Use a 25-pin female mating assembly for the male D-sub process interface.
  • Signal count: Plan no more than the documented 16 I/O signals.
  • Current boundary: Observe 2 A per channel and 5 A for the process connection.
  • Wiring record: Retain the mating-cable pin assignment with the cabinet documentation.

Official I/O scope

  • Analog modules: Use only the ABB-listed AI and AO modules for this MTU.
  • Digital modules: Verify the exact DI or DO article before installation.
  • Pulse modules: ABB lists DP820 and DP840 among the compatible modules.
  • Keying check: Match the installed mechanical keys before inserting the I/O module.

Cabinet installation checks

  • Horizontal limit: The documented mounting limit is 55 C.
  • Vertical limit: The documented vertical mounting limit is 40 C.
  • Installed width: Allow for the official installed width and connector access.

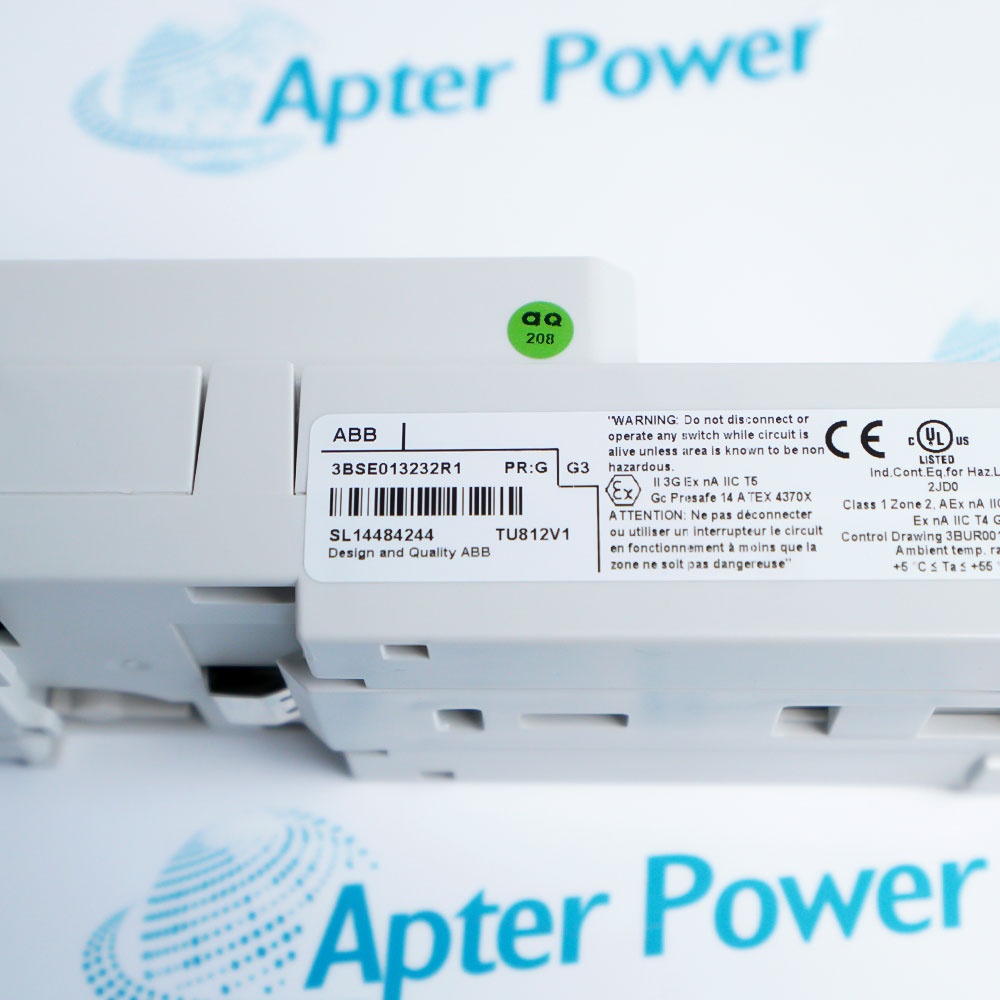

  • Nameplate review: Match TU812V1 and 3BSE013232R1 before replacement.
Description

The ABB TU812V1 3BSE013232R1 is a compact 16-channel termination base with a 25-pin D-sub field interface in the S800 I/O family.

Official documentation for TU812V1 specifies it routes up to 16 field signals while distributing ModuleBus and preserving the mechanical key and position-signal arrangement.

Before ordering 3BSE013232R1, confirm the mating D-sub assembly, installed I/O module, article number, mechanical key settings, and cabinet orientation.

Alternative Names
ABB TU812V1 3BSE013232R1 ABB TU812V1 TU812V1 3BSE013232R1 TU812V1 3BSE013232R1 TU812V1-3BSE013232R1 TU812V1 Compact Module Termination Unit TU812V13BSE013232R1
Technical notes
ABB TU812V1 3BSE013232R1 is a compact 16-channel termination base with a 25-pin D-sub field interface rated for 50 V. Verify the installed I/O module, termination plan, and complete article number.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is ABB TU812V1 3BSE013232R1 used for?
It is a compact 16-channel termination base with a 25-pin D-sub field interface for S800 I/O. Verify the field interface and installed module before procurement.
Which product family includes TU812V1?
TU812V1 belongs to the ABB S800 I/O Module Termination Unit family. Match 3BSE013232R1 to the project hardware list.
Which I/O modules are officially listed for TU812V1?
ABB lists AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO840, DO880, DP820, and DP840. Confirm the exact installed module article and mechanical key positions.
How should buyers verify TU812V1 3BSE013232R1 before ordering?
Check the complete article number, 50 V class, 25-pin male d-sub connector, channel plan, field wiring, and nameplate.
Is TU812V1 active or discontinued?
The current ABB hardware-selector page is available and no model-specific discontinuation statement was found. Availability still requires an Apter Power sourcing check.
Is there an official replacement for TU812V1?
No official replacement is claimed on this page. Use ABB documentation and an engineering review before considering any substitution.
Where can I get the TU812V1 3BSE013232R1 datasheet and request a quote?
Open the verified PDF in Manuals, then send Apter Power the quantity, destination, required condition, and delivery date.
