SPSEM11

/ 4.9
1001 reviews | Need a Specific Revision?

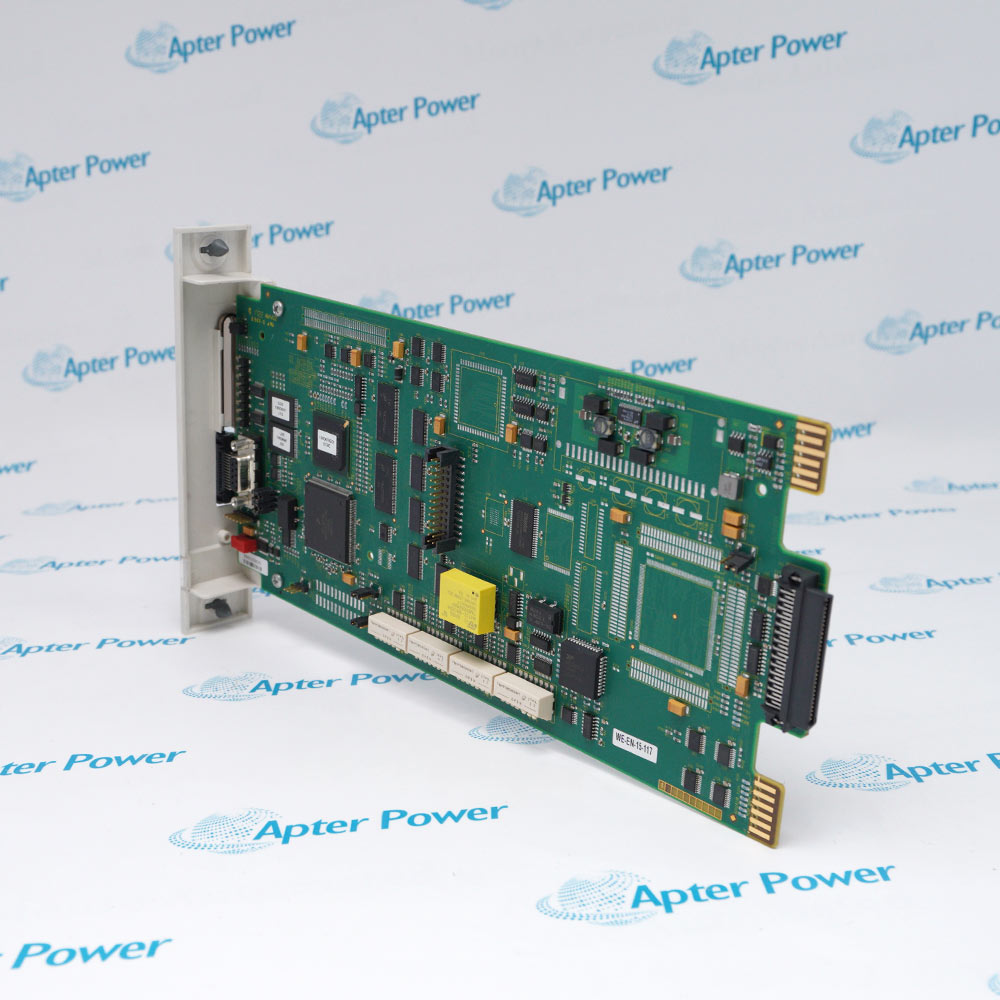

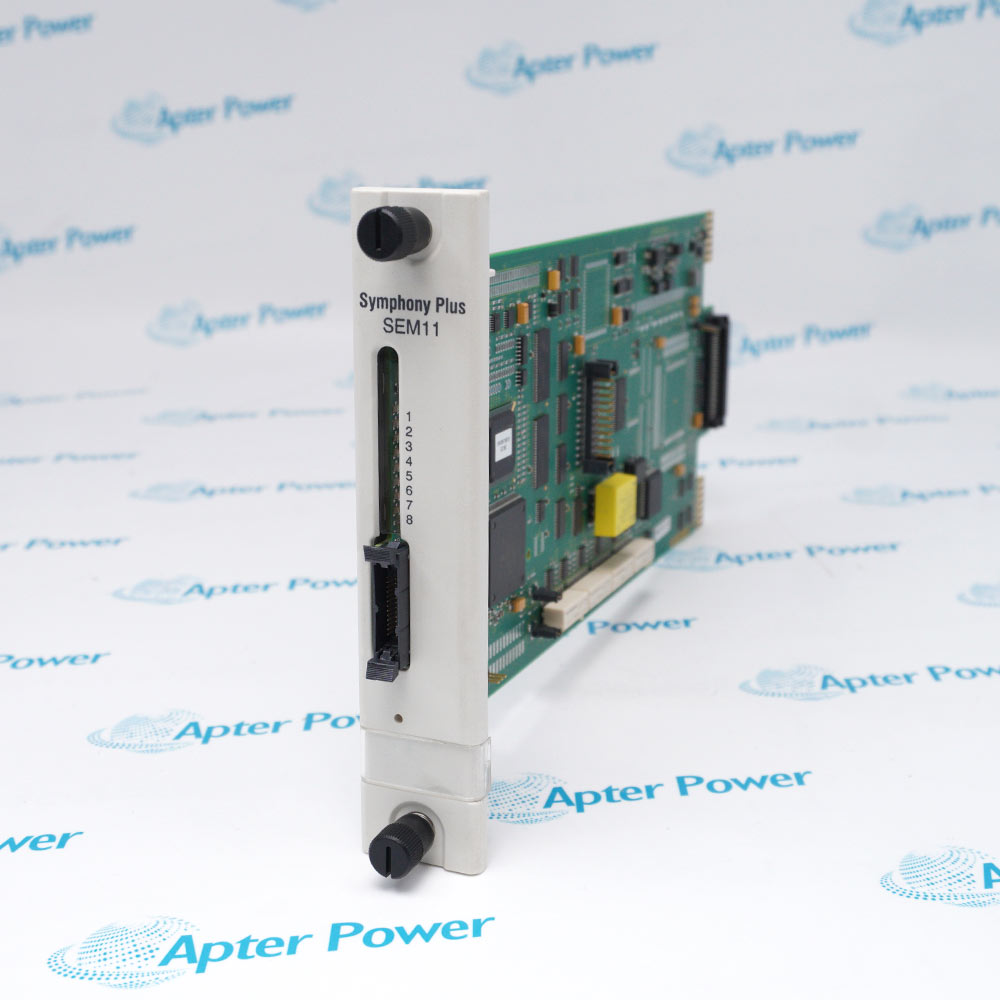

ABB SPSEM11 is a Symphony Plus sequence-of-events master module for synchronized plant-event collection. It manages event logic and coordinates the network and timekeeping functions of the SOE server node.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for SPSEM11
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SPSEM11

  • Manufacturer:
    ABB
  • Part Number:
    SPSEM11
  • Product Family:
    ABB Bailey
  • Product Type:
    sequence-of-events master module
  • Stock:
    4
  • Node role:
    Sequence-of-events master
  • SOE point capacity:
    1500
  • Complex triggers:
    256
  • Operands per complex trigger:
    Up to 16
  • Simple triggers:
    Up to 3000
  • Processor:
    16 bit
  • Processor clock:
    10 MHz
  • RAM:
    2 MB
  • ROM:
    512 KB
  • NVRAM:
    512 KB
  • Supply voltage:
    +5 VDC ±5%
  • Supply current:
    1.78 A
  • Ambient temperature:
    0-70 °C
  • Network function:
    Communicates with the control-network interface
  • Time function:
    Receives synchronized time from the node timekeeping module
  • Server-node architecture:
    Sequence-of-events server node
  • Event source:
    Distributed SOE digital input points
  • Trigger processing:
    Simple and complex trigger logic
  • Network companion role:
    Provides control-network access for the event node
  • Time companion role:
    Supplies synchronized time information
  • Weight:
    0.5732 lbs (0.26 kg)
  • Estimated shipping dimensions:
    3.5 x 32 x 17.6 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Programming Connectivity Integration

Features:

  • Manages up to 1,500 SOE points.
  • Works with the network-interface module and the timekeeping module.
  • Supports distributed digital-transition monitoring and reporting.
The current ordering configuration is SPSEM11, which is the ABB Sequence of Events master module used in the Harmony SOE server node to manage distributed, time-ordered digital event collection.

Within the installed Symphony Plus Harmony Rack architecture, this configuration manages distributed event collection and communicates with SPNIS21 and SPTKM01 for network access and synchronized time.

confirm the exact companion hardware, network mode, addresses, firmware and termination before installation.
Availability is subject to Apter Power inventory and sourcing confirmation.

Verified resources for ABB SPSEM11:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

General

  • ManufacturerABB
  • ModelSPSEM11
  • ConditionNew / Surplus / Refurbished
  • Product FamilySymphony Plus Harmony Rack
  • Configured point assignments determine which distributed digital events are evaluated by the server node.
  • Simple and complex trigger logic must match the current sequence-of-events application database.
  • Validate the function-code and trigger configuration before accepting event records for plant analysis.
  • The companion timekeeping module supplies synchronized timing information to the event master.
  • A dedicated synchronization link carries the reference used by the sequence-of-events node.
  • Verify the time source, link wiring and project settings before accepting event timestamps.
  • The companion network interface provides control-network communication for the event server node.
  • Network, event-master and timekeeping functions operate together as one configured node.
  • All companion modules, function codes and network addresses must match the project configuration.
Description
SPSEM11 is the ABB Sequence of Events master module used in a Harmony SOE server node for distributed, time-ordered digital event collection.

It evaluates configured trigger logic and coordinates network communication with synchronized timing information for plant-event analysis and reporting.

The node composition, time source, point assignments, trigger definitions, function-code settings, network addressing and link wiring must be preserved.
Alternative Names
SPSEM11 ABB SPSEM11 SPSEM11 sequence-of-events master module Symphony Plus Harmony Rack SPSEM11 ABB Symphony Plus Harmony Rack SPSEM11 ABB Symphony Plus Harmony Rack sequence-of-events master module SPDSM04 SPDSI13
Technical notes
Before energizing SPSEM11, verify field wiring, power isolation and the validated Symphony Plus Harmony Rack configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How should the event database be prepared for SPSEM11?
Map the required event points, trigger logic, time source and companion-node functions before loading the SPSEM11 configuration.
Which companion modules form the sequence-of-events node around SPSEM11?
The documented node combines SPSEM11 with the network-interface module for network communication and the timekeeping module for synchronized time.
What sequence-of-events work is performed by SPSEM11?
It manages distributed event collection, applies trigger logic and coordinates synchronized SOE data for the server node.
How should a complete SOE node be described when sourcing SPSEM11?
Provide the companion-module set, time source, point count, trigger needs, quantity and required delivery date to Apter Power.
What must be preserved before replacing SPSEM11 in an operating event system?
Preserve point assignments, trigger definitions, function-code settings, network addresses, time-source configuration and link wiring.
Which project data belongs with an SPSEM11 Datasheet and price inquiry?
Review the Manuals PDF and include the sequence-of-events node composition, event count, time source, network arrangement, quantity and destination.
