    Apter Power supplies completely fiber-verified, out-of-production PC adapters to stabilize your legacy software-to-drive links and shield your legacy workstations from catastrophic telemetry disconnects and protocol locks.

NISA-03

/ 4.9
1001 reviews | Need a Specific Revision?

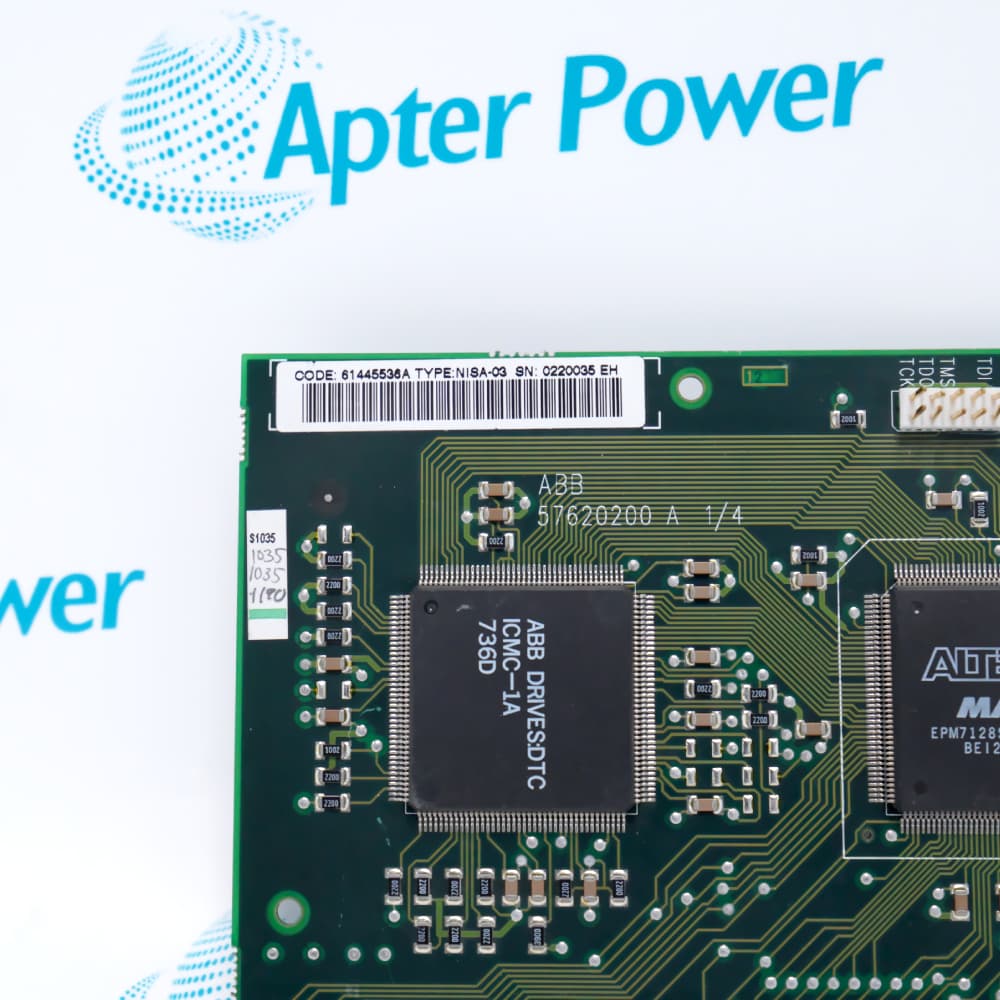

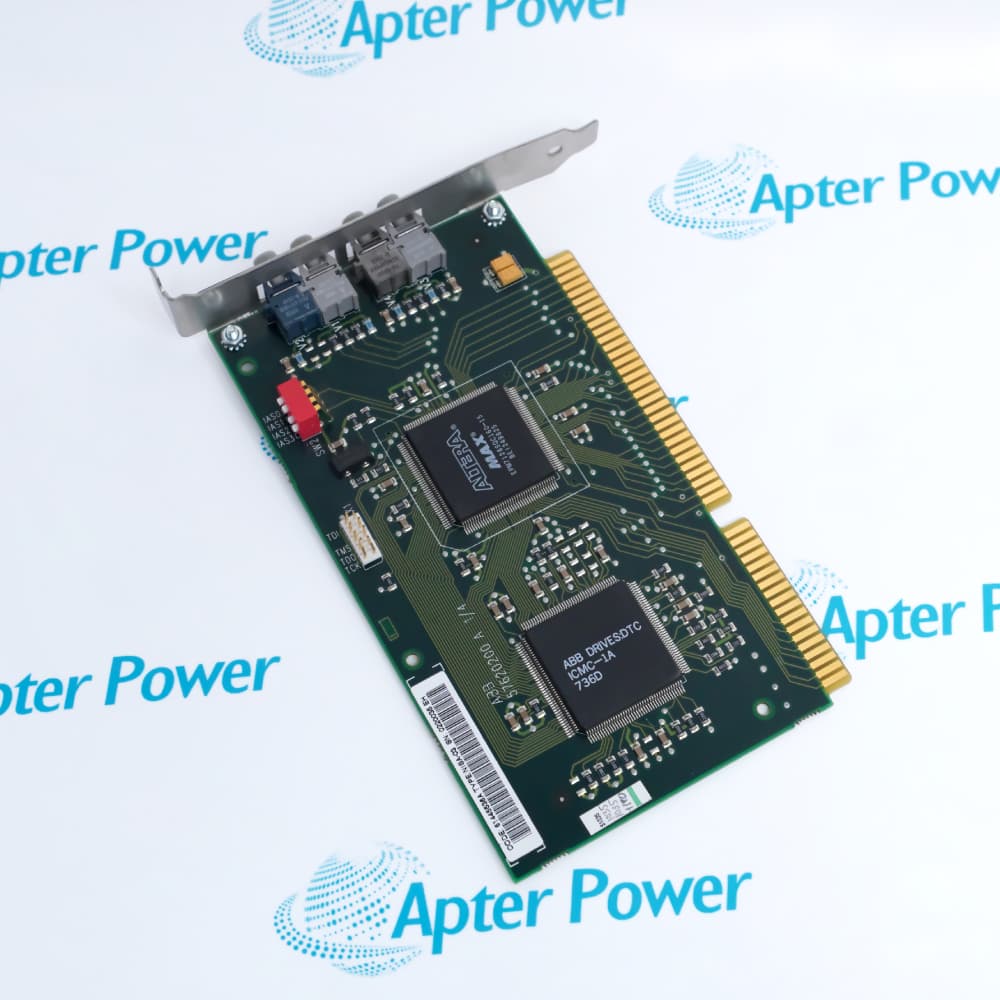

ABB NISA-03 is a DDCS/ISA adapter board used for controlling ABB ACS 600 product family drives from a personal desktop computer via DriveWare PC software, enabling fiber optic communication through dual DDCS channels.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for NISA-03
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for NISA-03

  • Manufacturer:
    ABB
  • Part Number:
    NISA-03
  • Product Family:
    ABB Drives
  • Product Type:
    DDCS/ISA Adapter
  • Stock:
    3
  • Compatible Drives:
    ABB ACS 600 product series (ACx 600)
  • PC Slot Interface:
    16-bit ISA slot
  • Companion Software:
    DriveWare PC software
  • Hardware Connection:
    NAMC of the drive
  • Multi-machine Connection Expansion:
    Supports signal distribution via NDBU series branch units
  • Transmission Media:
    Fiber Optic Cable
  • Number of Channels:
    2 DDCS protocol fiber optic channels
  • Channel 1 Rate:
    5 megabaud
  • Channel 2 Rate:
    10 megabaud
  • Weight:
    0.1 kg
  • Estimated shipping dimensions:
    2.5x12.7x17.8cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Connection Programming Application Scenarios

Features:

  • Dual DDCS fiber optic channels for flexible drive communication
  • ISA 16-bit PC interface enabling ACS 600 system control
  • Supports multi-drive expansion via NDBU branching units
ABB NISA-03 is widely used in ABB ACS 600 drive systems where PC-based configuration and control are required. By integrating with DriveWare software, the adapter enables direct communication between a desktop computer and industrial drive units. This improves system accessibility for monitoring and configuration tasks.

The module connects to the NAMC board of ACx 600 drives through fibre optic cables, ensuring stable signal transmission. With support for NDBU branching units, ABB NISA-03 allows signal distribution to multiple drives, making it suitable for complex industrial automation layouts. Dual channel operation further enhances communication flexibility.

ABB NISA-03 also emphasizes safe and reliable installation practices. Electrostatic discharge protection, correct I/O addressing, and proper fibre routing are required during setup. These design considerations ensure stable operation in demanding industrial environments where ABB ACS 600 systems are deployed.

The NISA-03 ABB DDCS/ISA Adapter may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB NISA-03 DDCS/ISA Adapter Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB NISA-03 DDCS/ISA Adapter Specs

General

  • Manufacturer ABB
  • Model NISA-03
  • Condition New Original ready stock
  • Product Family NTAC-02
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Physical Slot: Directly inserts into the standard 16-bit ISA expansion slot on the motherboard of an industrial PC or personal computer.
  • Media Transmission: High-speed signal connection with the inverter's NAMC main control board via fiber optic cable, providing electrical isolation.
  • Multi-Machine Topology: A single fiber optic signal can be distributed in parallel to multiple field drive devices using the NDBU series branch unit.
  • Static Electricity Protection: Operators must wear an anti-static (ESD) grounded wrist strap before touching the physical contacts of the board.
  • Supporting Software: Seamlessly supports ABB's official DriveWare series PC software (such as DriveWindow debugging tools).
  • Protocol Support: Onboard chip hardware parses ABB's proprietary DDCS (Distributed Drive Control System) communication protocol.
  • Rate Matching: Provides two dual-channel baud rates, 5 Megabaud and 10 Megabaud, to adapt to different generations of control boards.
  • Parameter Configuration: Allows engineers to directly read, modify, and back up the inverter's underlying application parameters within the host computer programming environment.
  • Maintenance of Aging Control Networks: Used for daily maintenance of high-reliability traditional industrial control networks built on the ACS 600 series inverters.
  • Variable Frequency System Commissioning: Used for engineers to connect to a computer to fine-tune motor speed control parameters during the initial operation of production lines in large paper mills, steel mills, etc.
  • Real-time Status Diagnosis: Deployed in a dedicated industrial control computer in the central control room, it captures waveforms of drive current, torque, and fault logs.
  • Spare parts replacement: as an emergency replacement for the original manufacturer's same model of ISA communication board that has been discontinued in large transmission systems in the metallurgical or mining industries.
Description
ABB NISA-03 is a DDCS/ISA adapter designed for ABB ACS 600 product series (ACx 600) drive systems. It functions as an interface board installed in a standard 16-bit ISA slot on a personal desktop computer, allowing drive control through DriveWare PC software such as DriveWindow.

The ABB NISA-03 connects to the drive's NAMC (Application and Motor Control Board) using fibre optic cables. The optical signal can also be distributed to multiple drives through NDBU series branch units, enabling multi-machine connection expansion within industrial drive networks.

ABB NISA-03 provides two DDCS protocol fiber optic channels. Channel 1 operates at 5 megabaud, while Channel 2 operates at 10 megabaud. The channel selection depends on the connected board, and both channels support different cable types and transmission requirements for ACx 600 communication.

The ABB NISA-03 requires careful handling due to electrostatic discharge sensitivity. A grounded wrist strap is required during operation, and component boards must not be touched unnecessarily. The base I/O address is 280H with 32 consecutive locations required, and an alternative address of 2A0H can be selected using DIP switches when address conflicts occur.

Installation of ABB NISA-03 involves inserting the board into an available 16-bit ISA slot, securing it with a screw, and connecting fibre optic cables between the PC and the drive system. Inside the ACx 600, connections are made to Channel 3 on the NAMC board or to the MSTR channel on NDBU branching units, ensuring correct colour-coded fiber alignment.
Alternative Names
NISA-O3 N1SA-03 NISA03 NDPA-02 NTAC-02 IMDSO14 IMMFP12 INIIT13
Technical notes
Integrate PC-based DriveWare software into your drive network using the ABB NISA-03 adapter, which occupies a standard 16-bit ISA slot for robust, interference-free optical data transmission.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Does ABB NISA-03 require special handling precautions?
ABB NISA-03 requires a grounded wrist strap during operation due to electrostatic discharge sensitivity.
Can ABB NISA-03 connect multiple drives?
ABB NISA-03 supports multi-machine connection expansion through NDBU series branch units for signal distribution.
What addressing configuration does ABB NISA-03 use?
ABB NISA-03 uses a default base I/O address of 280H with 32 consecutive locations, and can switch to 2A0H using DIP switches.
How many communication channels does ABB NISA-03 support?
ABB NISA-03 includes two DDCS optical channels, operating at 5 megabaud and 10 megabaud respectively.
