    Apter Power guarantees premium quality ABB drive control hardware, offering a fully verified source for obsolete machinery protection and replacement parts.

RDCU-02C ASXR7220

/ 4.9
1001 reviews | Need a Specific Revision?

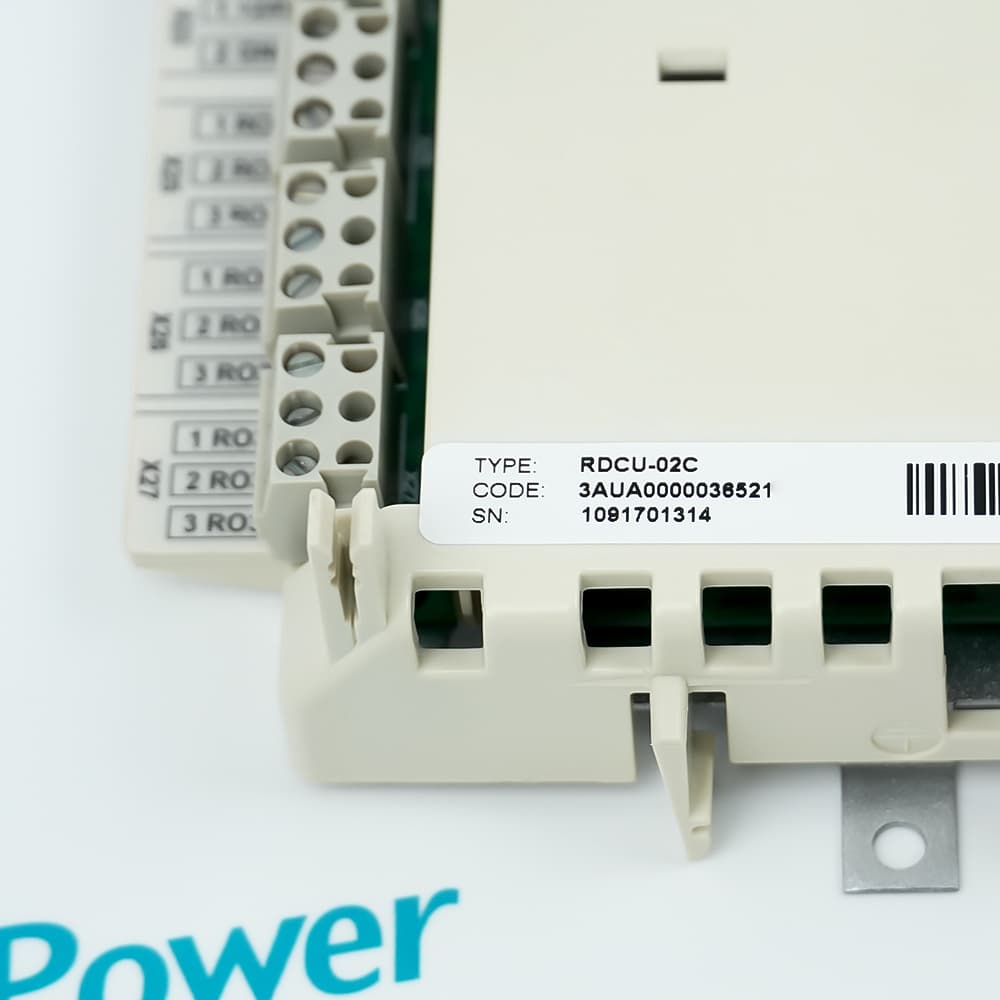

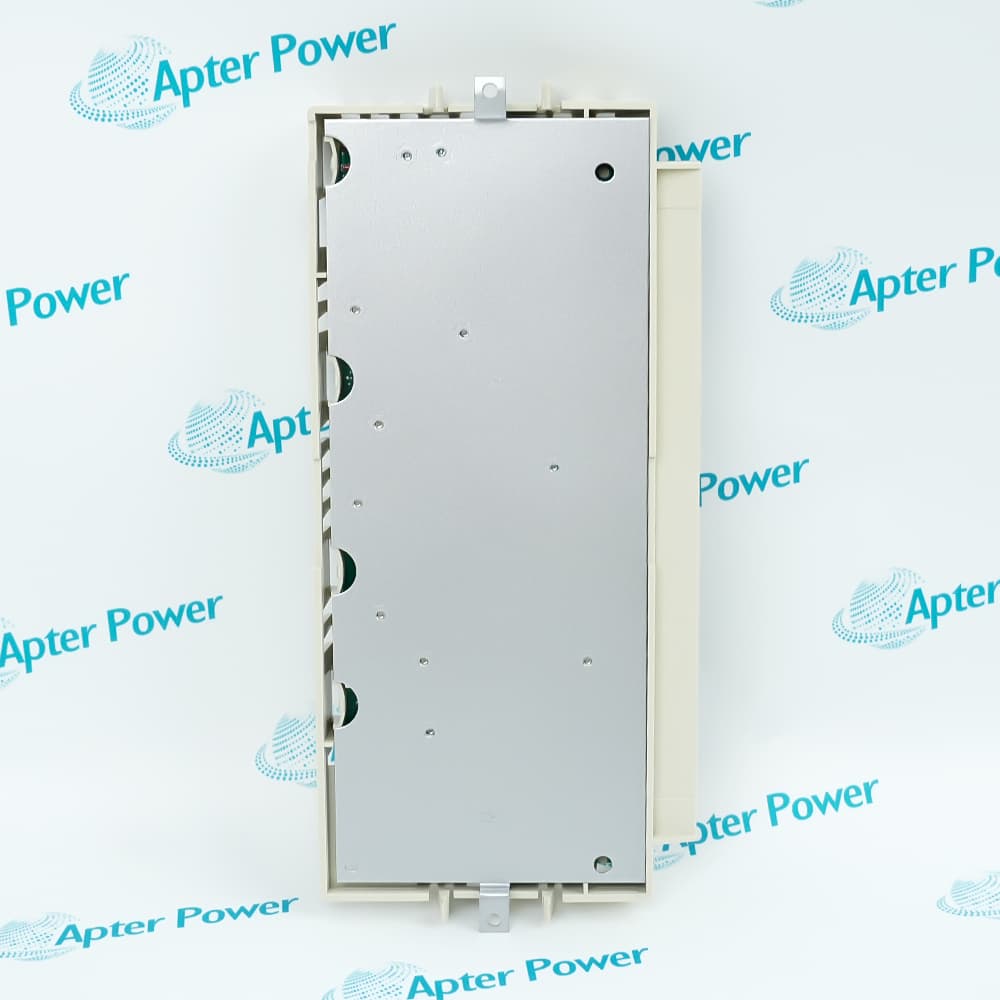

The ABB RDCU-02C ASXR7220 Drive Control Unit is a versatile, DIN rail-mountable control solution with rugged construction, diverse I/O connectivity, and fibre optic communication, engineered for reliable operation in industrial drive systems.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for RDCU-02C ASXR7220
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for RDCU-02C ASXR7220

  • Manufacturer:
    ABB
  • Part Number:
    RDCU-02C ASXR7220
  • Product Family:
    ABB Drives
  • Product Type:
    Drive Control Unit
  • Stock:
    1
  • Mounting:
    Onto 35 × 7.5 mm DIN mounting rail
  • Housing materials:
    Zinc-plated steel (base); ABS/PC (cover)
  • X20 (Constant voltage output):
    2-pole detachable screw terminal block
  • X21 (Analogue I/O):
    Four 3-pole detachable screw-type terminal blocks
  • X22 (Digital inputs):
    One 3-pole and two 4-pole detachable screw-type terminal blocks
  • X23 (24 VDC output):
    2-pole detachable screw-type terminal block
  • X25-X27 (Relay outputs):
    Three 3-pole detachable screw-type terminal blocks
  • X31 (Slot 1), X32 (Slot 2):
    38-pin header (female), pitch 2 mm
  • X33 (DDCS):
    20-pin header (female), pitch 2.54 mm
  • X34 (24 VDC power input):
    3-pole detachable screw-type terminal block
  • X39 (Control panel):
    12-pin header (male), pitch 2.54 mm
  • V57, V68 (PPCS link):
    Fibre optic transmitter/receiver (10 MBd)
  • Weight:
    0.58 kg
  • Estimated shipping dimensions:
    12.6x4x28.1cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Monitoring & Control Temperature & Humidity Range

Features:

  • Central Hub Linking the Drive Power Stage and External Automation Networks
  • Integrates High-Speed Motor Control Algorithms with Multi-Protocol Fieldbus Connectivity
  • Functions Seamlessly Across ACS800, ACS880, and Other Compatible ABB Drive Architectures
The ABB RDCU-02C ASXR7220 RDCU Drive Control Unit serves as the core intelligence module within ABB variable frequency drive systems, delivering precise gate control pulses to all IGBT power modules throughout the inverter section. It persistently computes complex vector control routines, interprets speed and position feedback from resolver or encoder interfaces, and transmits synchronized PWM commands via optical fiber channels to maintain continuous torque production and speed regulation across all motor phases. Built-in communication redundancy is inherent to the RDCU-02C ASXR7220 design, though deploying an optional Dual Control Configuration enables instantaneous takeover by a standby RDCU-02C ASXR7220 module should the primary processor encounter a fault condition. The RDCU-02C ASXR7220 introduces significant advancements over earlier RDCU generations, notably incorporating expanded memory resources and faster cycle times within the drive control framework.

The RDCU-02C ASXR7220 delivers fundamental control services shared by every component in the drive lineup, standing as an indispensable element of the closed-loop control chain, with its performance directly governing the correct, uninterrupted functioning of the complete drive assembly. Individual or paired RDCU-02C ASXR7220 units are mandated per drive installation based on the selected operational redundancy tier. The RDCU-02C ASXR7220 mounts in a specifically assigned control bay and permanently resides in the main controller slot.

For Parallel Redundant Control deployments, the ABB Drive System necessitates installation of an additional RDCU-02C ASXR7220 control module in the reserved redundant position. Beyond conventional single-controller mode, this backup arrangement facilitates autonomous control handover. The ABB redundant control topology implements failover through dedicated hardware watchdog circuits detailed in the RDCU-02C ASXR7220 technical specifications. Through this mechanism, the redundant architecture perpetually evaluates operational status of both active and standby RDCU-02C ASXR7220 modules. Upon identifying that the leading RDCU-02C ASXR7220 has ceased generating valid control sequences (deviating from preset voltage/frequency thresholds), the system autonomously redirects motor control authority to the alternate RDCU-02C ASXR7220 and logs the transition within the Drive Event Log.

The RDCU-02C ASXR7220 ABB Drive Control Unit may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB RDCU-02C ASXR7220 Drive Control Unit Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB RDCU-02C ASXR7220 Drive Control Unit Specs

General

  • Manufacturer ABB
  • Model RDCU-02C ASXR7220
  • Condition New Original ready stock
  • Product Family RDCO-01,RDCO-02
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Power Industry: Monitoring and controlling complex energy systems.
  • Petrochemicals: Managing intricate refining and distribution processes.
  • Water Treatment: Efficient monitoring and management of water distribution systems.
  • HVAC Systems: Controlling large-scale ventilation and air conditioning drives.
  • General Automation: Applied in machinery control, data acquisition, and automated industrial processes.
  • Real-Time Monitoring: Provides a clear display of critical drive parameters, settings, and real-time performance feedback via an intuitive interface.
  • Fault Diagnostics: Integrated branching unit functionality collects real-time data from converter modules to assist in fault tracing and analysis.
  • Connectivity: Supports remote access and monitoring through RS485 (Modbus RTU) and high-speed fiber-optic links for drive-to-drive communication.
  • Storage Temperature: -40°C to +70°C (-40°F to +158°F).
  • Operating Temperature: 0°C to +50°C (32°F to +122°F).
  • Operating Altitude: Rated for performance up to 1000m without derating.
  • Environmental Protection: Features conformal coating (indicated by the "C" suffix) to provide superior resistance against moisture, salt spray, and corrosive industrial contaminants.
Description
The RDCU-02C ASXR7220 is an ABB Drive Control Unit designed specifically for managing and controlling industrial drive systems. The RDCU-02C ASXR7220 is engineered to address the challenges of precise motor speed regulation, torque control, and system coordination in demanding industrial environments. By integrating advanced control logic, the RDCU-02C ASXR7220 effectively resolves issues related to drive synchronization, fault diagnostics, and process optimization, ensuring stable and efficient motor operation across various load conditions.

The RDCU-02C ASXR7220 finds extensive application across multiple industrial sectors, including pulp and paper manufacturing, where it controls high-precision roller drives; metal processing industries, where it manages rolling mill motors requiring exact torque delivery; and water treatment facilities, where it regulates pump and fan operations for energy-efficient flow control. The RDCU-02C ASXR7220 is also widely deployed in mining operations for conveyor belt systems, in chemical plants for mixer and agitator control, and in HVAC systems for large-scale climate management. The RDCU-02C ASXR7220 supports seamless integration with ABB's DCS and PLC systems through standard fieldbus protocols, enabling centralized monitoring and distributed control architectures.

For installation and integration, the RDCU-02C ASXR7220 is designed for straightforward mounting within ABB's standardized drive modules, featuring plug-in connectors that simplify wiring and reduce commissioning time. The RDCU-02C ASXR7220 interfaces directly with power modules, I/O extension boards, and encoder feedback devices, creating a cohesive drive control ecosystem. When integrating the RDCU-02C ASXR7220 into existing automation infrastructures, engineers should verify firmware compatibility between the control unit and connected drive components, ensure proper grounding and shielding practices to maintain electromagnetic compatibility, and configure the fieldbus parameters to match the plant's communication network specifications. The RDCU-02C ASXR7220 supports parameter cloning functionality, allowing rapid deployment of identical configurations across multiple drive units.
Alternative Names
RDCU-O2C RDCU02C RDCUO2C ASXR7220 RDCU-O2C ASXR722O RMIO-12 AINT-02C RDCU-02
Technical notes
The ABB RDCU-02C ASXR7220 is a DIN-rail mounted drive control unit specifically engineered for ACS800 series industrial drives, featuring a robust conformally-coated design for harsh environments, 24V DC operation, and advanced fiber-optic connectivity to provide precise motor control and seamless fieldbus integration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the primary function of the RDCU-02C ASXR7220?
The RDCU-02C ASXR7220 serves as the core control unit of the drive system. It executes real-time motor control algorithms, processes application firmware, generates precise PWM commands, and coordinates communication between power modules and peripheral devices.
How does the RDCU-02C ASXR7220 improve drive performance?
The unit delivers accurate pulse-width modulation (PWM) control while managing high-speed data transmission through integrated fiber optic communication, helping maximize drive reliability and overall system efficiency.
What problems does the RDCU-02C ASXR7220 solve?
It is designed to eliminate motor control instability, communication delays, inaccurate speed regulation, nuisance trips, and signal interference caused by harsh industrial electrical environments.
