ICSA04B5

/ 4.9
1001 reviews | Need a Specific Revision?

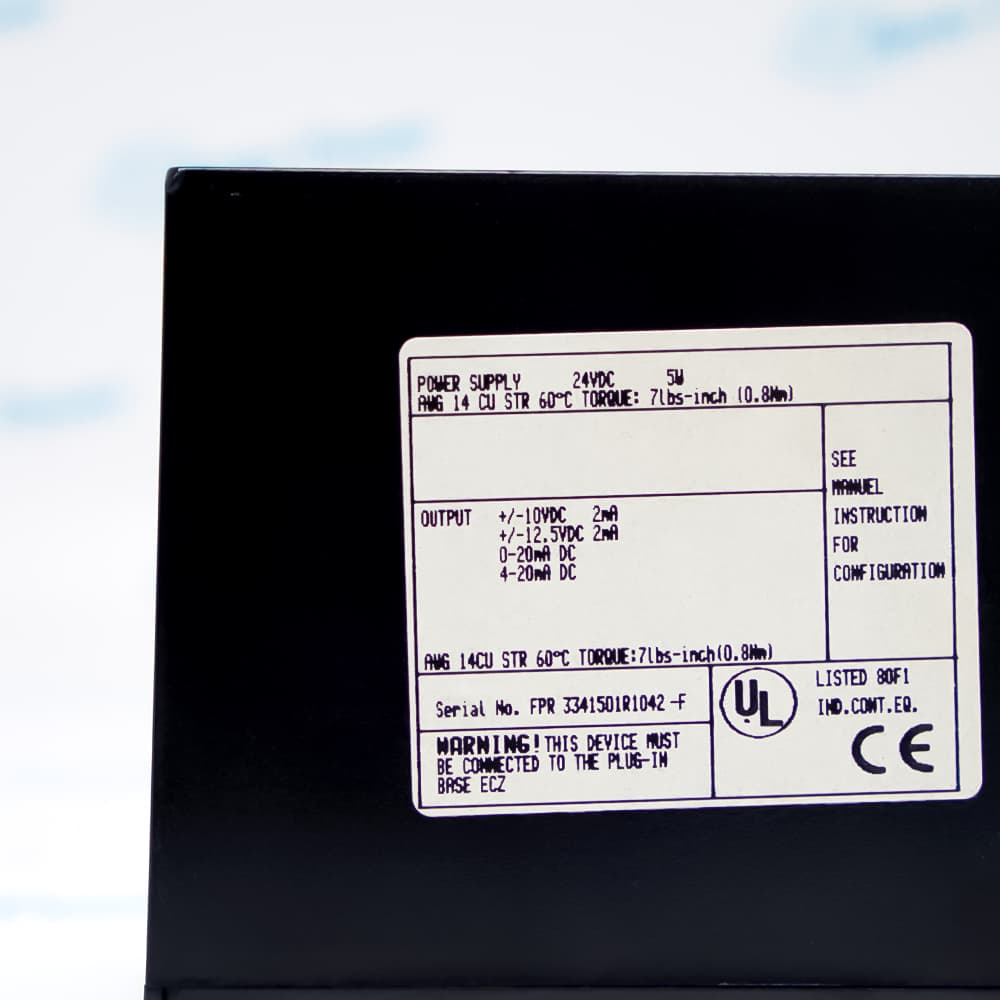

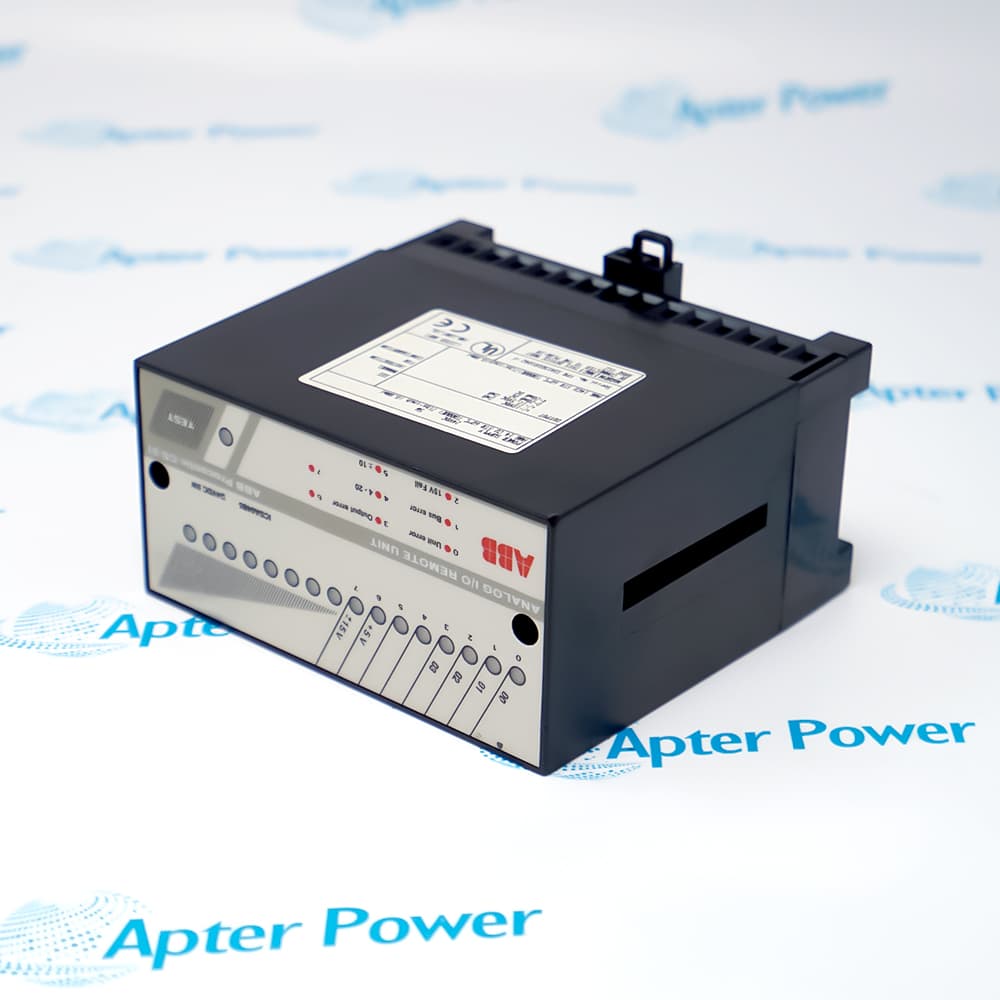

ABB ICSA04B5 FPR3341501R1042 is a 24 V DC analog output unit with four 12-bit current or voltage output channels for ABB AC31 control systems.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for ICSA04B5
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for ICSA04B5

  • Manufacturer:
    ABB
  • Part Number:
    ICSA04B5
  • Product Family:
    ABB Procontic
  • Product Type:
    12-bit Analog Output Unit
  • Stock:
    1
  • ABB Product ID:
    FPR3341501R1042
  • Output Channels:
    4
  • Resolution:
    12 bit
  • Supply:
    24 V DC
  • Output Formats:
    +/-10 V; 0-20 mA; 4-20 mA
  • Weight:
    0.28 kg
  • Tariff Code:
    85371091
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Signal Selection Wiring Review Ordering Check

Features:

  • Four output channels: The official AC31 documentation identifies four analog output channels.
  • 12-bit conversion: The documented analog output resolution is 12 bit.
  • Selectable signals: Documented formats include +/-10 V, 0-20 mA, and 4-20 mA.
The ABB ICSA04B5 is an AC31 analog output unit identified by product ID FPR3341501R1042. ABB describes it as a 12-bit analog output device for 24 V DC control hardware.

The ABB ICSA04B5 provides four current or voltage output channels. The documented output formats include +/-10 V, 0-20 mA, and 4-20 mA, selected according to the installed AC31 arrangement.

Before ordering ABB ICSA04B5, verify the complete product ID, channel signal type, rear switch settings, field wiring, and installed controller documentation. The ABB product page groups its downloads under an obsolete heading.

The ABB ICSA04B5 FPR3341501R1042 analog output unit may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB ICSA04B5 FPR3341501R1042 Manuals and Resources Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB ICSA04B5 FPR3341501R1042 12-bit Analog Output Unit Specs

General

  • ManufacturerABB
  • ModelICSA04B5 FPR3341501R1042
  • ConditionNew Original ready stock
  • Product FamilyABB Procontic / AC31
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Voltage mode: Verify the documented +/-10 V setting.
  • Current mode: Confirm 0-20 mA or 4-20 mA selection.
  • Switch record: Photograph rear switch positions before removal.
  • Scaling: Preserve engineering-unit scaling in the controller.
  • Channel count: Keep the installation within four outputs.
  • Common reference: Trace field reference and return conductors.
  • Load check: Confirm the connected current or voltage load.
  • Commissioning: Test each output under controlled conditions.
  • Model: Match ICSA04B5 exactly.
  • Product ID: Match FPR3341501R1042 in full.
  • System: Confirm the ABB AC31 installation.
  • Lifecycle: Plan sourcing around the OEM-obsolete status.
Description

The ABB ICSA04B5 is an AC31 analog output unit identified by product ID FPR3341501R1042. ABB describes it as a 12-bit analog output device for 24 V DC control hardware.

The ABB ICSA04B5 provides four current or voltage output channels. The documented output formats include +/-10 V, 0-20 mA, and 4-20 mA, selected according to the installed AC31 arrangement.

Before ordering ABB ICSA04B5, verify the complete product ID, channel signal type, rear switch settings, field wiring, and installed controller documentation. The ABB product page groups its downloads under an obsolete heading.

Alternative Names
ABB ICSA04B5 ICSA04B5 ICSA 04 B5 ICSA04 B5 FPR3341501R1042 FPR 334 1501 R1042 ABB AC31 ICSA04B5 AC31 analog output unit
Technical notes
ABB ICSA04B5 FPR3341501R1042 is a 12-bit analog output unit documented for ABB Procontic / AC31. Verify the complete model, part number, installed system, and connector layout before ordering.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How should ICSA04B5 FPR3341501R1042 be matched to an existing AC31 application?
Confirm the four-channel requirement, selected output format, rear switch positions, channel scaling, controller type, and field wiring against the installed AC31 documentation.
Can ICSA04B5 FPR3341501R1042 be changed between voltage and current output without re-engineering?
ABB documentation lists +/-10 V, 0-20 mA, and 4-20 mA output formats, but the switch selection, connected load, wiring, and controller scaling must all support the chosen format.
What should technicians record before replacing ICSA04B5 FPR3341501R1042?
Record every channel terminal, common and return conductor, polarity, cable label, rear switch position, controller channel assignment, and engineering-unit scale.
What should be checked if one ICSA04B5 FPR3341501R1042 channel has no output after installation?
Check the 24 V DC supply, selected output format, channel configuration, terminal wiring, connected load, controller command, and module diagnostics.
How should ICSA04B5 FPR3341501R1042 outputs be commissioned safely?
Keep connected machinery in a safe state, test one channel at a time with controlled commands, and compare the measured output with the approved project scale.
Which cabinet conditions can affect ICSA04B5 FPR3341501R1042 reliability?
Check power quality, grounding, shielding, ventilation, temperature, humidity, and contamination against the limits for the installed AC31 system.
Which system records help engineers confirm ICSA04B5 FPR3341501R1042 compatibility?
Provide the controller and rack configuration, I/O list, wiring drawings, signal formats, channel scaling, project backup, and clear installed-unit photographs.
What should an RFQ for ICSA04B5 FPR3341501R1042 include?
State quantity, condition, destination, required date, complete label details, required signal format, controller type, and documentation needs.
